XZU605-TPTQY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )6F

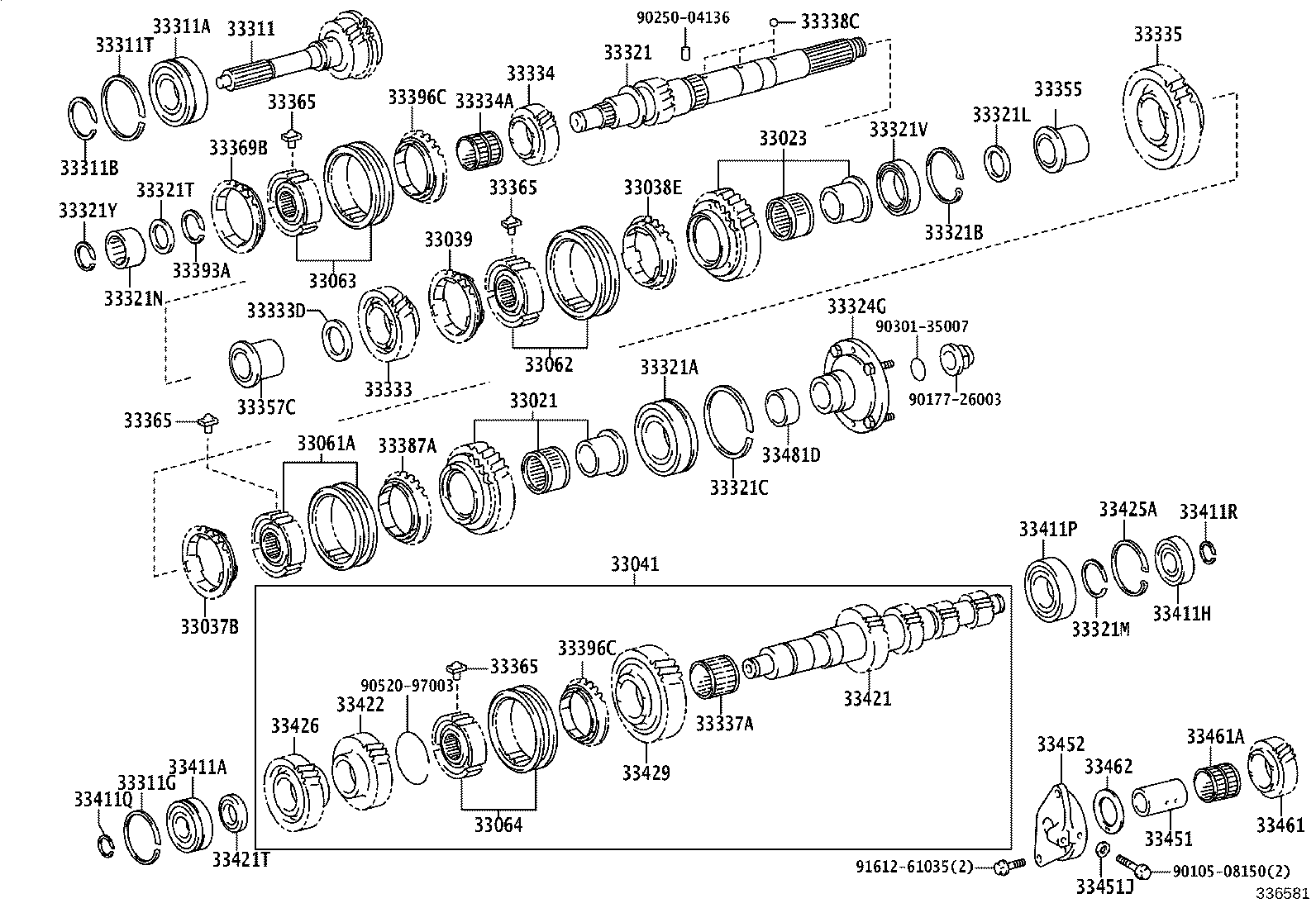

Click highlighted areas on diagram

RE62

diagram 33021 33023 33037B 33038E 33039 33041 33061A 33062 33063 33064 33311 33311A 33311B 33311G 33311T 33321 33321A 33321B 33321C 33321L 33321M 33321N 33321T 33321V 33321Y 33324G 33333 33333D 33334 33334A 33335 33337A 33338C 33355 33357C 33365 33365 33365 33365 33369B 33387A 33393A 33396C 33396C 33411A 33411H 33411P 33411Q 33411R 33421 33421T 33422 33425A 33426 33429 33451 33451J 33452 33461 33461A 33462 33481D 9010508150 9017726003 9025004136 9030135007 9052097003 9161261035
Part # Description Qty Price
33023 - GEAR SET, 2ND
33023-37050

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33039 - RING SET, SYNCHRONIZER, NO.3
33039-37040

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33041 - GEAR SET, COUNTER
33041-37090

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33063 - SLEEVE SUB-ASSY, TRANSMISSION, NO.3
33063-37030

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33064 - SLEEVE SUB-ASSY, TRANSMISSION, NO.4
33064-37010

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33311 - SHAFT, INPUT
33301-37270

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33321 - SHAFT, OUTPUT
33321-37130

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
90520-99009

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

内径=106.1,外径=115.64

 1
33324G - FLANGE, OUTPUT SHAFT COMPANION (MTM)
33309-37031

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33333 - GEAR, 3RD
33034-37110

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33333D - SPACER (FOR 3RD GEAR)
90560-59001

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33334 - GEAR, 4TH
33035-37010

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR)
90364-48020

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33335 - GEAR, 1ST
33335-37120

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33337A - BEARING, NEEDLE ROLLER (FOR 6TH GEAR)
90364-55005

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33357C - RACE, 3RD GEAR BEARING, INNER
33357-37010

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-37060

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 12
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-37060

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 12
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-37060

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 12
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-37060

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 12
33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
90520-41025

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

厚さ=2.32,ﾏｰｸ F

 1
90520-41029

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

厚さ=2.52,ﾏｰｸ K

 1
90520-41024

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

厚さ=2.27,ﾏｰｸ E

 1
90520-41027

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

厚さ=2.42,ﾏｰｸ H

 1
90520-41028

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

厚さ=2.47,ﾏｰｸ J

 1
90520-41026

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

厚さ=2.37,ﾏｰｸ G

 1
33396C - RING, SYNCHRONIZER, NO.5(MTM)
33396-37030

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 2
33396C - RING, SYNCHRONIZER, NO.5(MTM)
33396-37030

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 2
33421 - GEAR, COUNTER
33421-37210

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33422 - GEAR, COUNTER SHAFT 4TH SPEED
33422-37030

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33426 - GEAR, COUNTER SHAFT DRIVE
33421-37190

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33429 - GEAR, COUNTERSHAFT 6TH
33429-37020

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33451 - SHAFT, REVERSE IDLER GEAR
33451-37040

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR)
33487-37050

XZC60#,630,645,655,XZU60#,630,64#,65#..6F

 1
Common parts
90105-08150
90177-26003
90250-04136
90301-35007
90520-97003
91612-61035
