XZU605-TPFQY3 (2021)
Toyota Dyna
(2103- )

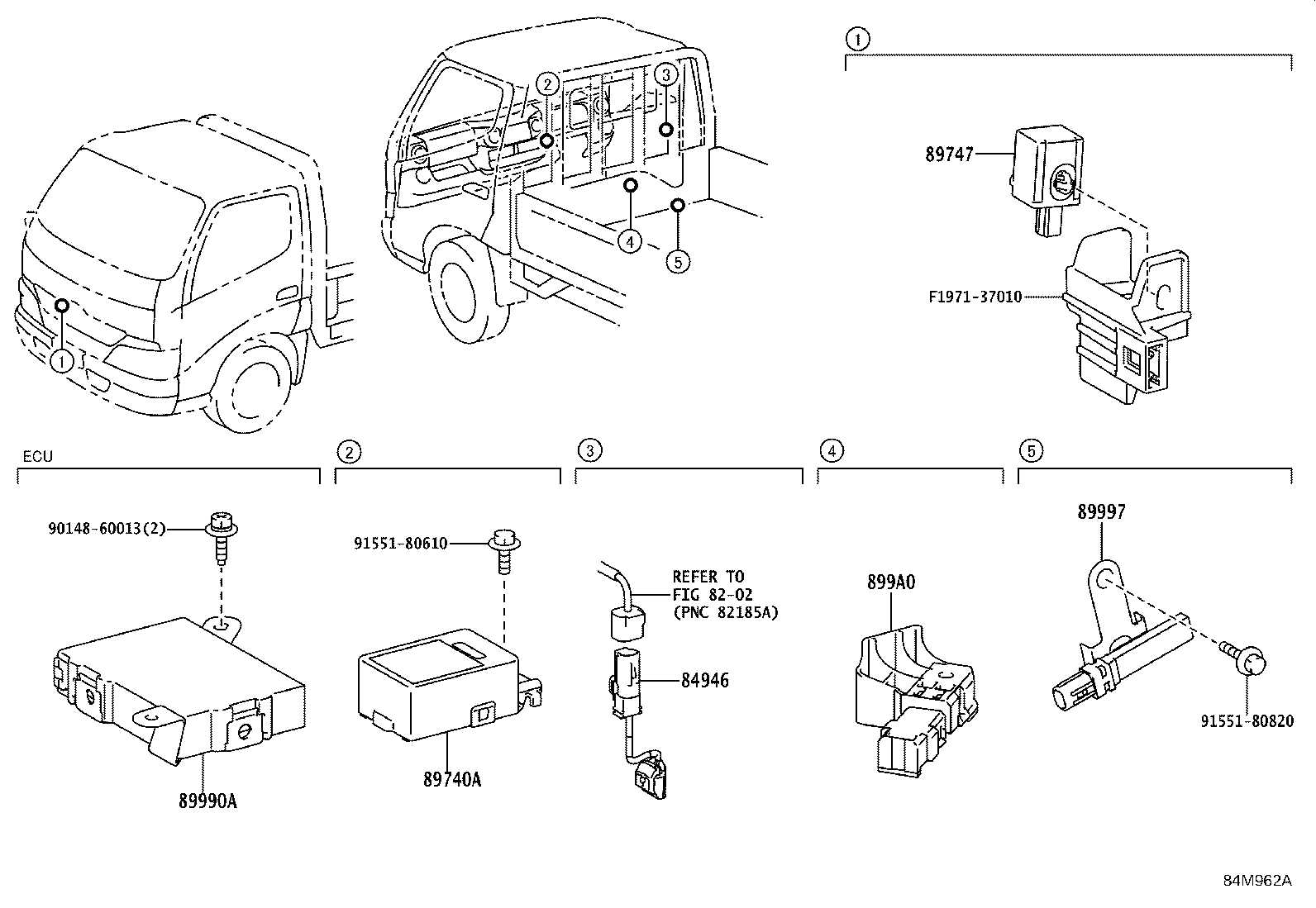

ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84946 - SWITCH, DOOR ELECTRICAL KEY | ||||
| 84946-37010 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89740A - RECEIVER ASSY, SMART DOOR CONTROL | ||||
| 89740-37010 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89740-37010 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-37010 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-37011 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89990-37011 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89997-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-37010 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 899A0-37010 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| Common parts | ||||
| 90148-60013 | ||||
| 91551-80610 | ||||
| 91551-80820 | ||||
| F1971-37010 | ||||
| Linked diagrams | ||||
| 8202 | ||||

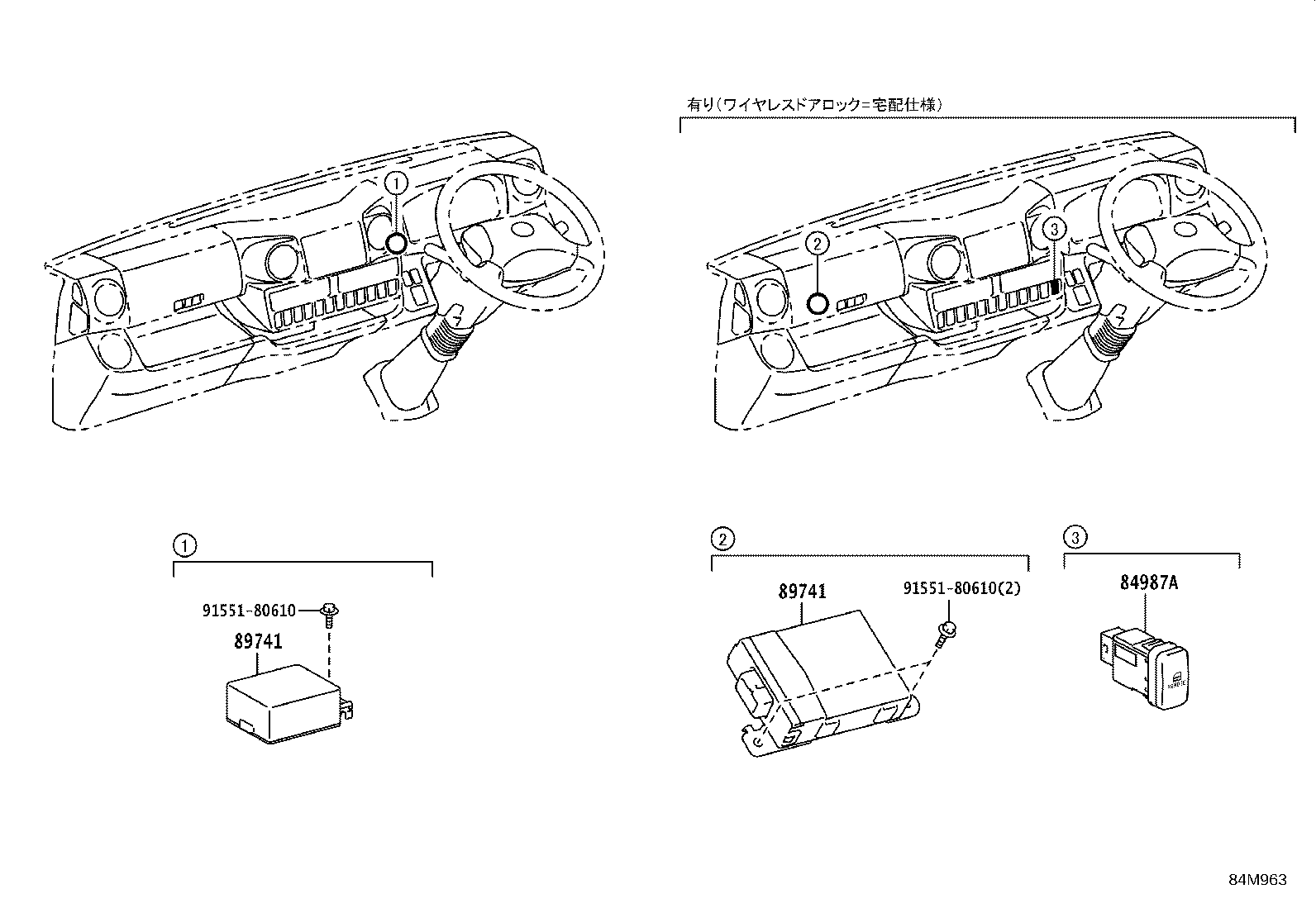

(2103- )
ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84987A - SWITCH, KEYLESS ENTRY CANCEL | ||||
| 84987-37021 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-37150 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89741-37150 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-37150 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 89741-37150 |
XZU650..30T;XZU650..T4..IV3;XZU650..T3..6F..20T..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| Common parts | ||||
| 91551-80610 | ||||
