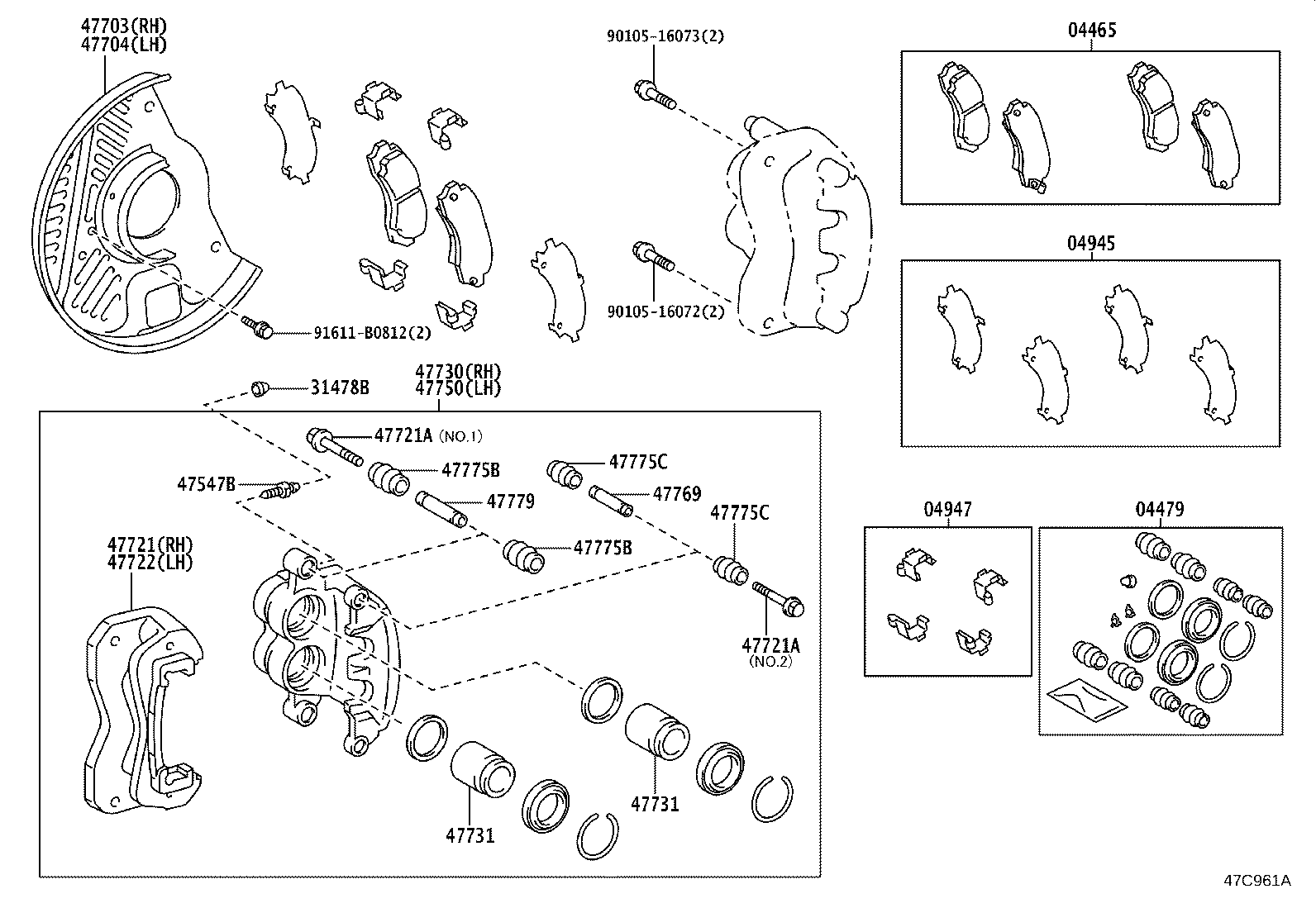

Toyota Dyna XZU605 FRONT DISC BRAKE CALIPER & DUST COVER

Part #	Description	Period	Qty
04465 - PAD KIT, DISC BRAKE, FRONT
04465-37250	XZU650..T3..(20T,30T);XZU600,605,645,655..30T;XZC675,XZU630,640,675,685,695..20T,30T;XZU600,605,655..(DM3,DM6,T2,T3,T5)..20T ﾏｰｸ AK NS265	03/2021 - 12/2999	1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
0447B-37021	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T	03/2021 - 12/2999	2
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-37230	XZU650..T3..(20T,30T);XZU600,605,645,655..30T;XZC675,XZU630,640,675,685,695..20T,30T;XZU600,605,655..(DM3,DM6,T2,T3,T5)..20T	03/2021 - 12/2999	1
04947 - FITTING KIT, DISC BRAKE, FRONT
0494A-37050	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T	03/2021 - 12/2999	2
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010	XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T	03/2021 - 12/2999	2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T	03/2021 - 12/2999	2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-37043	XZC605,645,655,XZU605,645,655	03/2021 - 12/2999	1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-37043	XZC605,645,655,XZU605,645,655	03/2021 - 12/2999	1
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-37180	XZU605,645,655..30T;XZC675,XZU675,685,695;XZU605,655..(DM6,T2,T3,T5)..20T	03/2021 - 12/2999	1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-12256	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T *12−1.25PX75−30,NO.1:ｲﾗｽﾄ参照	03/2021 - 12/2999	4
90119-08B87	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T *8−1.25PX59−27,NO.2:ｲﾗｽﾄ参照	03/2021 - 12/2999	4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-12256	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T *12−1.25PX75−30,NO.1:ｲﾗｽﾄ参照	03/2021 - 12/2999	4
90119-08B87	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T *8−1.25PX59−27,NO.2:ｲﾗｽﾄ参照	03/2021 - 12/2999	4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-37180	XZU605,645,655..30T;XZC675,XZU675,685,695;XZU605,655..(DM6,T2,T3,T5)..20T	03/2021 - 12/2999	1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-37180	XZU605,645,655..30T;XZC675,XZU675,685,695;XZU605,655..(DM6,T2,T3,T5)..20T	03/2021 - 12/2999	1
47731 - PISTON, FRONT DISC BRAKE
47731-36020	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T	03/2021 - 12/2999	4
47731 - PISTON, FRONT DISC BRAKE
47731-36020	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T	03/2021 - 12/2999	4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-37180	XZU605,645,655..30T;XZC675,XZU675,685,695;XZU605,655..(DM6,T2,T3,T5)..20T	03/2021 - 12/2999	1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-36030	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T	03/2021 - 12/2999	4
47775B - BOOT, BUSH DUST, NO.1
47775-36050	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T	03/2021 - 12/2999	8
47775B - BOOT, BUSH DUST, NO.1
47775-36050	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T	03/2021 - 12/2999	8
47775C - BOOT, BUSH DUST, NO.2
47775-36040	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T	03/2021 - 12/2999	8
47775C - BOOT, BUSH DUST, NO.2
47775-36040	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T	03/2021 - 12/2999	8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-36010	XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T	03/2021 - 12/2999	4
Common parts
90105-16072
90105-16073
91611-B0812

XZU605-TPFQY3 (2021)

(2103- )XZU605,645,655
