XZU605-TPFQY3 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

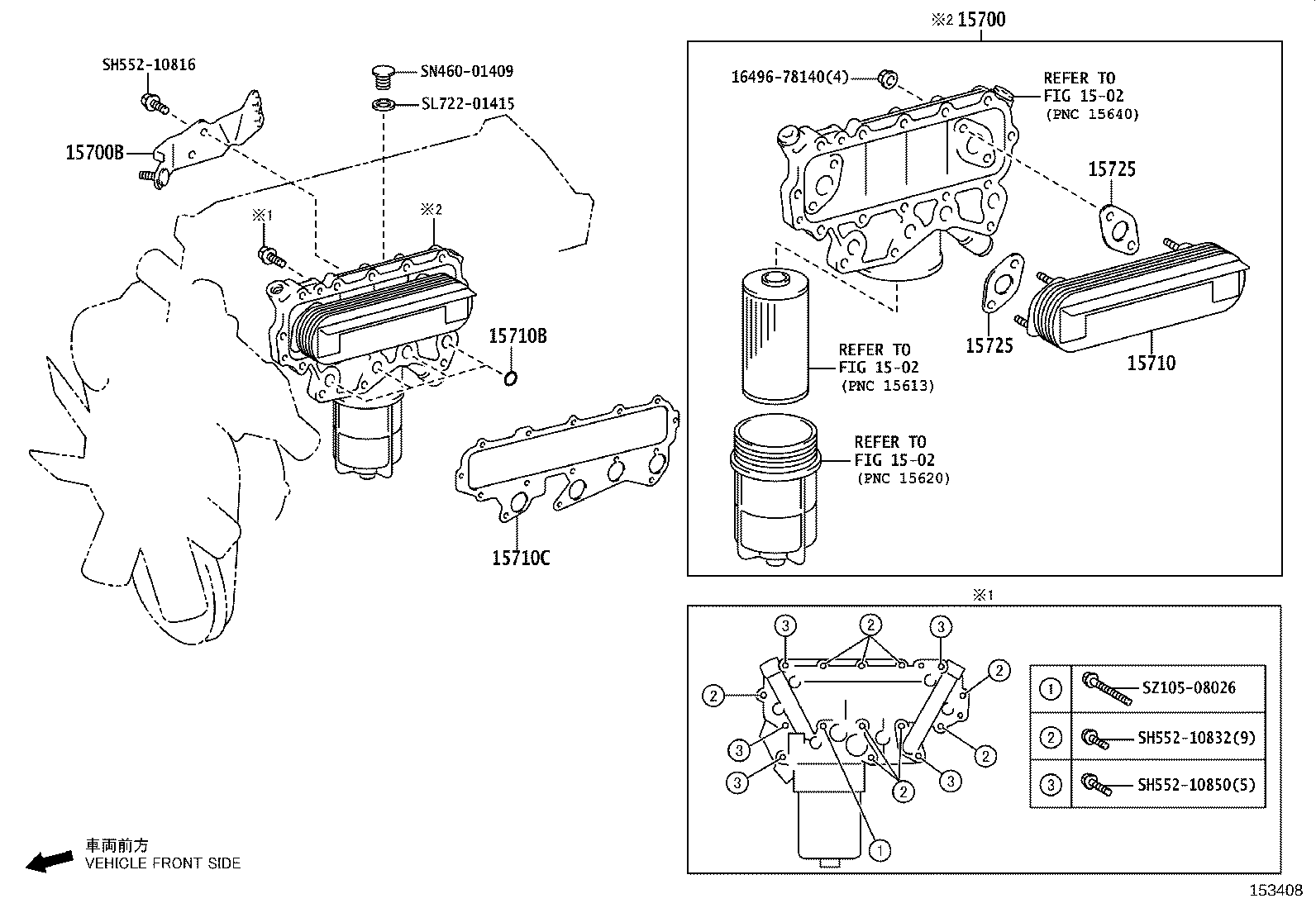

Click highlighted areas on diagram

diagram 1502 1502 1502 15700 15700B 15710 15710B 15710C 15725 15725 1649678140 SH55210816 SH55210832 SH55210850 SL72201415 SN46001409 SZ10508026
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-78140

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7

 1
15700B - BRACKET(FOR OIL COOLER)
16269-78090

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
15710 - COOLER ASSY, OIL
16491-78140

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7

 1
15710B - RING, O(FOR OIL COOLER)
SZ301-19018

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 4
15710C - GASKET(FOR OIL COOLER)
15725-E0020

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
15725 - GASKET, OIL COOLER COVER
15785-EV010

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
15725 - GASKET, OIL COOLER COVER
15785-EV010

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
Common parts
16496-78140
SH552-10816
SH552-10832
SH552-10850
SL722-01415
SN460-01409
SZ105-08026
Linked diagrams
1502
