XZU605-TGTMY3 (2021)
Toyota Dyna

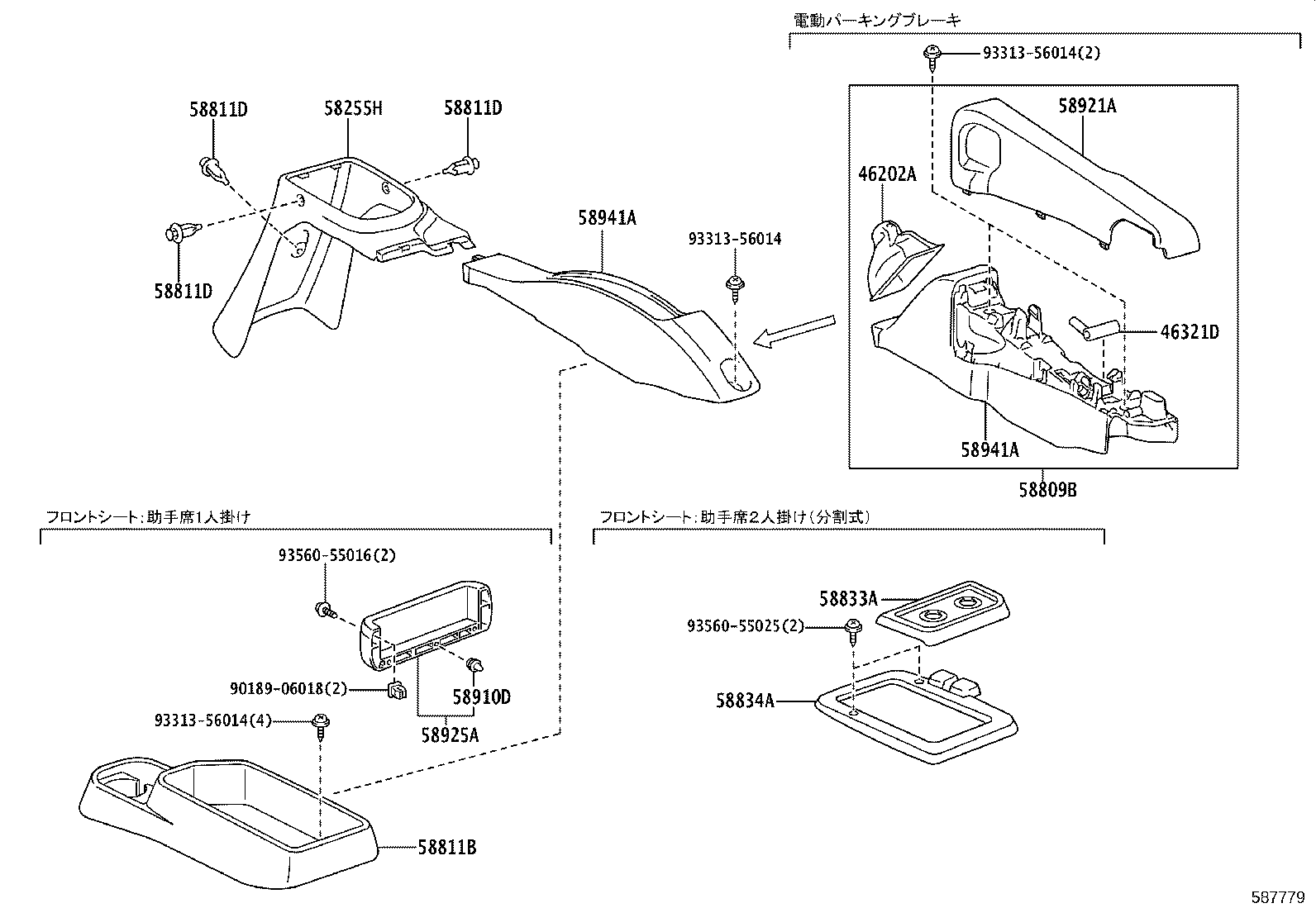

ILLUST NO. 1 OF 2(2103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46202A - BOOT SUB-ASSY, PARKING BRAKE LEVER | ||||
| 46202-37010C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB BLACK,TRIM1# |
1 | ||
| 46202-37010C0 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46202-37010C0 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46321D - LEVER, PARKING BRAKE, CENTER | ||||
| 46321-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 58255H - COVER, SHIFT LEVER BOOT | ||||
| 58255-37080B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 58809B - COVER SUB-ASSY, PARKING BRAKE HOLE | ||||
| 58809-37010B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB GRAY,TRIM1# |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58811-37042B1 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,GRAY,TRIM1# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07191C1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
3 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07191C1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
3 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07191C1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
3 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58839-37010B1 |
XZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 58839-37010B1 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 58839-37010B1 |
XZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58839-37010B1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 58839-37010B1 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58839-37010B1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58839-37010B1 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 58839-37010B1 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 58839-37010B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58839-37010B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58839-37010B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 58839-37010B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 58839-37010B1 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58839-37010B1 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-25021B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 58834-25021B1 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 58834-25021B1 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 58834-25021B1 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58834-25021B1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58834-25021B1 |
XZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 58834-25021B1 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 58834-25021B1 |
XZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58834-25021B1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 58834-25021B1 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58834-25021B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 58834-25021B1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58834-25021B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58834-25021B1 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 53145-28010 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け |
3 | ||
| 58921A - PANEL, REAR CONSOLE, UPPER | ||||
| 58921-37030B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB GRAY,TRIM1# |
1 | ||
| 58925A - POCKET, CONSOLE BOX, REAR | ||||
| 67787-37040B1 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,GRAY,TRIM1# |
1 | ||
| 58941A - COVER, PARKING BRAKE HOLE | ||||
| 58941-37050B1 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ),GRAY,TRIM1# |
1 | ||
| 58941-37120B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB GRAY,TRIM1# |
1 | ||
| 58941-37050B1 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),GRAY,TRIM1# |
1 | ||
| 58941A - COVER, PARKING BRAKE HOLE | ||||
| 58941-37050B1 |
XZC60#,645,655,XZU600,605,640,645,650,655..SCB..6FC..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径178ﾐﾘ),GRAY,TRIM1# |
1 | ||
| 58941-37120B0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB GRAY,TRIM1# |
1 | ||
| 58941-37050B1 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90189-06018 | ||||
| 93313-56014 | ||||
| 93560-55016 | ||||
| 93560-55025 | ||||

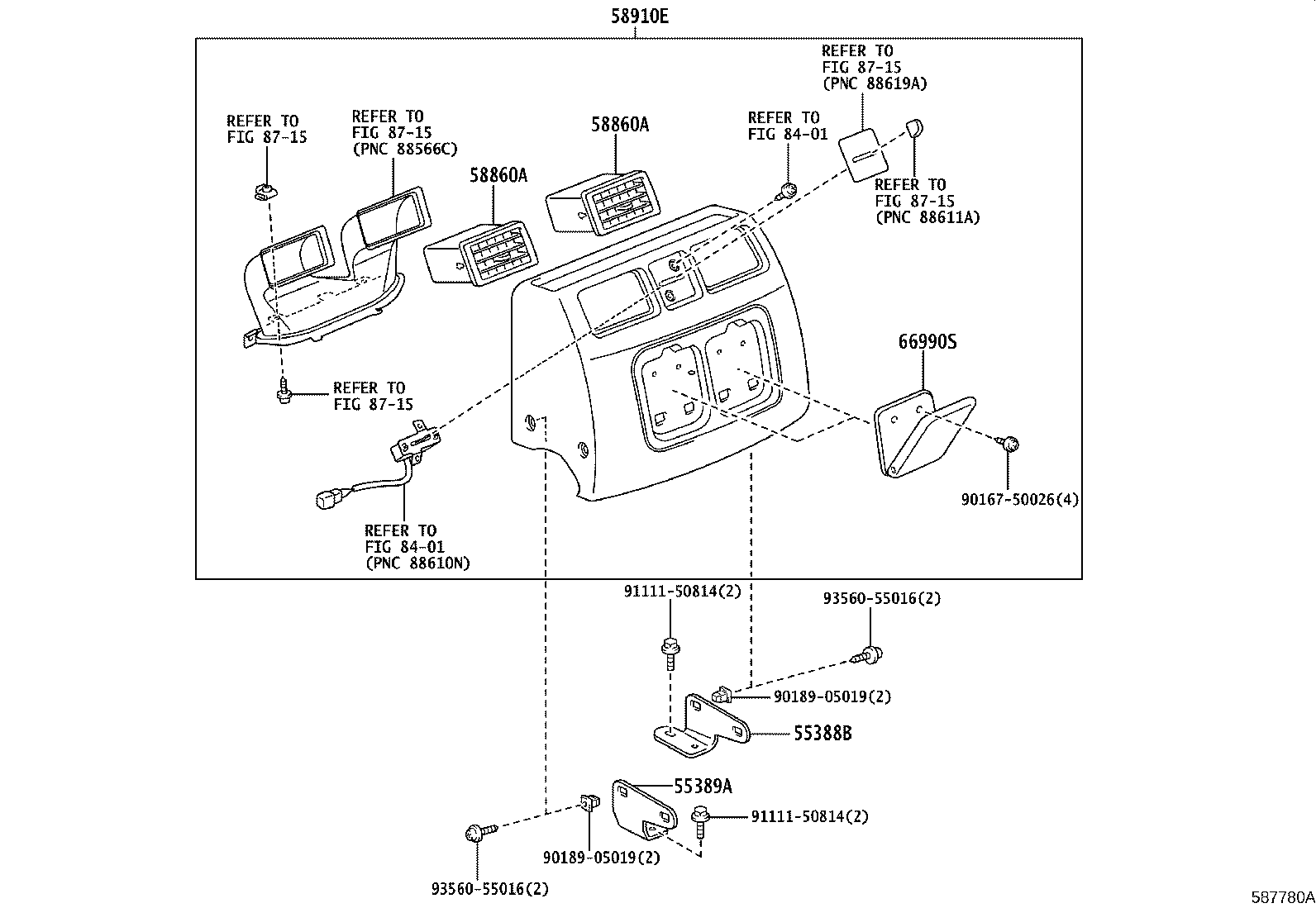

ILLUST NO. 2 OF 2(2103- )
ﾘﾔｺﾝｿｰﾙﾎﾞｯｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90167-50026 | ||||
| 90189-05019 | ||||
| 91111-50814 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8715 | ||||
