XZU605-TGTMY3 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

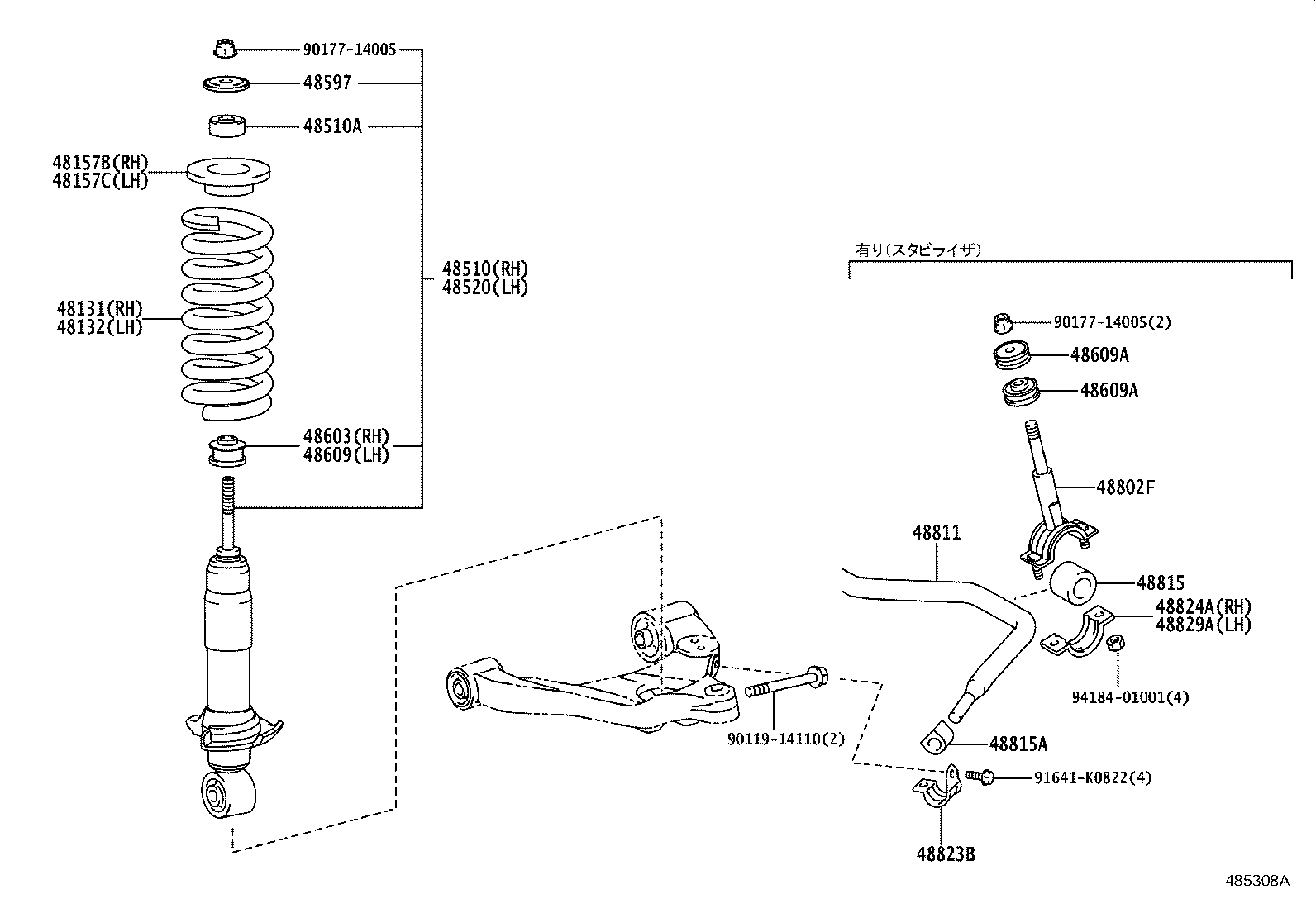

ILLUST NO. 1 OF 2(2103- )XZC605,645,655,XZU605,645,655

Click highlighted areas on diagram

diagram 48131 48132 48157B 48157C 48510 48510A 48520 48597 48603 48609 48609A 48609A 48802F 48811 48815 48815A 48823B 48824A 48829A 9011914110 9017714005 9017714005 91641K0822 9418401001
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-37210

XZC605,XZU605..(T2,T5)..20T

 1
48132 - SPRING, FRONT COIL, LH
48131-37140

XZC605,XZU605..(T2,T5)..20T

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48159-37010

XZC605,645,655,XZU605,645,655

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48159-37010

XZC605,645,655,XZU605,645,655

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80839

XZC605,645,655,XZU605,645,655

ﾏｰｸ 48510−37081

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
48507-37010

XZC605,645,655,XZU605,645,655

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-80839

XZC605,645,655,XZU605,645,655

ﾏｰｸ 48510−37081

 1
48597 - RETAINER, SHOCK ABSORBER CUSHION
48597-37010

XZC605,645,655,XZU605,645,655

 2
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-37020

XZC605,645,655,XZU605,645,655

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-37020

XZC605,645,655,XZU605,645,655

 1
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-37020

XZU600,640,650,652..SCB..(DM3,DM6,T3,T4);XZC605,645,655,XZU602,605,642,645,655..IV3,IV5,IV6

 4
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-37020

XZU600,640,650,652..SCB..(DM3,DM6,T3,T4);XZC605,645,655,XZU602,605,642,645,655..IV3,IV5,IV6

 4
48802F - LINK SUB-ASSY, FRONT STABILIZER
48802-37081

XZC605,645,655,XZU605,645,655..IV3,IV5,IV6

 2
48811 - BAR, STABILIZER, FRONT
48811-37100

XZC605,645,655,XZU605,645,655..IV3,IV5,IV6

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-37110

XZC605,645,655,XZU605,645,655..IV3,IV5,IV6

 2
48815A - BUSH, FRONT STABILIZER BAR, NO.2
48815-25060

XZC605,645,655,XZU605,645,655..IV3,IV5,IV6

 2
48823B - COVER, FRONT STABILIZER BRACKET
48823-25020

XZC605,645,655,XZU605,645,655..IV3,IV5,IV6

 2
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-37061

XZU600,640,650,652..SCB..(DM3,DM6,T3,T4);XZC605,645,655,XZU602,605,642,645,655..IV3,IV5,IV6

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-37061

XZU600,640,650,652..SCB..(DM3,DM6,T3,T4);XZC605,645,655,XZU602,605,642,645,655..IV3,IV5,IV6

 1
Common parts
90119-14110
90177-14005
91641-K0822
94184-01001
