XZU605-TGFMY3 (2021)
Toyota Dyna

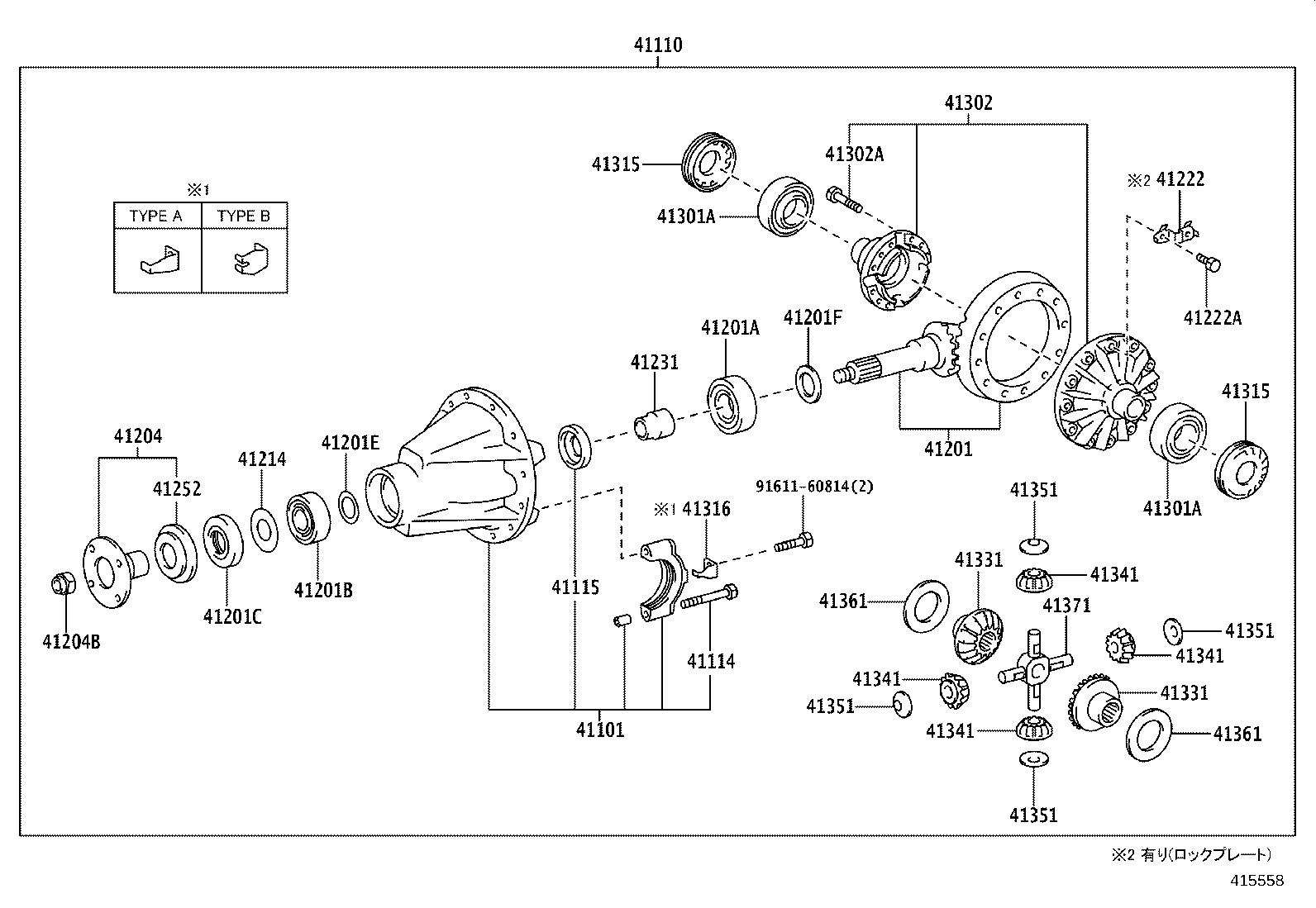

ILLUST NO. 1 OF 2(2103- )XZU605,655..T2 ; (2103- )XZC60#,630,645,655
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37070 |
XZU605,655..T2;XZC605,655..(T3,T5)..6FC;XZC60#,645,655..DM5,T2,T4 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37581 |
XZU605,655..T2;XZC605..T2..6F;XZC60#..(DM5,T2,T4)..6FC *FGR=43:12=3.583 |
1 | ||
| 41110-37640 |
XZU655..T2..6F;XZC605,655,XZU605..(T2,T3)..6F *FGR=39:10=3.900,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−10.5ｲﾝﾁ,最終減速艨≠R.900 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-16022 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-37010 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-37390 |
XZU655..T2..6F;XZC605,655,XZU605..(T2,T3)..6F *FGR=39:10=3.900,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−10.5ｲﾝﾁ,最終減速艨≠R.900 |
1 | ||
| 41201-37351 |
XZU605,655..T2;XZC605..T2..6F;XZC60#..(DM5,T2,T4)..6FC *FGR=43:12=3.583 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40100 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-35108 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-48024 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-35021 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.84 |
1 | ||
| 90564-35020 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.82 |
1 | ||
| 90564-35024 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.90 |
1 | ||
| 90564-35026 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.10 |
1 | ||
| 90564-35027 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.20 |
1 | ||
| 90564-35025 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.00 |
1 | ||
| 90564-35019 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.80 |
1 | ||
| 90564-35031 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.60 |
1 | ||
| 90564-35028 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.30 |
1 | ||
| 90564-35029 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.40 |
1 | ||
| 90564-35036 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.81 |
1 | ||
| 90564-35037 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.83 |
1 | ||
| 90564-35034 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.90 |
1 | ||
| 90564-35022 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.86 |
1 | ||
| 90564-35035 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=3.00 |
1 | ||
| 90564-35023 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.88 |
1 | ||
| 90564-35033 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.80 |
1 | ||
| 90564-35040 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.89 |
1 | ||
| 90564-35030 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.50 |
1 | ||
| 90564-35039 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.87 |
1 | ||
| 90564-35038 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.85 |
1 | ||
| 90564-35032 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.70 |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-40008 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.125 |
1 | ||
| 90564-40004 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.05 |
1 | ||
| 90564-40009 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.15 |
1 | ||
| 90564-40012 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.225 |
1 | ||
| 90564-40007 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.10 |
1 | ||
| 90564-40011 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.20 |
1 | ||
| 90564-40006 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.075 |
1 | ||
| 90564-40010 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.175 |
1 | ||
| 90564-40021 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.45 |
1 | ||
| 90564-40013 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.25 |
1 | ||
| 90564-40018 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.375 |
1 | ||
| 90564-40017 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.35 |
1 | ||
| 90564-40022 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.475 |
1 | ||
| 90564-40023 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.50 |
1 | ||
| 90564-40020 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.425 |
1 | ||
| 90564-40015 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.30 |
1 | ||
| 90564-40016 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.325 |
1 | ||
| 90564-40014 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.275 |
1 | ||
| 90564-40025 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.55 |
1 | ||
| 90564-40019 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.40 |
1 | ||
| 90564-40024 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.525 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37100 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-22029 |
XZU605,655..T2;XZC60#,630,645,655 外径=43 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-37010 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90105-14183 |
XZU605,655..T2;XZC605,655..(T3,T5)..6FC;XZC60#,645,655..DM5,T2,T4 |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36040 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-37020 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-52004 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-52004 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37060 |
XZU605,655..T2;XZC605,655..(T3,T5)..6FC;XZC60#,645,655..DM5,T2,T4 |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12087 |
XZU605,655..T2;XZC60#,630,645,655 |
12 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-36011 |
XZU605,655..T2;XZC60#,630,645,655 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 41317-36011 |
XZU605,655..T2;XZC60#,630,645,655 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36020 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36020 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60011 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.60 |
2 | ||
| 41361-60031 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.90 |
2 | ||
| 41361-60021 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.75 |
2 | ||
| 41361-60500 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.70 |
2 | ||
| 41361-60530 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.95 |
2 | ||
| 41361-60480 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.55 |
2 | ||
| 41361-60490 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.65 |
2 | ||
| 41361-60510 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.80 |
2 | ||
| 41361-60540 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.00 |
2 | ||
| 41361-60550 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.10 |
2 | ||
| 41361-60041 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.05 |
2 | ||
| 41361-60520 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.85 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60011 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.60 |
2 | ||
| 41361-60031 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.90 |
2 | ||
| 41361-60021 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.75 |
2 | ||
| 41361-60500 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.70 |
2 | ||
| 41361-60530 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.95 |
2 | ||
| 41361-60480 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.55 |
2 | ||
| 41361-60490 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.65 |
2 | ||
| 41361-60510 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.80 |
2 | ||
| 41361-60540 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.00 |
2 | ||
| 41361-60550 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.10 |
2 | ||
| 41361-60041 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.05 |
2 | ||
| 41361-60520 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.85 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-36011 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
ILLUST NO. 1 OF 2(2103- )
ｱﾘ(LSD)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37070 |
XZU605,655..T2;XZC605,655..(T3,T5)..6FC;XZC60#,645,655..DM5,T2,T4 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37581 |
XZU605,655..T2;XZC605..T2..6F;XZC60#..(DM5,T2,T4)..6FC *FGR=43:12=3.583 |
1 | ||
| 41110-37640 |
XZU655..T2..6F;XZC605,655,XZU605..(T2,T3)..6F *FGR=39:10=3.900,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−10.5ｲﾝﾁ,最終減速艨≠R.900 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-16022 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-37390 |
XZU655..T2..6F;XZC605,655,XZU605..(T2,T3)..6F *FGR=39:10=3.900,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−10.5ｲﾝﾁ,最終減速艨≠R.900 |
1 | ||
| 41201-37351 |
XZU605,655..T2;XZC605..T2..6F;XZC60#..(DM5,T2,T4)..6FC *FGR=43:12=3.583 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-35108 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-48024 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37100 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90105-14183 |
XZU605,655..T2;XZC605,655..(T3,T5)..6FC;XZC60#,645,655..DM5,T2,T4 |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-36040 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-37020 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-52004 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-52004 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37060 |
XZU605,655..T2;XZC605,655..(T3,T5)..6FC;XZC60#,645,655..DM5,T2,T4 |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12087 |
XZU605,655..T2;XZC60#,630,645,655 |
12 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-36011 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-36011 |
XZU605,655..T2;XZC60#,630,645,655 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 41317-36011 |
XZU605,655..T2;XZC60#,630,645,655 TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36020 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-36020 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55013 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
XZU605,655..T2;XZC60#,630,645,655 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60011 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.60 |
2 | ||
| 41361-60031 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.90 |
2 | ||
| 41361-60021 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.75 |
2 | ||
| 41361-60500 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.70 |
2 | ||
| 41361-60530 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.95 |
2 | ||
| 41361-60480 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.55 |
2 | ||
| 41361-60490 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.65 |
2 | ||
| 41361-60510 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.80 |
2 | ||
| 41361-60540 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.00 |
2 | ||
| 41361-60550 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.10 |
2 | ||
| 41361-60041 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.05 |
2 | ||
| 41361-60520 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.85 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60011 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.60 |
2 | ||
| 41361-60031 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.90 |
2 | ||
| 41361-60021 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.75 |
2 | ||
| 41361-60500 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.70 |
2 | ||
| 41361-60530 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.95 |
2 | ||
| 41361-60480 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.55 |
2 | ||
| 41361-60490 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.65 |
2 | ||
| 41361-60510 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.80 |
2 | ||
| 41361-60540 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.00 |
2 | ||
| 41361-60550 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.10 |
2 | ||
| 41361-60041 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=2.05 |
2 | ||
| 41361-60520 |
XZU605,655..T2;XZC60#,630,645,655 厚さ=1.85 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-36011 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01192 | ||||
| 90031-19101 | ||||
| 90031-19102 | ||||
| 90031-70110 | ||||
| 90032-01155 | ||||
| 90032-09031 | ||||
| 90033-01069 | ||||
| 90033-65002 | ||||
| 90033-66040 | ||||
| 90035-20024 | ||||
| 90101-08157 | ||||
| 90179-30003 | ||||
ILLUST NO. 2 OF 2(2103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10211 |
XZU605,655..T2;XZC60#,630,645,655 ﾈｼﾞ部長さ=17&12.5,長さ41.5 |
4 | ||
| 41302B - WASHER, SPRING(FOR REAR DIFFERENTIAL CASE) | ||||
| 94511-01000 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
4 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-37810 |
XZC605,645;XZU605..T2 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03138 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-36010 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-36010 |
XZU605,655..T2;XZC60#,630,645,655 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36060 |
XZU605,655..T2;XZC60#,630,645,655 |
1 | ||
| Common parts | ||||
| 90119-10283 | ||||
| 94130-01002 | ||||
| Linked diagrams | ||||
| 4706 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
