XZU605-TGFMY (2021)
Toyota Dyna

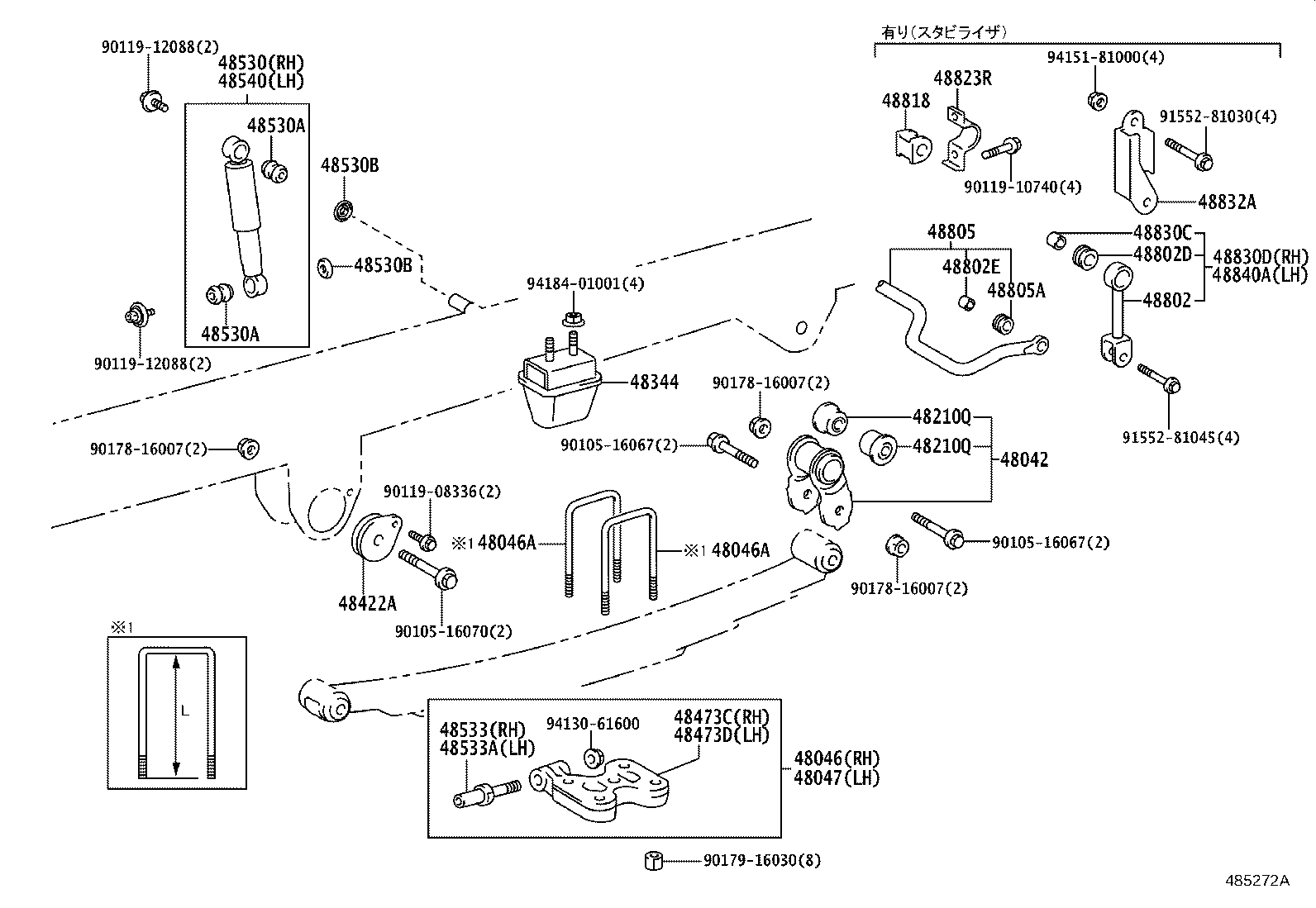

ILLUST NO. 1 OF 2(2103- )XZU645..20T ; (2103- )XZU600..6FC..IV4 ; (2103- )XZC605,645,675,XZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-37090 |
XZU605..T2;XZC605,645..T2,T4 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16158 |
XZU605..T2;XZC605,645..T2,T4 長さ=205 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16158 |
XZU605..T2;XZC605,645..T2,T4 長さ=205 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-37090 |
XZU605..T2;XZC605,645..T2,T4 |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-16026 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37390 |
XZC605,XZU605..T2 |
2 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
XZU645..20T;XZC60#,630,645,675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T2,T4,T5 |
2 | ||
| 48473C - SEAT, REAR SPRING U BOLT, RH | ||||
| 48473-37060 |
XZU605..T2;XZC605,645..T2,T4 |
1 | ||
| 48473D - SEAT, REAR SPRING U BOLT, LH | ||||
| 48474-37080 |
XZU605..T2;XZC605,645..T2,T4 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80800 |
XZC605,645,XZU605,645..(T2,T4)..20T ﾏｰｸ 48531−37191 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19011 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
4 | ||
| 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH | ||||
| 48522-37030 |
XZU645..20T;XZC60#,630,645,675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T2,T4,T5 |
1 | ||
| 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH | ||||
| 48522-37030 |
XZU645..20T;XZC60#,630,645,675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T2,T4,T5 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80800 |
XZC605,645,XZU605,645..(T2,T4)..20T ﾏｰｸ 48531−37191 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-37010 |
XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-13009 |
XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10044 |
XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-37030 |
XZU645..20T;XZC605,645,XZU605..CBU,IV3,IV6 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48805A - BUSH(FOR REAR STABILIZER BAR) | ||||
| 90385-13009 |
XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48815-37060 |
XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-37011 |
XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48830C - SPACER(FOR REAR STABILIZER LINK) | ||||
| 90560-10044 |
XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-37010 |
XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-37020 |
XZU645..20T;XZC605,645,XZU605..CBU,IV3,IV6 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-37010 |
XZU655..SCB;XZC605,645,655,XZU605,645..CBU,IV3,IV6 ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
1 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90105-16070 | ||||
| 90119-08336 | ||||
| 90119-10740 | ||||
| 90119-12088 | ||||
| 90178-16007 | ||||
| 90179-16030 | ||||
| 91552-81030 | ||||
| 91552-81045 | ||||
| 94130-61600 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||

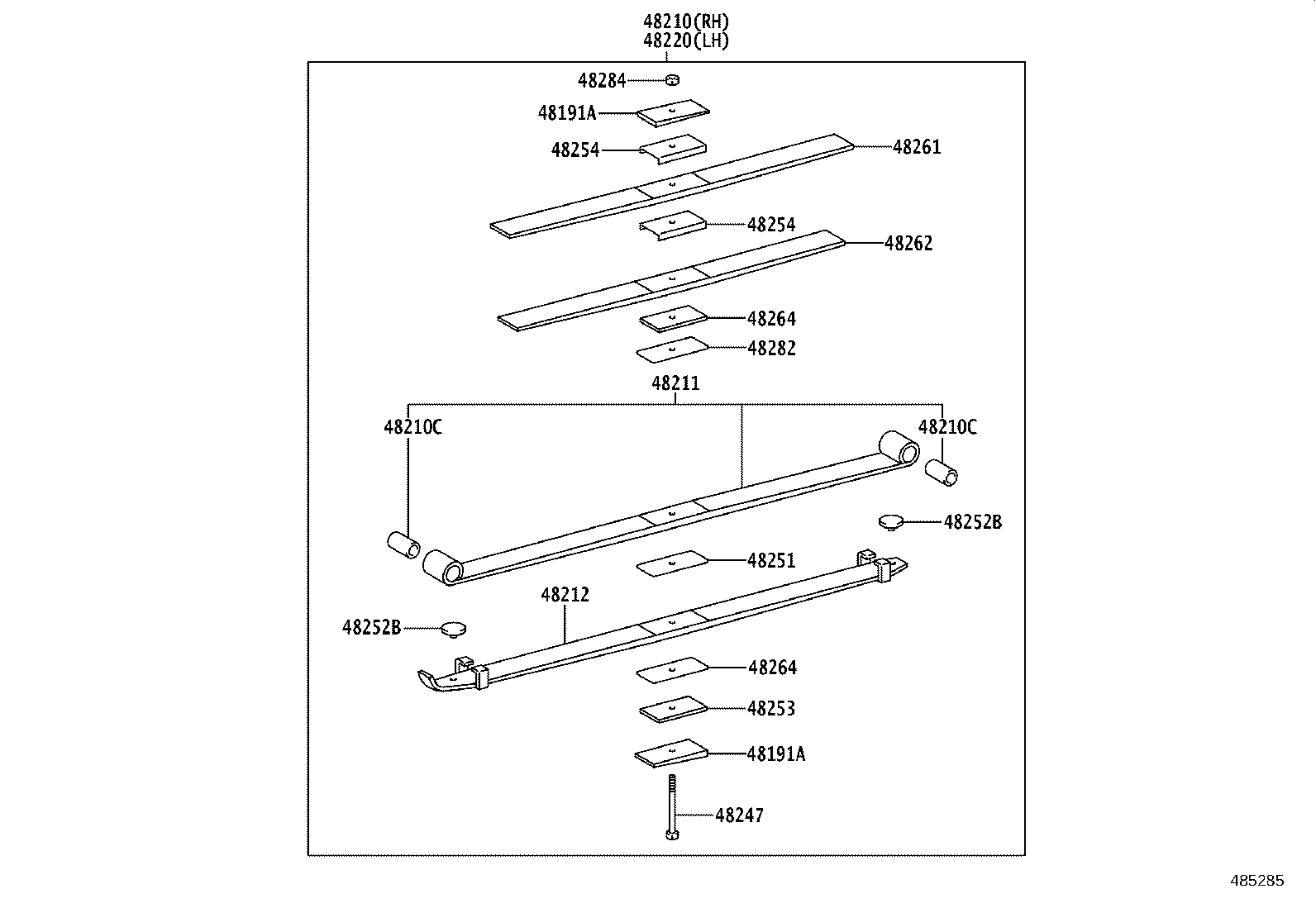

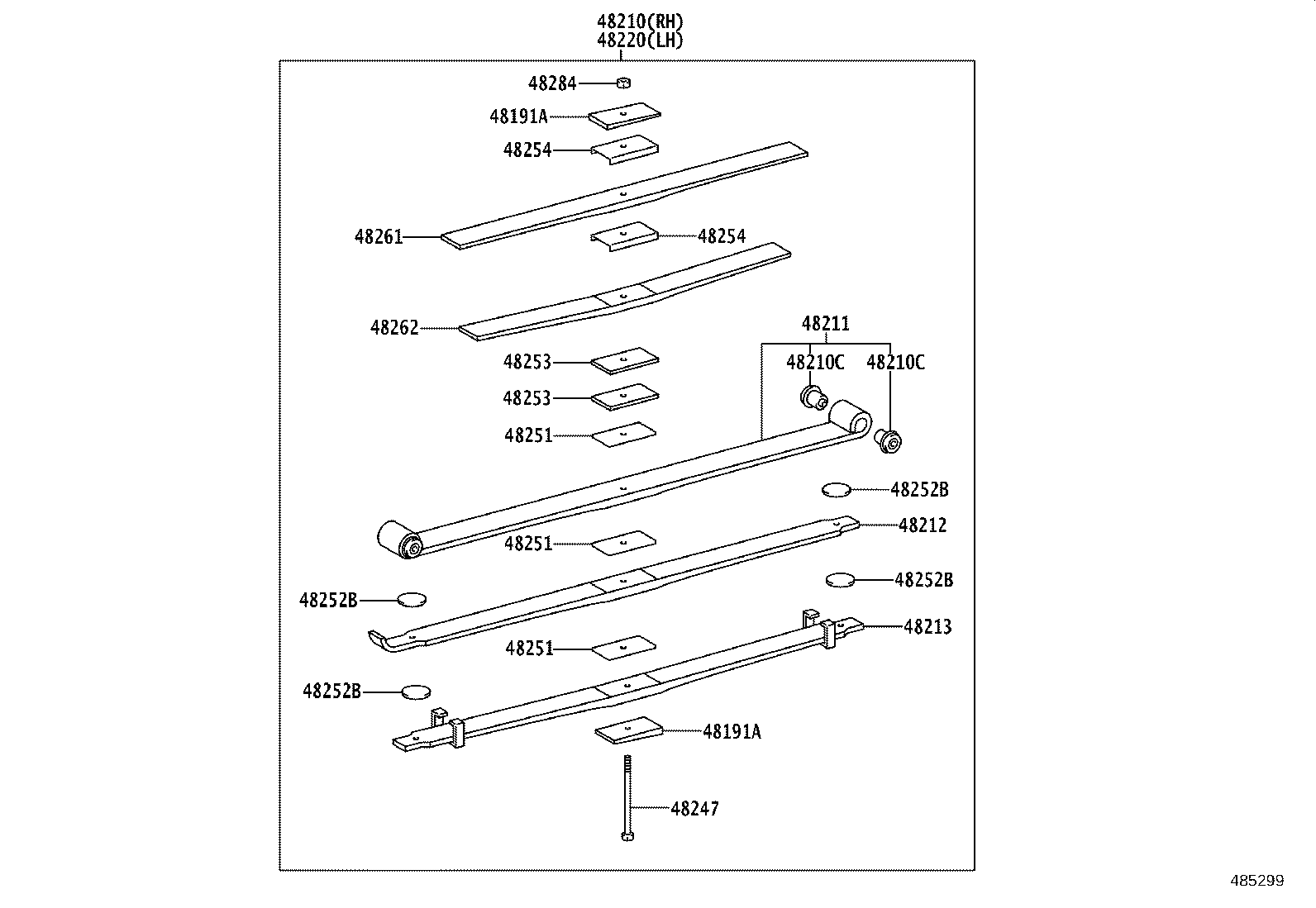

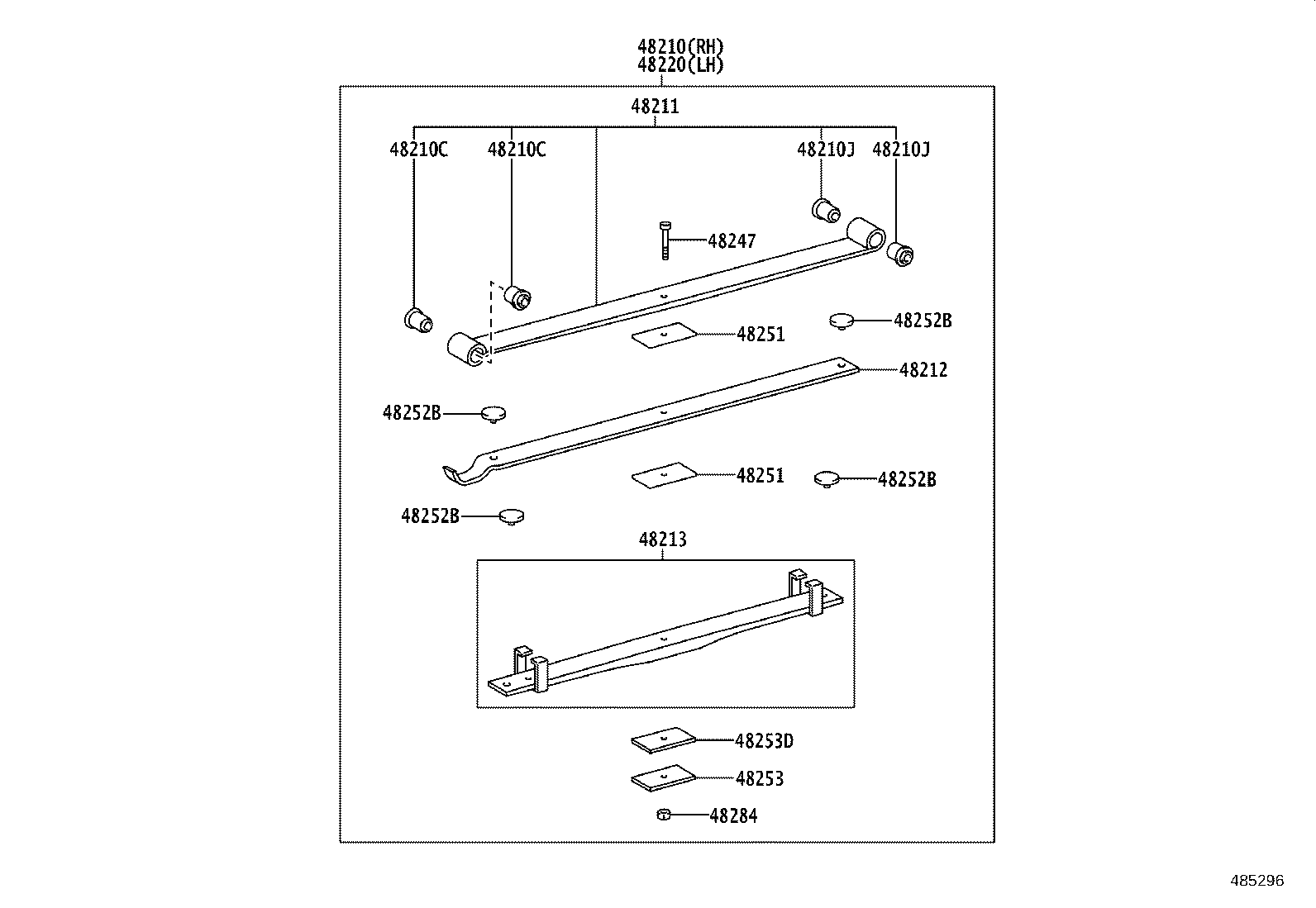

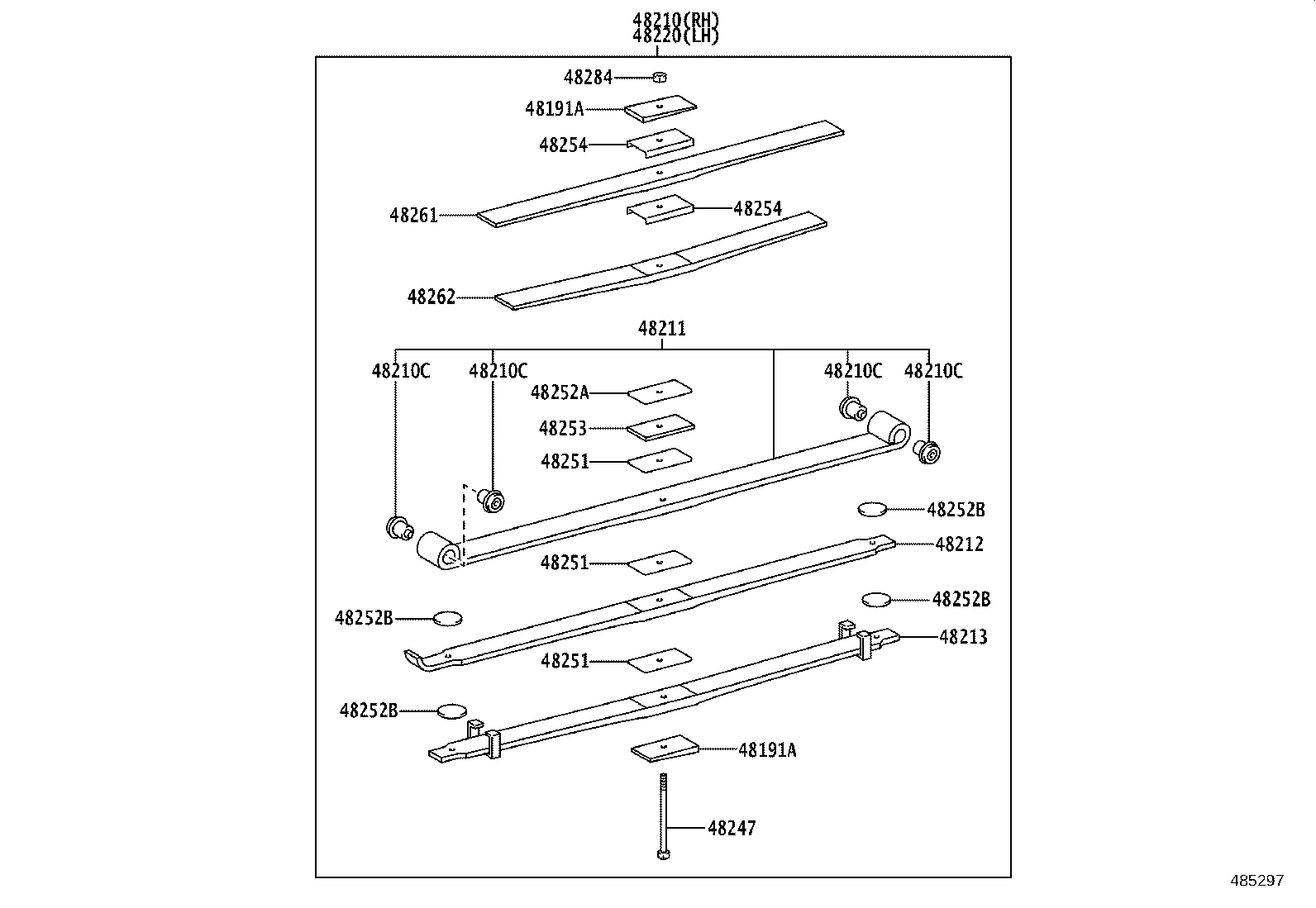

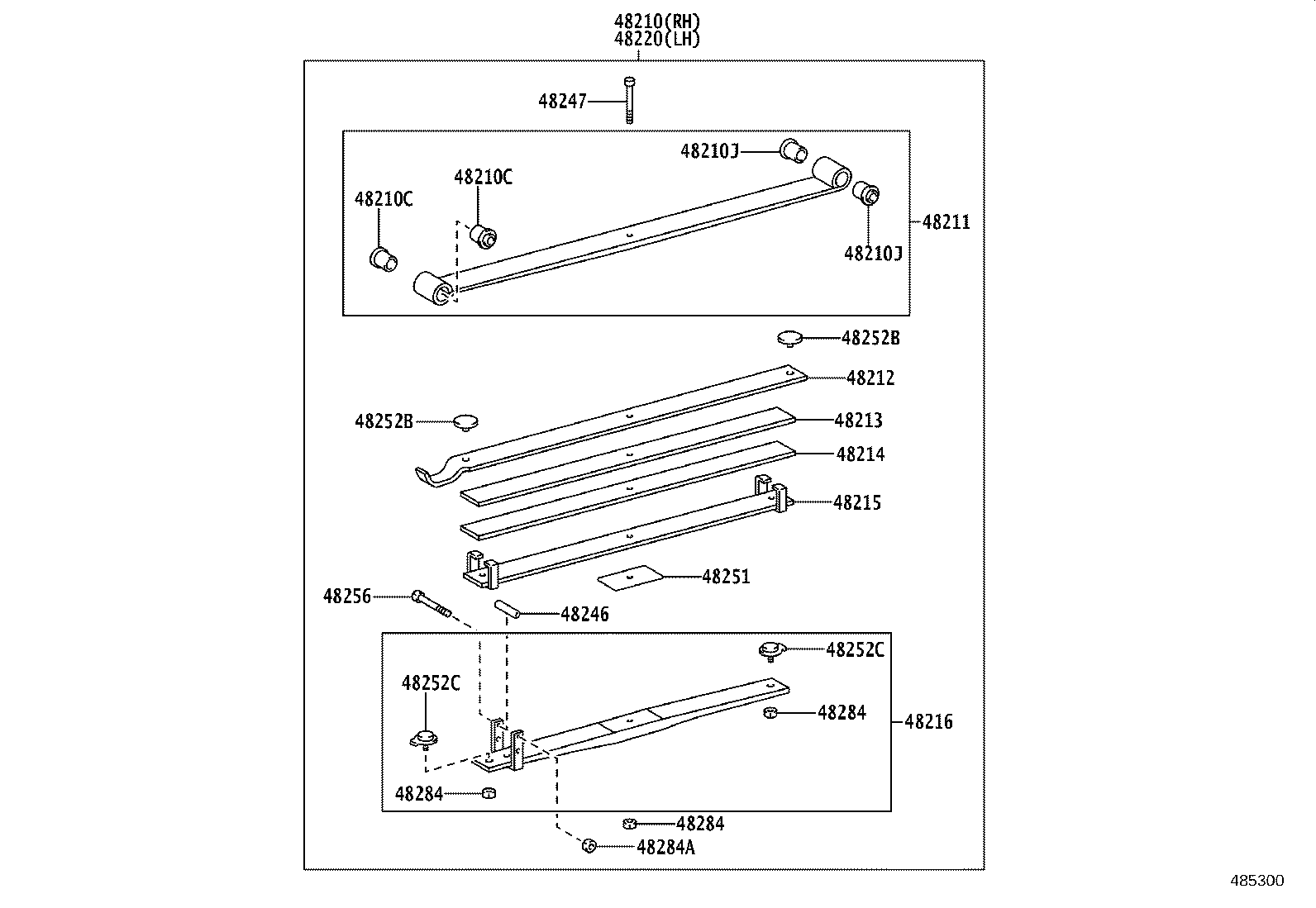

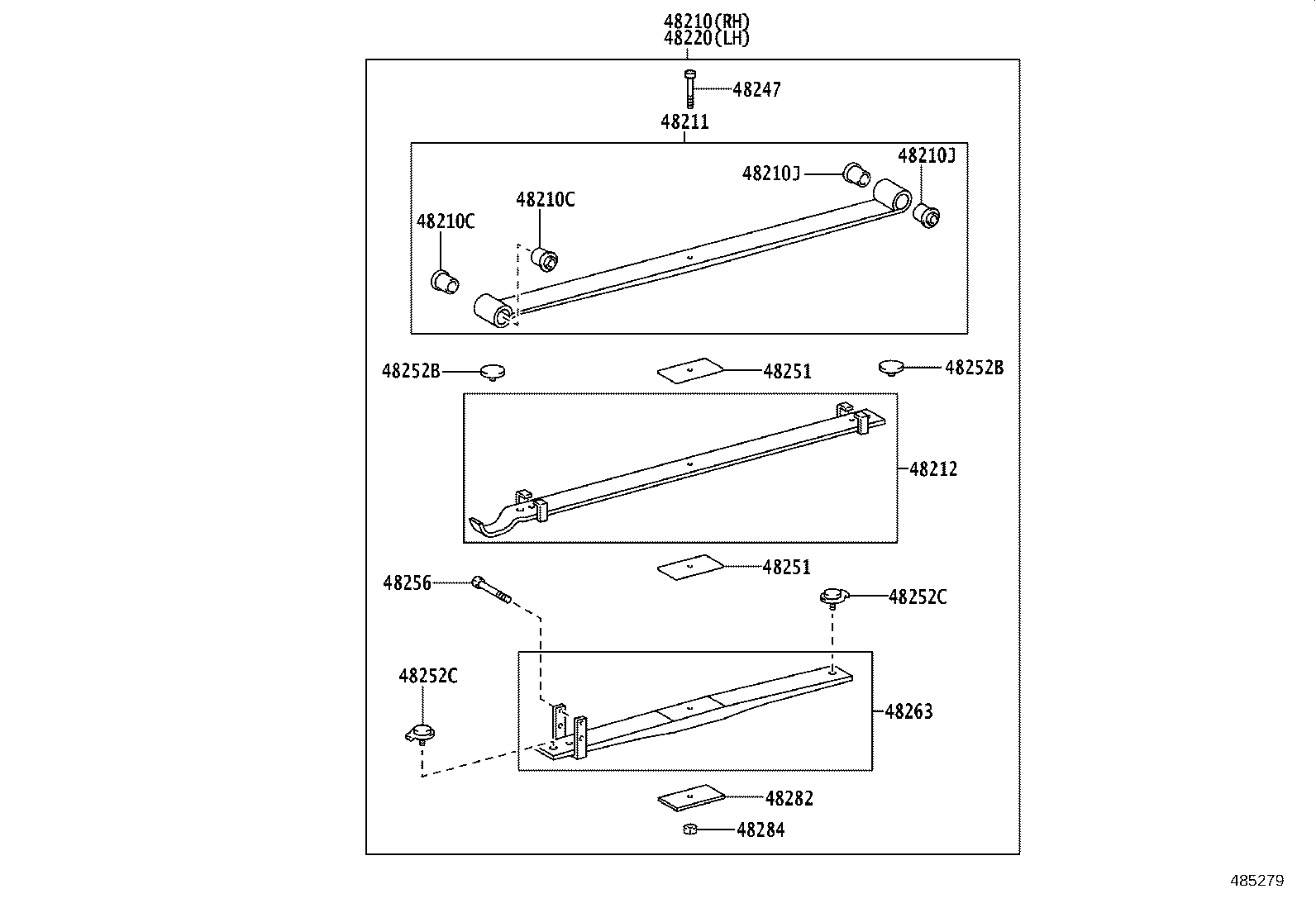

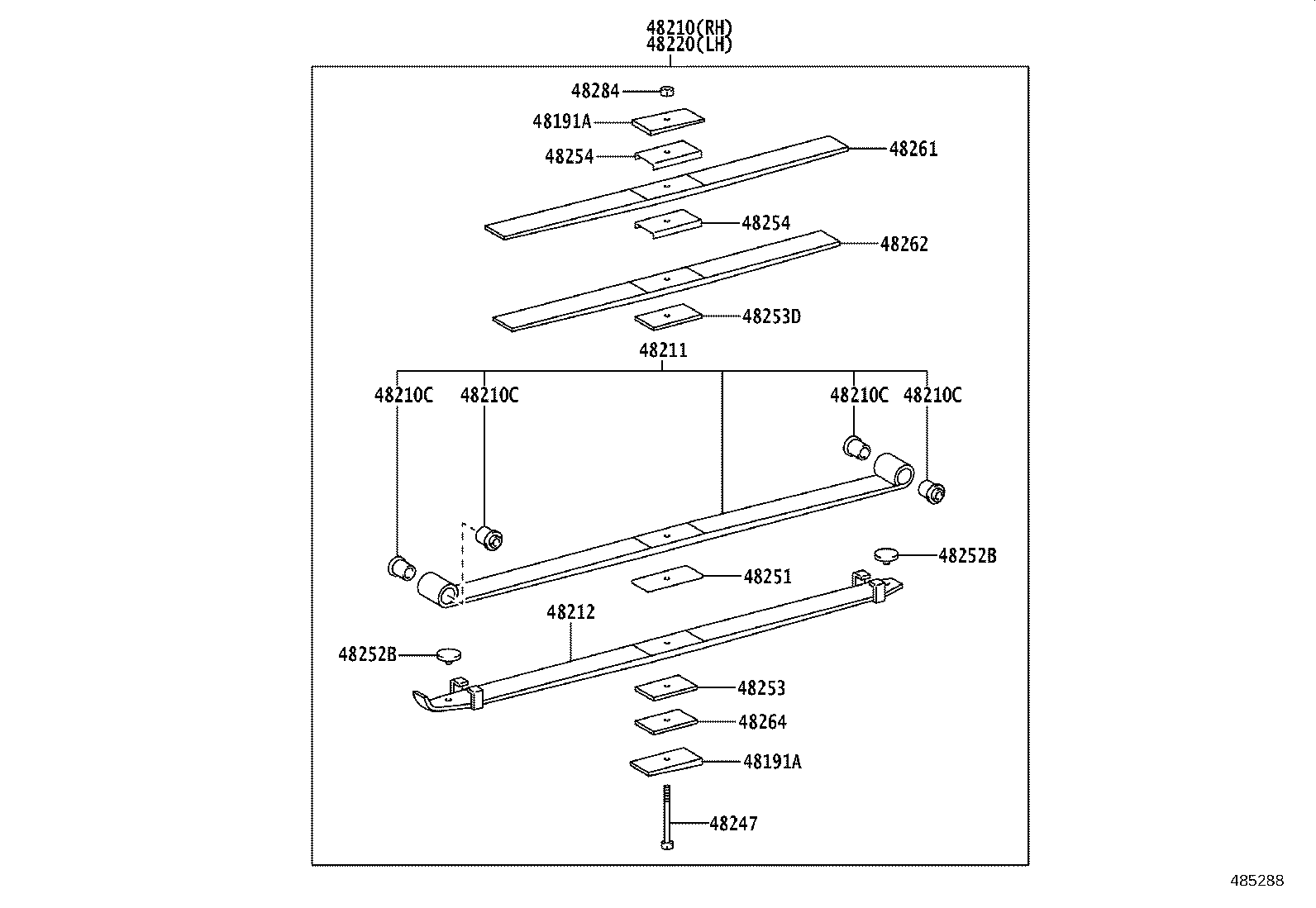

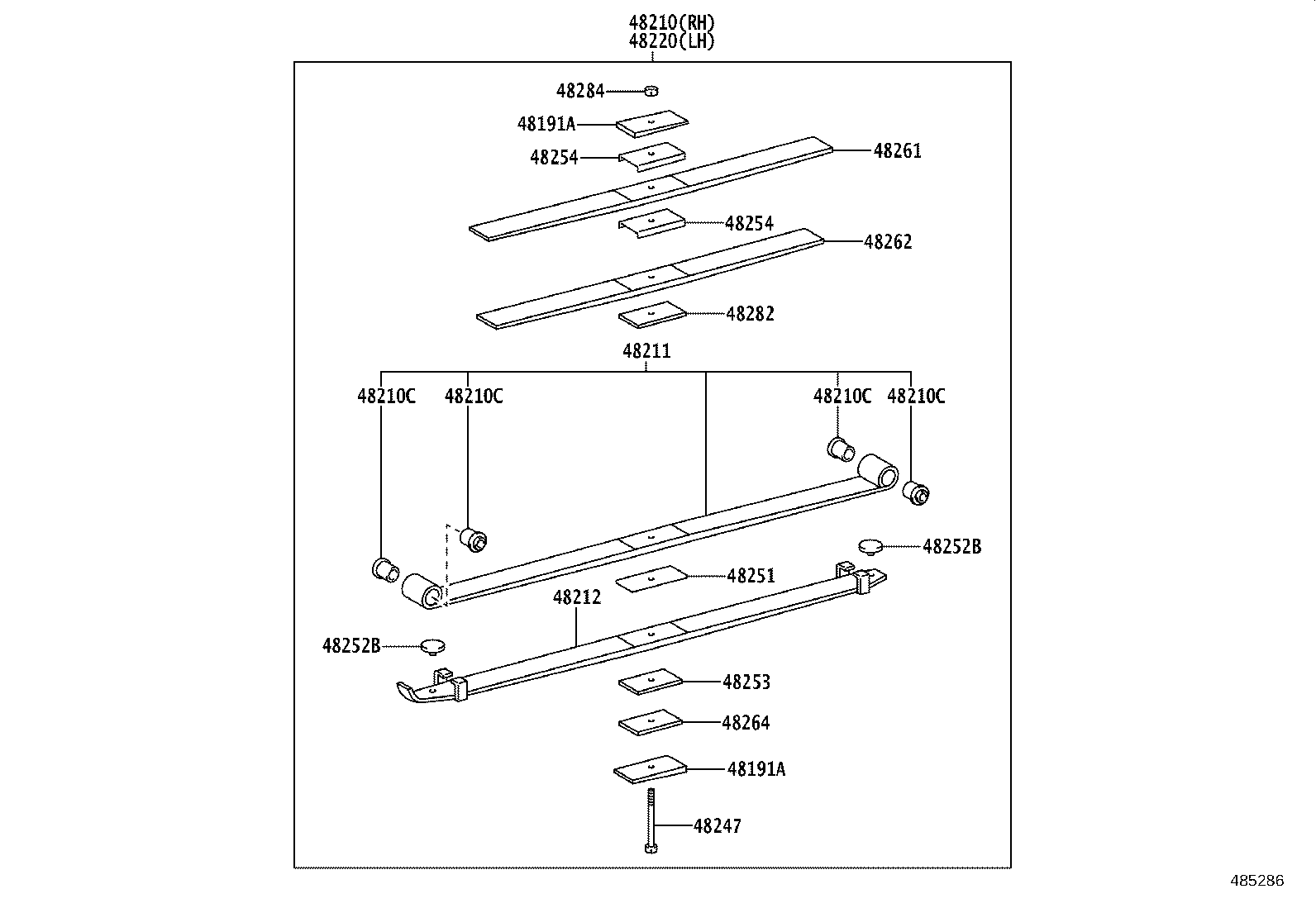

ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 1-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37S50 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||

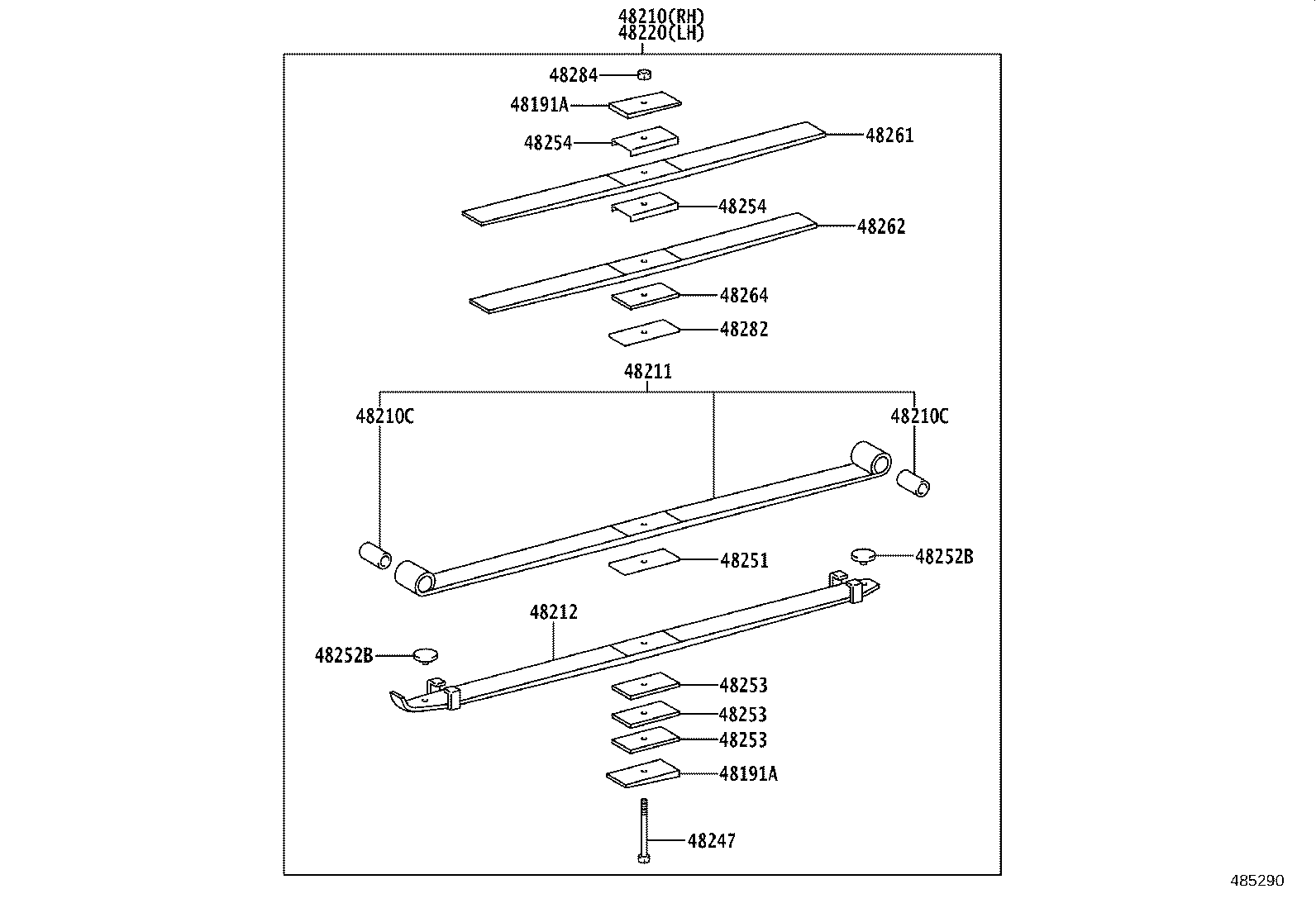

ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 1-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37S50 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||

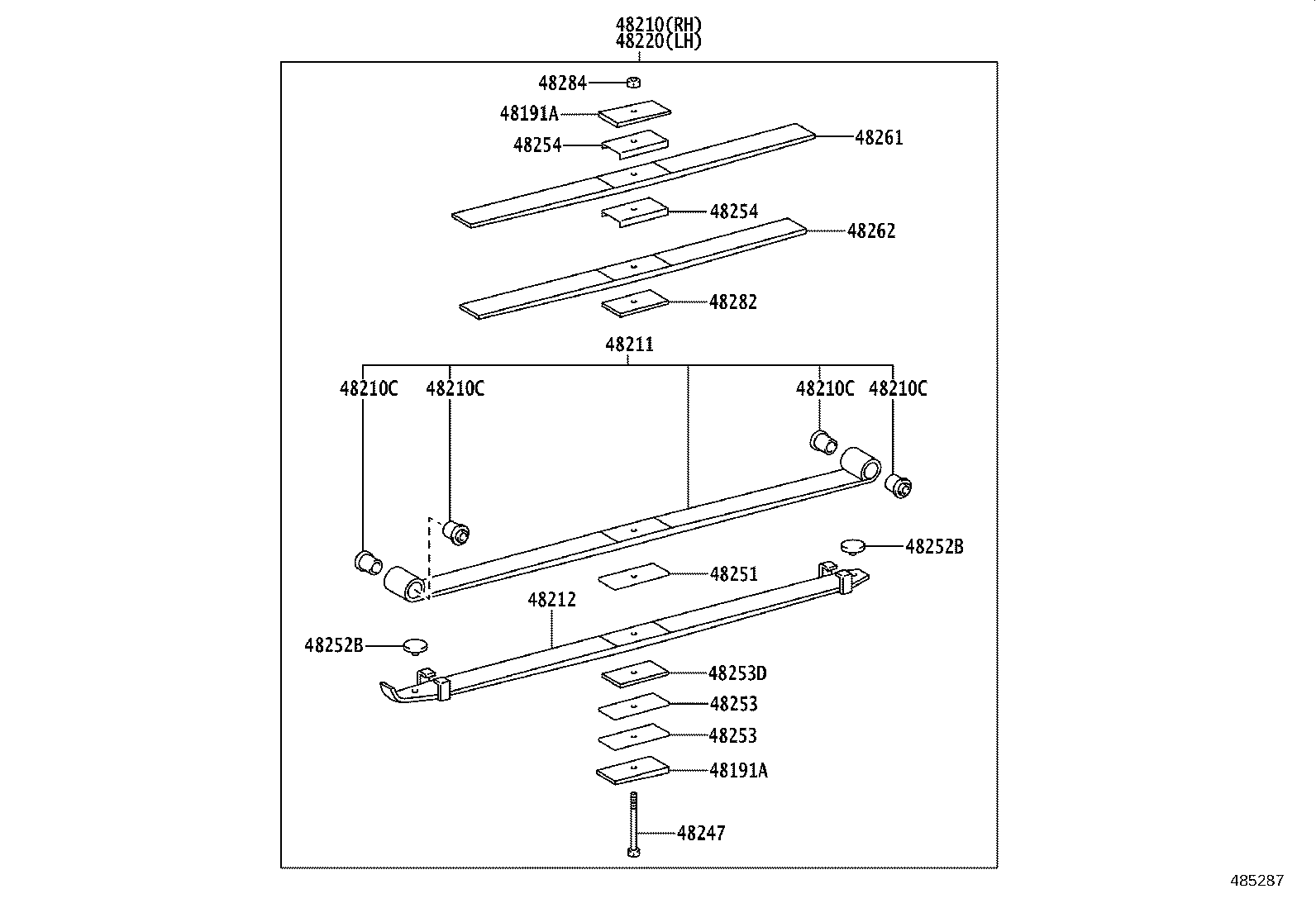

ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 1-LEAF,TYPE C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 1-LEAF,TYPE D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||

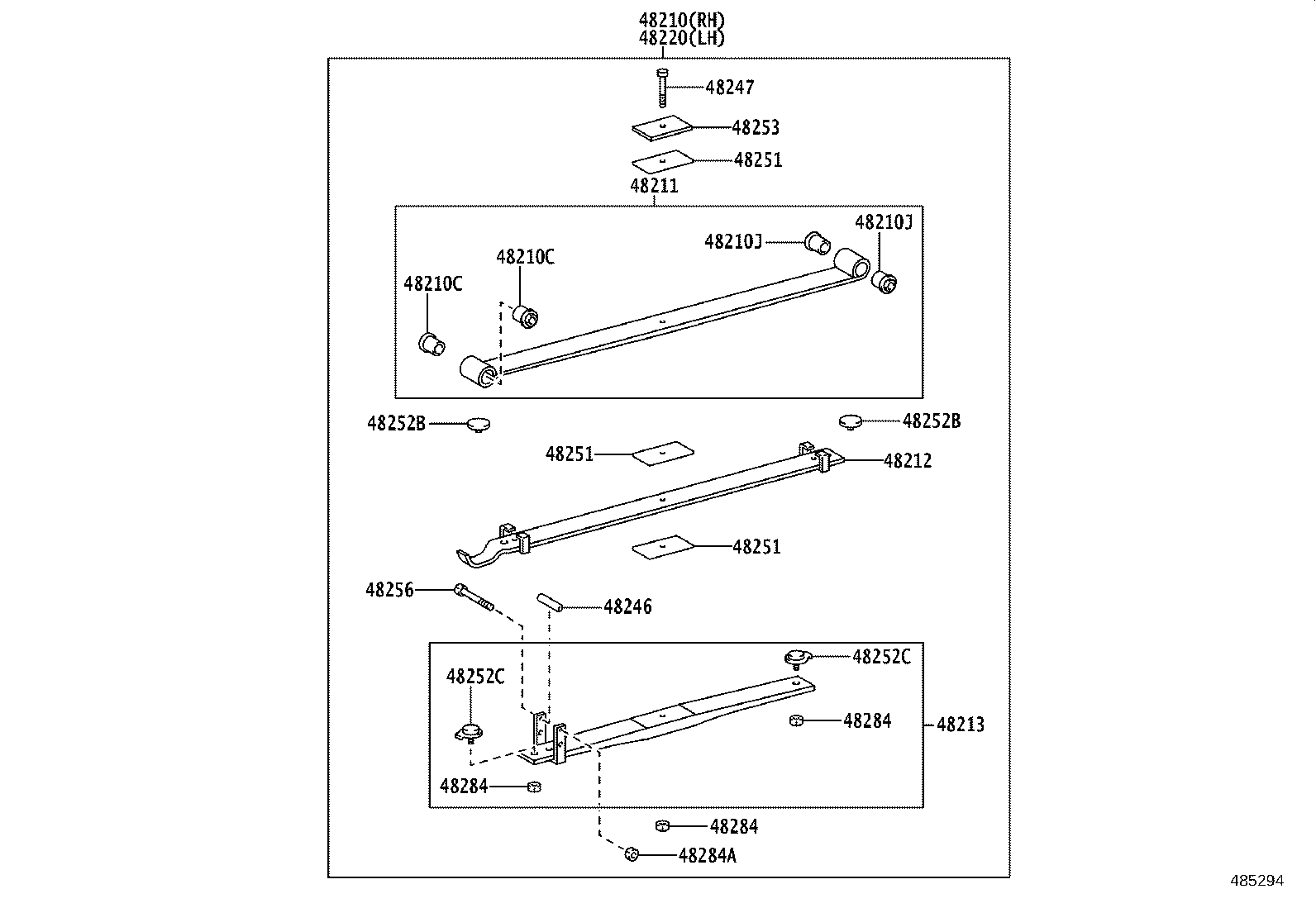

ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 1-LEAF,TYPE F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37S50 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 1-LEAF,TYPE G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||

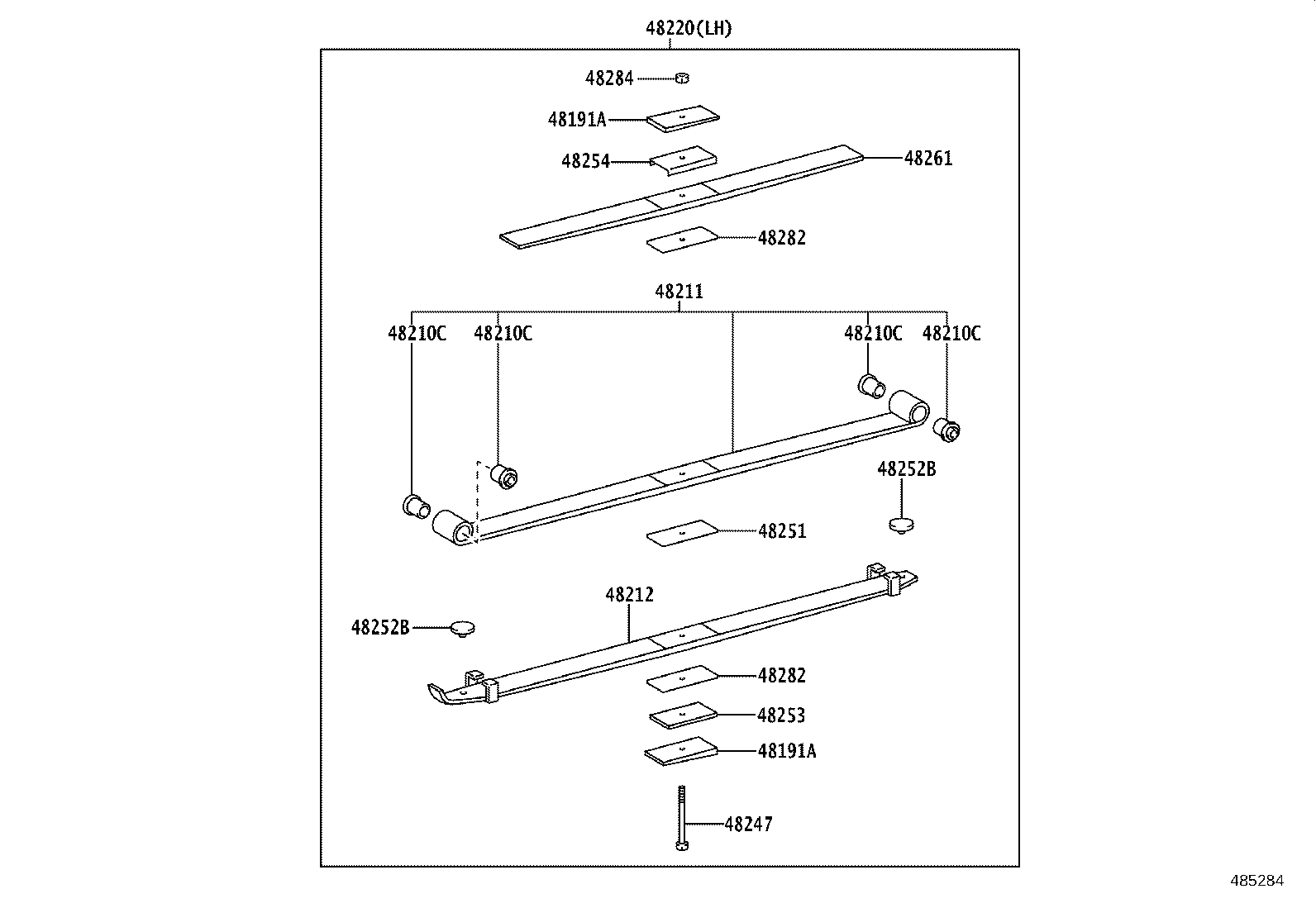

ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 2-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 2-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 2-LEAF,TYPE C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 2-LEAF,TYPE D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 2-LEAF,TYPE E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 2-LEAF,TYPE F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 2-LEAF,TYPE G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||

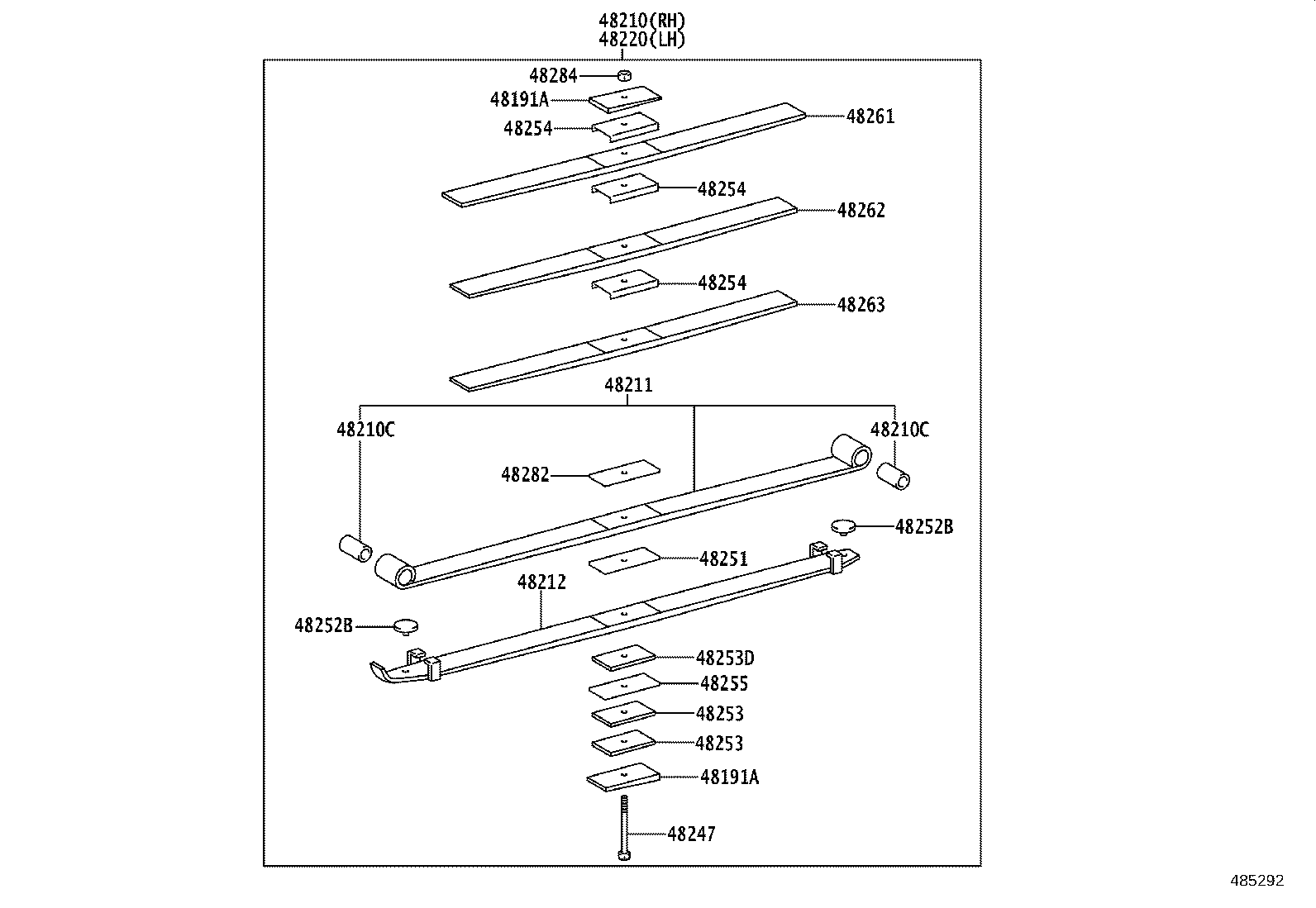

ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 3-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||

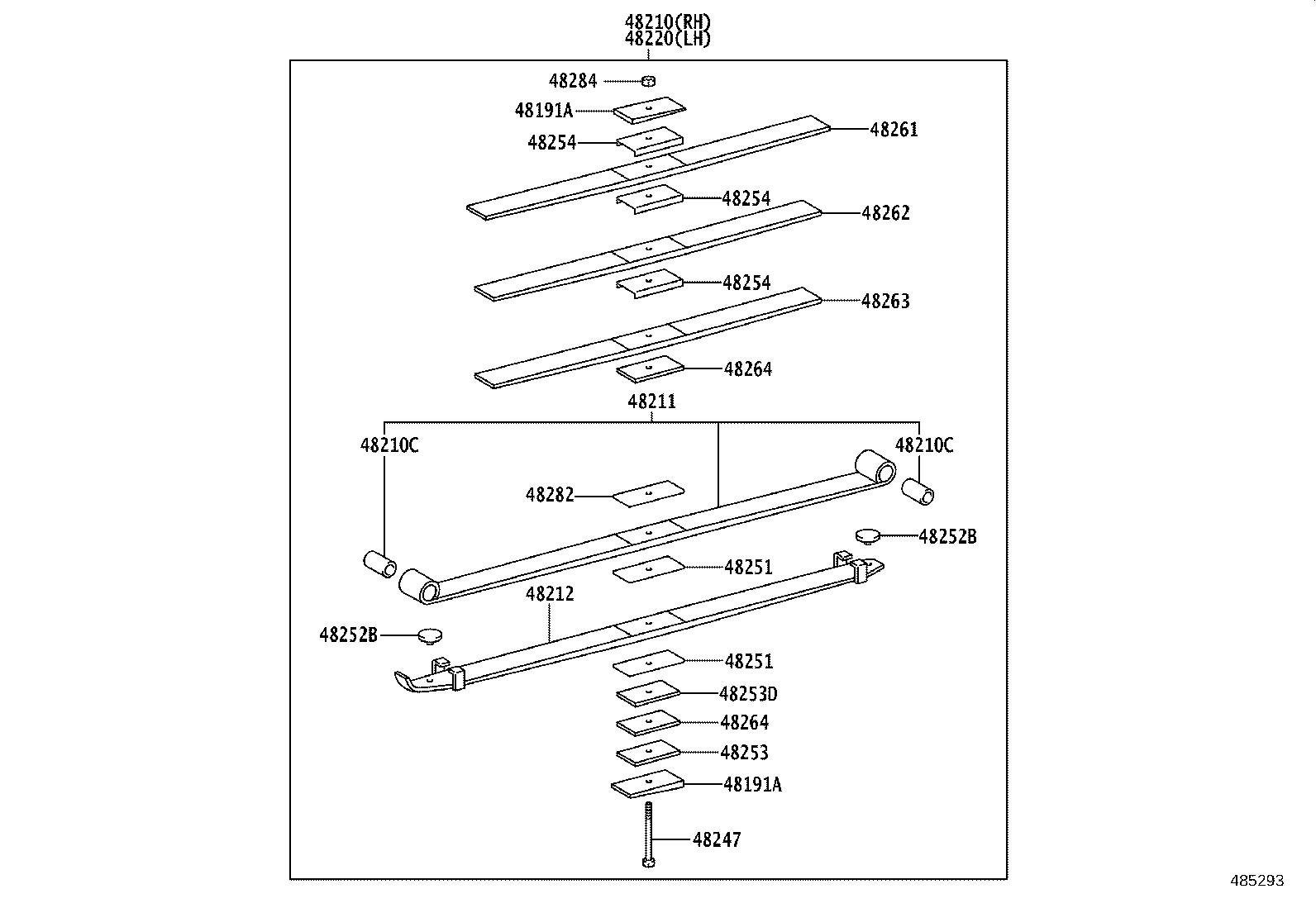

ILLUST NO. 2 OF 2(2103- )
MAIN 2+HELPER 3-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48207-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
3-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37S50 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
3-LEAF,TYPE C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
3-LEAF,TYPE D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
MAIN 3+HELPER 2-LEAF,TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
MAIN 3+HELPER 2-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
ILLUST NO. 2 OF 2(2103- )
6-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16024 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48210J - BUSH, NO.2(FOR REAR SPRING LEAF) | ||||
| 90389-16027 |
XZC605,645,XZU600,605,645..(DM5,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37S60 |
XZC605,XZU605..T2 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37S60 |
XZC605,XZU605..T2 ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ1枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37S60 |
XZC605,645,XZU605,645..SCB..(T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48282-37Q60 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZU650..IV6;XZU605..T2,T4;XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,602,64#,652..(DM3,DM5,T2,T3,T4)..(20T,35T,40T) TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48252-37890 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-37S50 |
XZU645..20T;XZU605..T5..30T;XZC605,645,XZU600,605..DM3,DM5,T2,T4 TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZU605..SCB..(T2,T4);XZU600,605..(DM5,T5)..30T;XZC605,645,XZU600,645..(DM3,T2,T4)..20T TYPE A:ｲﾗｽﾄ参照 |
6 | ||
Part Price Details
Loading price information...
Part Number:
Price:
