XZU605-PQTMY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(2103- )XZC605,645,655,675,XZU605,645,655,675,685,695

Click highlighted areas on diagram

ｺﾝﾃﾞﾝｻ & ﾌﾞﾗｹｯﾄ

diagram 88453A 88454A 88460B 88460C 88461A 88461B 88474 88550 8884937060 8884937070 8884937080 8884937090 88892C 9009120619 9009120619 9009120619 9009120619 9009120641 9009904119 9009905164 9011910522 9155180814 9155180814 9155180825 9415180800 9415180800 9415180800
Part # Description Qty Price
88453A - FAN, COOLING
88453-37030

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88454A - SHROUD, FAN
88454-37180

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
85924-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
85924-37030

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88461A - CORE, COOLER CONDENSER
88461-37270

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88461B - COVER, COOLER CONDENSER
53716-37310

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88474 - DRYER, COOLER
88474-12010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37140

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88892C - PLATE, CONDENSER, NO.1
58229-37071

XZC605,645,655,675,XZU605,645,655,675,685,695

 1
Common parts
88849-37060
88849-37070
88849-37080
88849-37090
90091-20619
90091-20641
90099-04119
90099-05164
90119-10522
91551-80814
91551-80825
94151-80800

ILLUST NO. 2 OF 3(2103- )XZC60#,630,645,655,XZU60#,630,64#,65#

Click highlighted areas on diagram

ｸｰﾗﾊｲｶﾝ

diagram 8271537A90 8714 8719 88374B 88374C 88375B 88375D 8843837010 88645H 88689E 88689F 88704 88711 88712 88715G 887182J090 8871837390 887183V150 887183V160 887183V190 887183V190 887183V190 887183V190 887183V210 887183V230 88721A 9004464009 9009900264 9009914119 9009914120 9009914121 91511B0630 91511B0630 91511G0814 91511J0625 91511J0625 91511J0625 9155180825 9165160614 9165160614 9165160614 9165160645 9165160840 9165160840 9415180800
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88689E - BRACKET, COOLER, NO.1
88688-37420

XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7

 1
88689F - BRACKET, COOLER, NO.2
88688-3V570

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-37130

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37C00

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37E70

XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7

 1
88712-37E80

XZU605,655..DCB

ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
88715G - TUBE, DISCHARGE, G
88715-37500

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88721A - HOSE, LIQUID, A
88721-37E00

XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7

 1
Common parts
82715-37A90
88438-37010
88718-2J090
88718-37390
88718-3V150
88718-3V160
88718-3V190
88718-3V210
88718-3V230
90044-64009
90099-00264
90099-14119
90099-14120
90099-14121
91511-B0630
91511-G0814
91511-J0625
91551-80825
91651-60614
91651-60645
91651-60840
94151-80800
Linked diagrams
8714
8719

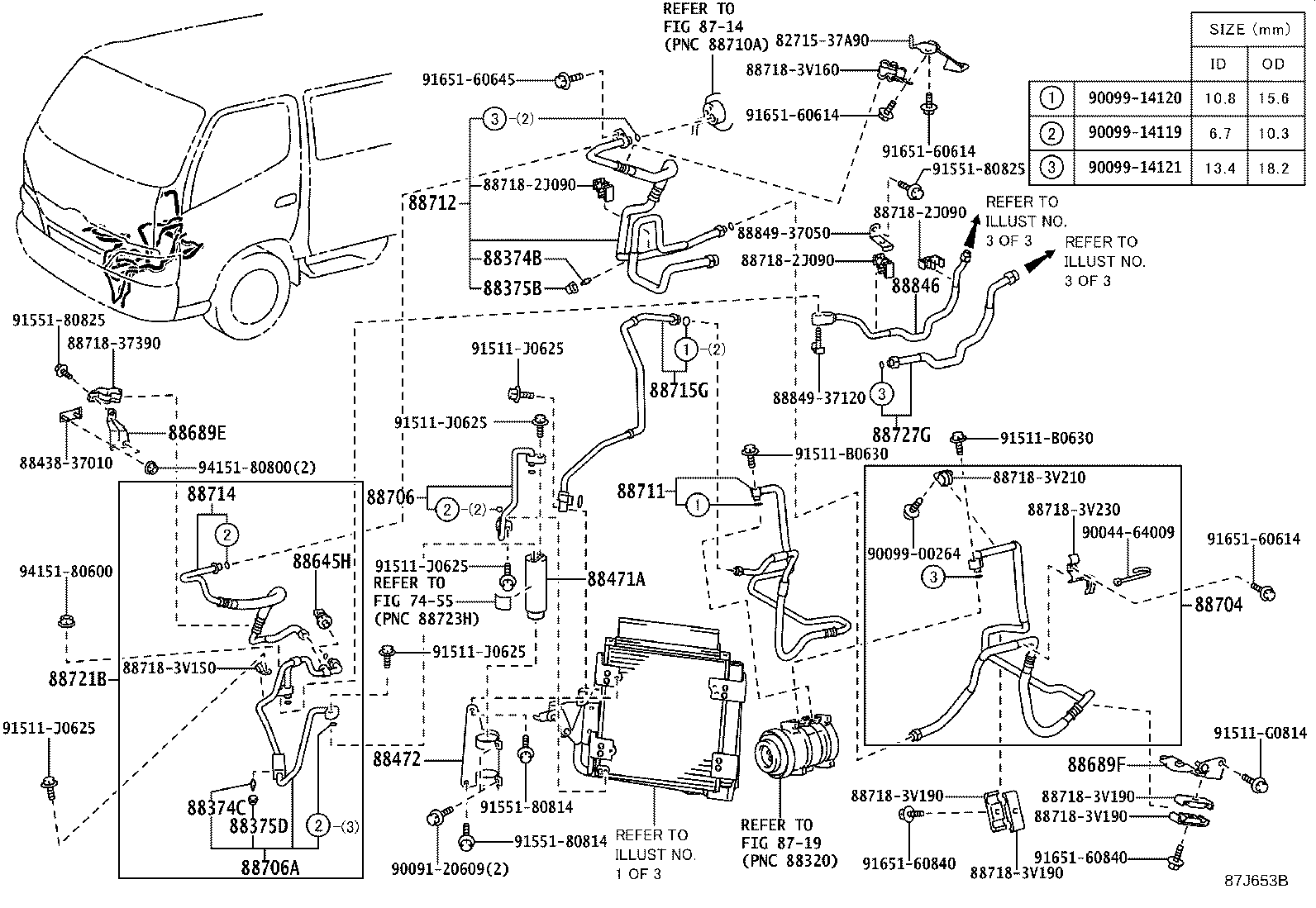

ILLUST NO. 2 OF 3(2103- )XZU605,655..DCB

Click highlighted areas on diagram

ｸｰﾗﾊｲｶﾝ ｱﾘ(ﾘﾔｸｰﾗ)

diagram 7455 8271537A90 8714 8719 88374B 88374C 88375B 88375D 8843837010 88471A 88472 88645H 88689E 88689F 88704 88706 88706A 88711 88712 88714 88715G 887182J090 887182J090 887182J090 8871837390 887183V150 887183V160 887183V190 887183V190 887183V190 887183V190 887183V210 887183V230 88721B 88727G 88846 8884937050 8884937120 9004464009 9009120609 9009900264 9009914119 9009914120 9009914121 91511B0630 91511B0630 91511G0814 91511J0625 91511J0625 91511J0625 91511J0625 91511J0625 9155180814 9155180814 9155180825 9155180825 9165160614 9165160614 9165160614 9165160645 9165160840 9165160840 9415180600 9415180800
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88471A - TANK, RECEIVER
88471-34010

XZU605,655..DCB

ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-37300

XZU605,655..DCB

ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88689E - BRACKET, COOLER, NO.1
88688-37420

XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7

 1
88689F - BRACKET, COOLER, NO.2
88688-3V570

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-37130

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
88706 - PIPE SUB-ASSY, LIQUID
88716-37F20

XZU605,655..DCB

ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88846-37040

XZU605,655..DCB

ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37C00

XZC60#,630,645,655,XZU60#,630,64#,65#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37E70

XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7

 1
88712-37E80

XZU605,655..DCB

ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88843-37040

XZU605,655..DCB

ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
88715G - TUBE, DISCHARGE, G
88715-37500

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
88721B - HOSE, LIQUID, B
88721-37E20

XZU605,655..DCB

ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
88727G - TUBE, SUCTION
88847-37010

XZU605,655..DCB

ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
88846 - TUBE, LIQUID
88846-37050

XZU605,655..DCB

ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
Common parts
82715-37A90
88438-37010
88718-2J090
88718-37390
88718-3V150
88718-3V160
88718-3V190
88718-3V210
88718-3V230
88849-37050
88849-37120
90044-64009
90091-20609
90099-00264
90099-14119
90099-14120
90099-14121
91511-B0630
91511-G0814
91511-J0625
91551-80814
91551-80825
91651-60614
91651-60645
91651-60840
94151-80600
94151-80800
Linked diagrams
7455
8714
8719

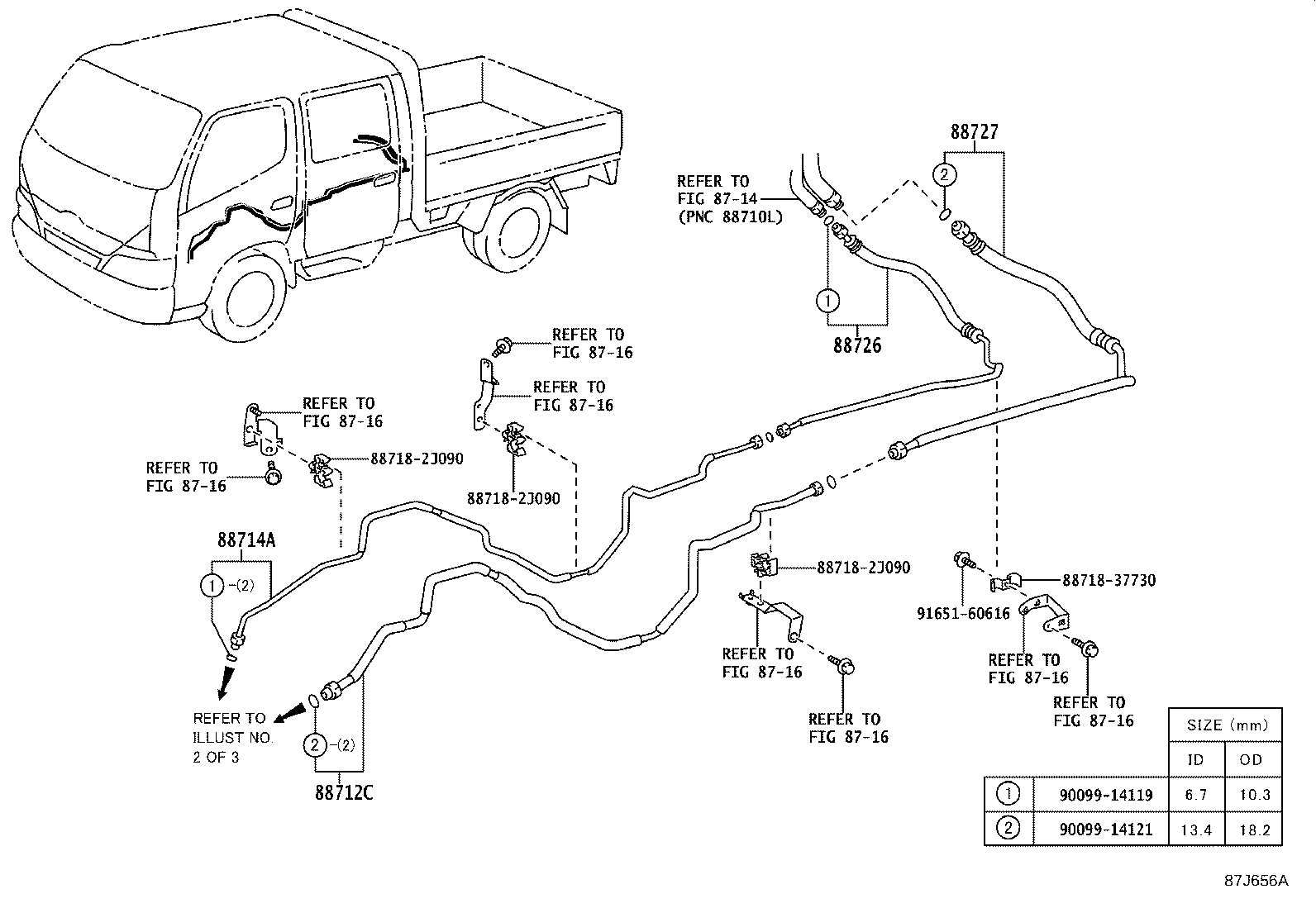

ILLUST NO. 3 OF 3(2103- )XZU605,655..DCB

Click highlighted areas on diagram

ｸｰﾗﾊｲｶﾝ(ﾘﾔｸｰﾗ)

diagram 8714 8716 8716 8716 8716 8716 8716 8716 8716 88712C 88714A 887182J090 887182J090 887182J090 8871837730 88726 88727 9009914119 9009914121 9165160616
Part # Description Qty Price
88712C - HOSE, SUCTION
88842-37070

XZU605,655..DCB

ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88843-37090

XZU605,655..DCB

ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
88726 - TUBE, LIQUID, NO.2
88846-37060

XZU605,655..DCB

ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
88727 - TUBE, SUCTION, NO.2
88847-37020

XZU605,655..DCB

ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO

 1
Common parts
88718-2J090
88718-37730
90099-14119
90099-14121
91651-60616
Linked diagrams
8714
8716
