Toyota Dyna XZU605 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
JP
DYNA
XZU605-PQTMY (2021)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

XZU605-PQTMY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999

Engine N04C

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(2103- )XZU605,655..DCB

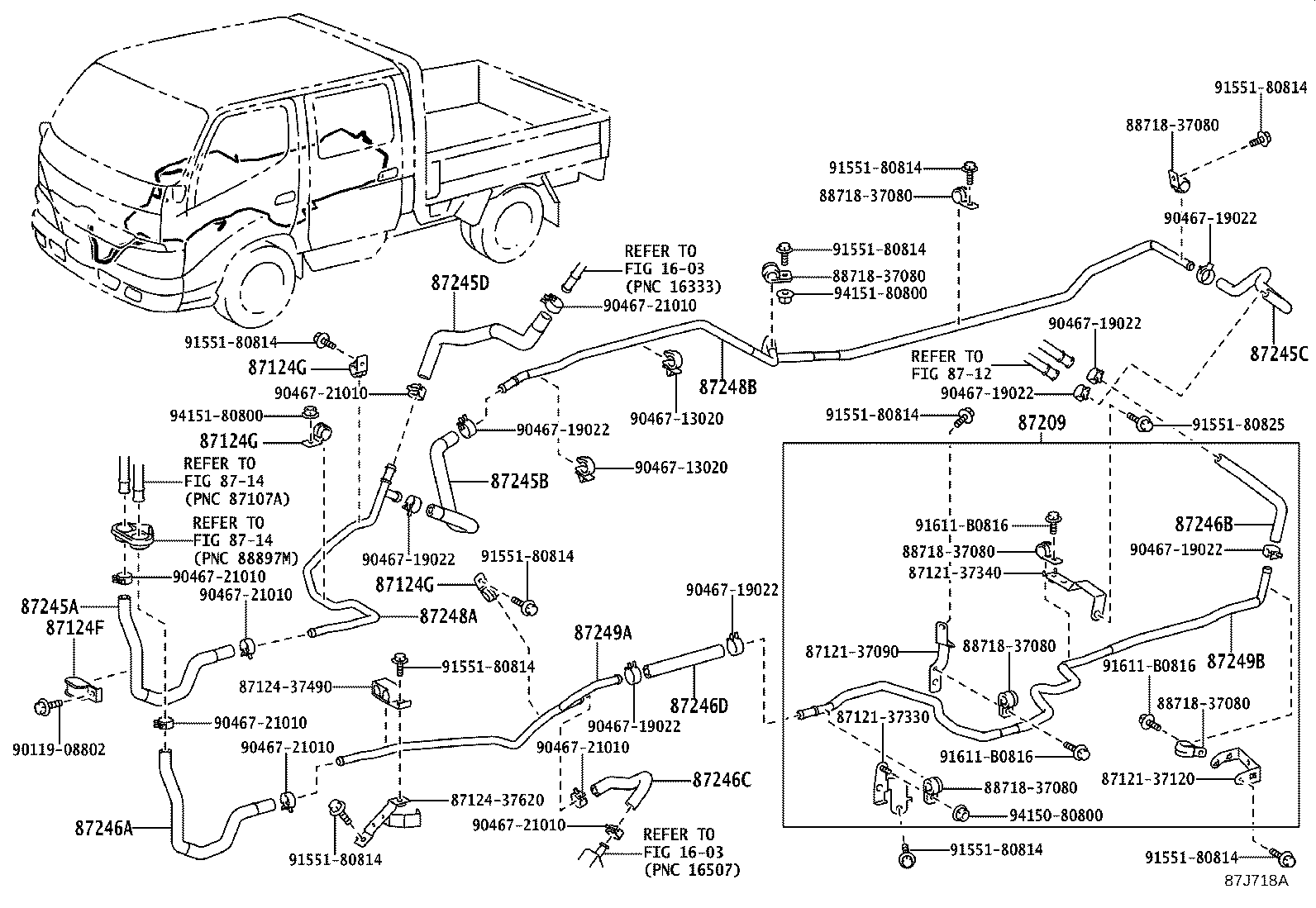

Click highlighted areas on diagram

ｱﾘ(ﾘﾔﾋｰﾀ)

Part #	Description	Period	Qty
87124F - CLAMP, HEATER HOSE, NO.1
87124-37090	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87124G - CLAMP, HEATER HOSE, NO.2
87124-37480	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	3
87124G - CLAMP, HEATER HOSE, NO.2
87124-37480	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	3
87124G - CLAMP, HEATER HOSE, NO.2
87124-37480	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	3
87209 - HOSE SUB-ASSY, WATER
87209-37460	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-37A00	XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7	03/2021 - 12/2999	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-37K30	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87245-37J61	XZC60#,630,645,655,XZU60#,630,64#,65#	03/2021 - 12/2999	1
87245-37K30	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87245C - HOSE, HEATER WATER ,INLET C
87245-37K20	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87245-37K20	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87245D - HOSE, HEATER WATER, INLET D
87245-37J61	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87245-37J61	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87245-37A00	XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7	03/2021 - 12/2999	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37590	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87246-37641	XZC60#,630,645,655,XZU60#,630,64#,65#	03/2021 - 12/2999	1
87246-37590	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
87246-37641	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87246-37641	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87246D - HOSE, HEATER WATER, OUTLET D
99556-20200	XZU605,655..DCB H,L=150,ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF@& RECO	03/2021 - 12/2999	1
99556-20200	XZU605,655..DCB *H,L=150,ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-37J71	XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7	03/2021 - 12/2999	1
87248-37K51	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87248-37K51	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87248B - PIPE, HEATER WATER INLET, B
87248-37J20	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87248-37J20	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37J30	XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7	03/2021 - 12/2999	1
87248-37J40	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87248-37J40	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87249B - PIPE, HEATER WATER OUTLET, B
87248-37J80	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87248-37J80	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
Common parts
87121-37090
87121-37120
87121-37330
87121-37340
87124-37490
87124-37620
88718-37080
90119-08802
90467-13020
90467-19022
90467-21010
91551-80814
91551-80825
91611-B0816
94150-80800
94151-80800
Linked diagrams
1603
8712
8714

(2103- )XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7

Click highlighted areas on diagram

ﾅｼ(ﾘﾔﾋｰﾀ)

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-37A00	XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7	03/2021 - 12/2999	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-37K30	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87245-37J61	XZC60#,630,645,655,XZU60#,630,64#,65#	03/2021 - 12/2999	1
87245-37K30	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87245-37A00	XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7	03/2021 - 12/2999	1
87245-37A00	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37590	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87246-37641	XZC60#,630,645,655,XZU60#,630,64#,65#	03/2021 - 12/2999	1
87246-37590	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-37J71	XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7	03/2021 - 12/2999	1
87248-37K51	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87248-37K51	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37J30	XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7	03/2021 - 12/2999	1
87248-37J40	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(CEF) & POF & *RECO	03/2021 - 12/2999	1
87248-37J40	XZU605,655..DCB ﾘﾔﾋｰﾀ−有り	03/2021 - 12/2999	1
Common parts
87124-37090
87124-37480
87124-37490
87124-37620
90119-08802
90467-21010
91551-80814
94151-80800
Linked diagrams
1603
8714

XZU605-PQTMY (2021)

(2103- )XZU605,655..DCB

(2103- )XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7
