XZU605-PQFMY3 (2021)
Toyota Dyna

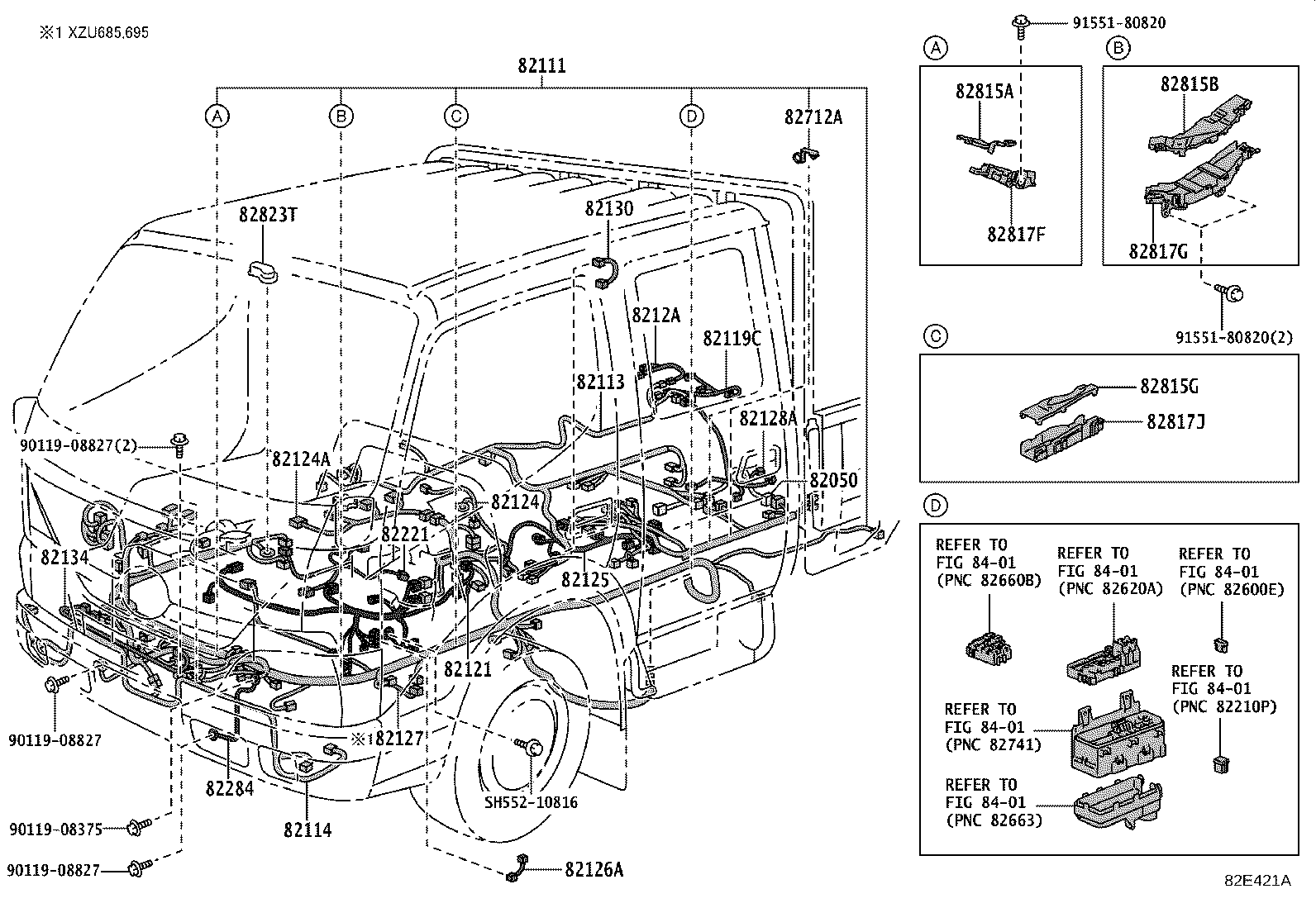

ILLUST NO. 1 OF 7(2103- )DCB
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82050 - WIRE ASSY, ENGINE | ||||
| 82050-37010 |
XZC600,630,XZU600,630,642,675..IV3;XZU600,675..(T3,T4)..(5F,6FC)..(20T,30T)..(CBU,IV6);XZC605,645,655,675,XZU605,640,645,65#,685,695..CBU,IV3 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ付き) |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82116-37Y30 |
XZU605..DCB..6F |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-37P60 |
XZU605..DCB |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37270 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 82114-37290 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-37050 |
XZU600,605,640,655..DCB |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-37L90 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82121-37K70 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 寒冷地仕様−有り |
1 | ||
| 82121-37K60 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82121-37L50 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-37630 |
XZC60#,630,645,655,XZU60#,630,64#,65#..6F |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82121-37M00 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82128-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 8212A - WIRE, ENGINE, NO.9 | ||||
| 8212A-37010 |
XZC675,XZU675,685,695;XZU600,605,640,655..DCB |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-37211 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-37230 |
XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-37560 |
XZC60#,645,655,675,XZU60#,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-37130 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-37170 |
XZC60#,645,655,XZU60#,64#,65# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-37500 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-37510 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-37520 |
XZC60#,645,655,XZU60#,64#,65# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| Common parts | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 91551-80820 | ||||
| SH552-10816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 7(2103- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82148-37B20 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6 |
1 | ||
| 82148-37B60 |
XZC60#,630,675,XZU60#,630,642,675..IV3,IV5,IV6;XZC645,655,XZU640,645,65#,685,695..CBU,IV3,IV6 ｱｳﾀﾐﾗｰ−*PAS & *57 & *LOS |
1 | ||
| 82148-37B60 |
XZC60#,630,675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T2,T4,T5 ｱｳﾀﾐﾗｰ−*PAS & *57 & *SHS |
1 | ||
| 82148-37B60 |
XZC60#,630,675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T2,T4,T5 ｱｳﾀﾐﾗｰ−*PAS(*TM) & *57 & *SHS |
1 | ||
| 82148-37B60 |
XZC60#,630,675,XZU60#,630,642,675..IV3,IV5,IV6;XZC645,655,XZU640,645,65#,685,695..CBU,IV3,IV6 ｱｳﾀﾐﾗｰ−*PAS(*TM) & *57 & *LOS |
1 | ||
| 82148-37C00 |
XZC60#,630,675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T2,T4,T5 ｱｳﾀﾐﾗｰ−*DRP & *57 & *SHS & *HEA |
1 | ||
| 82148-37C00 |
XZC60#,630,675,XZU60#,630,642,675..IV3,IV5,IV6;XZC645,655,XZU640,645,65#,685,695..CBU,IV3,IV6 ｱｳﾀﾐﾗｰ−*DRP & *57 & *LOS & *HEA |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-37310 |
XZC675,XZU60#,630,64#,65#,675,685,695..MTM |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3VA00 |
XZU605,655..DCB..6F;XZU600,605..(DM3,DM5,DM6)..6F..(CBU,IV3,IV5);XZC600,630,675,XZU630,642,675,685,695..MTM..(CBU,IV3) ｸﾗｯﾁｽﾀｰﾄｼｽﾃﾑ−無し |
1 | ||
| 82141-3VA50 |
XZU605,655..DCB..6F;XZU600,605..(DM3,DM5,DM6)..6F..(CBU,IV3,IV5);XZC600,630,675,XZU630,642,675,685,695..MTM..(CBU,IV3) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-3V550 |
XZU605,655..DCB |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-37280 |
XZC605,XZU605,655..T2..6FC;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(CBU,IV3,IV4,IV5,IV6) |
1 | ||
| 82234 - WIRE, COMPUTER, NO.2 | ||||
| 82234-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-37330 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-37330 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-37440 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| Common parts | ||||
| 82712-37010 | ||||
| 82712-37420 | ||||
| 90119-06923 | ||||
| 90467-07041P5 | ||||
| 91551-80616 | ||||

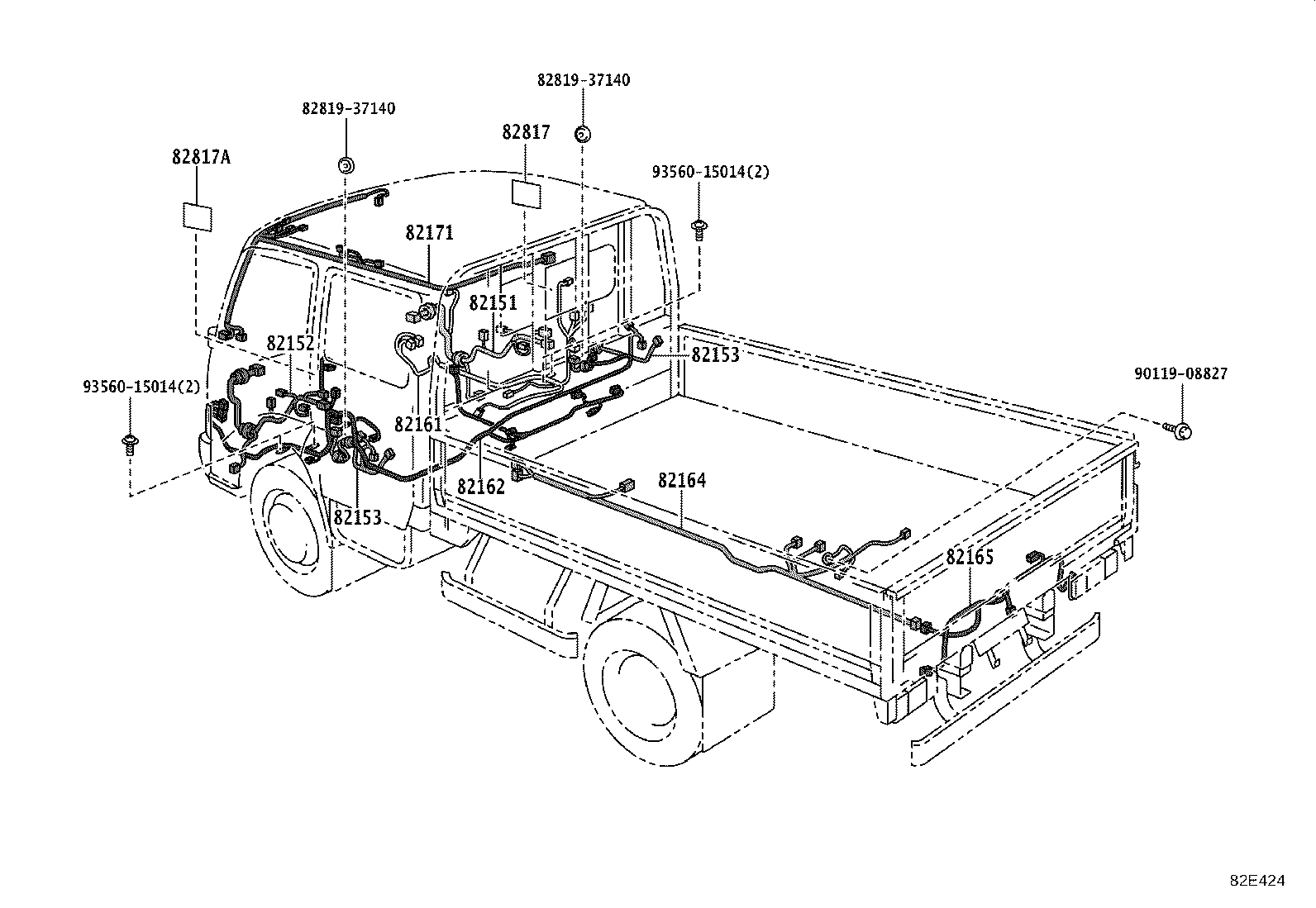

ILLUST NO. 3 OF 7(2103- )DCB
ﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-37B31 |
XZC60#,630,675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T2,T4,T5 ｱｳﾀﾐﾗｰ−*DRP & *57 & *SHS & *HEA |
1 | ||
| 82151-37B11 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82151-37B31 |
XZC645,655,XZU640,645,65#,685,695;XZC60#,630,675,XZU60#,630,642,675..IV3,IV4,IV5,IV6,IV7 ｱｳﾀﾐﾗｰ−*DRP & *57 & *LOS & *HEA |
1 | ||
| 82151-37J90 |
XZU600,605,640,655,685,695..DCB ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 82151-37K20 |
XZU605..DCB ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｱｳﾀﾐﾗｰ−*DRP & *57 & *SHS & *HEA |
1 | ||
| 82151-37K20 |
XZU605..DCB..IV3;XZU600,640,655,685,695..DCB ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｱｳﾀﾐﾗｰ−*DRP & *57 & *LOS & *HEA |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-37A10 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-37180 |
XZU600,605,640,655,685,695..DCB |
2 | ||
| 82153-37190 |
XZU600,605,640,655,685,695..DCB ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-37180 |
XZU600,605,640,655,685,695..DCB |
2 | ||
| 82153-37190 |
XZU600,605,640,655,685,695..DCB ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-37C10 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-37G50 |
XZU605,655,685,695..DCB..20T |
1 | ||
| 82162-37J10 |
XZU605,655..DCB ﾘﾔﾋｰﾀ−有り&ｴｱｺﾝ−ﾏﾆｭｱﾙ(*CEF) & *POF & *RECO |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-3VG10 |
XZU600..6F..40T;XZC605,675,XZU600,605,675..(T2,T3,T4,T5)..MTM..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 82164-3VG10 |
XZU605..DCB..6F..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾀﾞﾝﾌﾟﾚﾊﾞｰ & 電気式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 82164-3VM50 |
XZU605..6FC..IV5;XZU600..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);XZC605,675,XZU602,605,675..(T2,T3,T4,T5)..(IV3,IV6) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-37A30 |
XZU600..(DM3,DM6,T3)..(CBU,IV3,IV4,IV6);XZC605,645,655,675,XZU602,605,64#,65#,675,685,695..(DM6,DM7,T2,T3,T4,T5)..(IV3,IV4,IV5,IV6) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37F80 |
XZU605,655,685,695..DCB..20T |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12400 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12400 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| Common parts | ||||
| 82819-37140 | ||||
| 90119-08827 | ||||
| 93560-15014 | ||||
ILLUST NO. 4 OF 7(2103- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-37700 | ||||
| 82702-37801 | ||||
| 82702-37890 | ||||
| 82702-37A02 | ||||
| 82702-37A10 | ||||
| 82702-37B40 | ||||
| 82702-E1F90 | ||||
| 82702-E1G11 | ||||
| 82711-28380 | ||||
| 82711-37330 | ||||
| 82715-37D20 | ||||
| 82715-3V050 | ||||
| 82715-3V140 | ||||
| 82715-3V160 | ||||
| 82715-3VS21 | ||||
| 82715-3VU00 | ||||
| 82715-3VU60 | ||||
| 82715-3VV30 | ||||
| 82715-3VV50 | ||||
| 82715-3VV90 | ||||
| 82715-3VW10 | ||||
| 82715-3VW20 | ||||
| 82715-3VW60 | ||||
| 82715-3VY30 | ||||
| 82715-E1P00 | ||||
| 82715-E1V20 | ||||
| 82729-37240 | ||||
| 90119-08827 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
| SH552-10816 | ||||
| SH552-10850 | ||||
| SH552-11225 | ||||
ILLUST NO. 5 OF 7(2103- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12220 | ||||
| 82711-37340 | ||||
| 82715-37V10 | ||||
| 82715-37W40 | ||||
| 82715-3V250 | ||||
| 82715-3VB50 | ||||
| 82715-3VB71 | ||||
| 82715-3VC30 | ||||
| 82715-3VC40 | ||||
| 82715-3VC70 | ||||
| 82715-3VC80 | ||||
| 82715-3VL80 | ||||
| 82715-3VM70 | ||||
| 82715-3VU10 | ||||
| 82715-3VU20 | ||||
| 82715-3VU30 | ||||
| 82715-3VV10 | ||||
| 82715-3VV20 | ||||
| 82715-3VV60 | ||||
| 82715-3VV70 | ||||
| 82715-3VV80 | ||||
| 82715-3VW50 | ||||
| 82715-3VW70 | ||||
| 82715-3VY20 | ||||
| 90159-50322 | ||||
| 90463-12011 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91551-80614 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91552-81030 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 6 OF 7(2103- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-37T60 | ||||
| 82824-60460 | ||||
| 90980-10173 | ||||
| 90980-10355 | ||||
| 90980-10942 | ||||
| 90980-11003 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11290 | ||||
| 90980-11294 | ||||
ILLUST NO. 7 OF 7(2103- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10868 | ||||
| 90980-11070 | ||||
| 90980-11973 | ||||
| 90980-12520 | ||||
| 90980-12686 | ||||
