XZU602W-TKFSY6 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )35T,40T

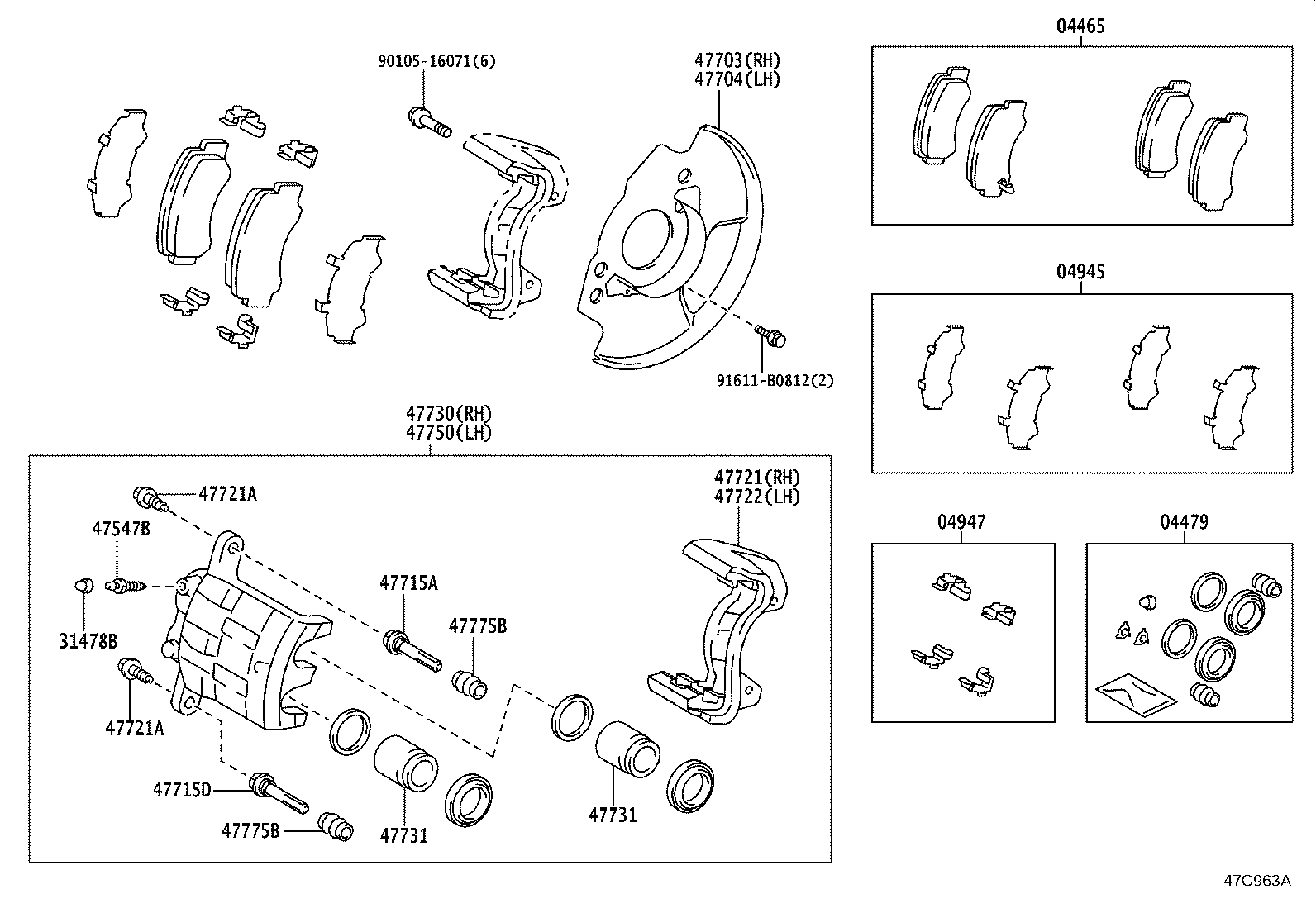

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47715A 47715D 47721 47721A 47721A 47722 47730 47731 47731 47750 47775B 47775B 9010516071 91611B0812
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-37230

XZU600,602,640,642,650,652..35T,40T

ﾏｰｸ AK NS265

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
0447B-37030

XZU600,602,640,642,650,652..35T,40T

 2
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-37051

XZU600,602,640,642,650,652..35T,40T

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
0494A-37030

XZU600,602,640,642,650,652..35T,40T

 2
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
S4753-81190

XZU600,602,640,642,650,652..35T,40T

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
S4753-71360

XZU600,602,640,642,650,652..35T,40T

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-37070

XZU600,602,640,642,650,652..35T,40T

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-37070

XZU600,602,640,642,650,652..35T,40T

 1
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47714-37120

XZU600,602,640,642,650,652..35T,40T

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-37120

XZU600,602,640,642,650,652..35T,40T

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-37160

XZU600,602,640,642,650,652..35T,40T

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-37120

XZU600,602,640,642,650,652..35T,40T

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-37120

XZU600,602,640,642,650,652..35T,40T

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-37160

XZU600,602,640,642,650,652..35T,40T

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-37162

XZU600,602,640,642,650,652..35T,40T

 1
47731 - PISTON, FRONT DISC BRAKE
47731-37120

XZU600,602,640,642,650,652..35T,40T

 4
47731 - PISTON, FRONT DISC BRAKE
47731-37120

XZU600,602,640,642,650,652..35T,40T

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-37162

XZU600,602,640,642,650,652..35T,40T

 1
47775B - BOOT, BUSH DUST, NO.1
47775-37121

XZU600,602,640,642,650,652..35T,40T

 4
47775B - BOOT, BUSH DUST, NO.1
47775-37121

XZU600,602,640,642,650,652..35T,40T

 4
Common parts
90105-16071
91611-B0812
