XZU600H-TKFQY7 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

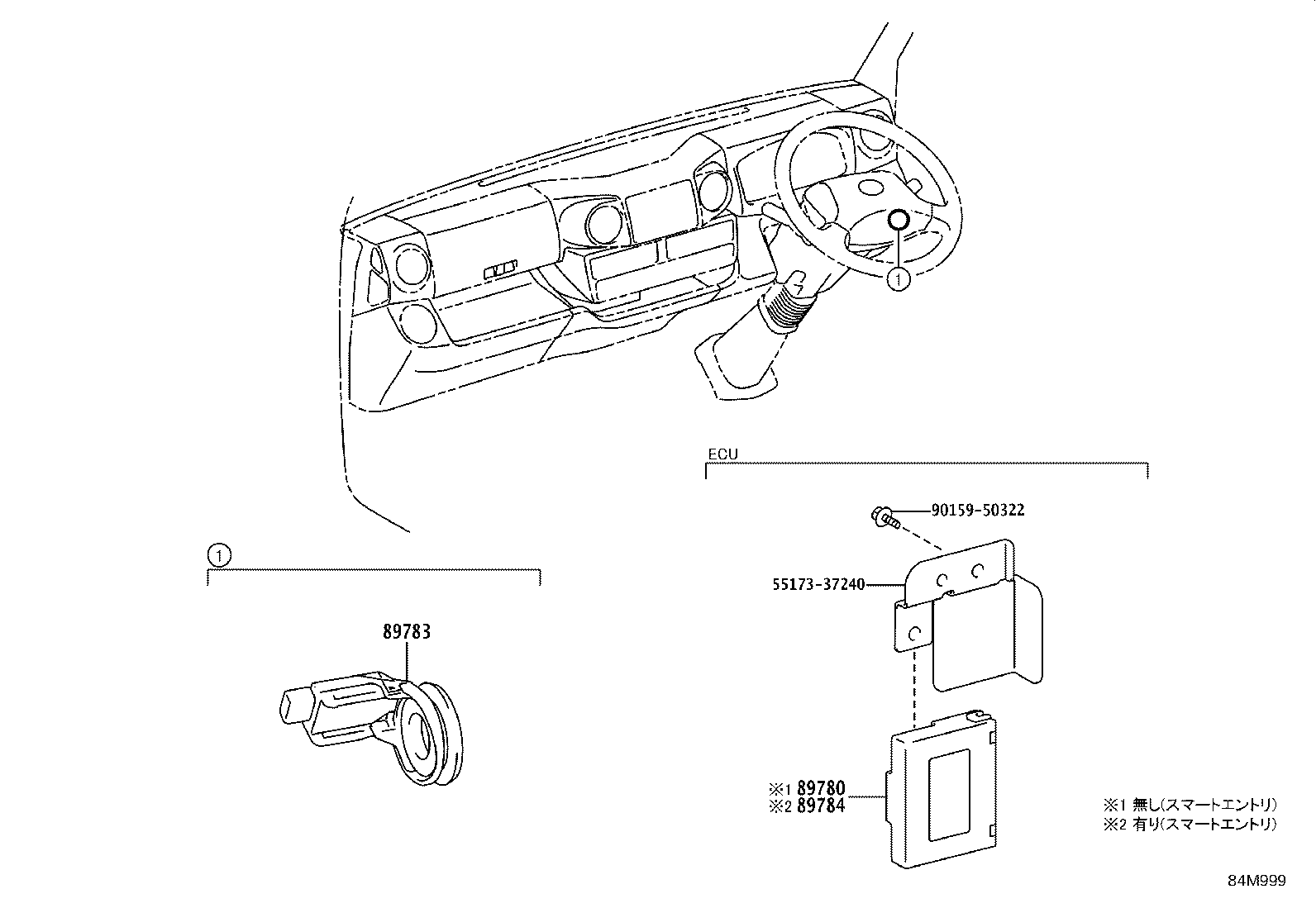

Click highlighted areas on diagram

diagram 5517337240 89780 89783 89784 9015950322
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-37030

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
89780-37030

XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7)

ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-37033

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
89783-37033

XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7)

ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-37020

XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7)

ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
89784-37020

XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..(CBU,IV3,IV5,IV7)

ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
Common parts
55173-37240
90159-50322
