XZU600H-TKFQY7 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

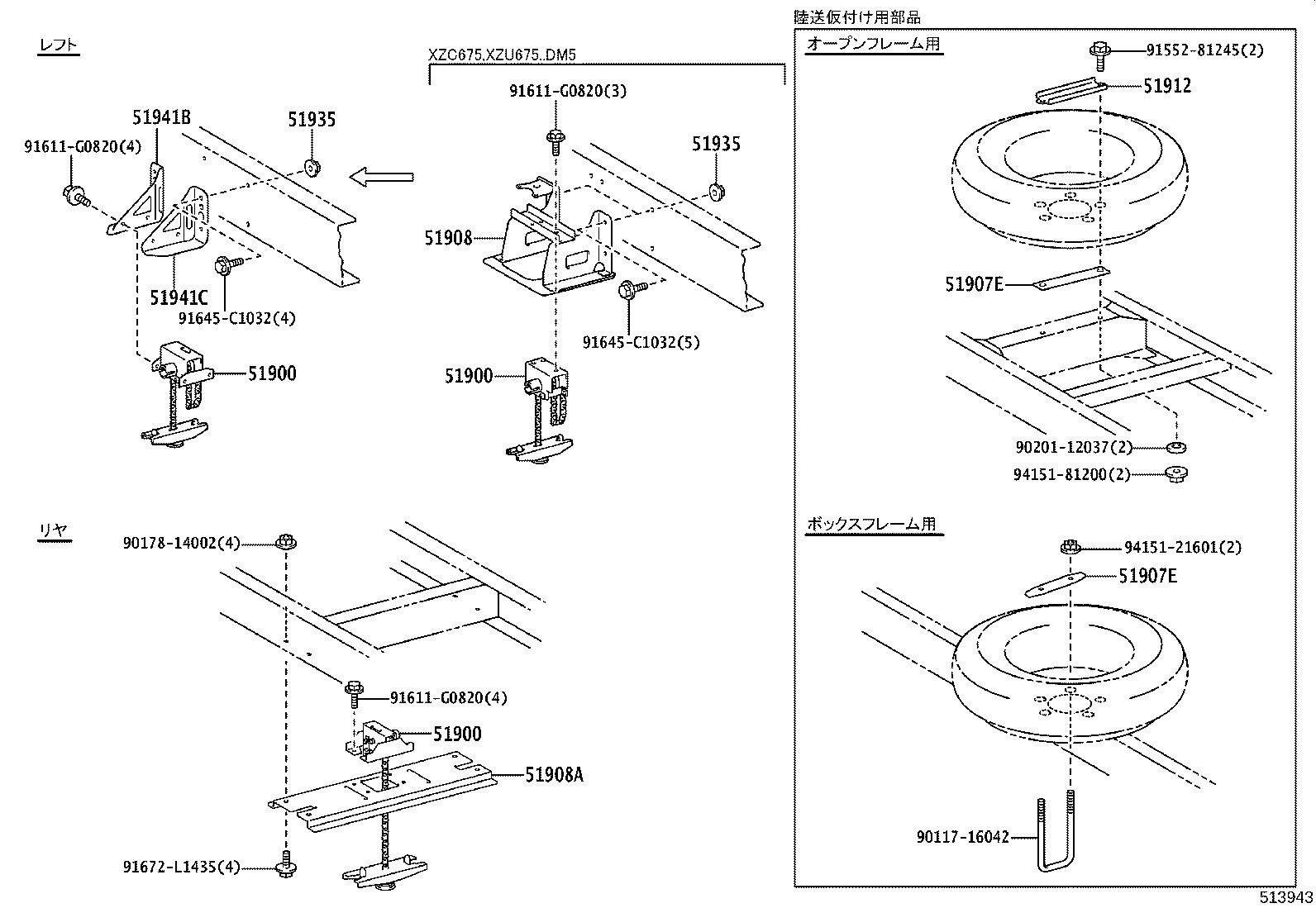

Click highlighted areas on diagram

diagram 51900 51900 51900 51907E 51907E 51908 51908A 51912 51935 51935 51941B 51941C 9011716042 9017814002 9020112037 9155281245 91611G0820 91611G0820 91611G0820 91645C1032 91645C1032 91672L1435 9415121601 9415181200
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-37180

XZU655..SCB..T4..6F..20T..CBU;XZC605,XZU605..SCB..T4..20T..IV3;XZC645,XZU600,640,645..(T3,T4)..(CBU,IV3,IV7)

ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−巻取り式(左側のみ)

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-37180

XZU655..SCB..T4..6F..20T..CBU;XZC605,XZU605..SCB..T4..20T..IV3;XZC645,XZU600,640,645..(T3,T4)..(CBU,IV3,IV7)

ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−巻取り式(左側のみ)

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-37180

XZU655..SCB..T4..6F..20T..CBU;XZC605,XZU605..SCB..T4..20T..IV3;XZC645,XZU600,640,645..(T3,T4)..(CBU,IV3,IV7)

ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−巻取り式(左側のみ)

 1
51907E - RETAINER SUB-ASSY, SPARE TIRE CARRIER
51912-37010

XZU600..DM3..IV3;XZU600..(DM3,DM6,T3)..(CBU,IV4,IV6,IV7);XZU642,675..(DM7,T3,T4)..(30T,40T)..(IV3,IV6);XZU602,605,640,650,652,685..(DM6,T3)..(IV4,IV5,IV6)

 1
51907E - RETAINER SUB-ASSY, SPARE TIRE CARRIER
51912-37010

XZU600..DM3..IV3;XZU600..(DM3,DM6,T3)..(CBU,IV4,IV6,IV7);XZU642,675..(DM7,T3,T4)..(30T,40T)..(IV3,IV6);XZU602,605,640,650,652,685..(DM6,T3)..(IV4,IV5,IV6)

 1
51912 - BRACKET, SPARE WHEEL
51912-37030

XZU600..DM3..IV3;XZU600..(DM3,DM6,T3)..(CBU,IV4,IV6,IV7);XZU642,675..(DM7,T3,T4)..(30T,40T)..(IV3,IV6);XZU602,605,640,650,652,685..(DM6,T3)..(IV4,IV5,IV6)

 1
51935 - NUT, SPARE WHEEL CARRIER EYE
94151-81000

XZU600..T3..(IV3,IV7)

ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−巻取り式(左側のみ)

 3
51935 - NUT, SPARE WHEEL CARRIER EYE
94151-81000

XZU600..T3..(IV3,IV7)

ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−巻取り式(左側のみ)

 3
51941B - BRACKET, SPARE WHEEL CARRIER, NO.1
51941-37321

XZU642..6FC;XZU655..SCB..T4..6F..20T..CBU;XZU600,64#..(DM7,T3,T4)..(30T,40T)..(CBU,IV3,IV7)

ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−巻取り式(左側のみ)

 1
51941C - BRACKET, SPARE WHEEL CARRIER, NO.2
51941-37332

XZU642..6FC;XZU655..SCB..T4..6F..20T..CBU;XZU600,64#..(DM7,T3,T4)..(30T,40T)..(CBU,IV3,IV7)

ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−巻取り式(左側のみ)

 1
Common parts
90117-16042
90178-14002
90201-12037
91552-81245
91611-G0820
91645-C1032
91672-L1435
94151-21601
94151-81200
