XZU600H-TKFQY7 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

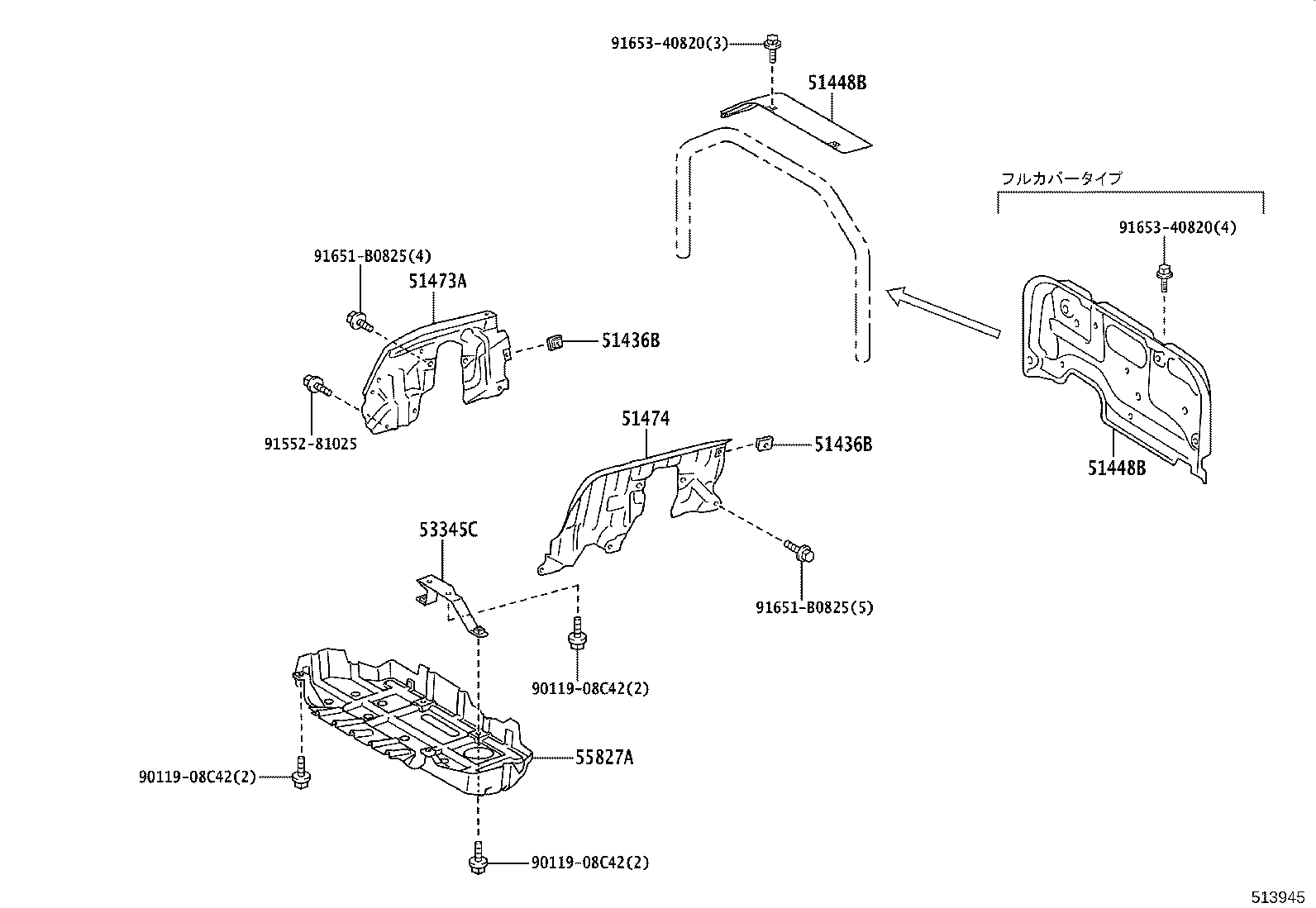

ILLUST NO. 1 OF 2(2103- )XZC600,630,XZU600,602,630,640,642,650,652

Click highlighted areas on diagram

diagram 51436B 51436B 51448B 51448B 51473A 51474 53345C 55827A 9011908C42 9011908C42 9011908C42 9155281025 91651B0825 91651B0825 9165340820 9165340820
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675

 2
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU685,695..SCB;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675

 2
51448B - SHUTTER, ENGINE REAR SIDE
51448-37270

XZC605,XZU600,605..SCB..(T2,T3,T4,T5)..(CBU,IV3,IV7)

 1
51448B - SHUTTER, ENGINE REAR SIDE
51448-37270

XZC605,XZU600,605..SCB..(T2,T3,T4,T5)..(CBU,IV3,IV7)

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37380

XZC600,630,XZU600,602,630,640,642,650,652

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37290

XZC600,630,XZU600,602,630,640,642,650,652

 1
53345C - BRACKET, AIR DEFLECTOR, NO.2
53304-37010

XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695..CBU,IV3,IV5,IV6,IV7

 1
55827A - DUCT, VENTILATOR AIR GUIDE
55827-37090

XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695..CBU,IV3,IV5,IV6,IV7

 1
Common parts
90119-08C42
91552-81025
91651-B0825
91653-40820

ILLUST NO. 2 OF 2(2103- )

Click highlighted areas on diagram

diagram 51094 51961C 51962 51963B 51964B 9017814007 9017914007 9167201445 9167201445 9167201460 9167201460
Part # Description Qty Price
51961C - HOOK, FRONT
51961-37070

XZU685,695..SCB;XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675..(DM3,DM5,DM7,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3,IV6,IV7)

牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)

 1
51961-37070

XZU685,695..SCB;XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675..(DM3,DM5,DM7,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3,IV6,IV7)

牽引ﾌｯｸ−ﾌﾛﾝﾄ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)

 1
51962 - HOOK, NO.2
51961-36040

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030

XZU650,685..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,695..CBU,IV3,IV5,IV6,IV7

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040

XZU650,685..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,695..CBU,IV3,IV5,IV6,IV7

 1
Common parts
90178-14007
90179-14007
91672-01445
91672-01460
