XZU600H-PKFQY4 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2103- )DCB

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 67003 67003A 67004 67407F 67408F 67457A 6757 6757 67841E 67842E 67859B 67871 67872 68103 68104 68142 68144C 68145E 68163 9011906251 9033335004 9095001759
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-37041

XZU600,605,640,655,685,695..DCB

 1
67003A - PLUG, HOLE(FOR REAR DOOR PANEL)
90541-09031

XZU600,605,640,655,685,695..DCB

 2
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-37061

XZU600,605,640,655,685,695..DCB

 1
67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67407-37011

XZU600,605,640,655,685,695..DCB

 1
67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67408-37011

XZU600,605,640,655,685,695..DCB

 1
67457A - BRACKET, REAR DOOR REAR GUIDE, UPPER
67457-37010

XZU600,605,640,655,685,695..DCB

 4
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-37040

XZU600,605,640,655,685,695..DCB

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-37020

XZU600,605,640,655,685,695..DCB

 1
67859B - COVER, REAR DOOR LOWER HOLE
67859-37010

XZU600,605,640,655,685,695..DCB

 2
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-37011

XZU600,605,640,655,685,695..DCB

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67871-37011

XZU600,605,640,655,685,695..DCB

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-37040

XZU600,605,640,655,685,695..DCB

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68113-37040

XZU600,605,640,655,685,695..DCB

 1
68142 - RUN, REAR DOOR GLASS
68142-37012

XZU600,605,640,655,685,695..DCB

 2
68144C - RUN, REAR DOOR GLASS, LOWER FRONT
68144-37011

XZU600,605,640,655,685,695..DCB

 2
68145E - RUN, REAR DOOR GLASS, LOWER REAR
68145-37011

XZU600,605,640,655,685,695..DCB

 2
68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER
68163-37011

XZU600,605,640,655,685,695..DCB

 2
Common parts
90119-06251
90333-35004
90950-01759
Linked diagrams
6757

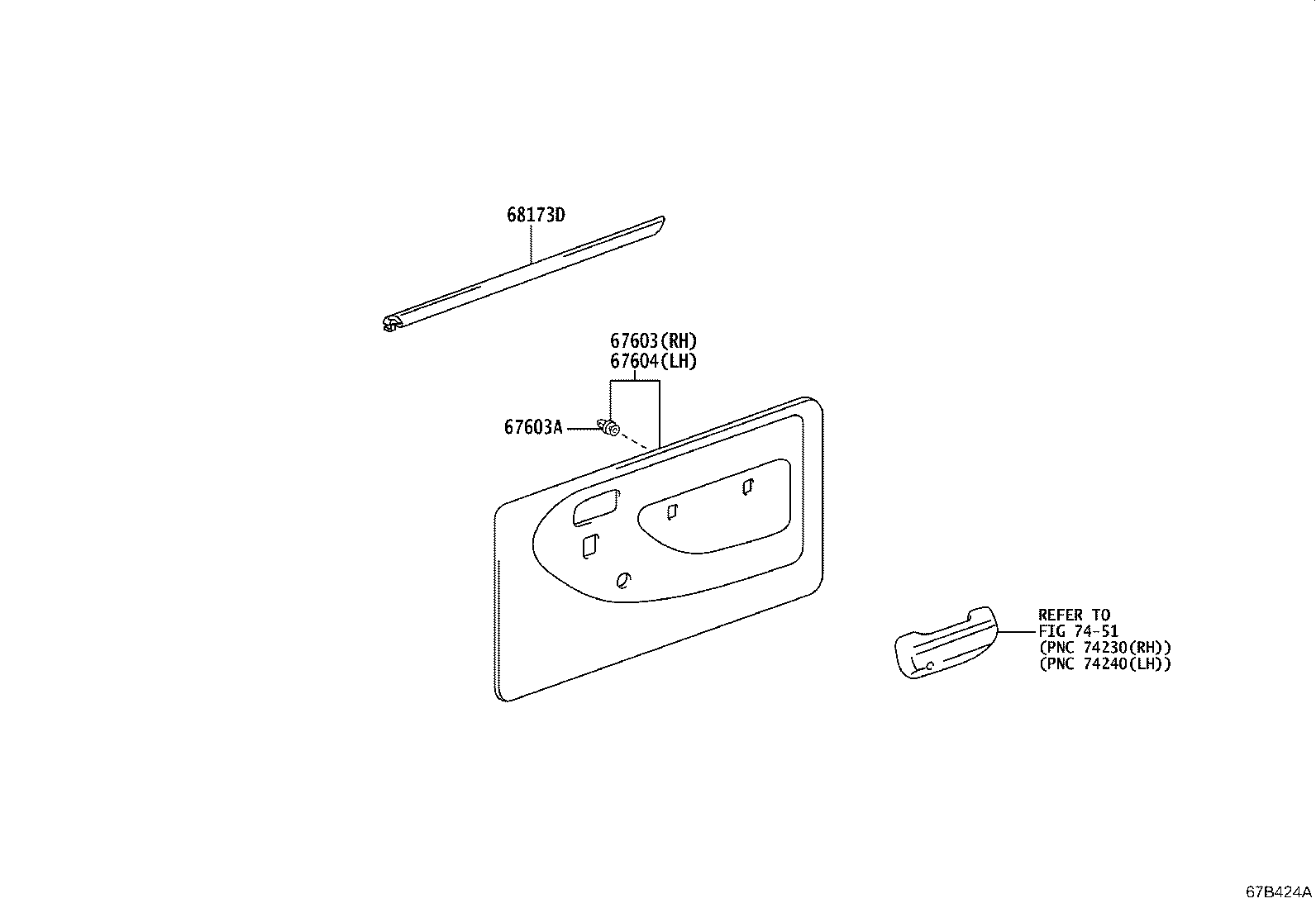

ILLUST NO. 2 OF 2(2103- )DCB

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 67603 67603A 67604 68173D 7451
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-25021B1

XZU600,605,640,655,685,695..DCB

ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ),GRAY,TRIM1#

 1
67630-37091B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-16080

XZU600,605,640,655,685,695..DCB

 20
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-25021B1

XZU600,605,640,655,685,695..DCB

ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ),GRAY,TRIM1#

 1
67640-37071B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
68173D - WEATHERSTRIP, REAR DOOR GLASS, CHANNEL
68173-37011

XZU600,605,640,655,685,695..DCB

 2
Linked diagrams
7451
