XZU600D-TWFQY (2021)
Toyota Dyna
ILLUST NO. 1 OF 2(2103- )XZC600,630,XZU600,602,630,640,642,650,652
ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37020 |
XZC600,630,XZU600,602,630,640,642,650,652 |
2 | ||
| 48042B - BUSH, FRONT SPRING NO.2 SHACKLE | ||||
| 90389-16026 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48042B - BUSH, FRONT SPRING NO.2 SHACKLE | ||||
| 90389-16026 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37060 |
XZC600,630,XZU600,630,640,650..20T,30T |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37050 |
XZU600,630..(DM5,DM7)..6F..30T |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
XZC600,630,XZU600,602,630,640,642,650,652 |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
XZC600,630,XZU600,602,630,640,642,650,652 |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16066 |
XZU600,630..(DM5,DM7)..30T 長さ=120 |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16066 |
XZU600,630..(DM5,DM7)..30T 長さ=120 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80177 |
XZU600..DM3;XZU600..DM5..30T ﾏｰｸ 48511−37350 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02054 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
XZC600,630,XZU600,602,630,640,642,650,652 |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZC600,630,XZU600,602,630,640,642,650,652 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80177 |
XZU600..DM3;XZU600..DM5..30T ﾏｰｸ 48511−37350 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZC600,630,XZU600,602,630,640,642,650,652 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-37030 |
XZC600,630,XZU600,602,630,640,642,650,652 |
2 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90177-14005 | ||||
| 90178-16004 | ||||
| 90178-16007 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91112-81045 | ||||
| 91651-B0820 | ||||
| 94184-01001 | ||||
ILLUST NO. 1 OF 2(2103- )XZC600,630,XZU600,602,640,642,650,652
ﾅｼ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37020 |
XZC600,630,XZU600,602,630,640,642,650,652 |
2 | ||
| 48042B - BUSH, FRONT SPRING NO.2 SHACKLE | ||||
| 90389-16026 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48042B - BUSH, FRONT SPRING NO.2 SHACKLE | ||||
| 90389-16026 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-37060 |
XZC600,630,XZU600,630,640,650..20T,30T |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37050 |
XZU600,630..(DM5,DM7)..6F..30T |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
XZC600,630,XZU600,602,630,640,642,650,652 |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
XZC600,630,XZU600,602,630,640,642,650,652 |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16066 |
XZU600,630..(DM5,DM7)..30T 長さ=120 |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16066 |
XZU600,630..(DM5,DM7)..30T 長さ=120 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80177 |
XZU600..DM3;XZU600..DM5..30T ﾏｰｸ 48511−37350 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01071 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02054 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02009 |
XZC600,630,XZU600,602,630,640,642,650,652 |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
XZC600,630,XZU600,602,630,640,642,650,652 |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZC600,630,XZU600,602,630,640,642,650,652 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80177 |
XZU600..DM3;XZU600..DM5..30T ﾏｰｸ 48511−37350 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZC600,630,XZU600,602,630,640,642,650,652 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-37030 |
XZC600,630,XZU600,602,630,640,642,650,652 |
2 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90178-16004 | ||||
| 90178-16007 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91651-B0820 | ||||

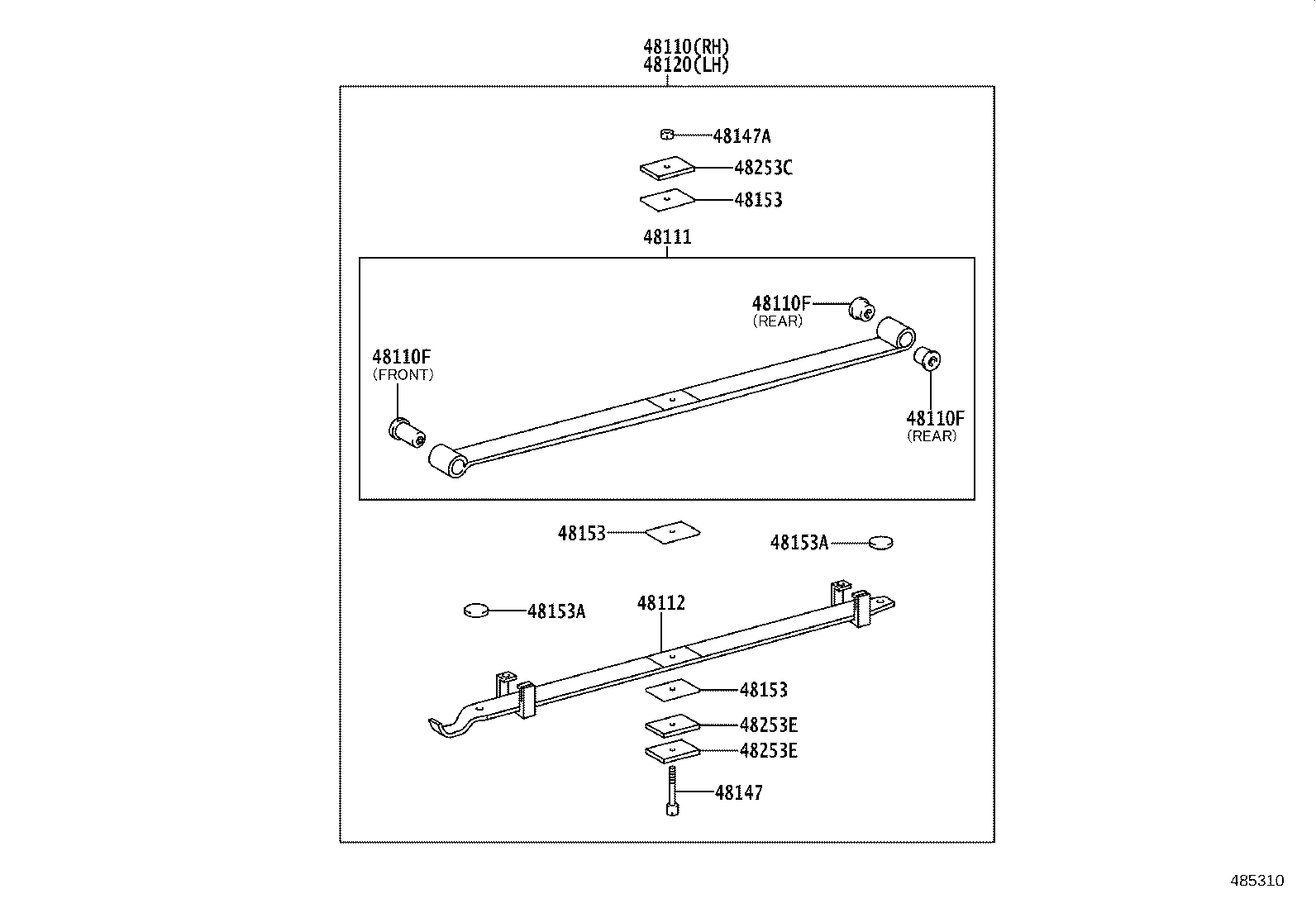

ILLUST NO. 2 OF 2(2103- )XZU600..DM5..30T
2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3VA00 |
XZU600..DM5..30T 2枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XZU640..IV4,IV6;XZU650..35T,40T;XZU600..CBU,IV4,IV7;XZU600..DM5..30T..IV3;XZU600..(20T,40T)..(IV3,IV6);XZC600,630,XZU602,630,642,652 ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XZU640..IV4,IV6;XZU650..35T,40T;XZU600..CBU,IV4,IV7;XZU600..DM5..30T..IV3;XZU600..(20T,40T)..(IV3,IV6);XZC600,630,XZU602,630,642,652 ﾘﾔ |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XZU640..IV4,IV6;XZU650..35T,40T;XZU600..CBU,IV4,IV7;XZU600..DM5..30T..IV3;XZU600..(20T,40T)..(IV3,IV6);XZC600,630,XZU602,630,642,652 ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XZU640..IV4,IV6;XZU650..35T,40T;XZU600..CBU,IV4,IV7;XZU600..DM5..30T..IV3;XZU600..(20T,40T)..(IV3,IV6);XZC600,630,XZU602,630,642,652 ﾘﾔ |
4 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16025 |
XZU640..IV4,IV6;XZU650..35T,40T;XZU600..CBU,IV4,IV7;XZU600..DM5..30T..IV3;XZU600..(20T,40T)..(IV3,IV6);XZC600,630,XZU602,630,642,652 ﾌﾛﾝﾄ |
2 | ||
| 90389-16026 |
XZU640..IV4,IV6;XZU650..35T,40T;XZU600..CBU,IV4,IV7;XZU600..DM5..30T..IV3;XZU600..(20T,40T)..(IV3,IV6);XZC600,630,XZU602,630,642,652 ﾘﾔ |
4 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3VA00 |
XZU600..DM5..30T 運転席側 |
1 | ||
| 48101-3VA10 |
XZU600..DM5..30T 助手席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3VA00 |
XZU600..DM5..30T 運転席側 |
1 | ||
| 48102-3VA10 |
XZU600..DM5..30T 助手席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3VA10 |
XZU600..DM5..30T 2枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37A01 |
XZU630..20T;XZC600,630,XZU600..DM3,DM5,DM7 |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC600,630,XZU600,602,630,640,642,650,652 |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37J42 |
XZU630..30T;XZU600..DM5..30T..IV3;XZU600..30T..(CBU,IV7);XZU600,650..(DM6,T3,T4)..20T |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37J42 |
XZU630..30T;XZU600..DM5..30T..IV3;XZU600..30T..(CBU,IV7);XZU600,650..(DM6,T3,T4)..20T |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48152-37J42 |
XZU630..30T;XZU600..DM5..30T..IV3;XZU600..30T..(CBU,IV7);XZU600,650..(DM6,T3,T4)..20T |
6 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC600,630,XZU600,630,640,650..20T,30T |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC600,630,XZU600,630,640,650..20T,30T |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48114-37L52 |
XZU600..DM5..30T |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-3VB20 |
XZU600..DM5..30T |
4 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-3VB20 |
XZU600..DM5..30T |
4 | ||
