XZU600A-TYTMY6 (2021)
Toyota Dyna

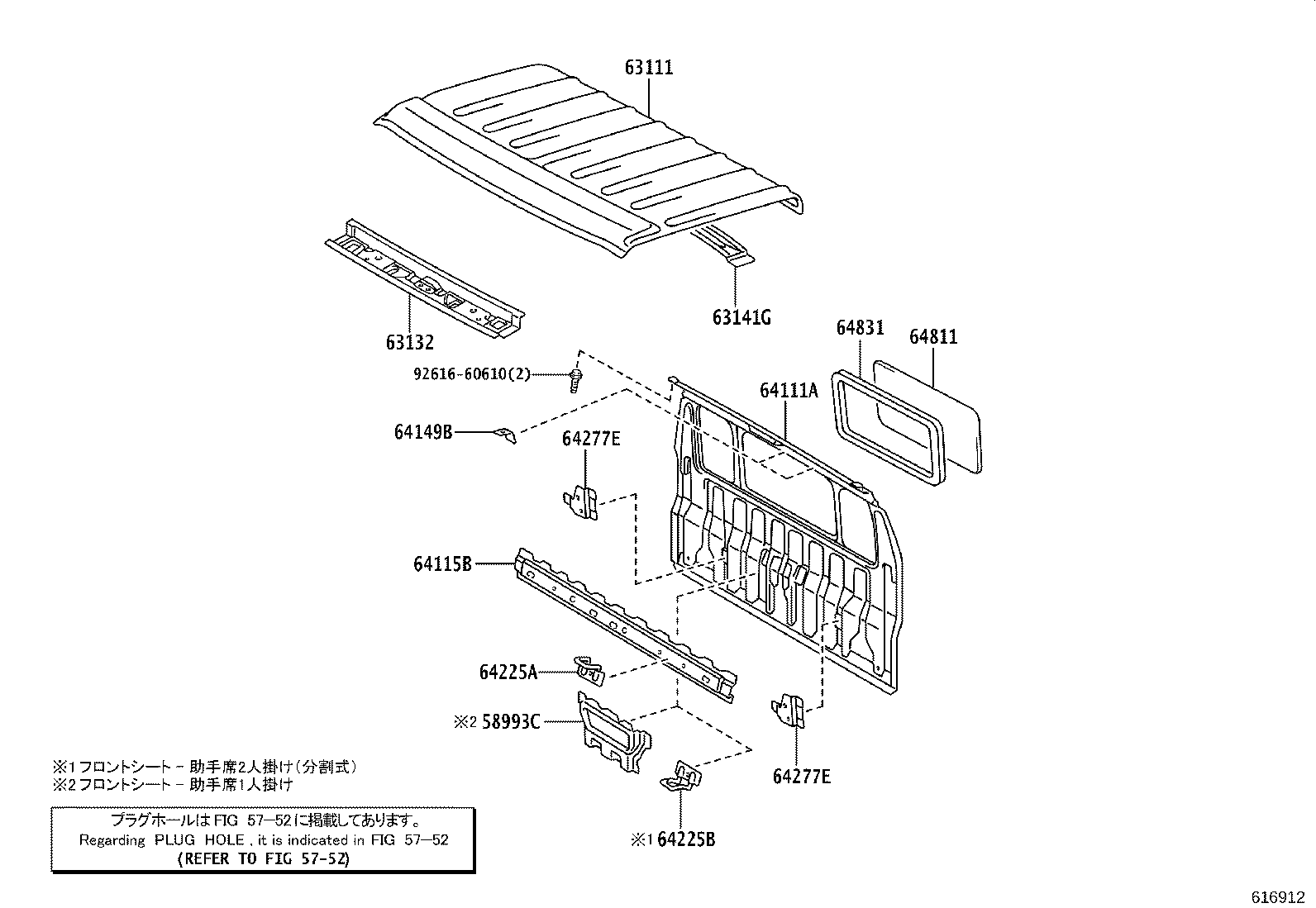

ILLUST NO. 1 OF 3(2103- )SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58993C - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-37050 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-37120 |
XZU600..CBU,IV6;XZU600..(DM3,DM5)..IV3;XZU640,642,650,652,685..IV6;XZC60#,630,675,XZU602,605,630,675..SCB..(CBU,IV3,IV6) |
1 | ||
| 63111-37132 |
XZU600,650,652..IV6;XZU605,675..SCB..(T2,T4,T5)..(IV3,IV6);XZC605,675,XZU602,640,642..(T2,T3,T4,T5)..(20T,40T)..(IV3,IV6) ﾁﾙﾄｷｬﾌﾞ−ﾊｲﾙｰﾌ |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-37074 |
XZU600..CBU,IV4,IV6;XZU600..(DM3,DM5)..IV3;XZU655,685,695..DCB..20T;XZU640,642,650,652,685..IV4,IV6;XZC60#,630,675,XZU602,605,630,675..CBU,IV3,IV6 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-37061 |
XZU600..CBU,IV6;XZU600..(DM3,DM5)..IV3;XZU655,685,695..DCB..20T;XZU640,642,650,652,685..IV6;XZC60#,630,675,XZU602,605,630,675..CBU,IV3,IV6 |
1 | ||
| 63141-37070 |
XZU600,650,652..IV6;XZU605,675..SCB..(T2,T4,T5)..(IV3,IV6);XZC605,675,XZU602,640,642..(T2,T3,T4,T5)..(20T,40T)..(IV3,IV6) ﾁﾙﾄｷｬﾌﾞ−ﾊｲﾙｰﾌ |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64111-37376 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 64115B - REINFORCEMENT, BACK PANEL | ||||
| 64115-25040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 64149B - RETAINER, BACK PANEL HEADREST | ||||
| 64149-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 64225A - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64209-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 64225B - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64209-37030 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 64277E - BRACKET, BACK PANEL TRIM, LOWER | ||||
| 64277-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-37120 |
XZU675..T4..IV3;XZC600,630,XZU600,602,630,642,675..SCB..(DM3,DM5,DM6,DM7,T3);XZC605,645,655,675,XZU605,640,645,65#,685,695..SCB..(IV3,IV5,IV6) |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-37041 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| Common parts | ||||
| 92616-60610 | ||||
| Linked diagrams | ||||
| 5752 | ||||

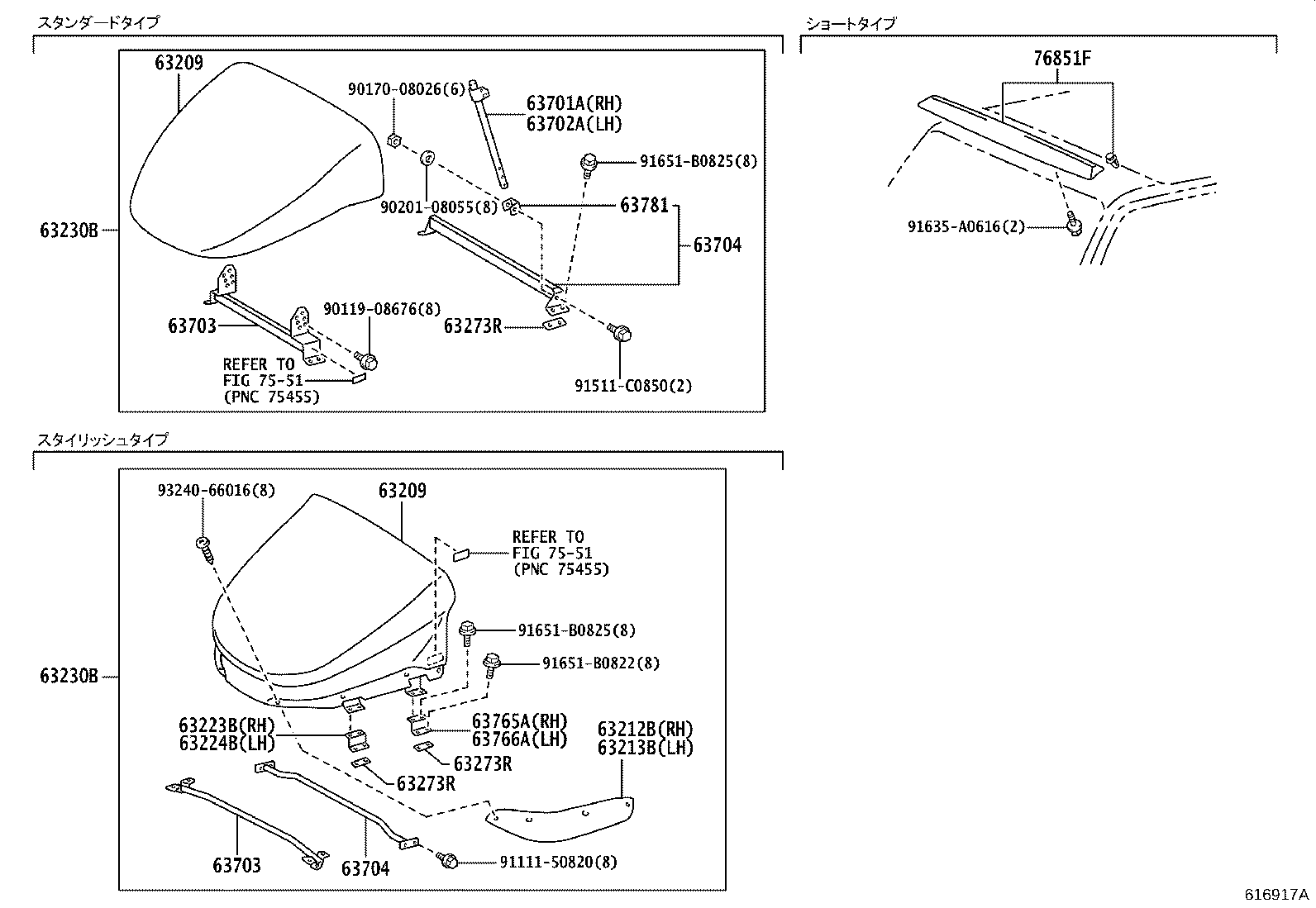

ILLUST NO. 2 OF 3(2103- )SCB
ﾙｰﾌｴｱﾃﾞﾌﾚｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08676 | ||||
| 90170-08026 | ||||
| 90201-08055 | ||||
| 91111-50820 | ||||
| 91511-C0850 | ||||
| 91635-A0616 | ||||
| 91651-B0822 | ||||
| 91651-B0825 | ||||
| 93240-66016 | ||||
| Linked diagrams | ||||
| 7551 | ||||

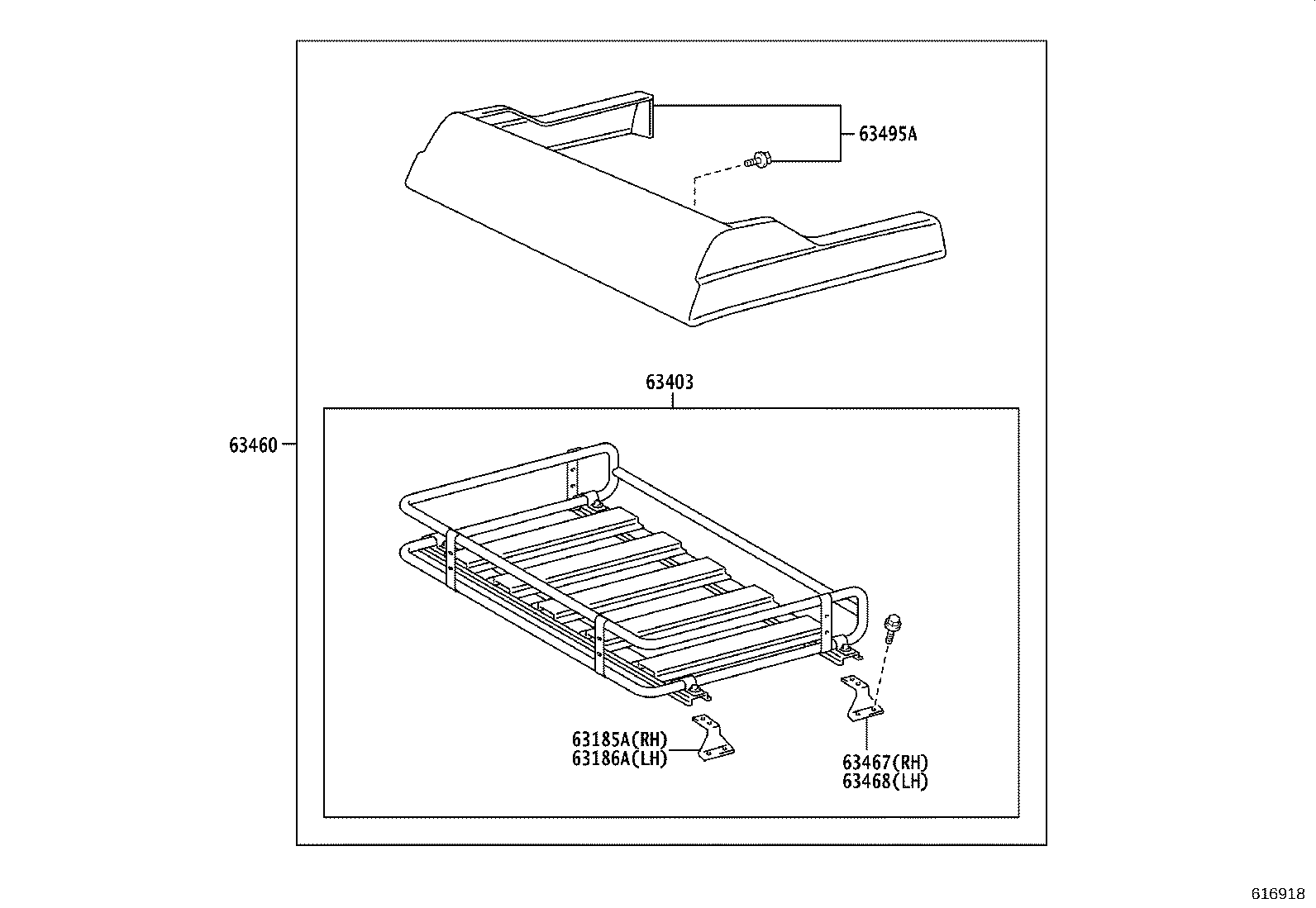

ILLUST NO. 3 OF 3(2103- )SCB
ｴｱﾛﾌｰﾌﾗｯｸ
| Part # | Description | Qty | Price |
|---|
