XZU600A-TYTMY6 (2021)
Toyota Dyna
ILLUST NO. 1 OF 2(2103- )6FC..CBU,IV3,IV5,IV6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32913B - BRACKET, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32913-37070 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 32913-37080 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 32913B - BRACKET, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32913-37070 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 32913-37080 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 36603 - TUBE SUB-ASSY, POWER TAKE-OFF LUBRICATION | ||||
| 36603-37020 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC |
1 | ||
| 36603A - ELBOW (FOR POWER TAKE-OFF LUBRICATION TUBE) | ||||
| 90407-14003 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC |
2 | ||
| 36603A - ELBOW (FOR POWER TAKE-OFF LUBRICATION TUBE) | ||||
| 90407-14003 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC |
2 | ||
| 36603E - RING, O (FOR POWER TAKE-OFF LUBRICATION TUBE) | ||||
| 90301-10021 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC |
2 | ||
| 36603E - RING, O (FOR POWER TAKE-OFF LUBRICATION TUBE) | ||||
| 90301-10021 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC |
2 | ||
| 36608 - TUBE SUB-ASSY, POWER TAKE OFF LINE PRESSURE | ||||
| 36608-37030 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC |
1 | ||
| 36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE) | ||||
| 90116-10213 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC |
6 | ||
| 36633A - GASKET, POWER TAKE-OFF COVER | ||||
| 36633-37050 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC |
1 | ||
| Common parts | ||||
| 32926-37010 | ||||
| 90170-10018 | ||||
| 90462-10082 | ||||
| 91551-80612 | ||||
| 91551-80816 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 8202 | ||||

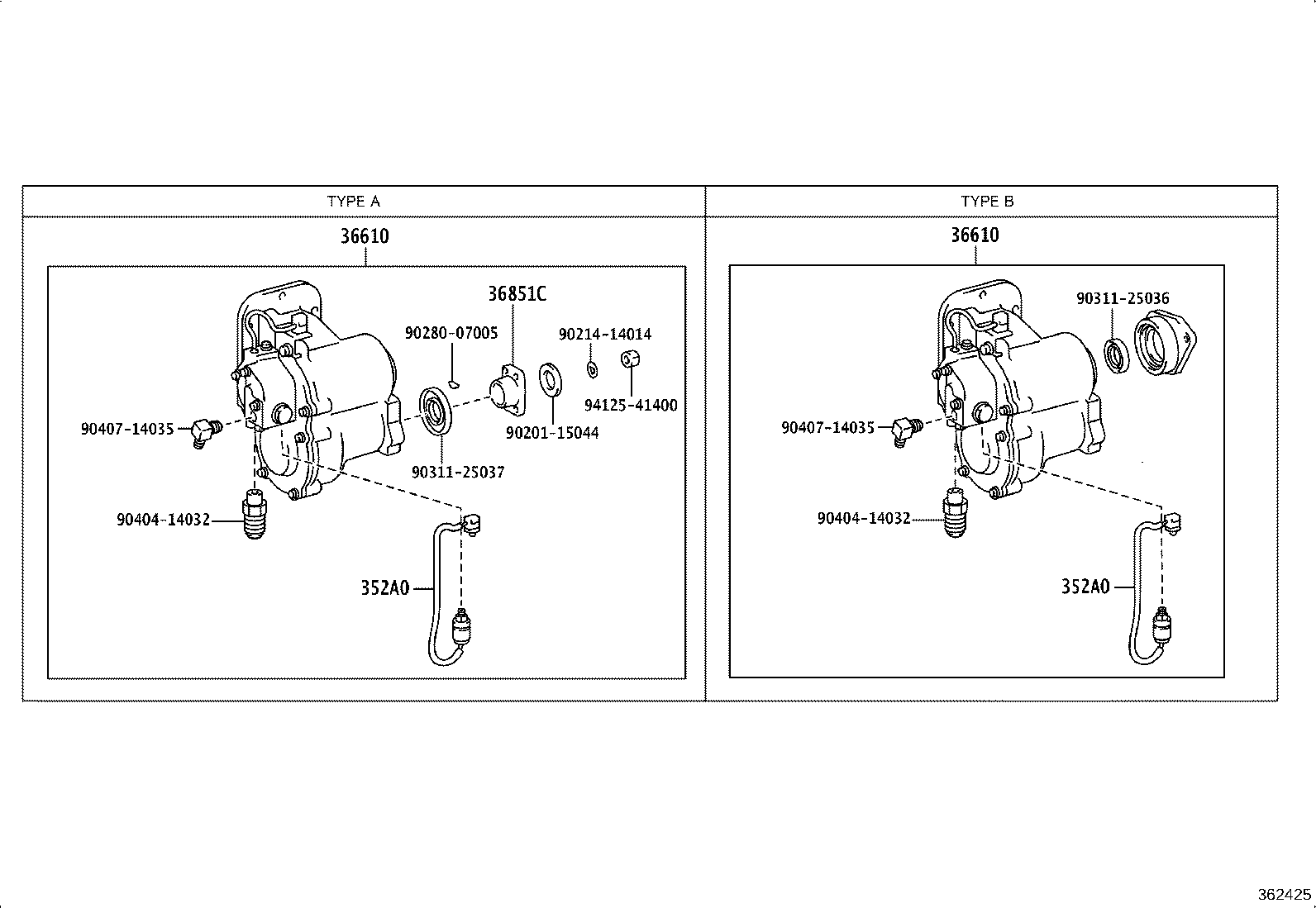

ILLUST NO. 2 OF 2(2103- )6FC..CBU,IV3,IV5,IV6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 352A0 - SWITCH ASSY, TRANSMISSION OIL PRESSURE | ||||
| 352A0-37010 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC |
1 | ||
| 352A0 - SWITCH ASSY, TRANSMISSION OIL PRESSURE | ||||
| 352A0-37010 |
XZU600..DM5..6FC;XZU600,652..6FC..IV6;XZC600,XZU602,605,642..(DM5,DM6,T3)..6FC |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37451 |
XZU60#,642,652..6FC..(IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36610-37551 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36610-37551 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37451 |
XZU60#,642,652..6FC..(IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36610-37551 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36610-37551 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36851C - FLANGE, POWER TAKE-OFF OUTPUT SHAFT | ||||
| 36851-37040 |
XZU60#,642,652..6FC..(IV5,IV6) |
1 | ||
| Common parts | ||||
| 90201-15044 | ||||
| 90214-14014 | ||||
| 90280-07005 | ||||
| 90311-25036 | ||||
| 90311-25037 | ||||
| 90404-14032 | ||||
| 90407-14035 | ||||
| 94125-41400 | ||||

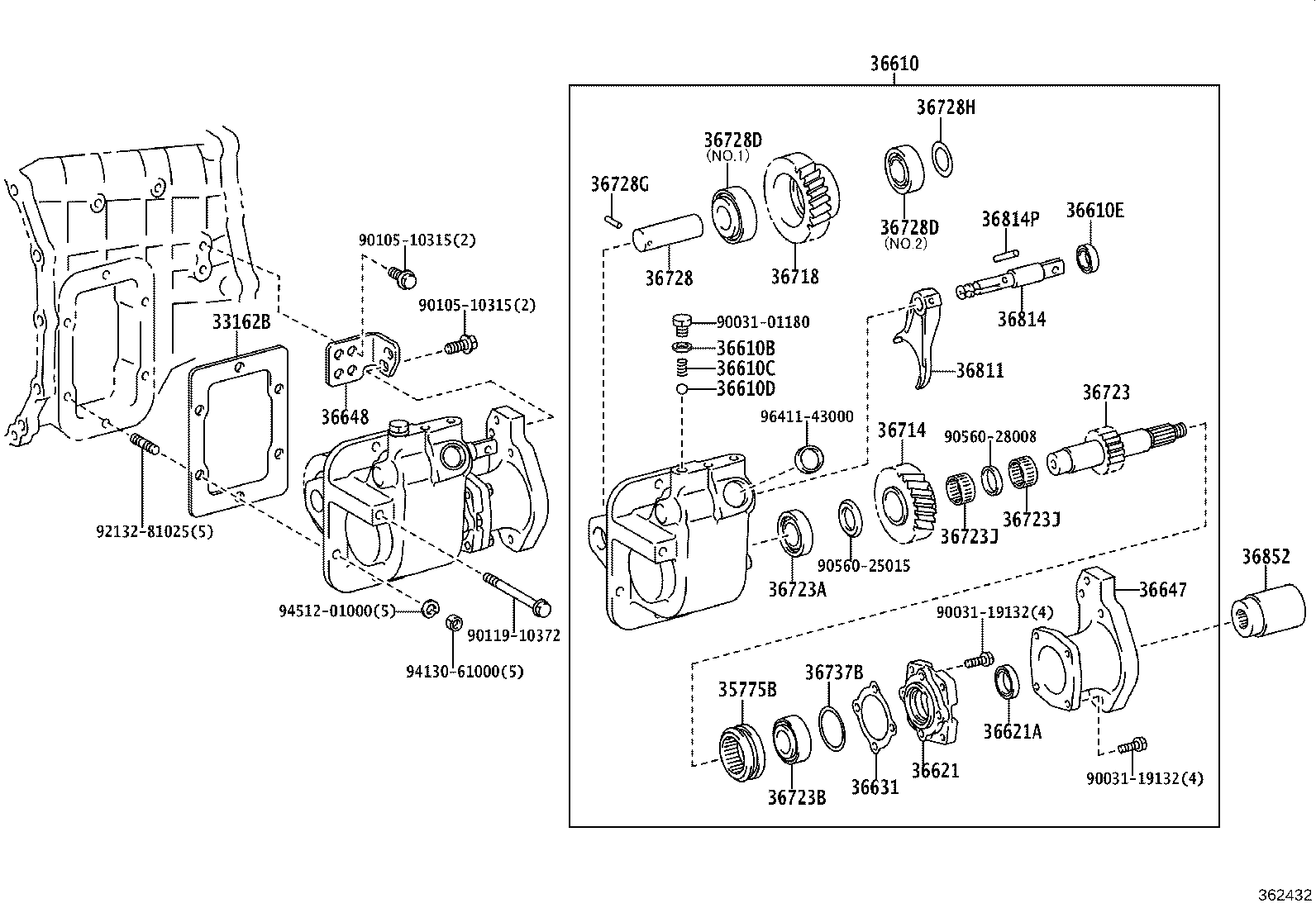

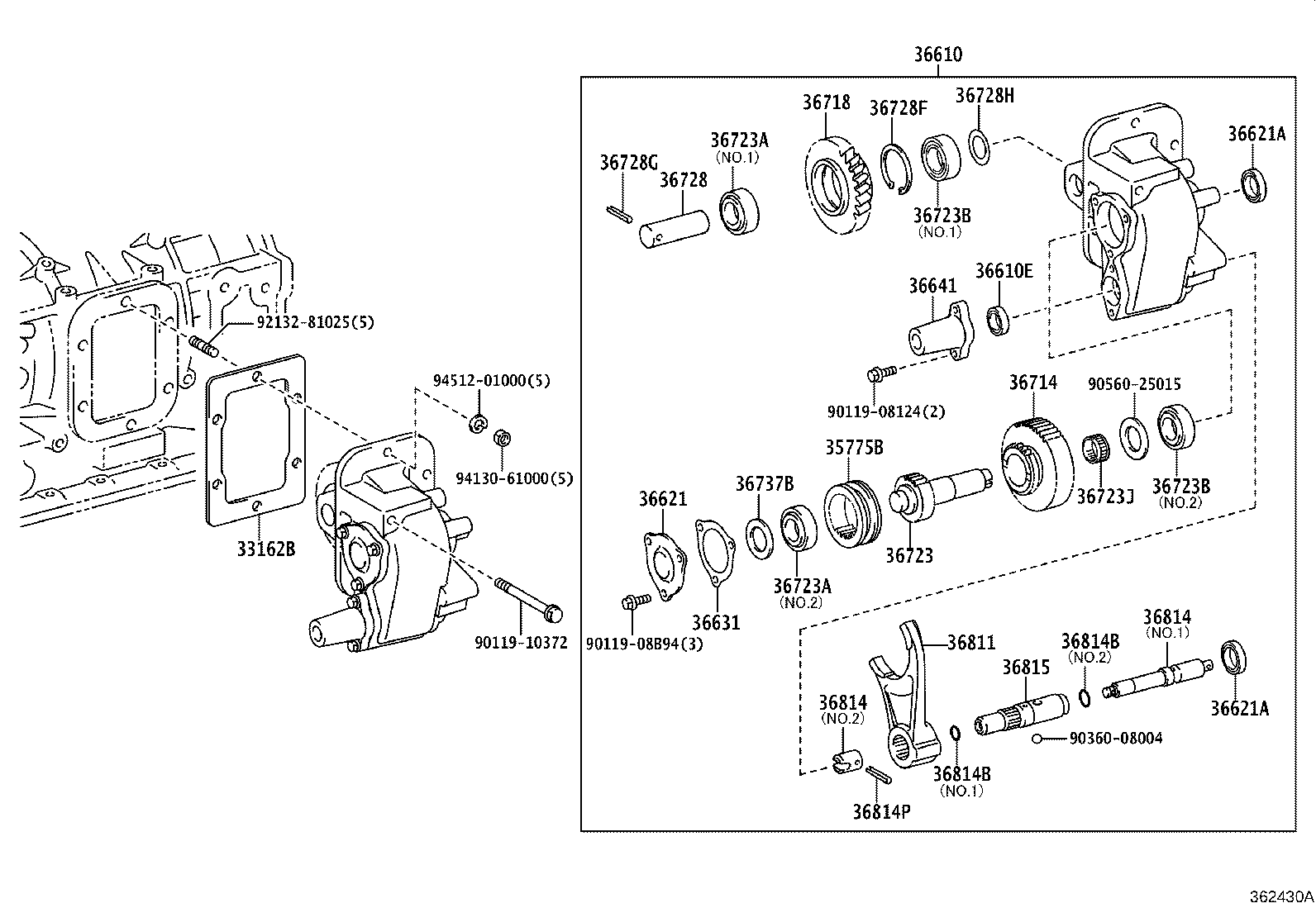

(2103- )DM5..6F..30T ; (2103- )XZU685..30T..IV3 ; (2103- )XZU600..DM3,DM5,
ﾎﾟﾝﾌﾟｼﾞｶﾂﾞｹﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37050 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 33162-37050 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 33162-37050 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 33162-37050 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37031 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775-37031 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775-37031 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 35775-37031 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37451 |
XZU60#,642,652..6FC..(IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36610-37451 |
XZU60#,642,652..6FC..(IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36610-37551 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36610-37551 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36610-37551 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610-37551 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90311-20010 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90311-20010 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90311-20010 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36621-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90311-25110 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90311-25110 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36632-37030 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37260 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36714-37260 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36714-37260 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36714-37260 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37181 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36718-37181 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36718-37181 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36718-37181 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37160 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36723-37160 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36723-37160 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723-37160 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90366-22001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90366-22001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) 厚さ=14 |
1 | ||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) 厚さ=14 |
1 | ||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) 厚さ=14 |
1 | ||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) 厚さ=14 |
1 | ||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
2 | ||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37060 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36728-37060 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90254-04002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90254-04002 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90254-04002 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90564-25001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90564-25002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.1 |
1 | ||
| 90564-25002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.1 |
1 | ||
| 90564-25003 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.2 |
1 | ||
| 90564-25003 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.2 |
1 | ||
| 90564-25004 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.5 |
1 | ||
| 90564-25004 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.5 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90564-42001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-37040 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36811-37040 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36811-37040 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36811-37040 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36814-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36814-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-06006 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90254-06006 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| Common parts | ||||
| 90119-08124 | ||||
| 90119-08B94 | ||||
| 90119-10372 | ||||
| 90360-08004 | ||||
| 90560-25015 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
(2103- )6F..IV6 ; (2103- )XZU605..T4..6F..30T..IV3
ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ(ｱﾀﾞﾌﾟﾀﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37050 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 33162-37050 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37031 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775-37031 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37451 |
XZU60#,642,652..6FC..(IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36610-37551 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36610-37551 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12001 |
XZU600,602,640,642,650,652..6F..IV6 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90035-01053 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-10001 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90311-20010 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36647 - ADAPTER, POWER TAKE-OFF PUMP | ||||
| 36647-37010 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36648 - BRACKET, POWER TAKE-OFF PUMP ADAPTER | ||||
| 36648-37010 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37260 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36714-37260 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37181 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36718-37181 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37160 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36723-37160 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) 厚さ=14 |
1 | ||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37060 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25025 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25025 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90254-04002 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90564-25002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.1 |
1 | ||
| 90564-25003 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.2 |
1 | ||
| 90564-25004 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.5 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-37040 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36811-37040 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-06006 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36852 - COUPLING, POWER TAKE-OFF OUTPUT SHAFT | ||||
| 36852-37010 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| Common parts | ||||
| 90031-01180 | ||||
| 90031-19132 | ||||
| 90105-10315 | ||||
| 90119-10372 | ||||
| 90560-25015 | ||||
| 90560-28008 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96411-43000 | ||||
(2103- )XZU650..6F..20T,30T,35T ; (2103- )XZU605..T5..6F..20T..IV3 ; (2103-
ﾃﾞﾝｷｼｷ(ｱﾀﾞﾌﾟﾀﾀｲﾌﾟ) 25KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-37050 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 33162-37050 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 33162-37050 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 33162-37050 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 33162-37050 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 33162-37050 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37031 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775-37031 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775-37031 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 35775-37031 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 35775-37031 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 35775-37031 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37451 |
XZU60#,642,652..6FC..(IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36610-37451 |
XZU60#,642,652..6FC..(IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36610-37451 |
XZU60#,642,652..6FC..(IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 36610-37551 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36610-37551 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36610-37551 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36610-37551 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610-37551 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610-37551 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12001 |
XZU600,602,640,642,650,652..6F..IV6 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90430-12001 |
XZU600,602,640,642,650,652..6F..IV6 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90430-12001 |
XZU600,602,640,642,650,652..6F..IV6 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20010 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90311-20010 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90311-20010 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90311-20010 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90311-20010 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90311-20010 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36621-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36621-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90311-25110 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90311-25110 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-37030 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36632-37030 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36632-37030 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36647 - ADAPTER, POWER TAKE-OFF PUMP | ||||
| 36647-37010 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36647-37010 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36647-37010 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36648 - BRACKET, POWER TAKE-OFF PUMP ADAPTER | ||||
| 36648-37010 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36648-37010 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36648-37010 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-37260 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36714-37260 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36714-37260 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36714-37260 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36714-37260 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36714-37260 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-37181 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36718-37181 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36718-37181 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36718-37181 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36718-37181 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36718-37181 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-37160 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36723-37160 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36723-37160 |
XZU60#,640,642,650,652..6F..IV6 |
1 | ||
| 36723-37160 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723-37160 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723-37160 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90366-22001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90366-22001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90366-22001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) 厚さ=14 |
1 | ||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) 厚さ=14 |
1 | ||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) 厚さ=14 |
1 | ||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90366-25011 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=14,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
2 | ||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
2 | ||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
2 | ||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
2 | ||
| 90364-28020 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
2 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-37060 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36728-37060 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36728-37060 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25025 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25025 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25025 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25024 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25025 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25025 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90366-25025 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90254-04002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90254-04002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90254-04002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM |
1 | ||
| 90254-04002 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90254-04002 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90254-04002 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25001 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.05 |
1 | ||
| 90564-25001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90564-25001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90564-25001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90564-25002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.1 |
1 | ||
| 90564-25002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.1 |
1 | ||
| 90564-25002 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.1 |
1 | ||
| 90564-25003 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.2 |
1 | ||
| 90564-25003 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.2 |
1 | ||
| 90564-25003 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.2 |
1 | ||
| 90564-25004 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.5 |
1 | ||
| 90564-25004 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.5 |
1 | ||
| 90564-25004 |
XZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,650,652,685..MTM..(IV5,IV6);XZC600,630,675,XZU602,630,642,675..(DM5,DM7,T3)..MTM 厚さ=0.5 |
1 | ||
| 36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT) | ||||
| 90564-42001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90564-42001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90564-42001 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-37040 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36811-37040 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36811-37040 |
XZU602,640,642..6F..40T;XZU600,605,650,652..6F..(IV5,IV6) |
1 | ||
| 36811-37040 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36811-37040 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36811-37040 |
XZU602,640,642..6F..40T;XZU600,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36814-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36814-37090 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-06006 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90254-06006 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90254-06006 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT) | ||||
| 90254-06006 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90254-06006 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 90254-06006 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36852 - COUPLING, POWER TAKE-OFF OUTPUT SHAFT | ||||
| 36852-37010 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36852-37010 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| 36852-37010 |
XZU600,602,640,642,650,652..6F..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−無し |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82715-3VM60 | ||||
| 90031-19132 | ||||
| 90105-10315 | ||||
| 90110-08024 | ||||
| 90119-10372 | ||||
| 90179-16032 | ||||
| 90201-16038 | ||||
| 90204-08007 | ||||
| 90501-26102 | ||||
| 90560-25015 | ||||
| 90560-28008 | ||||
| 92132-81025 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 96411-43000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
