XZU600A-TYFMY6 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )SCB

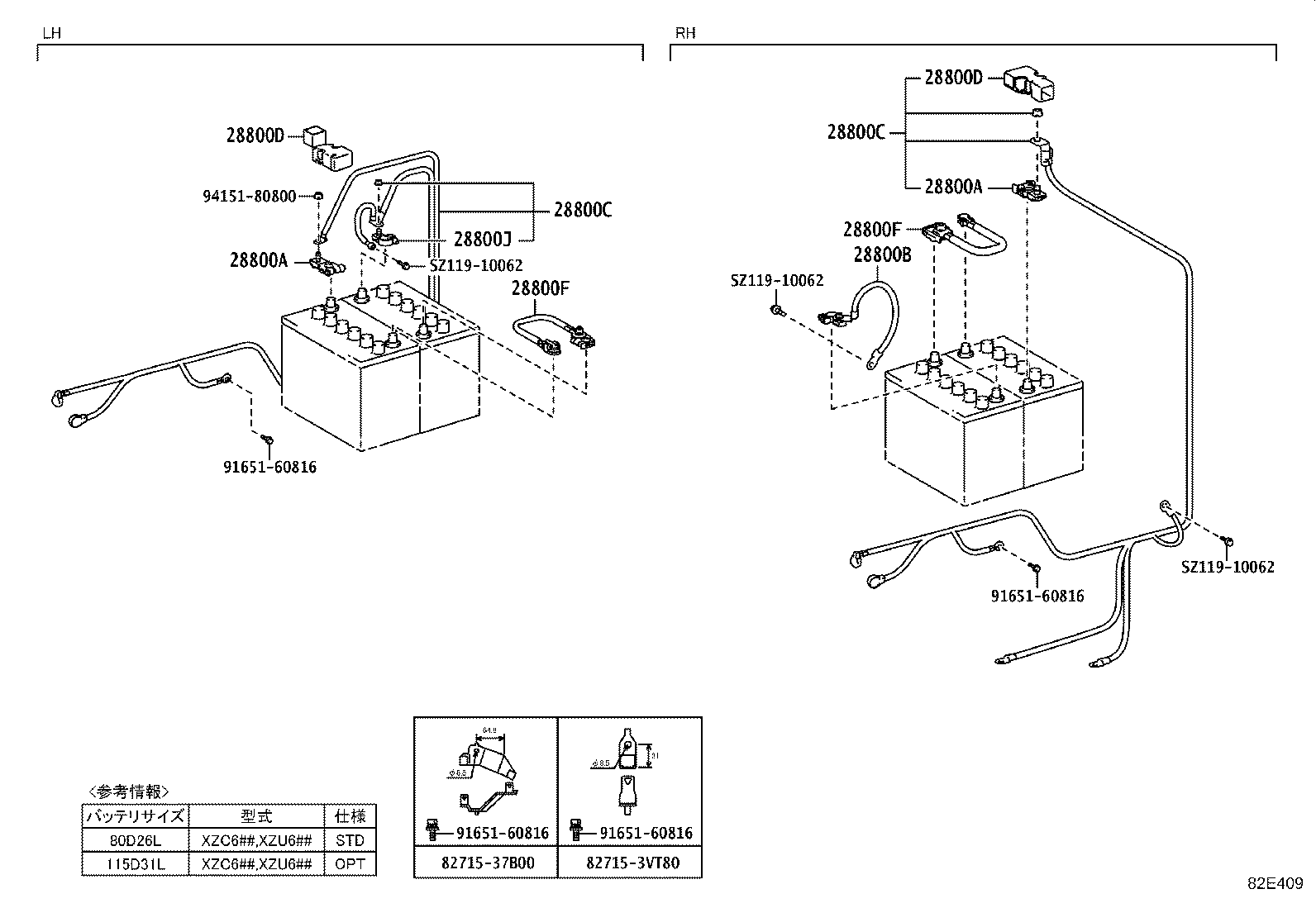

Click highlighted areas on diagram

diagram 28800A 28800A 28800B 28800C 28800C 28800D 28800D 28800F 28800F 28800J 8271537B00 827153VT80 9165160816 9165160816 9165160816 9165160816 9415180800 SZ11910062 SZ11910062 SZ11910062
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05062

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05062

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-37G80

N04C..XZU650..20T,30T;N04C..XZU650..40T..IV3;N04C..XZU640,642,652..CBU,IV3;N04C..XZC60#,645,655,XZU60#,645,655..SCB..(CBU,IV3,IV5,IV6)

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-37G80

N04C..XZU650..20T,30T;N04C..XZU650..40T..IV3;N04C..XZU640,642,652..CBU,IV3;N04C..XZC60#,645,655,XZU60#,645,655..SCB..(CBU,IV3,IV5,IV6)

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-37071

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-37071

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
28800F - CABLE, BATTERY TO BATTERY
82123-37260

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
28800F - CABLE, BATTERY TO BATTERY
82123-37260

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06060

N04C..XZU650..20T,30T;N04C..XZU650..40T..IV3;N04C..XZU640,642,652..CBU,IV3;N04C..XZC60#,630,645,655,XZU60#,630,645,655..SCB

 1
Common parts
82715-37B00
82715-3VT80
91651-60816
94151-80800
SZ119-10062
