XZU600A-TYFMY6 (2021)
Toyota Dyna

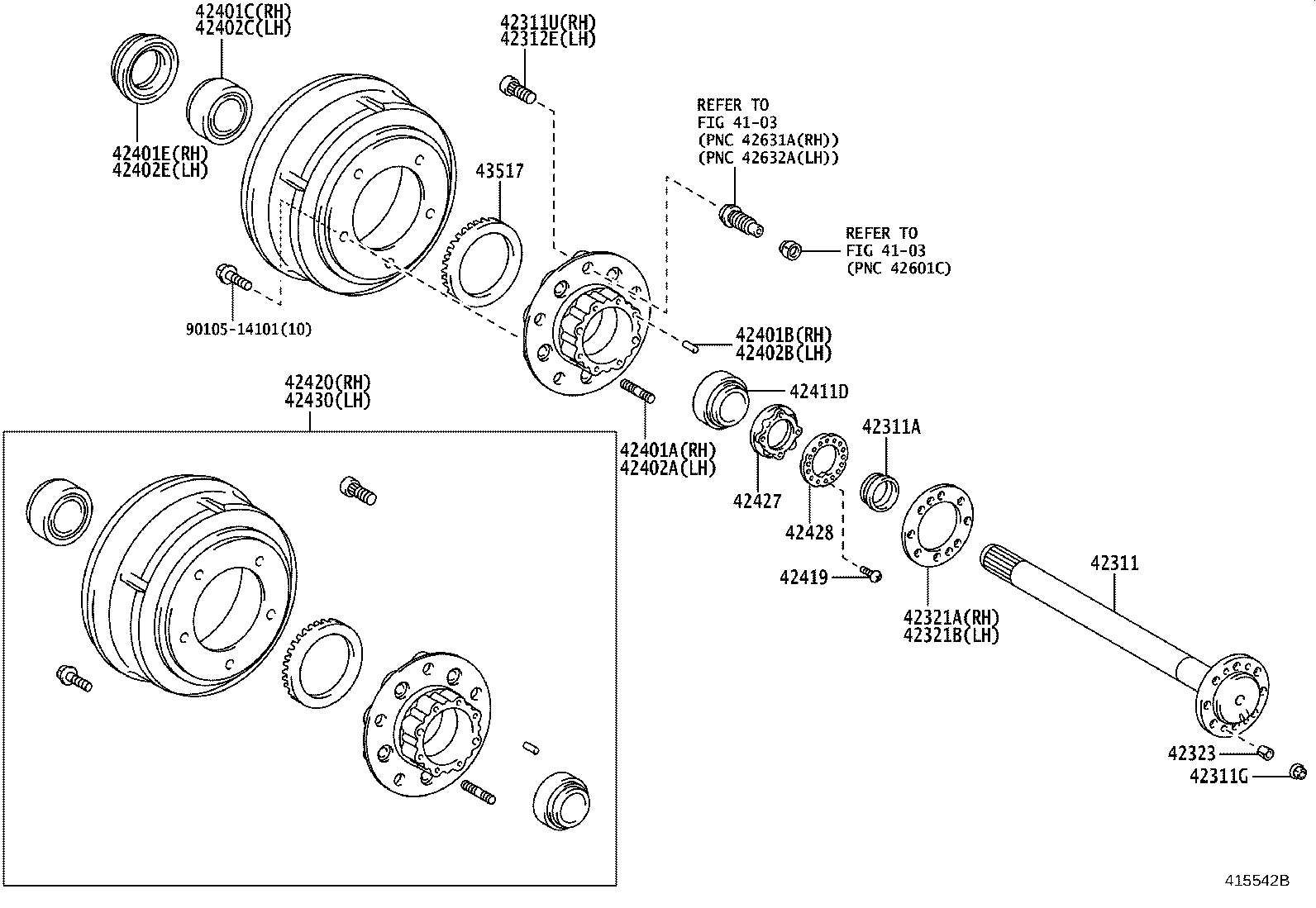

(2103- )XZU600..DM3,DM5..IV3 ; (2103- )XZC600,630,675,XZU630,675,685,695 ; (2
ﾄﾞﾗﾑﾌﾞﾚｰｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-37100 |
XZU645..20T;XZC675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T4,T5 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-40001 |
XZC675,XZU600,605,630,640,645,650,655,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(20T,30T) |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-10067 |
XZC675,XZU600,605,630,640,645,650,655,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(20T,30T) |
16 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02071 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02072 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
5 | ||
| 42321A - GASKET, REAR AXLE SHAFT, RH | ||||
| 42321-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
1 | ||
| 42321B - GASKET, REAR AXLE SHAFT, LH | ||||
| 42321-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
1 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
XZC675,XZU600,605,630,640,645,650,655,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(20T,30T) |
16 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-10191 |
XZC675,XZU600,605,630,640,645,650,655,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(20T,30T) |
8 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10055 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90366-60012 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
1 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-78001 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-10191 |
XZC675,XZU600,605,630,640,645,650,655,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(20T,30T) |
8 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10055 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90366-60012 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
1 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-78001 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90366-55054 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-39086 |
XZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6) |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39086 |
XZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6) |
1 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-37010 |
XZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6) |
2 | ||
| Common parts | ||||
| 90105-14101 | ||||
| Linked diagrams | ||||
| 4103 | ||||

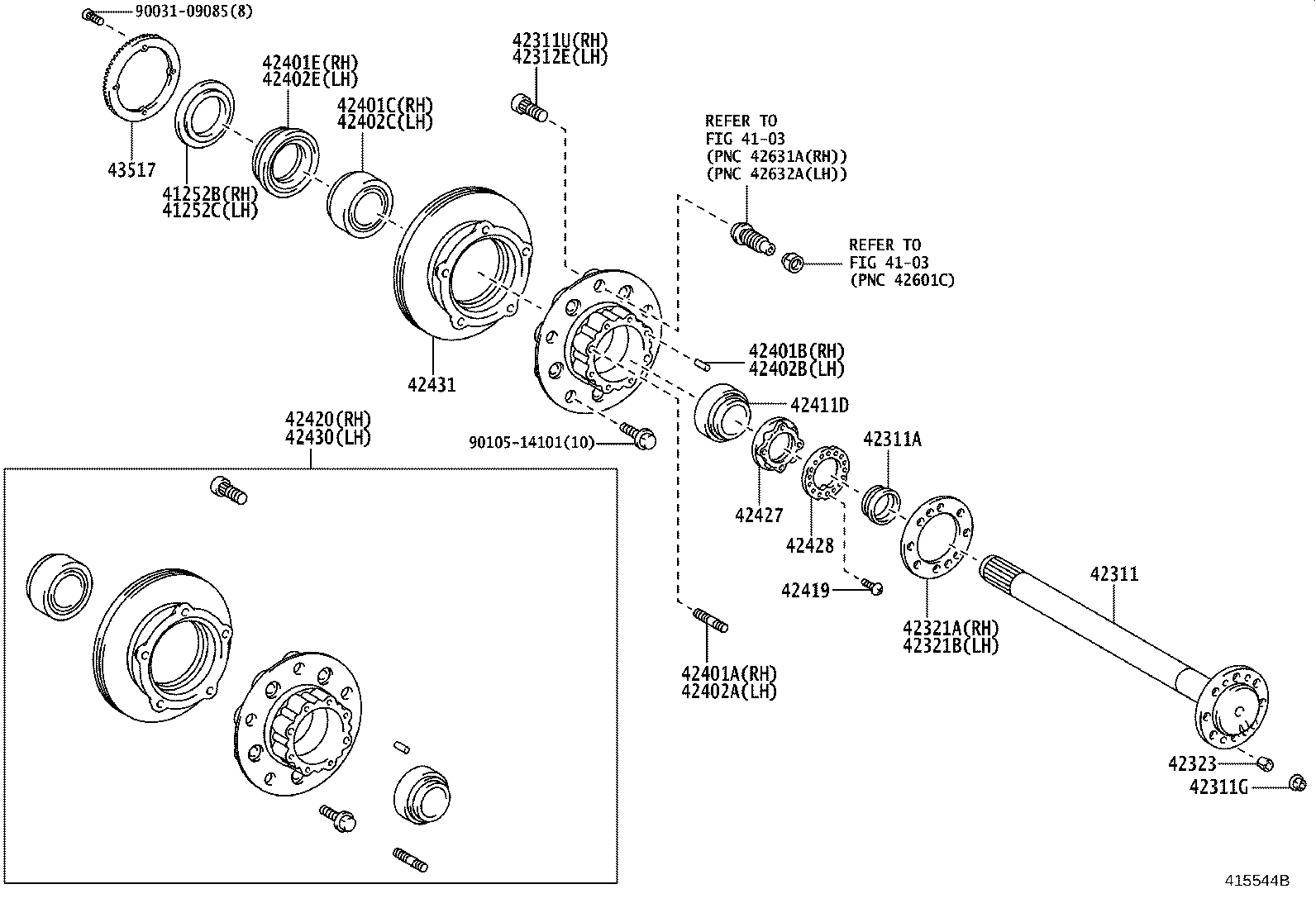

(2103- )XZU600..T3..IV3,IV4,IV7 ; (2103- )XZC605,645,655,XZU605,640,645,650,6
ﾃﾞｨｽｸﾌﾞﾚｰｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-37100 |
XZU645..20T;XZC675,XZU600,605,630,675..DM3,DM5,DM6,DM7,T4,T5 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-40001 |
XZC675,XZU600,605,630,640,645,650,655,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(20T,30T) |
2 | ||
| 42311G - NUT (FOR REAR AXLE SHAFT) | ||||
| 90179-10067 |
XZC675,XZU600,605,630,640,645,650,655,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(20T,30T) |
16 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02071 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
5 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02072 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
5 | ||
| 42321A - GASKET, REAR AXLE SHAFT, RH | ||||
| 42321-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
1 | ||
| 42321B - GASKET, REAR AXLE SHAFT, LH | ||||
| 42321-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
1 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
XZC675,XZU600,605,630,640,645,650,655,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(20T,30T) |
16 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-10191 |
XZC675,XZU600,605,630,640,645,650,655,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(20T,30T) |
8 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10055 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90366-60012 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
1 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-78001 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-10191 |
XZC675,XZU600,605,630,640,645,650,655,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(20T,30T) |
8 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10055 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90366-60012 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
1 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-78001 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90366-55054 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-39086 |
XZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6) |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39086 |
XZU600..DM5..30T;XZU600..DM3..IV3;XZC675,XZU630,675,685,695;XZU600,605..(DM3,DM6,T3)..(20T,30T)..(CBU,IV5,IV6) |
1 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-37010 |
XZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU630,675,685,695;XZU600,605..(DM3,DM5,DM6,T3)..(20T,30T)..(CBU,IV5,IV6) |
2 | ||
| Common parts | ||||
| 90031-09085 | ||||
| 90105-14101 | ||||
| Linked diagrams | ||||
| 4103 | ||||
