XZU600A-TYFMY6 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

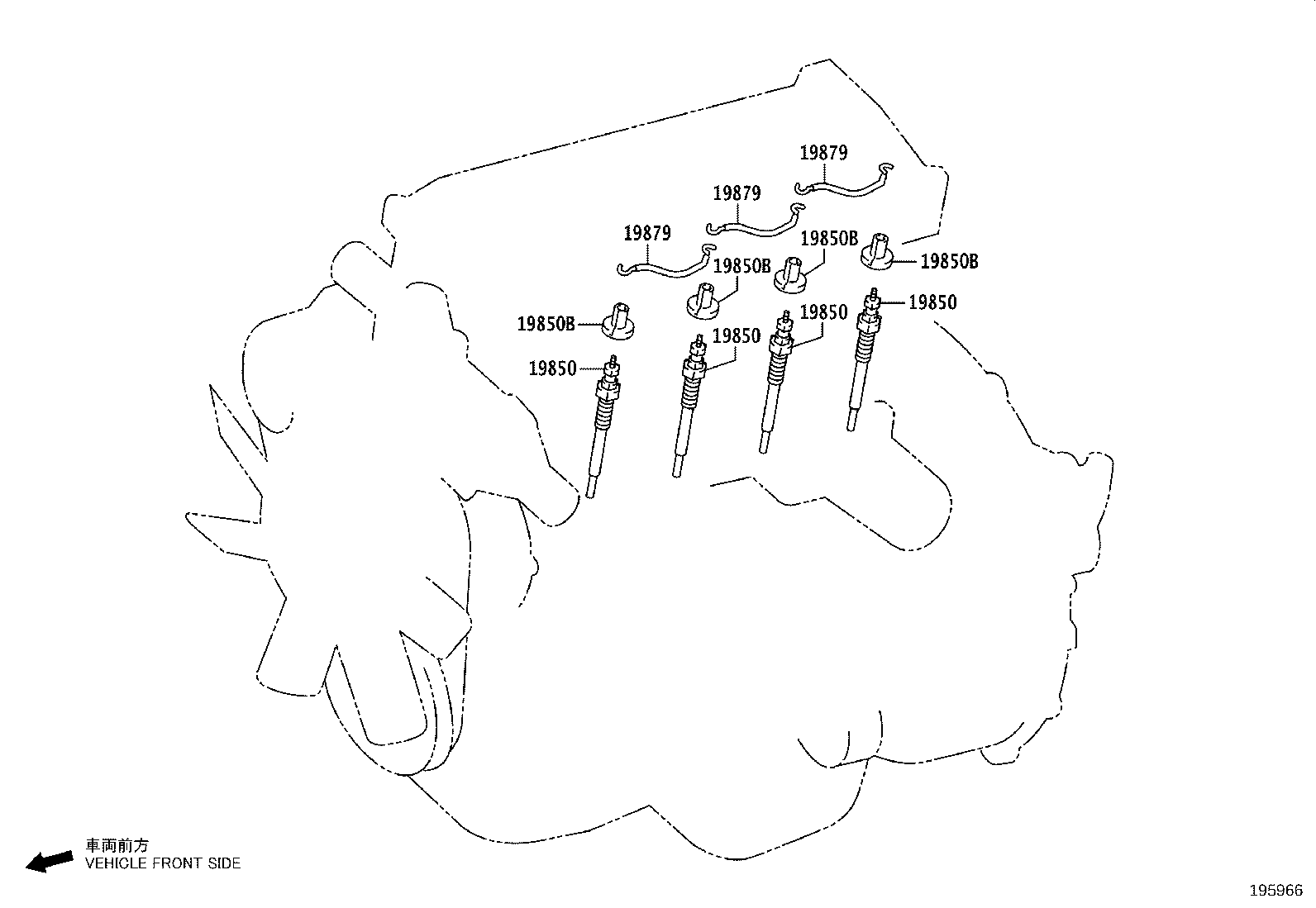

Click highlighted areas on diagram

diagram 19850 19850 19850 19850 19850B 19850B 19850B 19850B 19879 19879 19879
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-E0030

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

*BV−GV=24V−23V,寒冷地仕様−有り

 4
19850 - PLUG ASSY, GLOW
19850-E0030

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

*BV−GV=24V−23V,寒冷地仕様−有り

 4
19850 - PLUG ASSY, GLOW
19850-E0030

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

*BV−GV=24V−23V,寒冷地仕様−有り

 4
19850 - PLUG ASSY, GLOW
19850-E0030

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

*BV−GV=24V−23V,寒冷地仕様−有り

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
S1911-31050

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

寒冷地仕様−有り

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
S1911-31050

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

寒冷地仕様−有り

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
S1911-31050

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

寒冷地仕様−有り

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
S1911-31050

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

寒冷地仕様−有り

 4
19879 - WIRE, GLOW PLUG GROUND
S1911-21230

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

寒冷地仕様−有り

 3
19879 - WIRE, GLOW PLUG GROUND
S1911-21230

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

寒冷地仕様−有り

 3
19879 - WIRE, GLOW PLUG GROUND
S1911-21230

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

寒冷地仕様−有り

 3
