XZC655-TKFMY3 (2021)
Toyota Dyna
(2103- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

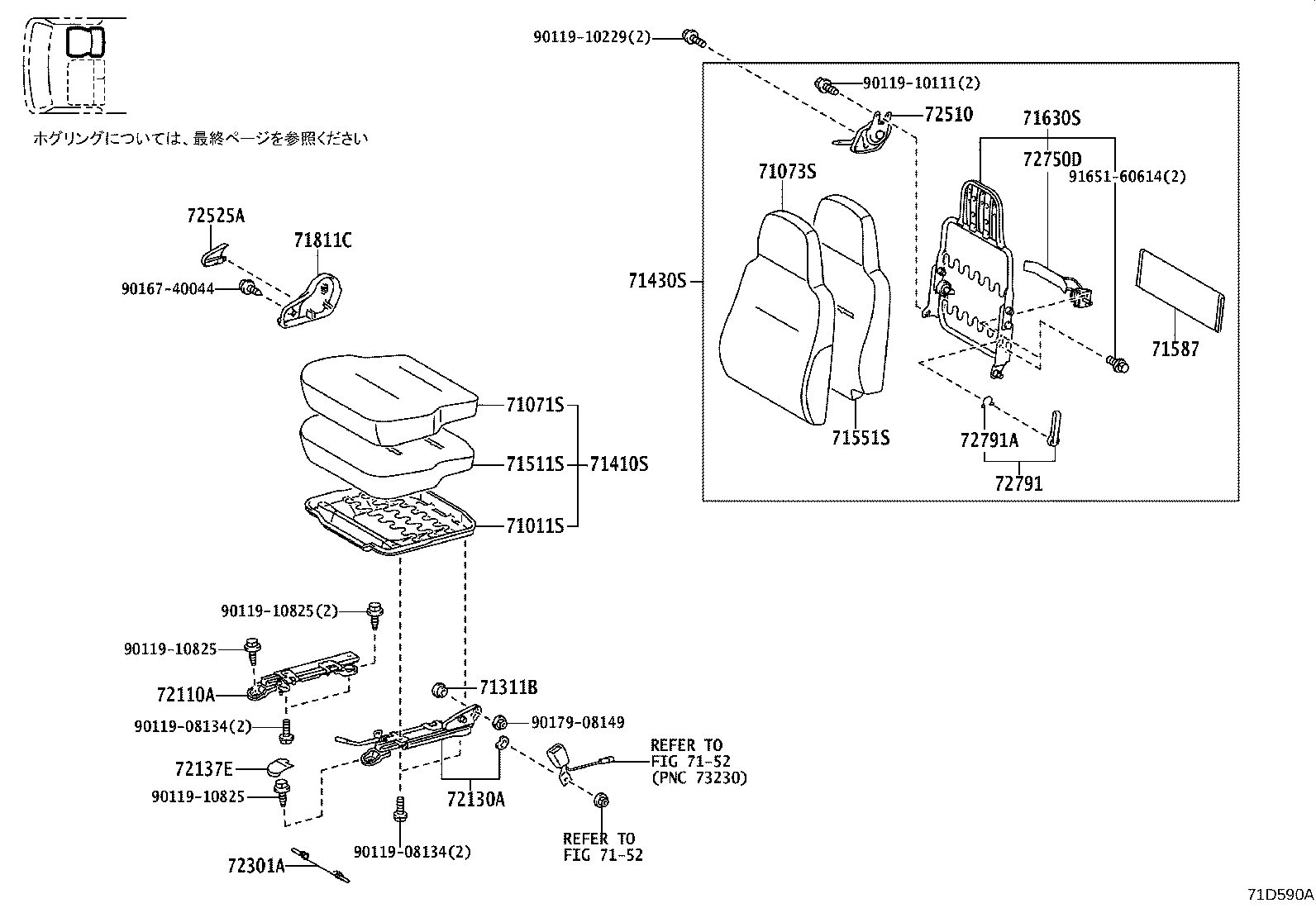

ILLUST NO. 1 OF 3(2103- )
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-37051 |
XZU685,695..DCB;XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 71610-37010 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71610-37010 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-37C80B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71071-37C70C0 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71071-37C90B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71071-37C90B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-37C40C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073-37C60B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073-37C60B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12053 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-37F20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71410-37F10C0 |
XZU685,695..T3..20T;XZC605,645,655,XZU60#,64#,65#..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZU685,695..T3..20T;XZC605,645,655,XZU60#,64#,65#..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZU685,695..T3..20T;XZC605,645,655,XZU60#,64#,65#..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71410-37F60B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71410-37F60B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-37E20C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71430-37E40B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71430-37E40B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-37080 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71511-37080 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71511-37130 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-25050 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71551-25050 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71551-37280 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-37021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-37180 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 71630-25050 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71630-25050 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-37011B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71811-37022B1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 71811-37011B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71832-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-37010B1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-37030 |
XZU685,695..DCB;XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-37020B1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 72525-37010B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 72525-37010B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 90119-10229 | ||||
| 90119-10825 | ||||
| 90167-40044 | ||||
| 90179-08149 | ||||
| Linked diagrams | ||||
| 7152 | ||||

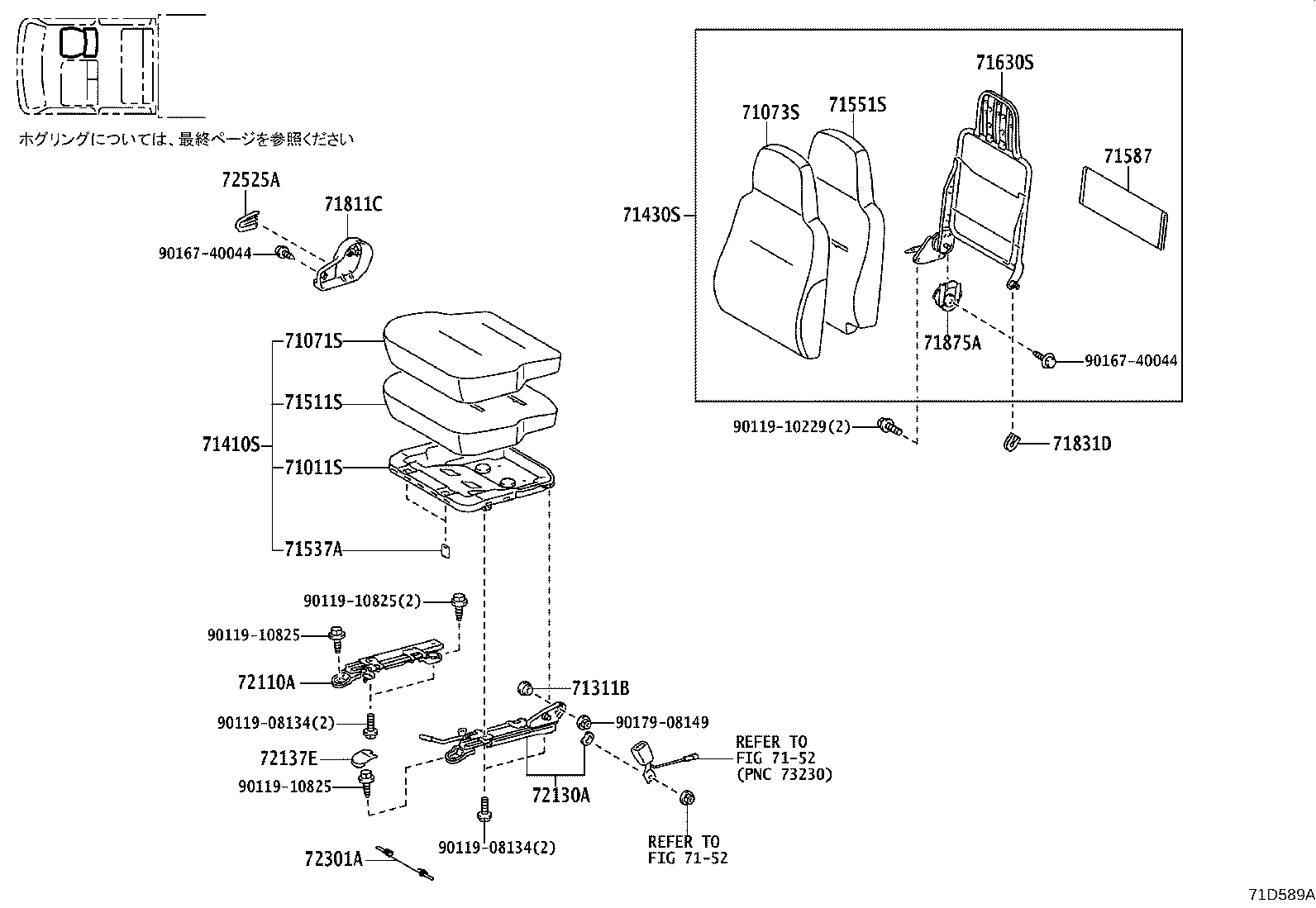

ILLUST NO. 1 OF 3(2103- )
ｳﾝﾃﾝｾｷ,ｱﾘ(ﾗﾝﾊﾞｻﾎﾟｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71610-37051 |
XZU685,695..DCB;XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 71610-37010 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71610-37010 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-37C80B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71071-37C70C0 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71071-37C80B0 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71071-37C90B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71071-37C90B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-37C40C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073-37C60B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073-37C60B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71073-37C50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12053 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-37F20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71410-37F10C0 |
XZU685,695..T3..20T;XZC605,645,655,XZU60#,64#,65#..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZU685,695..T3..20T;XZC605,645,655,XZU60#,64#,65#..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZU685,695..T3..20T;XZC605,645,655,XZU60#,64#,65#..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71410-37F20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71410-37F60B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71410-37F60B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-37E20C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71430-37E40B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71430-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71430-37E40B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-37080 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71511-37080 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71511-37130 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-25050 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71551-25050 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71551-37280 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-37021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-37180 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 71630-25050 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71630-25050 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-37011B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71811-37022B1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 71811-37011B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 72137E - COVER, SEAT TRACK, NO.1 | ||||
| 72137-37010B1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-37030 |
XZU685,695..DCB;XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-37020 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 72510-37020 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-37020B1 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1# |
1 | ||
| 72525-37010B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 72525-37010B1 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-37030 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 72750-37030 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-12010P0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 72791-12010P0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01006 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 90520-01006 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 90119-10111 | ||||
| 90119-10229 | ||||
| 90119-10825 | ||||
| 90167-40044 | ||||
| 90179-08149 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 7152 | ||||

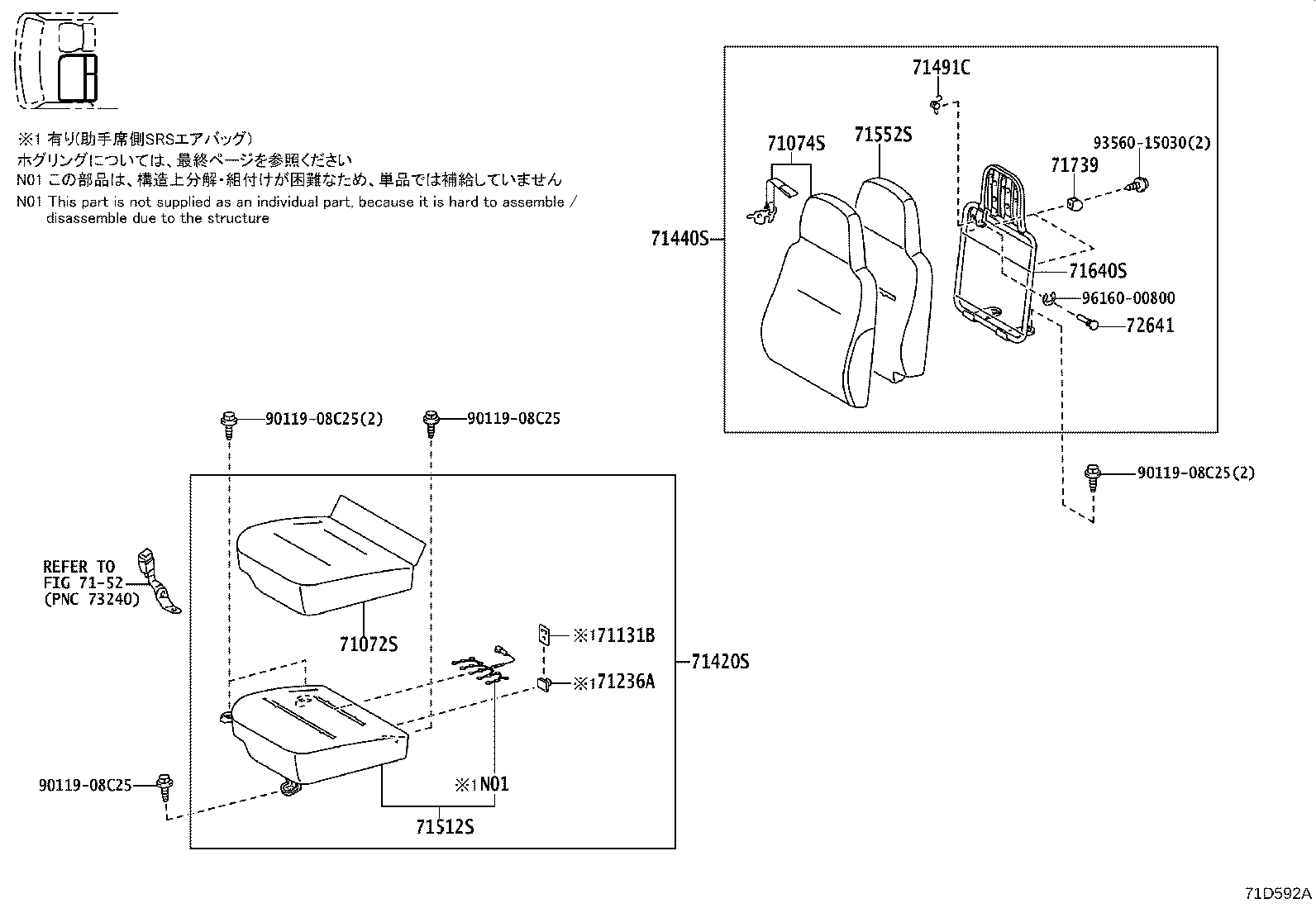

ILLUST NO. 2 OF 3(2103- )SCB
ｼﾞｮｼｭｾｷﾋﾄﾘｶﾞｹｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-37D90C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37E10C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,BLACK,TRIM1# |
1 | ||
| 71072-37E10C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71072-37E20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37E20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37F10B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37F10B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-37D20C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71074-37D40C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71074-37D50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71074-37D80B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71074-37D80B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37D50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71131-37030 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236A - CLAMP, REAR SEAT CUSHION SPRING | ||||
| 71236-37010 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-37L50C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1# |
1 | ||
| 71420-37M00C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71420-37M00C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71420-37M10B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37M10B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37M00C0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71420-37M20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37M10B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37M60B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37M20B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37M20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37M30C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,BLACK,TRIM1# |
1 | ||
| 71420-37M40C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71420-37M50B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37P20B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71420-37P30B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-37D90C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,BLACK,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71440-37E40C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71440-37E50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440-37E50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440-37E70B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71440-37E70B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71491C - SPRING, REAR SEAT SET | ||||
| 71491-89101 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-25041 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25060 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71502-25080 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け |
1 | ||
| 71502-25080 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71052-25060 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71502-25061 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-25090 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71552-37260 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71552-37260 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71552-37260 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71552-25090 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71552-37260 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け |
1 | ||
| 71552-37260 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71552-37260 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37270 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-37190 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71014-37190 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け |
1 | ||
| 71014-37190 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71014-37190 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37200 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 71014-37190 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71014-37190 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71014-37240 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71014-37190 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71014-37240 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 72641 - PIN, REAR SEAT BACK LOCK | ||||
| 72641-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| Common parts | ||||
| 90119-08C25 | ||||
| 93560-15030 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||

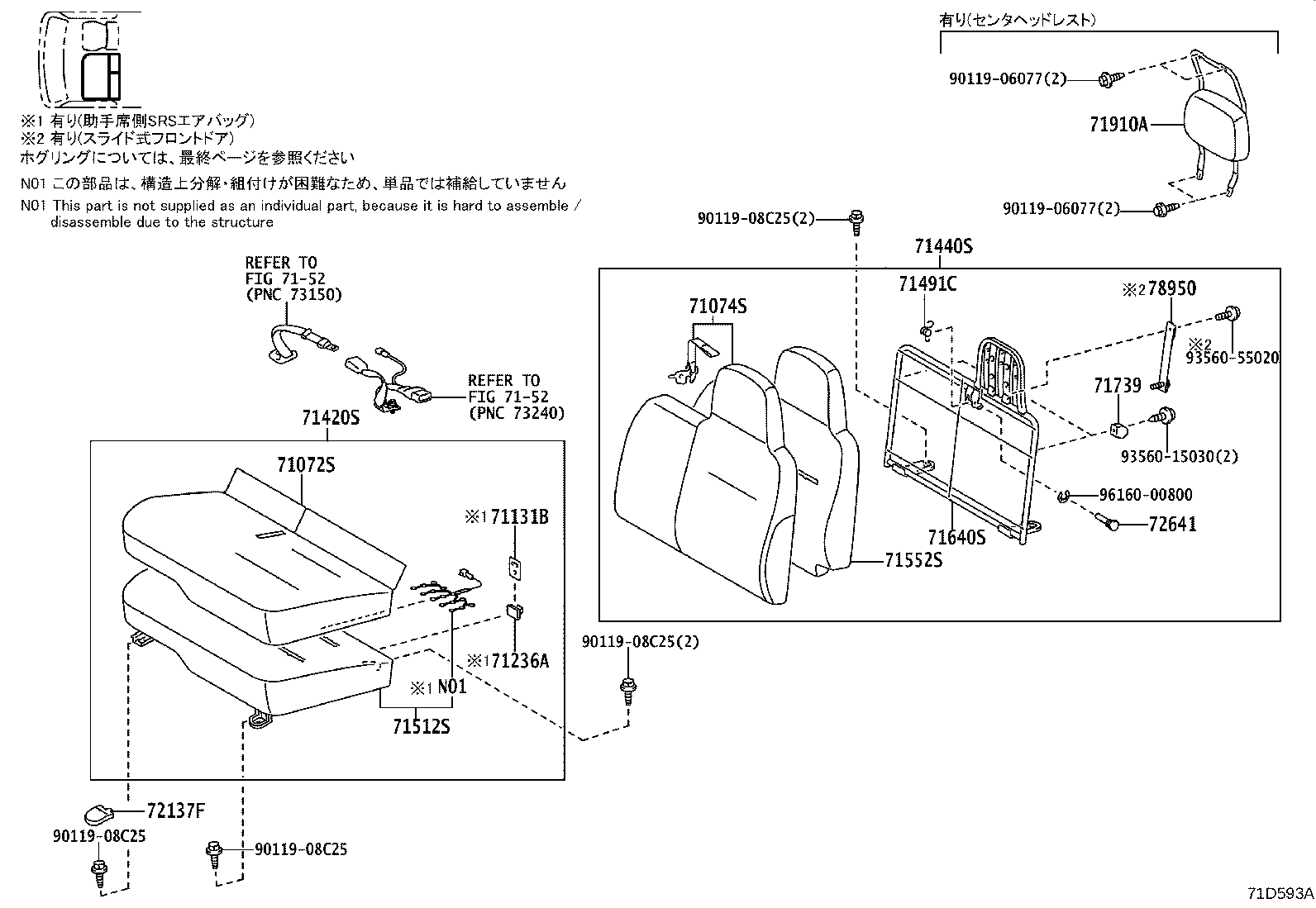

ILLUST NO. 2 OF 3(2103- )SCB
ｼﾞｮｼｭｾｷﾌﾀﾘｶﾞｹｼｰﾄ(ｲｯﾀｲｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-37D90C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37E10C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,BLACK,TRIM1# |
1 | ||
| 71072-37E10C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71072-37E20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37E20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37F10B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37F10B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-37D20C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71074-37D40C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71074-37D50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71074-37D80B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71074-37D80B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37D50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71131-37030 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236A - CLAMP, REAR SEAT CUSHION SPRING | ||||
| 71236-37010 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-37L50C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1# |
1 | ||
| 71420-37M00C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71420-37M00C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71420-37M10B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37M10B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37M00C0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71420-37M20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37M10B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37M60B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37M20B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37M20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37M30C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,BLACK,TRIM1# |
1 | ||
| 71420-37M40C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71420-37M50B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37P20B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71420-37P30B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-37D90C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,BLACK,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71440-37E40C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71440-37E50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440-37E50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440-37E70B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71440-37E70B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71491C - SPRING, REAR SEAT SET | ||||
| 71491-89101 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-25041 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25060 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71502-25080 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け |
1 | ||
| 71502-25080 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71052-25060 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71502-25061 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-25090 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71552-37260 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71552-37260 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71552-37260 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71552-25090 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71552-37260 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け |
1 | ||
| 71552-37260 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71552-37260 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37270 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-37190 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71014-37190 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け |
1 | ||
| 71014-37190 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71014-37190 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37200 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 71014-37190 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71014-37190 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71014-37240 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71014-37190 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71014-37240 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72137-35050B2 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB GRAY,TRIM1# |
1 | ||
| 72641 - PIN, REAR SEAT BACK LOCK | ||||
| 72641-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| Common parts | ||||
| 90119-06077 | ||||
| 90119-08C25 | ||||
| 93560-15030 | ||||
| 93560-55020 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 7152 | ||||

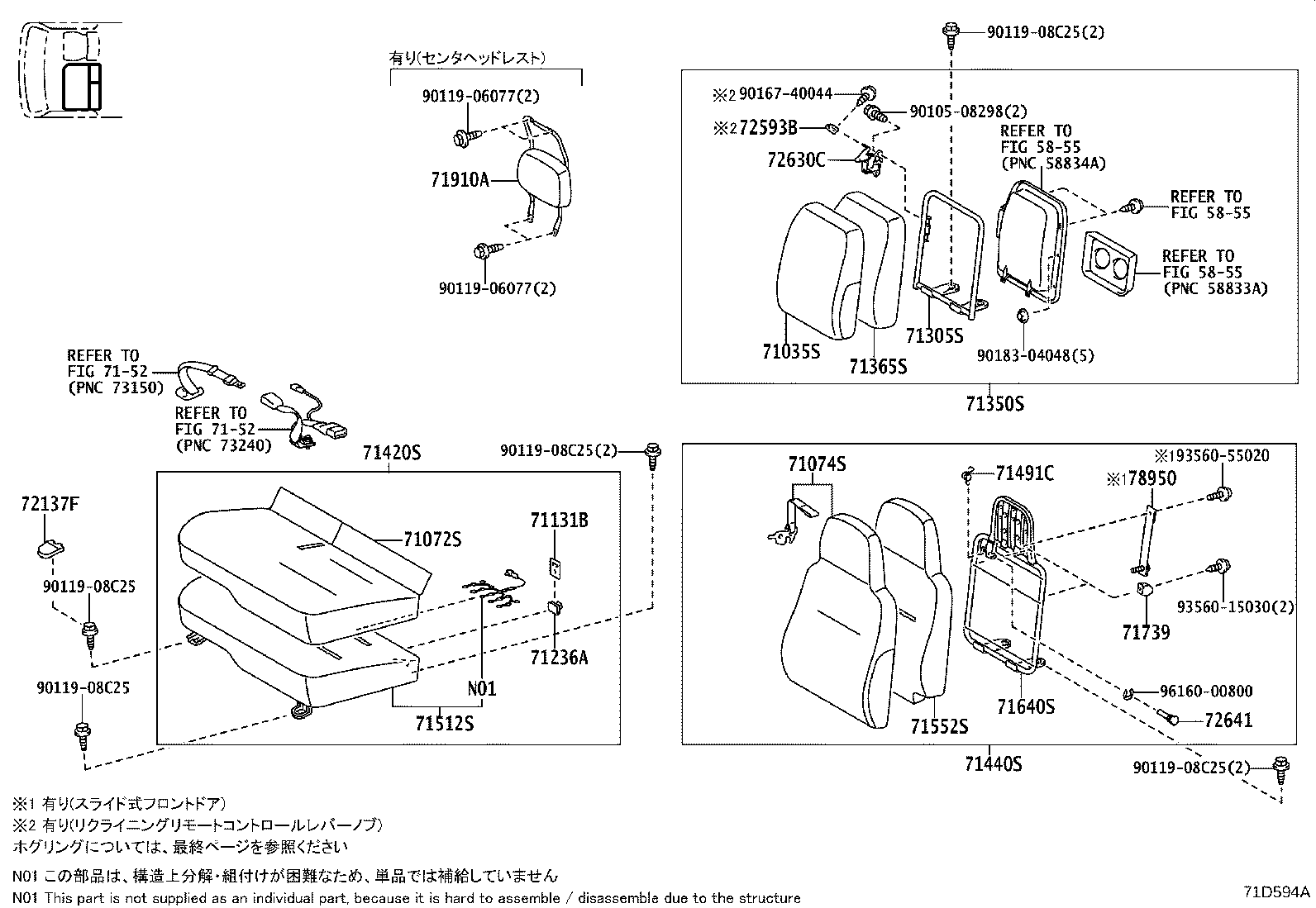

ILLUST NO. 2 OF 3(2103- )SCB
ｼﾞｮｼｭｾｷﾌﾀﾘｶﾞｹｼｰﾄ(ﾌﾞﾝｶﾂｼｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-37750B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71095-37740C0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71095-37750B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71095-37770B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71095-37760C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71095-37770B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71095-37740C0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71095-37780B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71095-37780B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71095-37760C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-37D90C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37E10C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,BLACK,TRIM1# |
1 | ||
| 71072-37E10C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71072-37E20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37E20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37E00B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71072-37F10B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71072-37F10B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-37D20C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71074-37D20C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71074-37D40C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1# |
1 | ||
| 71074-37D30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71074-37D50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71074-37D80B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71074-37D80B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71074-37D50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71131-37030 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71131-37030 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236A - CLAMP, REAR SEAT CUSHION SPRING | ||||
| 71236-37010 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71236-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-37020 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71305-37020 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71305-37020 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71305-37020 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71305-37020 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71305-37020 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71305-37020 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71305-37020 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71305-37020 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71305-37020 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-37A90C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71350-37B00B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71350-37B30C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71350-37A90C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71350-37B40B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71350-37B50B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71350-37B00B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71350-37B30C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71350-37B40B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71350-37B50B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71365-25021 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71365-25021 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71365-25021 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71365-25021 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71365-25021 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71365-25021 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71365-25021 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71365-25021 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71365-25021 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71365-25021 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-37L50C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1# |
1 | ||
| 71420-37M00C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71420-37M00C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71420-37M10B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37M10B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37M00C0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71420-37M20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37M10B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37M60B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37M20B0 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37M20B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71420-37M30C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,BLACK,TRIM1# |
1 | ||
| 71420-37M40C0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71420-37M50B0 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71420-37P20B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71420-37P30B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-37D90C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),BLACK,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,BLACK,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71440-37E40C1 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1# |
1 | ||
| 71440-37D90C1 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ***,ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),BLACK,TRIM1# |
1 | ||
| 71440-37E50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440-37E50B2 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71440-37E70B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1# |
1 | ||
| 71440-37E30B2 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 71440-37E70B0 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ***,ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 71491C - SPRING, REAR SEAT SET | ||||
| 71491-89101 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-25041 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25060 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71052-25041 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71502-25080 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け |
1 | ||
| 71502-25080 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71052-25060 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71502-25061 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-25090 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71552-37260 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71552-37260 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71552-37260 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71552-25090 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71552-37260 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け |
1 | ||
| 71552-37260 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71552-37260 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37260 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71552-37270 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-37190 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71014-37190 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け |
1 | ||
| 71014-37190 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71014-37190 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37200 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| 71014-37190 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 71014-37190 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71014-37240 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 71014-37190 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 71014-37240 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZC605,645,655,675,XZU60#,64#,65#,675,685,695..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZU600,675..(DM6,T3,T4)..(CBU,IV3,IV6);XZC605,645,655,675,XZU602,605,64#,65#,685,695..SCB..(DM5,T2,T3,T4,T5) ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71014-37190 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
2 | ||
| 72137F - COVER, SEAT TRACK, NO.2 | ||||
| 72137-35050B2 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB GRAY,TRIM1# |
1 | ||
| 72593B - KNOB, RECLINING REMOTE CONTROL LEVER, RH | ||||
| 72593-37020P6 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1# |
1 | ||
| 72593-37020P6 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ),GRAY,TRIM1# |
1 | ||
| 72593-37020P6 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 72593-37020P6 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-37020 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 72630-37020 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 72630-37020 |
XZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 72630-37030 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 72630-37030 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ) |
1 | ||
| 72630-37030 |
XZC60#,630,645,655,XZU60#,630,64#,65#..SCB ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 72630-37030 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 72630-37020 |
XZU602,642,652;XZU600..6FC..IV6;XZC60#,630,645,655,XZU600,605,630,640,645,650,655..SCB..6F..(CBU,IV3,IV6,IV7) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 72630-37030 |
XZC605,645,655,XZU600,605,640,645,65#..SCB..(T2,T3,T4,T5)..(CBU,IV3) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ |
1 | ||
| 72630-37030 |
XZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ |
1 | ||
| 72641 - PIN, REAR SEAT BACK LOCK | ||||
| 72641-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB |
1 | ||
| Common parts | ||||
| 90105-08298 | ||||
| 90119-06077 | ||||
| 90119-08C25 | ||||
| 90167-40044 | ||||
| 90183-04048 | ||||
| 93560-15030 | ||||
| 93560-55020 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 5855 | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
