XZC645-TQFMY3 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

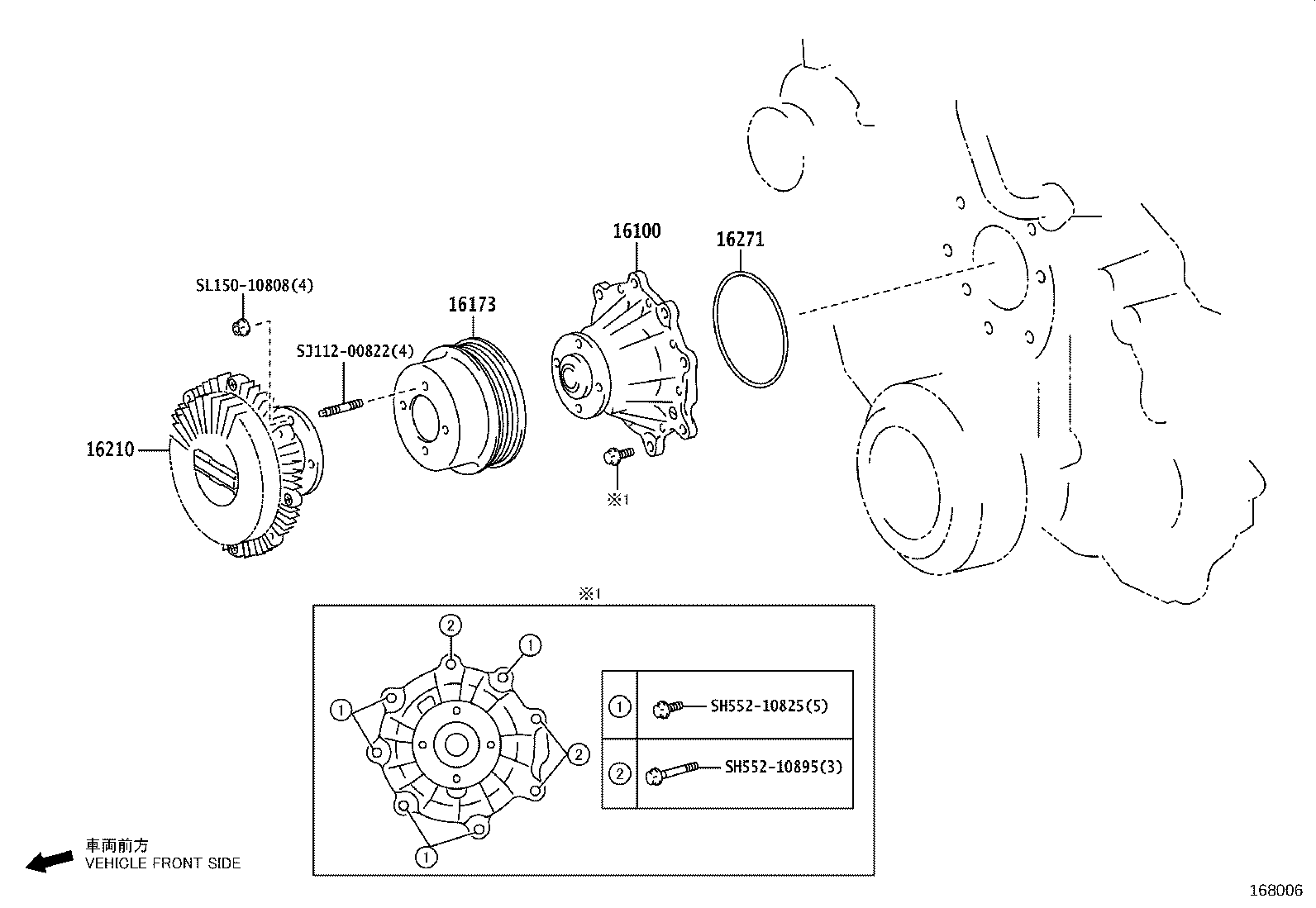

Click highlighted areas on diagram

diagram 16100 16173 16210 16271 SH55210825 SH55210895 SJ11200822 SL15010808
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-E0B71

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
16173 - PULLEY, WATER PUMP
16173-78030

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
16210 - COUPLING ASSY, FLUID
16250-78220

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7

 1
16271 - GASKET, WATER PUMP
16271-78010

N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
Common parts
SH552-10825
SH552-10895
SJ112-00822
SL150-10808
