XZC645-TQFMY3 (2021)
Toyota Dyna

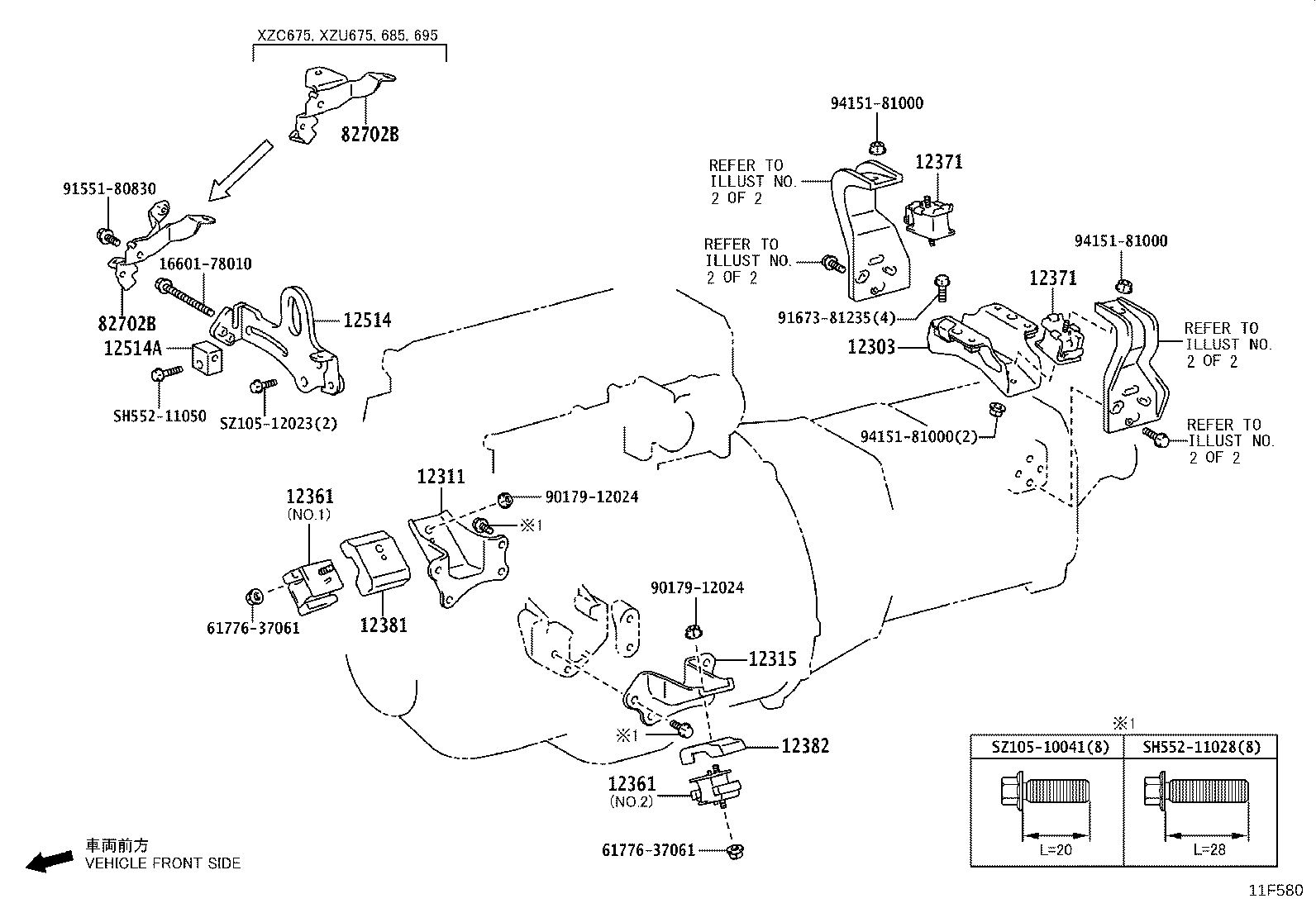

ILLUST NO. 1 OF 2(2103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-78080 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| S1231-11970 |
N04C..XZC60#,630,645,655,XZU600,605,630,640,645,650,655..20T,30T |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| S1231-51960 |
N04C..XZC60#,630,645,655,XZU600,605,630,640,645,650,655..20T,30T |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78161 |
N04C..XZC605,645,655,XZU605,645,655 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 12361-78171 |
N04C..XZC605,645,655,XZU605,645,655 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-78161 |
N04C..XZC605,645,655,XZU605,645,655 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 12361-78171 |
N04C..XZC605,645,655,XZU605,645,655 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78060 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-78060 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-78032 |
N04C..XZC60#,630,645,655,XZU600,605,630,640,645,650,655..20T,30T |
1 | ||
| 12382 - STABILIZER, ENGINE MOUNTING, LH | ||||
| 12381-78032 |
N04C..XZC60#,630,645,655,XZU600,605,630,640,645,650,655..20T,30T |
1 | ||
| 12514 - BAR, ALTERNATOR BELT ADJUSTING | ||||
| 27112-78011 |
N04C..XZC60#,630,645,655,XZU60#,630,64#,65#..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 27112-78021 |
N04C..XZC605,645,655,XZU60#,64#,65#..(DM6,DM7,T2,T3,T4,T5)..(CBU,IV3,IV6) ｵﾙﾀﾈｰﾀ−24V 80A |
1 | ||
| 12514A - SLIDER, FAN BELT ADJUSTING | ||||
| 12519-E0040 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 82702B - BRACKET SUB-ASSY, WIRING HARNESS | ||||
| 82702-37651 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| 82702B - BRACKET SUB-ASSY, WIRING HARNESS | ||||
| 82702-37651 |
XZC60#,630,645,655,XZU60#,630,64#,65# |
1 | ||
| Common parts | ||||
| 16601-78010 | ||||
| 61776-37061 | ||||
| 90179-12024 | ||||
| 91551-80830 | ||||
| 91673-81235 | ||||
| 94151-81000 | ||||
| SH552-11028 | ||||
| SH552-11050 | ||||
| SZ105-10041 | ||||
| SZ105-12023 | ||||

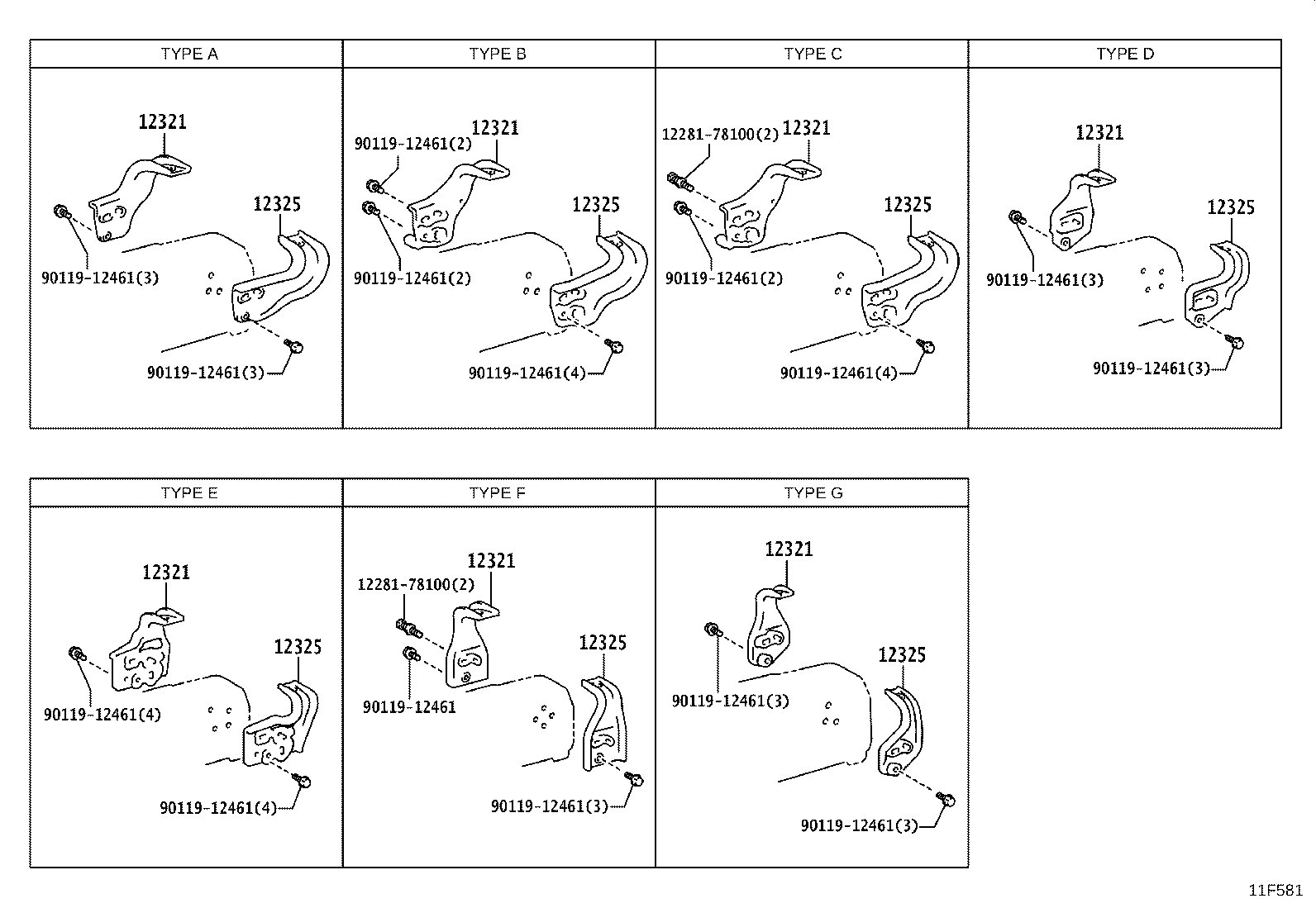

ILLUST NO. 2 OF 2(2103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-78613 |
N04C..XZC60#,645,655,XZU60#,64#,65#..6F..(CBU,IV3,IV5,IV6) TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| 12281-78100 | ||||
| 90119-12461 | ||||
