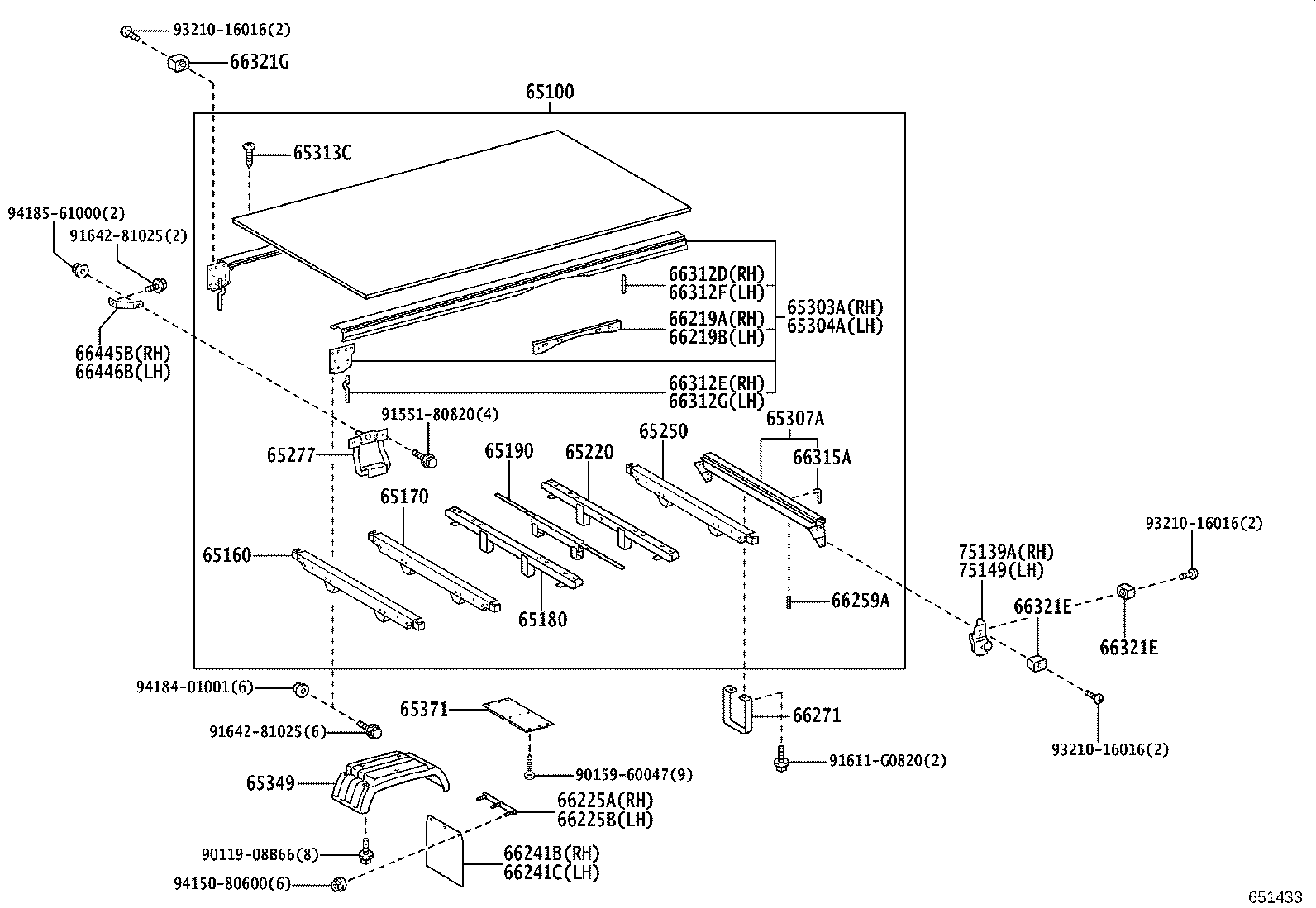

XZC605-TQTMY (2021)
Toyota Dyna
(2103- )XZC605,XZU605..SCB..T4..20T..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3VM50 |
XZC605,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65100-3VM70 |
XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65100-3VM80 |
XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37510 |
XZC605,645,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65170-37390 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65170-37390 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37510 |
XZC605,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65160-37520 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65160-37520 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37651 |
XZC605,645,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65180-37661 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65180-37661 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37360 |
XZC605,645,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65191-37140 |
XZU655..SCB..T4..6F..20T..CBU;XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65191-37140 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37651 |
XZC605,645,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65180-37661 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65180-37661 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37520 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65160-37520 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65170-37340 |
XZC605,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65277 - STEP, SIDE, FRONT | ||||
| 66207-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-37J80 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65303-37J60 |
XZC605,675,XZU605,675..SCB..(T4,T5)..CBU |
1 | ||
| 65303-37J90 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-37J70 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65304-37J40 |
XZC605,675,XZU605,675..SCB..(T4,T5)..CBU |
1 | ||
| 65304-37J60 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37A01 |
XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65307-37881 |
XZU605..T5..30T..CBU;XZC605,XZU605..SCB..(T4,T5)..20T..CBU |
1 | ||
| 65313C - SCREW(FOR FLOOR BOARD) | ||||
| 90149-50065 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
42 | ||
| 90149-50065 |
XZC605,675,XZU605,675..SCB..(T4,T5)..CBU |
48 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37080 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU 左側 |
1 | ||
| 65349-37070 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU 右側 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65039-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T3,T4,T5)..CBU |
1 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-37120 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..(20T,30T,35T)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-37120 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..(20T,30T,35T)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37271 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37271 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37B62 |
XZU645,655..T4..20T..CBU;XZC605,645,655,XZU605,650..T4..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37B62 |
XZU645,655..T4..20T..CBU;XZC605,645,655,XZU605,650..T4..CBU |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 66271-37010 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 66271-37010 |
XZU645,675,685..(T3,T4)..20T..CBU;XZC605,645,655,675,XZU605,65#,695..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
4 | ||
| 66311-37020 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
3 | ||
| 66311-37020 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU |
5 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU645..30T..CBU;XZC605,655,675,XZU605,640,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
3 | ||
| 66311-37020 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
4 | ||
| 66311-37020 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU |
5 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
XZU645..20T..CBU;XZC605,645,675,XZU605,675..(T2,T4,T5)..CBU |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-92803 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321-37030 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-92803 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321-37030 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
2 | ||
| 66321-37030 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
2 | ||
| 66321-92803 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU |
2 | ||
| 66445B - BRACE, FRAME TO REAR BODY | ||||
| 65365-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66446B - BRACE, FRAME TO REAR BODY, NO.2 | ||||
| 65366-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37080 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37080 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90159-60047 | ||||
| 91551-80820 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 94150-80600 | ||||
| 94184-01001 | ||||
| 94185-61000 | ||||

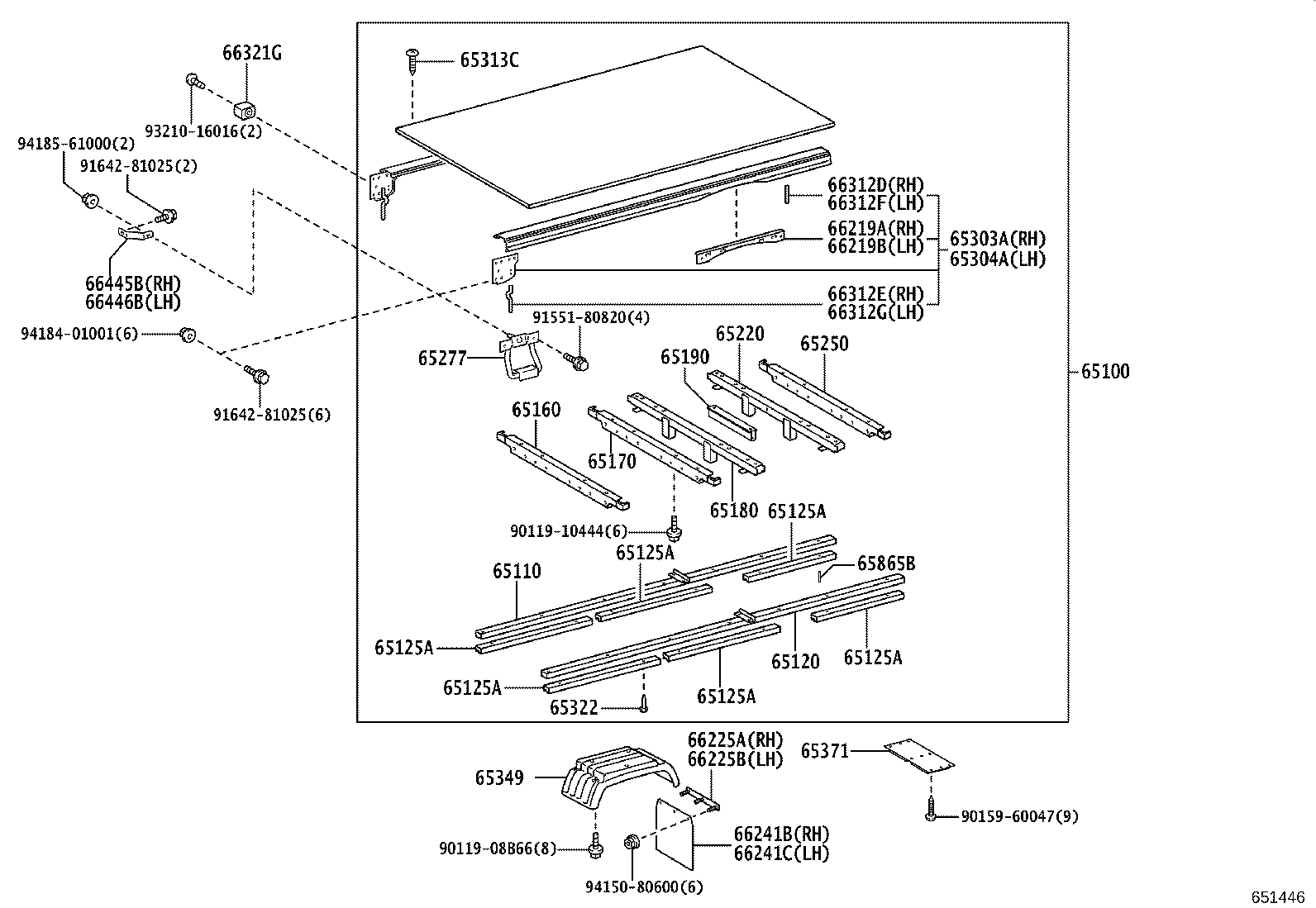

(2103- )XZU605..T5..6F..20T..CBU ; (2103-)XZC605,XZU605..SCB..T4..CBU
ﾊﾟﾜｰﾘﾌﾄ,ｽｲﾁｮｸｼｷﾊﾟﾜｰｹﾞｰﾄ,ｽｲﾁｮｸｹﾞｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3VM50 |
XZC605,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65100-3VM70 |
XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65100-3VM80 |
XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37G40 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65110-37G50 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37G30 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65120-37G40 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65128-37670 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=534 |
2 | ||
| 65128-37760 |
XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=704 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65128-37670 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=534 |
2 | ||
| 65128-37760 |
XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=704 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65128-37670 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=534 |
2 | ||
| 65128-37760 |
XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=704 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65128-37670 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=534 |
2 | ||
| 65128-37760 |
XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=704 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65128-37670 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=534 |
2 | ||
| 65128-37760 |
XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=704 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65128-37670 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=534 |
2 | ||
| 65128-37760 |
XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=704 |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37510 |
XZC605,645,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65170-37390 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65170-37390 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37510 |
XZC605,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65160-37520 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65160-37520 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37651 |
XZC605,645,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65180-37661 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65180-37661 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37360 |
XZC605,645,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65191-37140 |
XZU655..SCB..T4..6F..20T..CBU;XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65191-37140 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37651 |
XZC605,645,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65180-37661 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65180-37661 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37520 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65160-37520 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65170-37340 |
XZC605,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65277 - STEP, SIDE, FRONT | ||||
| 66207-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-37J80 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65303-37J60 |
XZC605,675,XZU605,675..SCB..(T4,T5)..CBU |
1 | ||
| 65303-37J90 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-37J70 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65304-37J40 |
XZC605,675,XZU605,675..SCB..(T4,T5)..CBU |
1 | ||
| 65304-37J60 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65313C - SCREW(FOR FLOOR BOARD) | ||||
| 90149-50065 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
42 | ||
| 90149-50065 |
XZC605,675,XZU605,675..SCB..(T4,T5)..CBU |
48 | ||
| 65322 - NAIL | ||||
| 90290-05004 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
12 | ||
| 90290-05004 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
12 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37080 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU 左側 |
1 | ||
| 65349-37070 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU 右側 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65039-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T3,T4,T5)..CBU |
1 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-37020 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65865-37020 |
XZU655..SCB..T4..6F..20T..CBU;XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-37120 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..(20T,30T,35T)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-37120 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..(20T,30T,35T)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37271 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37271 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37B62 |
XZU645,655..T4..20T..CBU;XZC605,645,655,XZU605,650..T4..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37B62 |
XZU645,655..T4..20T..CBU;XZC605,645,655,XZU605,650..T4..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
4 | ||
| 66311-37020 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
3 | ||
| 66311-37020 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU |
5 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU645..30T..CBU;XZC605,655,675,XZU605,640,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
3 | ||
| 66311-37020 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
4 | ||
| 66311-37020 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU |
5 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
2 | ||
| 66321-37030 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
2 | ||
| 66321-92803 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU |
2 | ||
| 66445B - BRACE, FRAME TO REAR BODY | ||||
| 65365-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66446B - BRACE, FRAME TO REAR BODY, NO.2 | ||||
| 65366-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90119-10444 | ||||
| 90159-60047 | ||||
| 91551-80820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 94150-80600 | ||||
| 94184-01001 | ||||
| 94185-61000 | ||||

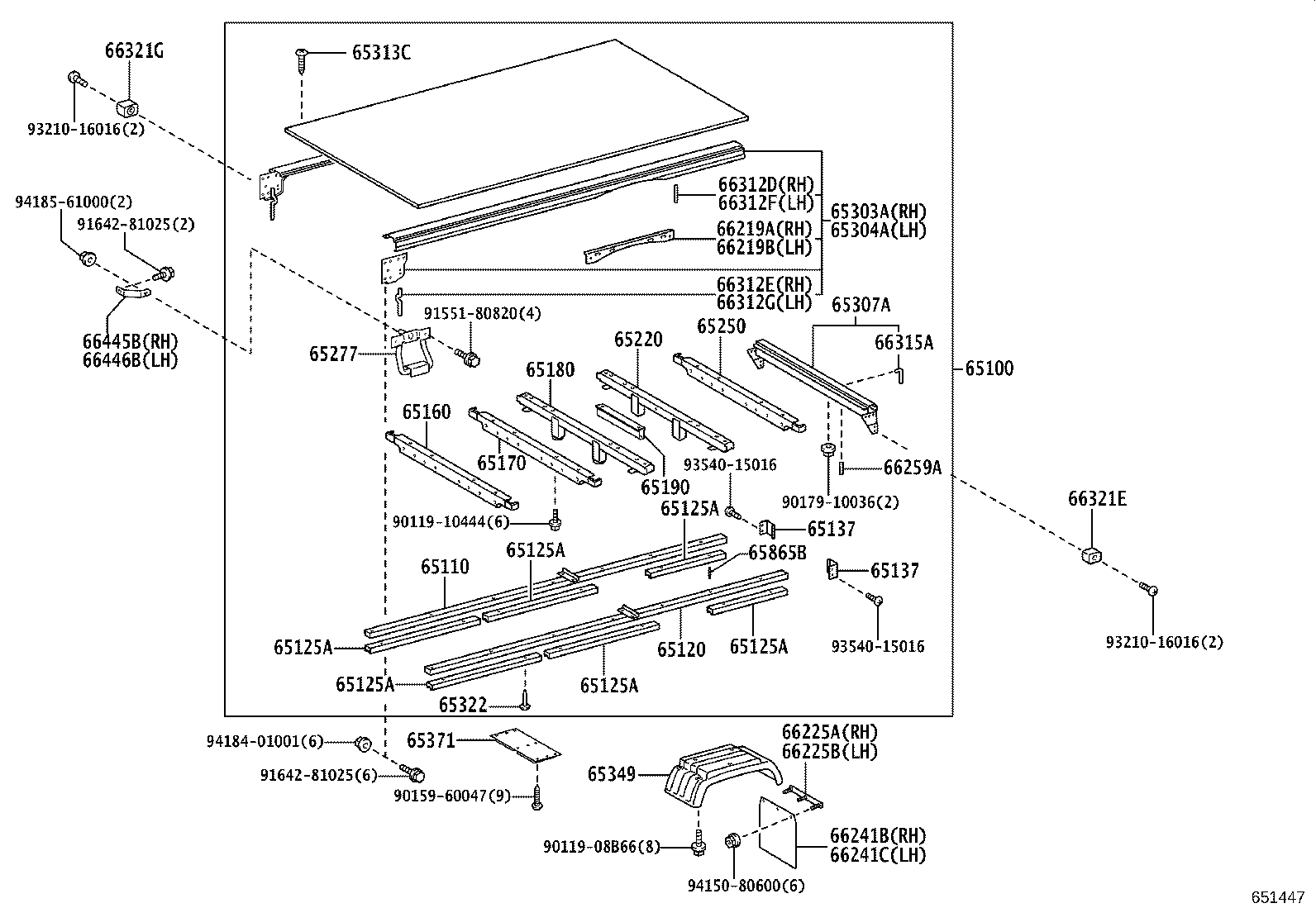

(2103- )XZU605..T5..6F..20T..CBU ; (2103-)XZC605,XZU605..SCB..T4..CBU
ﾊﾟﾜｰｹﾞｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3VM50 |
XZC605,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65100-3VM70 |
XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65100-3VM80 |
XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37G40 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65110-37G50 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37G30 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65120-37G40 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65128-37670 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=534 |
2 | ||
| 65128-37760 |
XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=704 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65128-37670 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=534 |
2 | ||
| 65128-37760 |
XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=704 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65128-37670 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=534 |
2 | ||
| 65128-37760 |
XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=704 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65128-37670 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=534 |
2 | ||
| 65128-37760 |
XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=704 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65128-37670 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=534 |
2 | ||
| 65128-37760 |
XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=704 |
2 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65127-37850 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=986 |
4 | ||
| 65128-37670 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車,長さ=534 |
2 | ||
| 65128-37760 |
XZC605,XZU605..SCB..T4..CBU;XZU655..SCB..T4..6F..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車,長さ=704 |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37020 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37020 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37510 |
XZC605,645,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65170-37390 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65170-37390 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37510 |
XZC605,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65160-37520 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65160-37520 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37651 |
XZC605,645,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65180-37661 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65180-37661 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37360 |
XZC605,645,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65191-37140 |
XZU655..SCB..T4..6F..20T..CBU;XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65191-37140 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37651 |
XZC605,645,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65180-37661 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65180-37661 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37520 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65160-37520 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65170-37340 |
XZC605,XZU605..SCB..T4..20T..CBU |
1 | ||
| 65277 - STEP, SIDE, FRONT | ||||
| 66207-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-37J80 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65303-37J60 |
XZC605,675,XZU605,675..SCB..(T4,T5)..CBU |
1 | ||
| 65303-37J90 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-37J70 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65304-37J40 |
XZC605,675,XZU605,675..SCB..(T4,T5)..CBU |
1 | ||
| 65304-37J60 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37881 |
XZU605..T5..30T..CBU;XZC605,XZU605..SCB..(T4,T5)..20T..CBU |
1 | ||
| 65307-37A01 |
XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65313C - SCREW(FOR FLOOR BOARD) | ||||
| 90149-50065 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
42 | ||
| 90149-50065 |
XZC605,675,XZU605,675..SCB..(T4,T5)..CBU |
48 | ||
| 65322 - NAIL | ||||
| 90290-05004 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
12 | ||
| 90290-05004 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
12 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37080 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU 左側 |
1 | ||
| 65349-37070 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU 右側 |
1 | ||
| 65371 - INSULATOR, REAR FLOOR | ||||
| 65039-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..SCB..(T3,T4,T5)..CBU |
1 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-37020 |
XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
1 | ||
| 65865-37020 |
XZU655..SCB..T4..6F..20T..CBU;XZC605,XZU605..SCB..T4..20T..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
1 | ||
| 66219A - EXTENSION, REAR FENDER | ||||
| 66219-37120 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..(20T,30T,35T)..CBU |
1 | ||
| 66219B - EXTENSION, REAR FENDER | ||||
| 66219-37120 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..(20T,30T,35T)..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37271 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37271 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37B62 |
XZU645,655..T4..20T..CBU;XZC605,645,655,XZU605,650..T4..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37B62 |
XZU645,655..T4..20T..CBU;XZC605,645,655,XZU605,650..T4..CBU |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
2 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
4 | ||
| 66311-37020 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
3 | ||
| 66311-37020 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU |
5 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU645..30T..CBU;XZC605,655,675,XZU605,640,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
3 | ||
| 66311-37020 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
4 | ||
| 66311-37020 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU |
5 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
XZU645..20T..CBU;XZC605,645,675,XZU605,675..(T2,T4,T5)..CBU |
2 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU ﾘﾔ |
2 | ||
| 66321-92803 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU ｻｲﾄﾞ |
2 | ||
| 66321-37030 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰﾘﾌﾄ車/垂直式ﾊﾟﾜｰｹﾞｰﾄ車/すいちょくｹﾞｰﾄ車 |
2 | ||
| 66321-37030 |
XZU605..T5..6F..20T..CBU;XZC605,XZU605..SCB..T4..CBU ﾊﾟﾜｰｹﾞｰﾄ車 |
2 | ||
| 66321-92803 |
XZC605,675,XZU605,675..SCB..(T2,T4,T5)..CBU |
2 | ||
| 66445B - BRACE, FRAME TO REAR BODY | ||||
| 65365-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| 66446B - BRACE, FRAME TO REAR BODY, NO.2 | ||||
| 65366-37010 |
XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU |
1 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90119-10444 | ||||
| 90159-60047 | ||||
| 90179-10036 | ||||
| 91551-80820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94184-01001 | ||||
| 94185-61000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
