XZC605-TPFMY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )XZC605,645,655

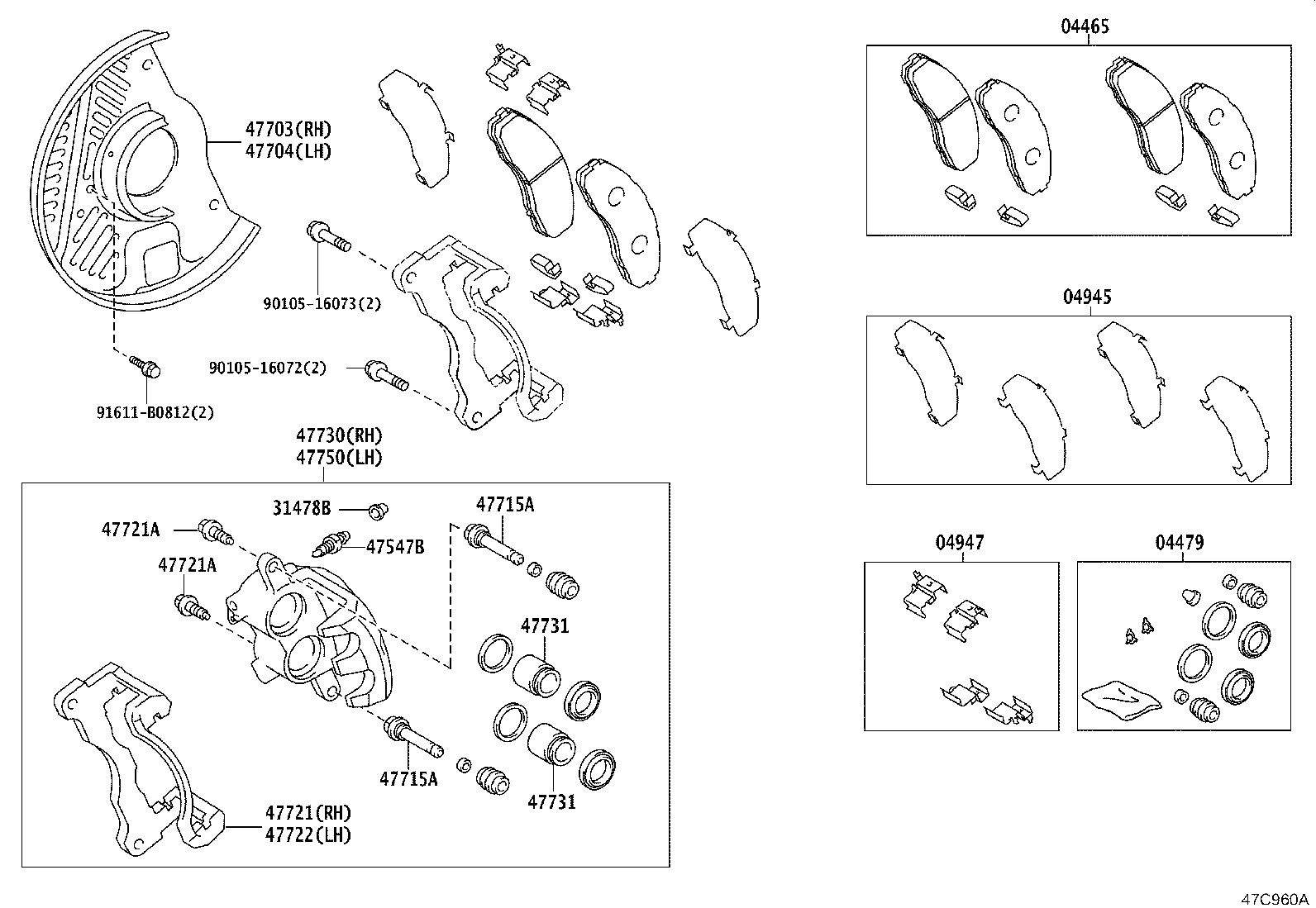

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47703 47704 47715A 47715A 47721 47721A 47721A 47722 47730 47731 47731 47750 9010516072 9010516073 91611B0812
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-37220

XZC60#,630,645,655

ﾏｰｸ ADVICS VC035

 1
04465-37250

XZU650..T3..(20T,30T);XZU600,605,645,655..30T;XZC675,XZU630,640,675,685,695..20T,30T;XZU600,605,655..(DM3,DM6,T2,T3,T5)..20T

ﾏｰｸ AK NS265

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
0447B-37021

XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T

 2
0447B-37010

XZC605,645,655

 2
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-37240

XZC60#,630,645,655

 1
04945-37230

XZU650..T3..(20T,30T);XZU600,605,645,655..30T;XZC675,XZU630,640,675,685,695..20T,30T;XZU600,605,655..(DM3,DM6,T2,T3,T5)..20T

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
0494A-37050

XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T

 2
0494A-37010

XZC60#,630,645,655

 2
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

XZC60#,630,645,655,675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12030

XZC60#,630,645,655

 2
47547-12010

XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-37043

XZC605,645,655,XZU605,645,655

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-37043

XZC605,645,655,XZU605,645,655

 1
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-37260

XZC60#,630,645,655

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-37260

XZC60#,630,645,655

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-37260

XZC605,645,655

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-12256

XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T

*12−1.25PX75−30,NO.1:ｲﾗｽﾄ参照

 4
90015-AA601

XZC60#,630,645,655

*10−1.00PX20−9

 4
90119-08B87

XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T

*8−1.25PX59−27,NO.2:ｲﾗｽﾄ参照

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-12256

XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T

*12−1.25PX75−30,NO.1:ｲﾗｽﾄ参照

 4
90015-AA601

XZC60#,630,645,655

*10−1.00PX20−9

 4
90119-08B87

XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T

*8−1.25PX59−27,NO.2:ｲﾗｽﾄ参照

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-37260

XZC605,645,655

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-37262

XZC605,645,655

 1
47731 - PISTON, FRONT DISC BRAKE
47731-60070

XZC60#,630,645,655

 4
47731-36020

XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T

 4
47731 - PISTON, FRONT DISC BRAKE
47731-60070

XZC60#,630,645,655

 4
47731-36020

XZC675,XZU600,605,630,640,645,650,655,675,685,695..20T,30T

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-37262

XZC605,645,655

 1
Common parts
90105-16072
90105-16073
91611-B0812
