XZC605-TGFMY3 (2021)
Toyota Dyna

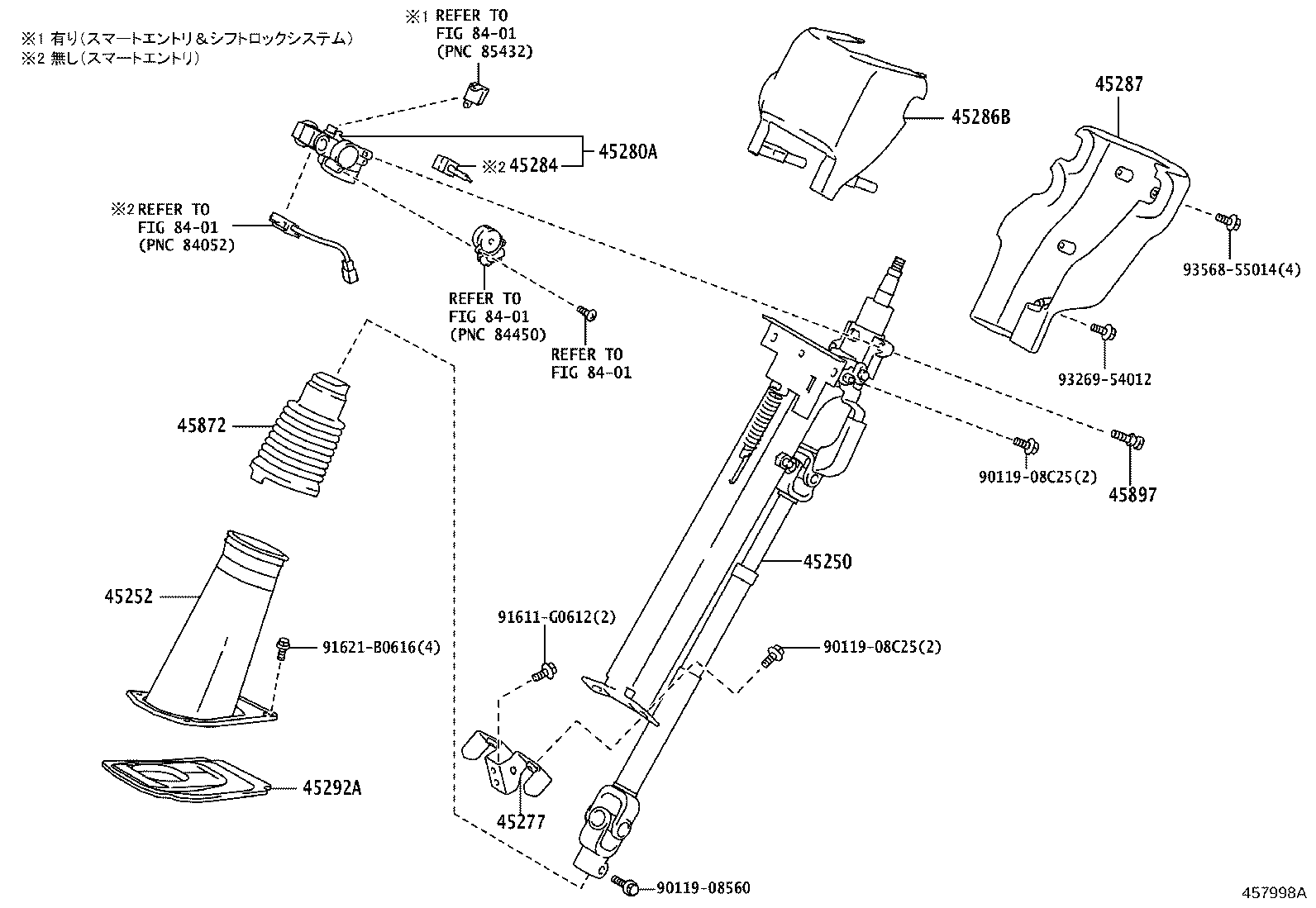

ILLUST NO. 1 OF 2(2103- )XZC605,645,655,675,XZU605,645,655,675,685,695
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-37F00C0 |
XZC605,645,655,675,XZU605,645,655,675,685,695 BLACK,TRIM1# |
1 | ||
| 45252 - TUBE, STEERING COLUMN, LOWER | ||||
| 45252-37050C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
1 | ||
| 45277 - PLATE, STEERING COLUMN UPPER ATTACHMENT | ||||
| 45277-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-37140 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM |
1 | ||
| 45280-37170 |
XZC60#,630,645,655,675,XZU600,605,630,640,645,65#,675,685,695..SCB..MTM..(CBU,IV3,IV5,IV7) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 45284 - SHAFT, STEERING LOCK CAM | ||||
| 45284-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-37130C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-37120C0 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 BLACK,TRIM1# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-37030 |
XZU685;XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,695..CBU,IV3,IV5,IV6,IV7 |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-E0020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08C25 | ||||
| 91611-G0612 | ||||
| 91621-B0616 | ||||
| 93269-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

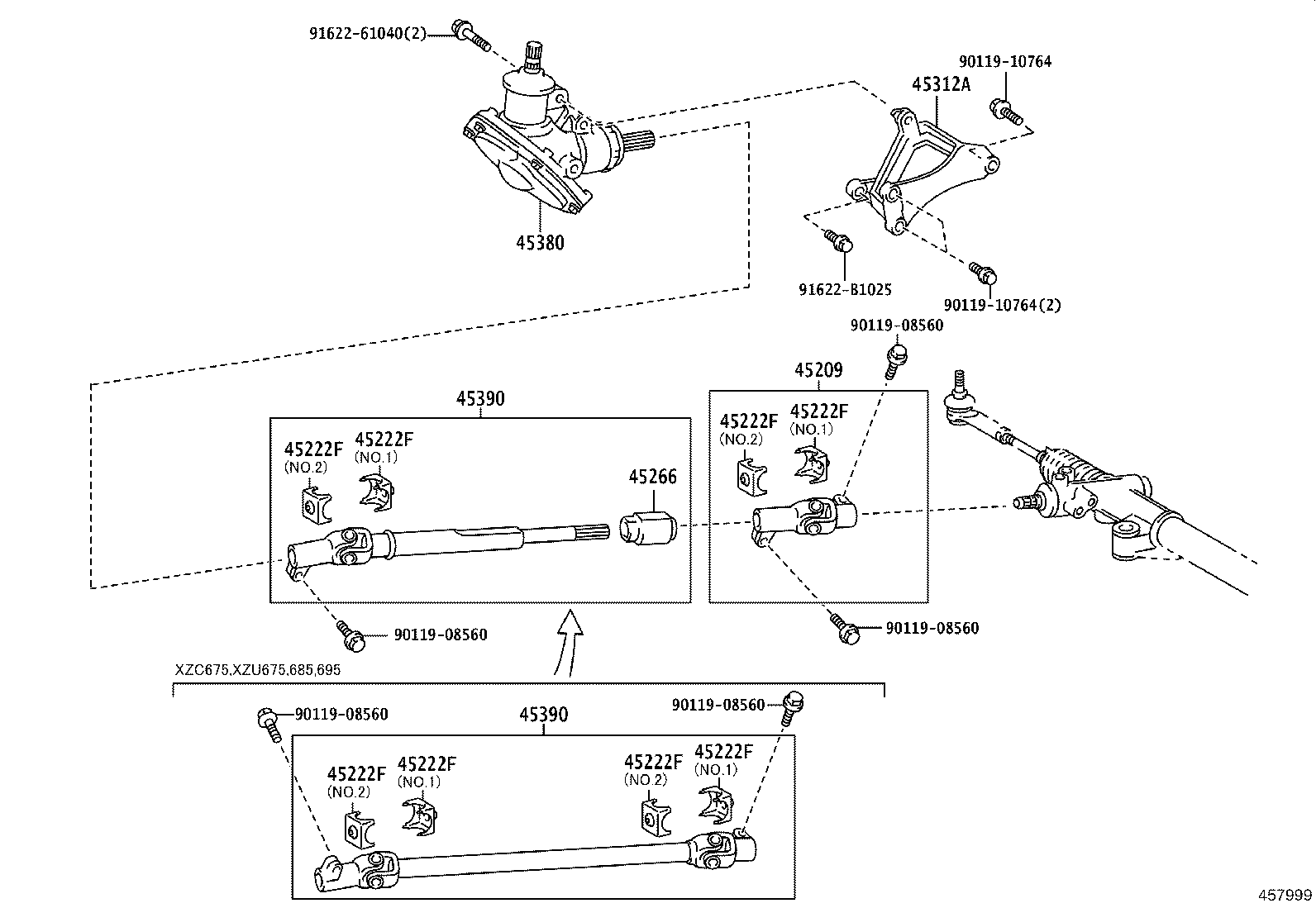

ILLUST NO. 2 OF 2(2103- )XZC605,645,655,675,XZU605,645,655,675,685,695
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-37120 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-37060 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 45222-37070 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 45222F - COVER, DUST | ||||
| 45222-37060 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 45222-37070 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 45222F - COVER, DUST | ||||
| 45222-37060 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 45222-37070 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 45222F - COVER, DUST | ||||
| 45222-37060 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 45222-37070 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 45222F - COVER, DUST | ||||
| 45222-37060 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 45222-37070 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 45222F - COVER, DUST | ||||
| 45222-37060 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 45222-37070 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 45222F - COVER, DUST | ||||
| 45222-37060 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 45222-37070 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 45222F - COVER, DUST | ||||
| 45222-37060 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 45222-37070 |
XZC605,645,655,675,XZU605,645,655,675,685,695 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 45312A - BRACKET, STEERING BEVEL GEAR HOUSING | ||||
| 45312-37160 |
XZC605,645,655,675,XZU605,645,655,675,685,695 |
1 | ||
| 45380 - GEAR ASSY, STEERING BEVEL | ||||
| 45380-25010 |
XZC605,645,655,675,XZU605,645,655,675,685,695 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-37140 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-37140 |
XZC605,645,655,XZU605,645,655 |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10764 | ||||
| 91622-61040 | ||||
| 91622-B1025 | ||||
