BU37-MRDT3 (1983)

Toyota Dyna

Production Feb 1983 - Aug 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

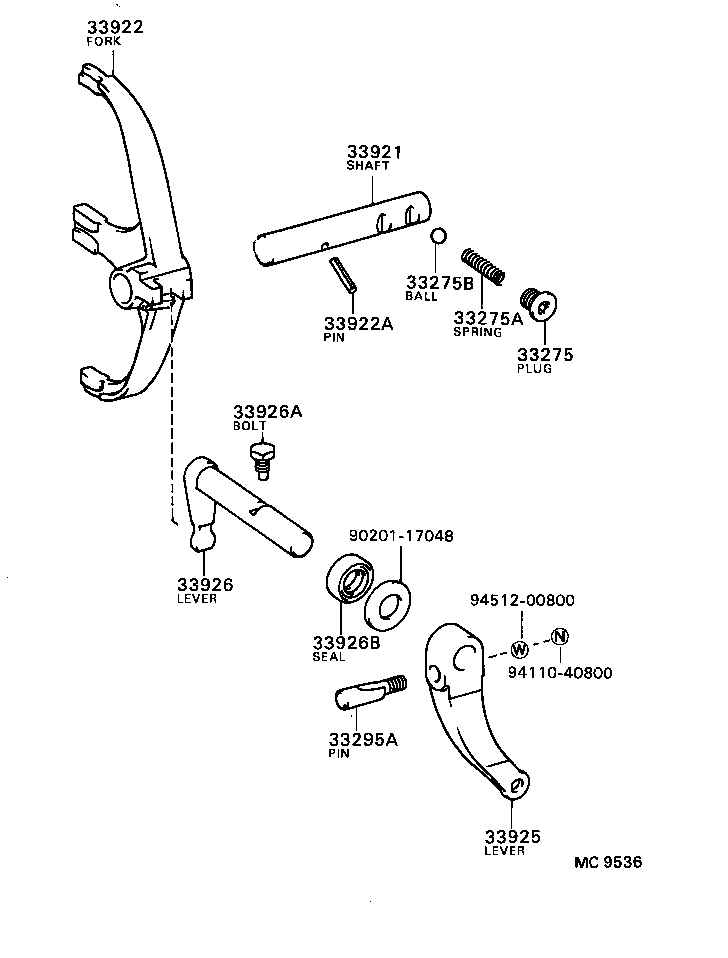

ILLUST NO. 2 OF 2(8302- )BU37..275,30T

Click highlighted areas on diagram

diagram 33275 33275A 33275B 33295A 33921 33922 33922A 33925 33926 33926A 33926B 9020117048 9411040800 9451200800
Part # Description Qty Price
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

BU37..275,30T

外径=18,SUPER SHIFT SIDE

 1
90250-10215

BU2#,3#,4#,5#

長さ=9,外径=9

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14772

BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51

WD=1.7,CW=13

 4
90501-14075

BU37..275,30T

SUPER SHIFT SIDE

 1
90501-14386

BU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50

WD=1.4,CW=8.5

 1
33275B - BALL, SHAFT DETENT
90360-10003

BU2#,3#,4#,5#

 6
33921 - SHAFT, GEAR SHIFT FORK, FRONT
33921-36010

BU37..275,30T

 1
33922 - FORK, GEAR SHIFT, FRONT
33922-36010

BU37..275,30T

 1
33922A - PIN, SLOTTED SPRING (FOR GEAR SHIFT FRONT FORK)
90254-05016

BU37..275,30T

 1
33925 - LEVER, SHIFT OUTER, FRONT
33925-36010

BU37..275,30T

 1
33926 - LEVER, SHIFT INNER, FRONT
33926-36010

BU37..275,30T

 1
33926A - BOLT, SET (FOR SHIFT INNER LEVER)
90113-08003

BU37..275,30T

 1
33926B - SEAL, OIL (FOR SHIFT INNER LEVER)
90311-17003

BU37..275,30T

 1
Common parts
90201-17048
94110-40800
94512-00800
