BU37-MRDMT3 (1983)

Toyota Dyna

Production Feb 1983 - Aug 1984
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

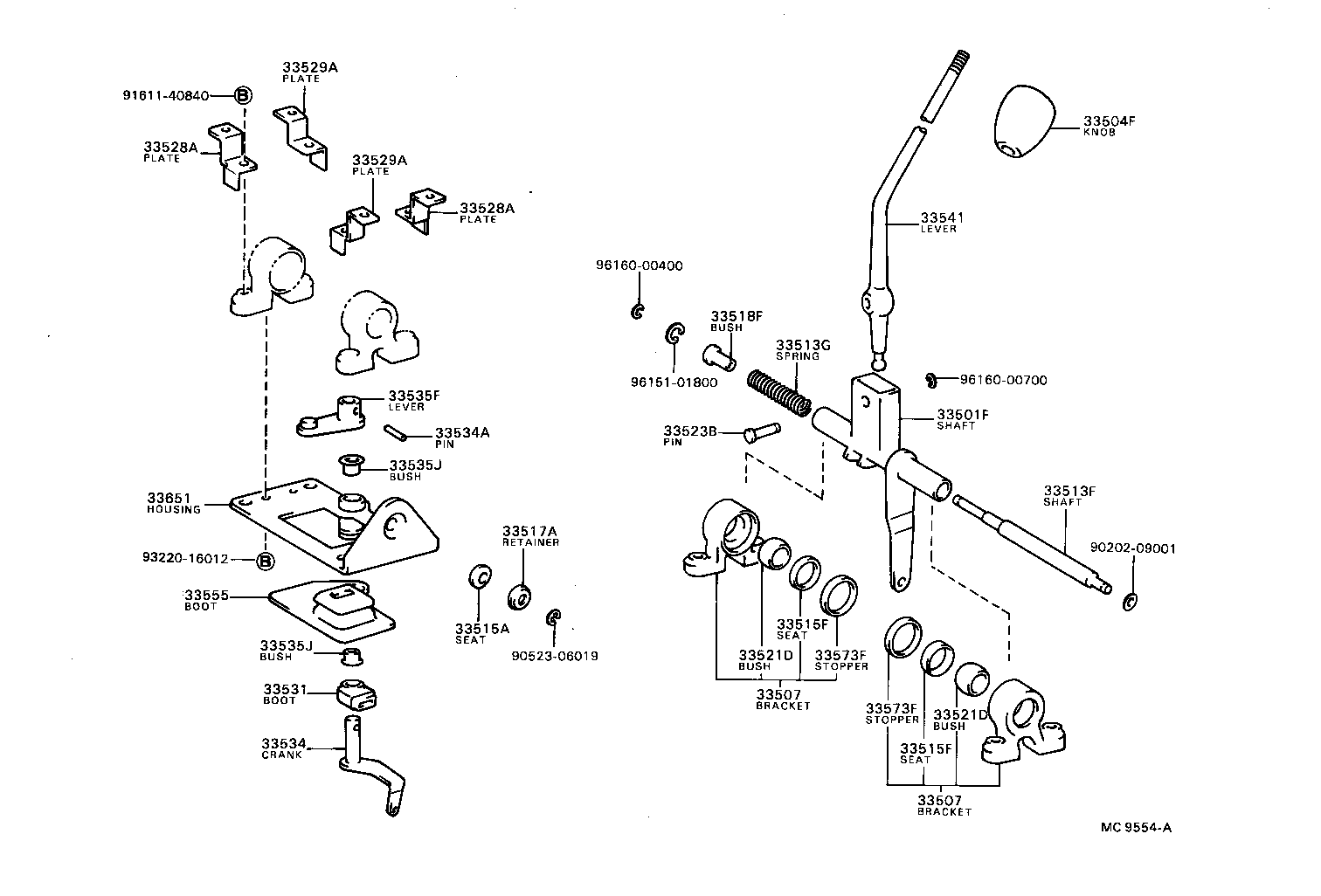

ILLUST NO. 1 OF 3(8302- )BU37,4#,51

Click highlighted areas on diagram

diagram 33501F 33504F 33507 33507 33513F 33513G 33515A 33515F 33515F 33517A 33518F 33521D 33521D 33523B 33528A 33528A 33529A 33529A 33531 33534 33534A 33535F 33535J 33535J 33541 33555 33573F 33573F 33651 9020209001 9052306019 9161140840 9322016012 9615101800 9616000400 9616000700
Part # Description Qty Price
33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33501-36170

BU37,4#,51

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-22111

BU37,4#,51

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-36020

BU37,4#,51

RH

 1
33507-36030

BU37,4#,51

LH

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-36020

BU37,4#,51

RH

 1
33507-36030

BU37,4#,51

LH

 1
33513F - SHAFT, CONTROL SHAFT BRACKET
33513-36040

BU37,4#,51

 1
33515F - SEAT, CONTROL SHAFT
33515-36020

BU37,4#,51

 3
33515F - SEAT, CONTROL SHAFT
33515-36020

BU37,4#,51

 3
33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT)
90249-08013

BU37,4#,51

 1
33535F - LEVER, CONTROL SELECT (FOR FLOOR SHIFT)
33535-36070

BU37,4#,51

 1
33541 - LEVER, SHIFT
33541-36121

BU37,4#,51

 1
33573F - STOPPER, CONTROL SHAFT, LOWER
33573-36010

BU37,4#,51

 2
33573F - STOPPER, CONTROL SHAFT, LOWER
33573-36010

BU37,4#,51

 2
33651 - HOUSING, CONTROL LEVER
33651-36040

BU37,4#,51

 1
Common parts
90202-09001
90523-06019
91611-40840
93220-16012
96151-01800
96160-00400
96160-00700
