BU37-MRDHT3 (1983)
Toyota Dyna

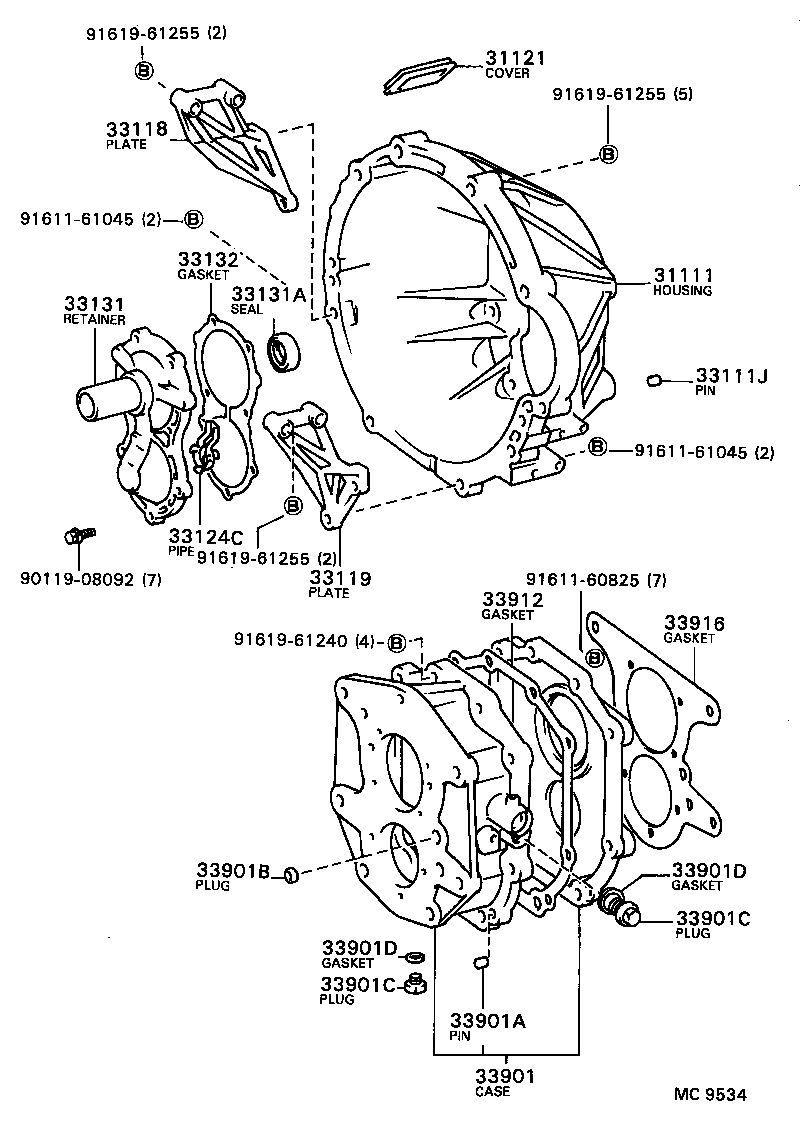

ILLUST NO. 1 OF 2(8302- )BU37..275,30T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36050 |
BU2#,3#,4#,5# |
1 | ||
| 31111-36100 |
BU37..275,30T W/H50S TRANSMISSION |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36040 |
BU2#,3#,4#,5# |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BU2#,3#,4#,5# 長さ=17,外径=12,OD=12,L=17 |
2 | ||
| 90250-12216 |
BU2#,3#,4#,5# 長さ=14,外径=12,OD=12,L=14 |
2 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-36010 |
BU2#,3#,4#,5# |
1 | ||
| 33118-36020 |
BU2#,3#,4#,51 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-36010 |
BU2#,3#,4#,5# |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36020 |
BU37..275,30T FR |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-36011 |
BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51 |
1 | ||
| 33131-36030 |
BU37..275,30T W/H50S TRANSMISSION |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-28004 |
BU2#,30,31,32,34,35,36,37,4#,5#..H50,H51 |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-36010 |
BU2#,30,31,32,34,35,36,37,4#,5#..H50,H51 |
1 | ||
| 33132-36030 |
BU37..275,30T W/H50S TRANSMISSION |
1 | ||
| 33901 - CASE SUB-ASSY, ADAPTER | ||||
| 33901-36010 |
BU37..275,30T |
1 | ||
| 33901A - PIN, STRAIGHT(FOR ADAPTER CASE) | ||||
| 90250-12216 |
BU37..275,30T OD=12,L=14 |
2 | ||
| 33901B - PLUG, TIGHT(FOR ADAPTER CASE) | ||||
| 90331-16050 |
BU37..275,30T |
1 | ||
| 33901C - PLUG(FOR ADAPTER CASE) | ||||
| 90341-18002 |
BU37..275,30T FILLER PLUG |
1 | ||
| 90341-18057 |
BU37..275,30T DRAIN PLUG |
1 | ||
| 90341-18006 |
BU37..275,30T FILLER PLUG |
1 | ||
| 33901C - PLUG(FOR ADAPTER CASE) | ||||
| 90341-18002 |
BU37..275,30T FILLER PLUG |
1 | ||
| 90341-18057 |
BU37..275,30T DRAIN PLUG |
1 | ||
| 90341-18006 |
BU37..275,30T FILLER PLUG |
1 | ||
| 33901D - GASKET(FOR ADAPTER CASE PLUG) | ||||
| 90430-18007 |
BU37..275,30T |
2 | ||
| 33901D - GASKET(FOR ADAPTER CASE PLUG) | ||||
| 90430-18007 |
BU37..275,30T |
2 | ||
| 33912 - GASKET, FRONT CASE | ||||
| 33912-36010 |
BU37..275,30T |
1 | ||
| 33916 - GASKET, REAR CASE | ||||
| 33916-36010 |
BU37..275,30T |
1 | ||
| Common parts | ||||
| 90119-08092 | ||||
| 91611-60825 | ||||
| 91611-61045 | ||||
| 91619-61240 | ||||
| 91619-61255 | ||||
