BU36-MRLMTY3 (1982)

Toyota Dyna

Production Apr 1982 - Feb 1983
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8204- )B,3B..BU2#,3#,45,46

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 29331 29342 2936466010 29369 9004401043 9009904577 9020114099 9020114099 9020114099 9020114099 9040109001 9040110006 9040110006 9043010004 9043010004 9043010035 9043010035 9611210180
Part # Description Qty Price
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02033

B,2B..BU2#,3#

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02054

B,2B..BU2#,3#

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

B,2B,3B..BU2#,3#

 4
29331 - BLADE, VACUUM PUMP, A
29331-56010

B,2B,3B..BU2#,3#

 4
29342 - PACKING, VACUUM PUMP
96740-02063

B,2B,3B..BU2#,3#,4#,5#

 2
29369 - VALVE SUB-ASSY, CHECK
29369-56020

B,2B..BU2#,3#

 1
Common parts
29364-66010
90044-01043
90099-04577
90201-14099
90401-09001
90401-10006
90430-10004
90430-10035
96112-10180

(8204- )3B..BU40,41,5#

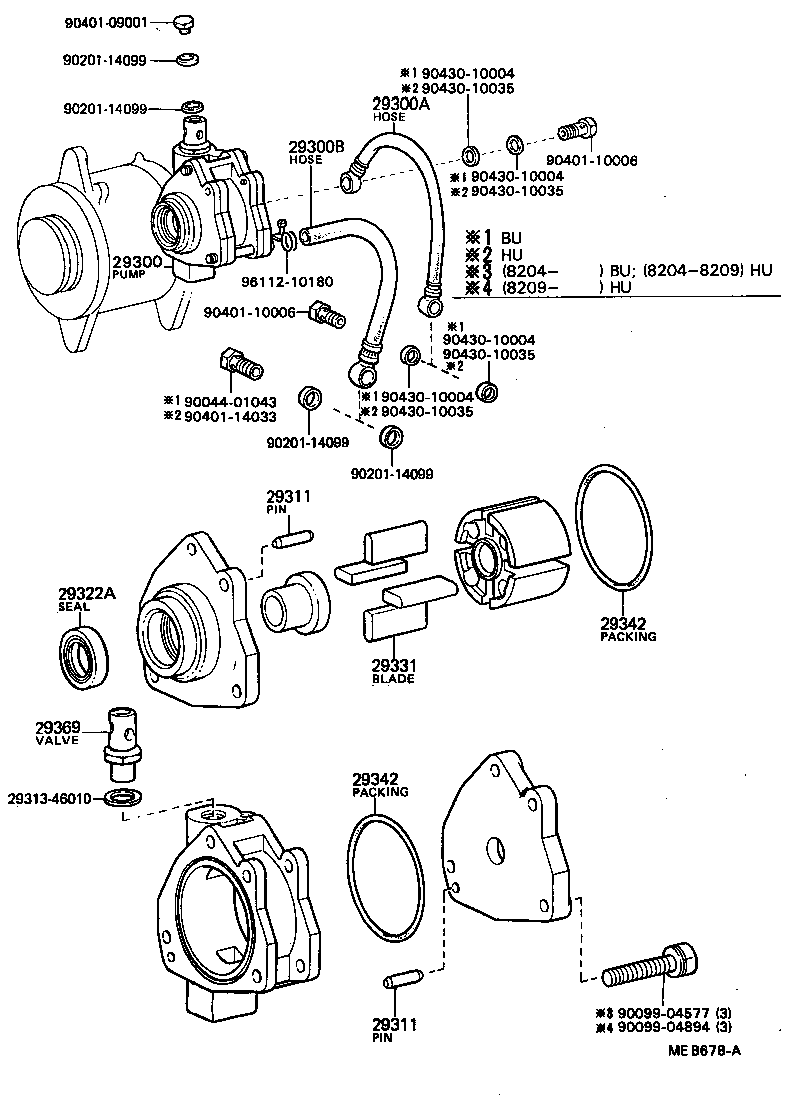

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 29311 2931346010 29322A 29331 29342 29342 29369 9004401043 9009904577 9009904894 9020114099 9020114099 9020114099 9020114099 9040109001 9040110006 9040110006 9040114033 9043010004 9043010004 9043010004 9043010004 9043010035 9043010035 9043010035 9043010035 9611210180
Part # Description Qty Price
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02033

B,2B..BU2#,3#

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02054

B,2B..BU2#,3#

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

B,2B,3B..BU2#,3#

 4
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

B,2B,3B..BU2#,3#

 4
29322A - SEAL, VACUUM PUMP OIL
90099-15017

B,2B,3B..BU2#,3#

 1
29331 - BLADE, VACUUM PUMP, A
29331-56010

B,2B,3B..BU2#,3#

 4
29342 - PACKING, VACUUM PUMP
96740-02063

B,2B,3B..BU2#,3#,4#,5#

 2
29342 - PACKING, VACUUM PUMP
96740-02063

B,2B,3B..BU2#,3#,4#,5#

 2
29369 - VALVE SUB-ASSY, CHECK
29369-56020

B,2B..BU2#,3#

 1
Common parts
29313-46010
90044-01043
90099-04577
90099-04894
90201-14099
90401-09001
90401-10006
90401-14033
90430-10004
90430-10035
96112-10180
