BU35-MRLTY3 (1980)

Toyota Dyna

Production Aug 1980 - Apr 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

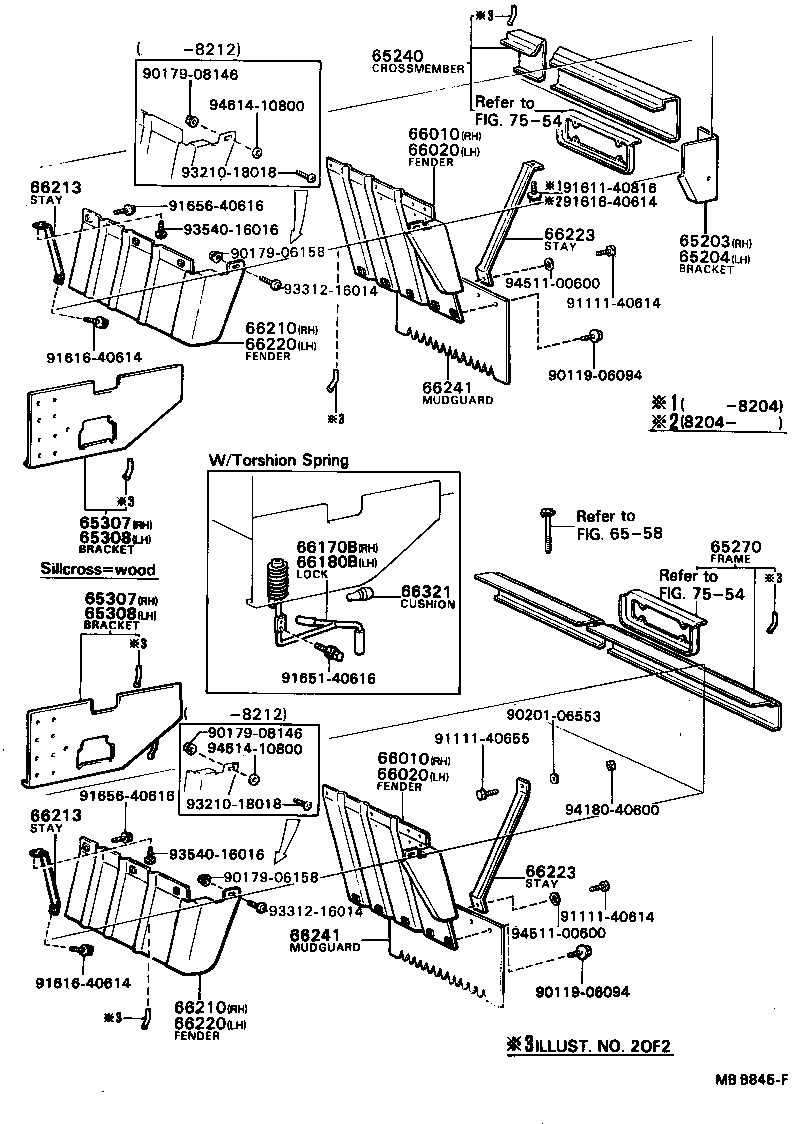

ILLUST NO. 1 OF 2(8008- )BU35,36,37

Click highlighted areas on diagram

diagram 65203 65204 65240 65270 65307 65307 65308 65308 6558 66010 66010 66020 66020 66170B 66180B 66210 66210 66213 66213 66220 66220 66223 66223 66241 66241 66321 7554 7554 9011906094 9011906094 9017906158 9017906158 9017908146 9017908146 9020106553 9111140614 9111140614 9111140655 9161140816 9161640614 9161640614 9161640614 9165140616 9165640616 9165640616 9321018018 9321018018 9331216014 9331216014 9354016016 9354016016 9418040600 9451100600 9451100600 9461410800 9461410800
Part # Description Qty Price
65203 - BRACKET SUB-ASSY, GATE BUMPER, RH
65203-92800

BU3#..TB

 1
65204 - BRACKET SUB-ASSY, GATE BUMPER, LH
65204-92800

BU3#..TB

 1
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-92812

BU35..M50

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66201-92820

BU3#..TB..WT

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66201-92820

BU3#..TB..WT

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66202-92820

BU3#..TB..WT

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66202-92820

BU3#..TB..WT

 1
66223 - STAY, REAR FENDER REAR PLATE
66217-92812

BU35..M50

 2
66223 - STAY, REAR FENDER REAR PLATE
66217-92812

BU35..M50

 2
66241 - MUDGUARD, REAR
66241-92720

BU3#..TB..WT

 2
66241 - MUDGUARD, REAR
66241-92720

BU3#..TB..WT

 2
Common parts
90119-06094
90179-06158
90179-08146
90201-06553
91111-40614
91111-40655
91611-40816
91616-40614
91651-40616
91656-40616
93210-18018
93312-16014
93540-16016
94180-40600
94511-00600
94614-10800
Linked diagrams
6558
7554
