BU35-MRDTY3 (1980)

Toyota Dyna

Production Aug 1980 - Apr 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )BU3#,4#,5#

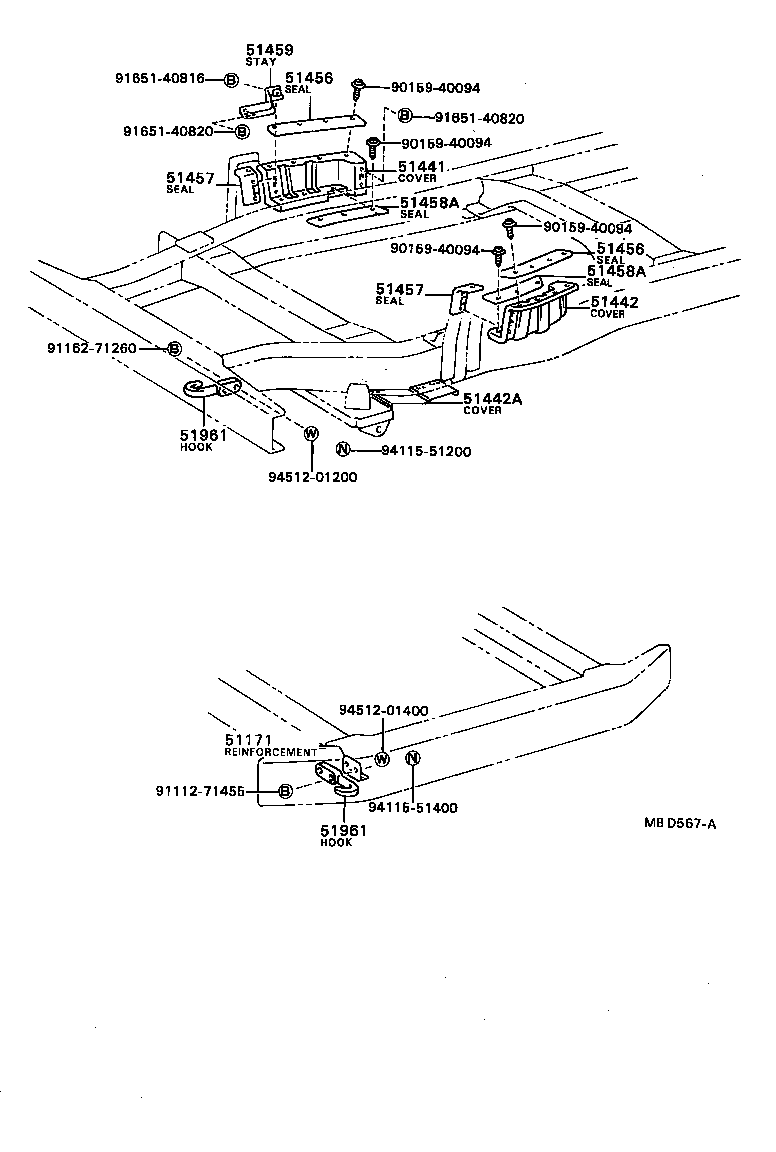

Click highlighted areas on diagram

diagram 51171 51441 51442 51442A 51456 51456 51457 51457 51458A 51458A 51459 51961 51961 9015940094 9015940094 9015940094 9015940094 9111271455 9116271260 9165140816 9165140820 9165140820 9411551200 9411551400 9451201200 9451201400
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51448-36030

BU35,36

 1
51442 - COVER, ENGINE UNDER, NO.2
51449-36020

BU35,36

 1
51961 - HOOK, NO.1
51961-36020

BU25,3#,4#,5#

RR

 1
51961 - HOOK, NO.1
51961-36020

BU25,3#,4#,5#

RR

 1
Common parts
90159-40094
91112-71455
91162-71260
91651-40816
91651-40820
94115-51200
94115-51400
94512-01200
94512-01400
