BU35-MRDTY (1980)

Toyota Dyna

Production Aug 1980 - Apr 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

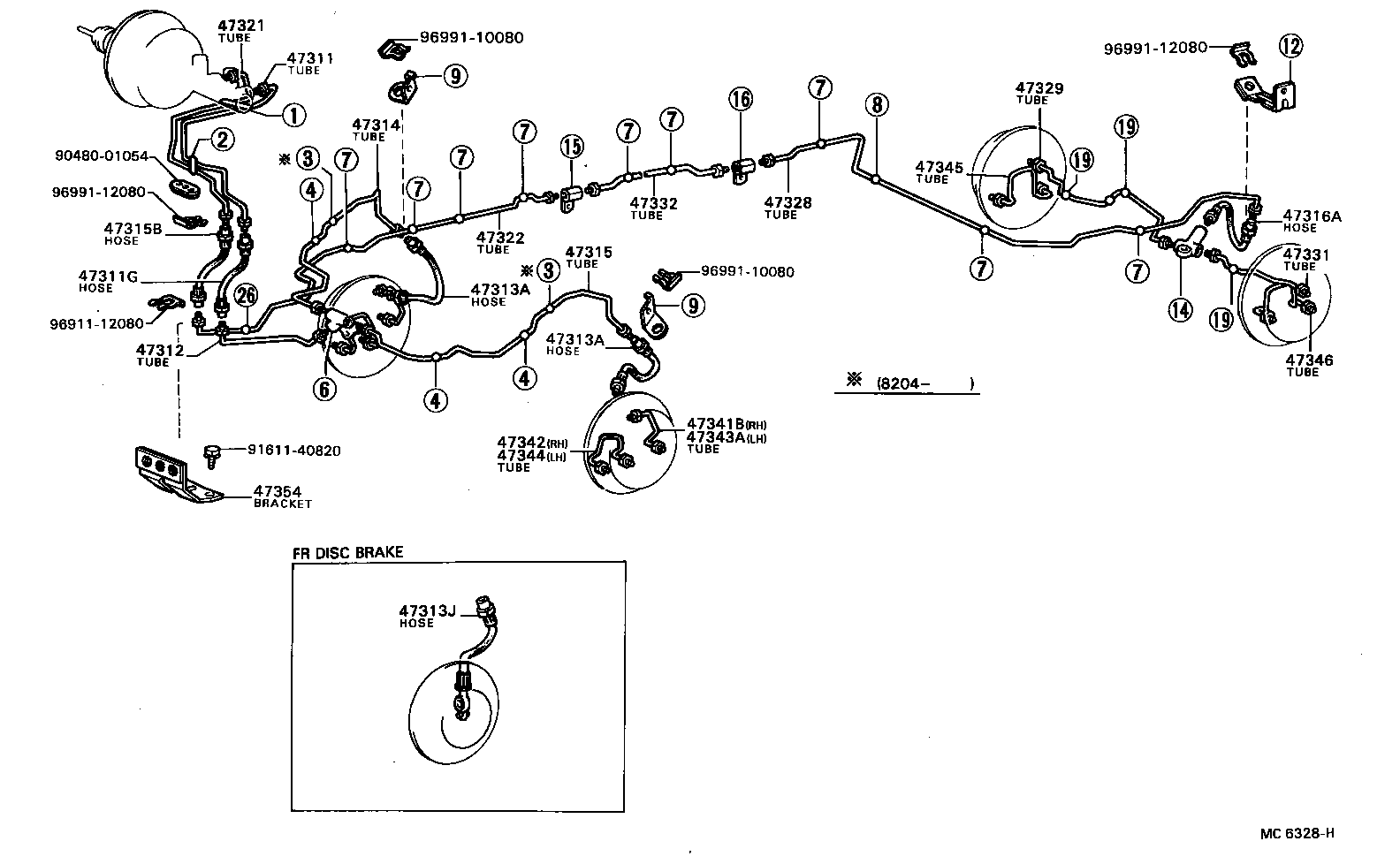

ILLUST NO. 1 OF 3(8008- )BU35,36,37,45,46

Click highlighted areas on diagram

diagram 47311 47311G 47312 47313A 47313A 47313J 47314 47315 47315B 47316A 47321 47322 47328 47329 47331 47332 47341B 47342 47343A 47344 47345 47346 47354 9048001054 9161140820 9691112080 9699110080 9699110080 9699112080 9699112080
Part # Description Qty Price
47322 - TUBE, REAR BRAKE, NO.2
47322-36010

BU3#;BU20..ST;BU20..T2,TW2

 1
47329 - TUBE, REAR BRAKE, NO.9
47329-36031

BU30,35..H50..20T

 1
47331 - TUBE, REAR BRAKE, NO.10
47331-36061

BU30,35..H50..20T

 1
47332 - TUBE, REAR BRAKE, NO.11
47332-36050

BU3#

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-36030

BU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-36020

BU2#,3#..H50;BU20..T3..03S..WT..ATP..DSL

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-36030

BU20..T3..03S..WT..ATP..DSL;BU2#,30,31,32,34,35,36,37,45,46..H50

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36020

BU20..T3..03S..WT..ATP..DSL;BU2#,30,31,32,34,35,36,37,45,46..H50

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36020

BU20..T3..03S..WT..ATP..DSL;BU2#,30,31,32,34,35,36,37,45,46..H50

 1
Common parts
90480-01054
91611-40820
96911-12080
96991-10080
96991-12080
