BU35-MRDTY (1980)

Toyota Dyna

Production Aug 1980 - Apr 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

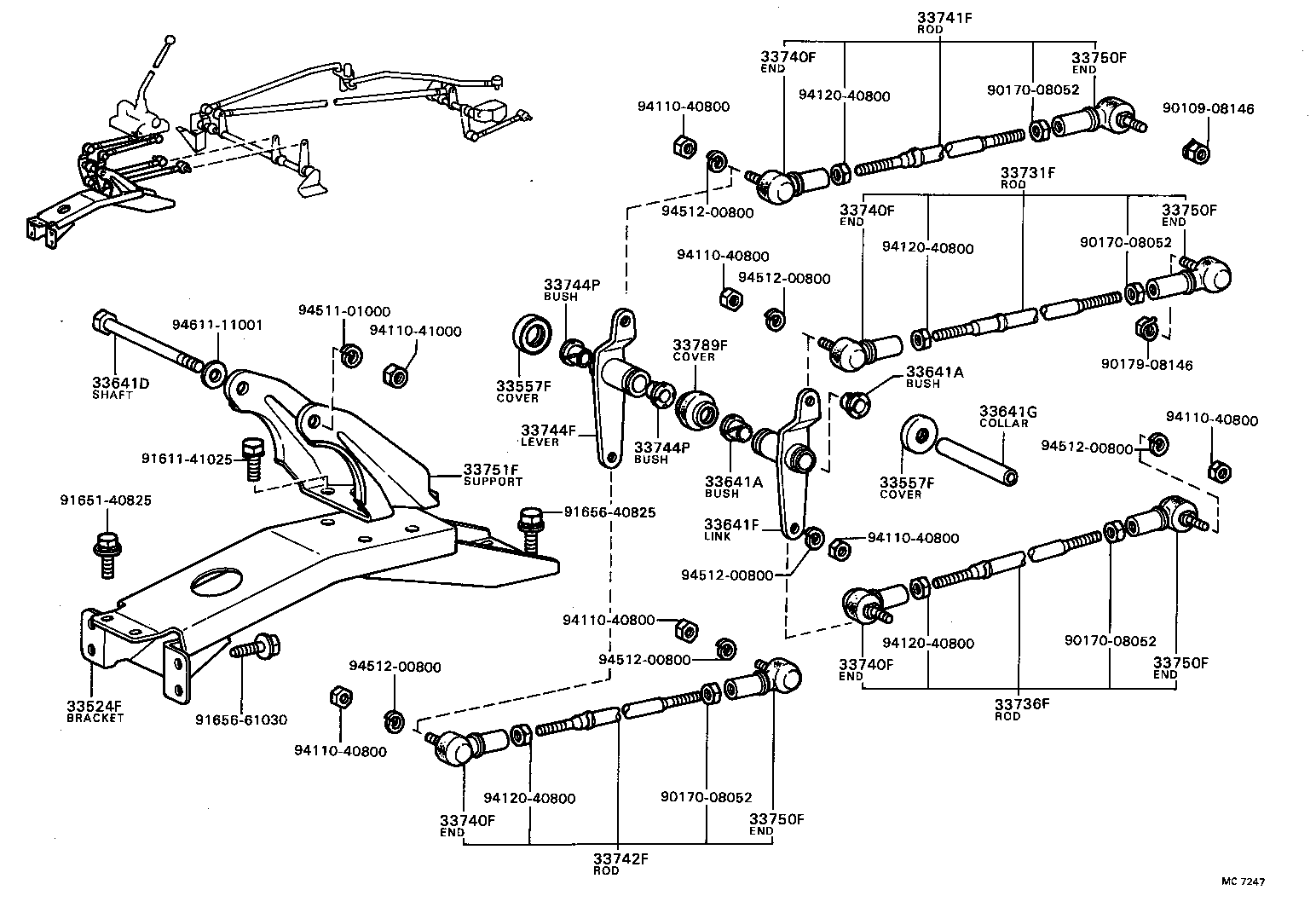

ILLUST NO. 2 OF 3(8008- )BU35,36,37,4#,5#

Click highlighted areas on diagram

diagram 33524F 33557F 33557F 33641A 33641A 33641D 33641F 33641G 33731F 33736F 33740F 33740F 33740F 33740F 33741F 33742F 33744F 33744P 33744P 33750F 33750F 33750F 33750F 33751F 33789F 9010908146 9017008052 9017008052 9017008052 9017008052 9017908146 9161141025 9165140825 9165640825 9165661030 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411041000 9412040800 9412040800 9412040800 9412040800 9451101000 9451200800 9451200800 9451200800 9451200800 9451200800 9451200800 9461111001
Part # Description Qty Price
33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33557-36010

BU20,21,22,23,30,35,36,37,4#,5#..5F

 2
33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33557-36010

BU20,21,22,23,30,35,36,37,4#,5#..5F

 2
33641A - BUSH (FOR SELECTING LINK)
90386-13007

BU20,21,22,23,30,35,36,37,4#,5#..5F

 2
33641A - BUSH (FOR SELECTING LINK)
90386-13007

BU20,21,22,23,30,35,36,37,4#,5#..5F

 2
33731F - ROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT)
33720-36190

BU35,36

 1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-35011

BU35,36

M8

 5
33740-36010

BU35,36

M10

 3
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-35011

BU35,36

M8

 5
33740-36010

BU35,36

M10

 3
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-35011

BU35,36

M8

 5
33740-36010

BU35,36

M10

 3
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-35011

BU35,36

M8

 5
33740-36010

BU35,36

M10

 3
33741F - ROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33710-36170

BU2#,35,36,37,4#,5#..5F

 1
33710-36170

BU35,36

 1
33744P - BUSH (FOR SHIFTING, NO.1)
90386-13007

BU20,21,22,23,30,35,36,37,4#,5#..5F

 2
33744P - BUSH (FOR SHIFTING, NO.1)
90386-13007

BU20,21,22,23,30,35,36,37,4#,5#..5F

 2
33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
33789-36010

BU20,21,22,23,35,36,37,4#,5#..5F

 4
33775-20040

BU20,21,22,23,35,36,37,4#,5#..5F

CROSSSHAFT KNOB,RH

 1
Common parts
90109-08146
90170-08052
90179-08146
91611-41025
91651-40825
91656-40825
91656-61030
94110-40800
94110-41000
94120-40800
94511-01000
94512-00800
94611-11001

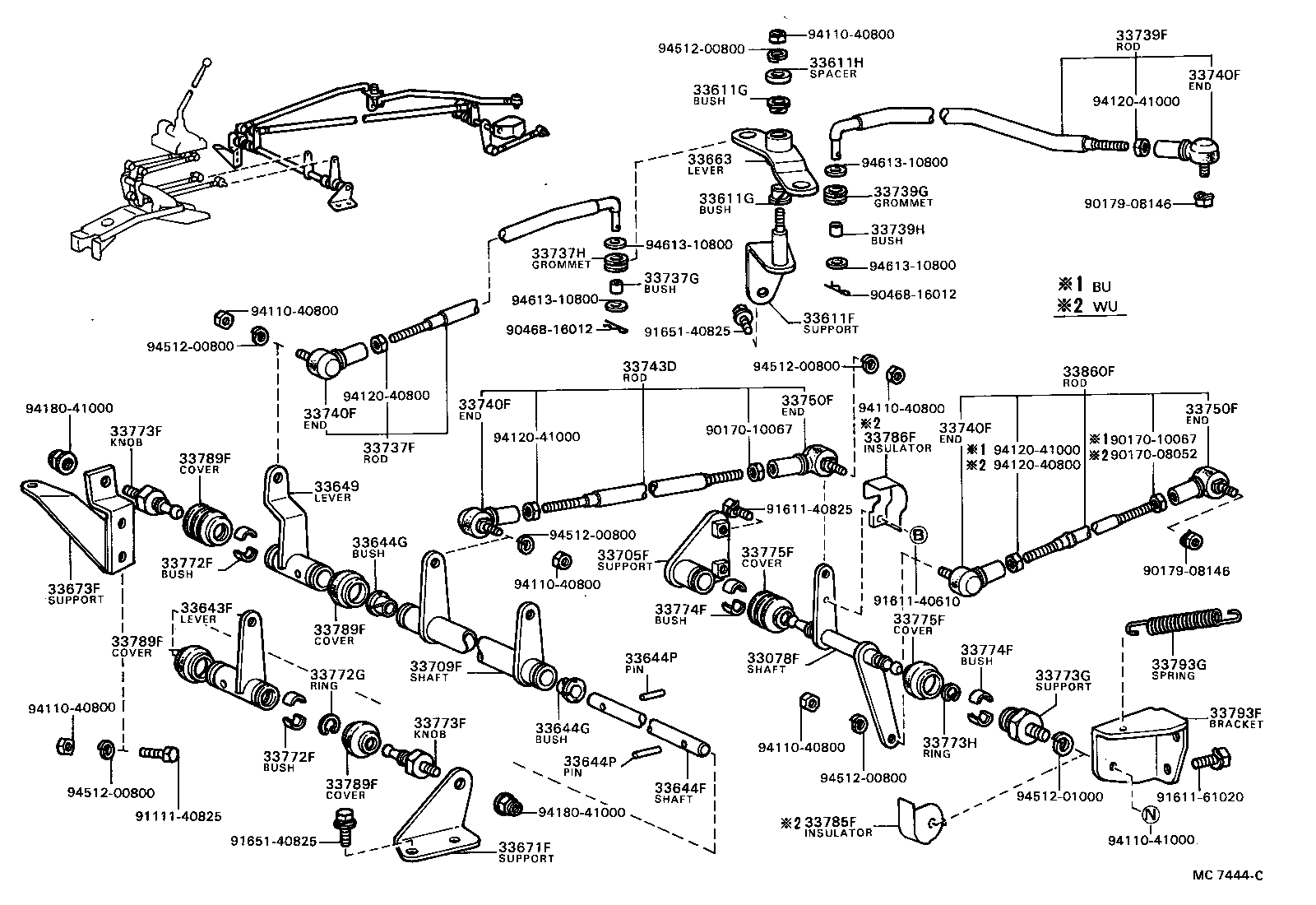

ILLUST NO. 3 OF 3(8008- )BU35,36,37,4#,5#

Click highlighted areas on diagram

diagram 33078F 33611F 33611G 33611G 33611H 33643F 33644F 33644G 33644G 33644P 33644P 33649 33663 33671F 33673F 33705F 33709F 33737F 33737G 33737H 33739F 33739G 33739H 33740F 33740F 33740F 33740F 33743D 33750F 33750F 33772F 33772F 33772G 33773F 33773F 33773G 33773H 33774F 33774F 33775F 33775F 33785F 33786F 33789F 33789F 33789F 33789F 33793F 33793G 33860F 9017008052 9017010067 9017010067 9017908146 9017908146 9046816012 9046816012 9111140825 9161140610 9161140825 9161161020 9165140825 9165140825 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411041000 9412040800 9412040800 9412041000 9412041000 9412041000 9418041000 9418041000 9451200800 9451200800 9451200800 9451200800 9451200800 9451200800 9451201000 9461310800 9461310800 9461310800 9461310800
Part # Description Qty Price
33611G - BUSH (FOR CONTROL SELECT LEVER SUPPORT)
90386-13007

BU20,21,22,23,30,35,36,37,4#,5#..5F

 2
33611G - BUSH (FOR CONTROL SELECT LEVER SUPPORT)
90386-13007

BU20,21,22,23,30,35,36,37,4#,5#..5F

 2
33644G - BUSH (FOR GEAR SELECTING SHAFT)
90386-13007

BU20,21,22,23,30,35,36,37,4#,5#..5F

 4
33644G - BUSH (FOR GEAR SELECTING SHAFT)
90386-13007

BU20,21,22,23,30,35,36,37,4#,5#..5F

 4
33644P - PIN (FOR GEAR SELECTING SHAFT)
90256-06001

BU20,21,22,23,30,35,36,37,4#,5#..5F

 2
33644P - PIN (FOR GEAR SELECTING SHAFT)
90256-06001

BU20,21,22,23,30,35,36,37,4#,5#..5F

 2
33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT)
33705-36160

BU20..M50..02S;BU22,35,36,37,4#,5#..5F

 1
33737G - BUSH (FOR GEAR SELECTING ROD NO.3)
90389-08005

BU20,21,22,23,30,35,36,37,4#,5#..5F

 1
33737H - GROMMET (FOR GEAR SELECTING ROD NO.3)
90480-17177

BU20,21,22,23,30,35,36,37,4#,5#..5F

 1
33739G - GROMMET (FOR GEAR SELECTING ROD NO.4)
90480-17177

BU20,21,22,23,30,35,36,37,4#,5#..5F

 1
33739H - BUSH (FOR GEAR SELECTING ROD NO.4)
90389-08005

BU20,21,22,23,30,35,36,37,4#,5#..5F

 1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-35011

BU35,36

M8

 5
33740-36010

BU35,36

M10

 3
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-35011

BU35,36

M8

 5
33740-36010

BU35,36

M10

 3
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-35011

BU35,36

M8

 5
33740-36010

BU35,36

M10

 3
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-35011

BU35,36

M8

 5
33740-36010

BU35,36

M10

 3
33773G - SUPPORT, CROSS SHAFT
33773-20020

BU20,21,22,23,30,35,36,37,4#,5#

 1
33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)
96151-01600

BU20,21,22,23,30,35,36,37,4#,5#..5F

 1
33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT)
33772-20010

BU20,21,22,23,30,35,36,37,4#,5#..5F

 4
33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT)
33772-20010

BU20,21,22,23,30,35,36,37,4#,5#..5F

 4
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20020

BU20,21,22,23,30,35,36,37,4#,5#..5F

LH

 1
33775-20040

BU20,21,22,23,30,35,36,37,4#,5#..5F

RH

 1
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20020

BU20,21,22,23,30,35,36,37,4#,5#..5F

LH

 1
33775-20040

BU20,21,22,23,30,35,36,37,4#,5#..5F

RH

 1
33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
33789-36010

BU20,21,22,23,35,36,37,4#,5#..5F

 4
33775-20040

BU20,21,22,23,35,36,37,4#,5#..5F

CROSSSHAFT KNOB,RH

 1
33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
33789-36010

BU20,21,22,23,35,36,37,4#,5#..5F

 4
33775-20040

BU20,21,22,23,35,36,37,4#,5#..5F

CROSSSHAFT KNOB,RH

 1
33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
33789-36010

BU20,21,22,23,35,36,37,4#,5#..5F

 4
33775-20040

BU20,21,22,23,35,36,37,4#,5#..5F

CROSSSHAFT KNOB,RH

 1
33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)
33789-36010

BU20,21,22,23,35,36,37,4#,5#..5F

 4
33775-20040

BU20,21,22,23,35,36,37,4#,5#..5F

CROSSSHAFT KNOB,RH

 1
33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT)
33793-36010

BU20,21,30,35,36,4#,50..5F

 1
33793G - SPRING, TENSION(FOR CROSS SHAFT TO SELECT OUTER LEVER)
90506-09155

BU20,21,22,23,30,35,36,37,4#,5#..5F

 1
Common parts
90170-08052
90170-10067
90179-08146
90468-16012
91111-40825
91611-40610
91611-40825
91611-61020
91651-40825
94110-40800
94110-41000
94120-40800
94120-41000
94180-41000
94512-00800
94512-01000
94613-10800
