BU31-QRDHTY3 (1979)

Toyota Dyna

Production Apr 1979 - Aug 1980
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)

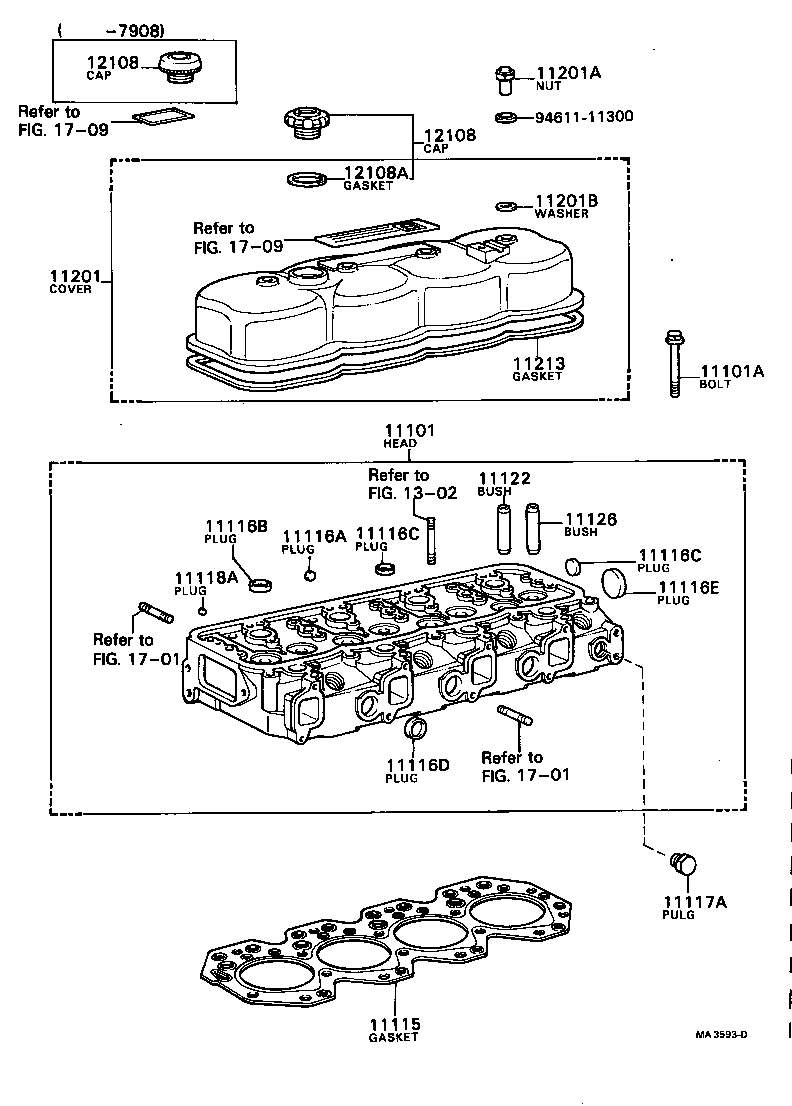

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116B 11116C 11116C 11116D 11116E 11117A 11118A 11122 11126 11201 11201A 11201B 11213 12108 12108 12108A 1302 1701 1701 1709 1709 9461111300
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-59045

B,2B..BU2#,3#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02046

B,2B,3B..BU2#,3#,4#,5#

*12-1.25PX119-25

 18
11115 - GASKET, CYLINDER HEAD
11115-56010

B,2B..BU2#,3#

 1
11116A - PLUG, TIGHT, NO.1
90331-11001

B,2B..BU2#,3#

OD=10.5

 4
11116B - PLUG, TIGHT, NO.2
96411-12500

B,2B,3B..BU2#,3#,4#,5#

OD=25

 4
11116C - PLUG, TIGHT, NO.3
90331-21039

B..BU2#,30

OD=21

 5
11116C - PLUG, TIGHT, NO.3
90331-21039

B..BU2#,30

OD=21

 5
11116D - PLUG, TIGHT, NO.4
96411-12800

B,2B,3B..BU2#,3#,4#,5#

OD=28

 3
11116E - PLUG, TIGHT, NO.5
90331-40024

B,2B,3B..BU2#,3#,4#,5#

OD=40

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54021

B..BU2#,30

 1
11118A - PLUG, STRAIGHT, NO.1
90043-34024

B,2B..BU2#,3#

 1
90334-07020

B,2B..BU2#,3#

L=3.5,OD=6.7

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-56020

B,2B,3B..BU2#,3#,4#,5#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-56020

B,2B,3B..BU2#,3#,4#,5#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11211-59025

B..BU2#,30

 1
11211-59036

B,2B..BU2#,3#

 1
11211-59035

2B..BU31

 1
11211-59027

B..BU2#,30

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
11295-46010

B,2B,3B..BU2#,3#,4#,5#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-12002

B,2B..BU2#,3#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-56010

B..BU2#,30

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

B,2B..BU2#,3#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

B,2B..BU2#,3#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

B,2B,3B..BU2#,3#,4#,5#

 1
Common parts
94611-11300
Linked diagrams
1302
1701
1709
