BU30-QRPT (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)T3..TS ; (7708-8008)BU30..TS

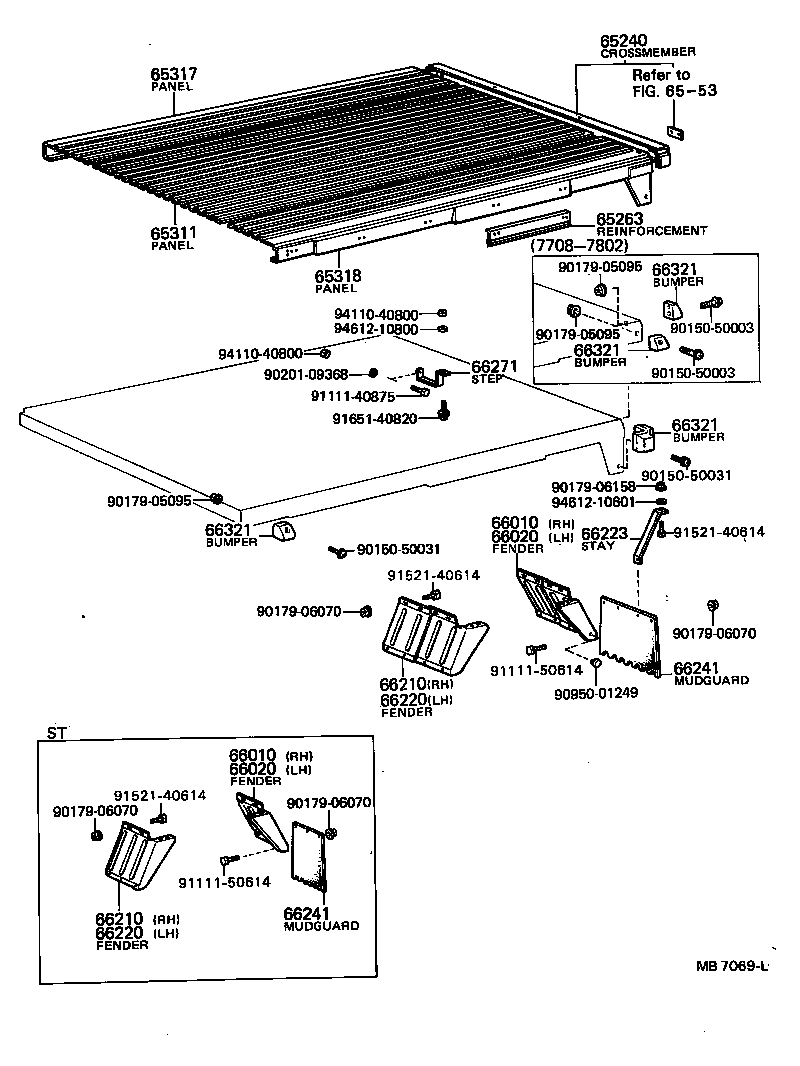

Click highlighted areas on diagram

diagram 65240 65263 65311 65317 65318 6553 66010 66010 66020 66020 66210 66210 66220 66220 66223 66241 66241 66271 66321 66321 66321 66321 9015050003 9015050003 9015050031 9015050031 9017905095 9017905095 9017905095 9017906070 9017906070 9017906070 9017906070 9017906158 9020109368 9095001249 9111140875 9111150614 9111150614 9152140614 9152140614 9152140614 9165140820 9411040800 9411040800 9461210601 9461210800
Part # Description Qty Price
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-95420

BU30..TS

 1
65311 - PANEL, FLOOR, CENTER
65311-95409

BU30..TS

 1
65317 - PANEL, FLOOR SIDE, RH
65317-95413

BU30..TS

 1
65318 - PANEL, FLOOR SIDE, LH
65318-95414

BU30..TS

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66203-95400

BU30..06S

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66203-95400

BU30..06S

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66204-95400

BU30..06S

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66204-95400

BU30..06S

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66201-95401

BU30..06S

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66201-95401

BU30..06S

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66202-95401

BU30..06S

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66202-95401

BU30..06S

 1
66223 - STAY, REAR FENDER REAR PLATE
66223-95407

BU30..TS

 2
66241 - MUDGUARD, REAR
66241-95401

BU30..TS

 2
66241 - MUDGUARD, REAR
66241-95401

BU30..TS

 2
66321 - BUMPER, GATE RUBBER
66321-95010

BU30..06S

TAIL GATE

 2
66321-95405

BU30..06S

SIDE GATE

 4
66321 - BUMPER, GATE RUBBER
66321-95010

BU30..06S

TAIL GATE

 2
66321-95405

BU30..06S

SIDE GATE

 4
66321 - BUMPER, GATE RUBBER
66321-95010

BU30..06S

TAIL GATE

 2
66321-95405

BU30..06S

SIDE GATE

 4
66321 - BUMPER, GATE RUBBER
66321-95010

BU30..06S

TAIL GATE

 2
66321-95405

BU30..06S

SIDE GATE

 4
Common parts
90150-50003
90150-50031
90179-05095
90179-06070
90179-06158
90201-09368
90950-01249
91111-40875
91111-50614
91521-40614
91651-40820
94110-40800
94612-10601
94612-10800
Linked diagrams
6553
