BU30-QRPDTY3 (1979)

Toyota Dyna

Production Apr 1979 - Apr 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )BU35,36,37,4#,5#

Click highlighted areas on diagram

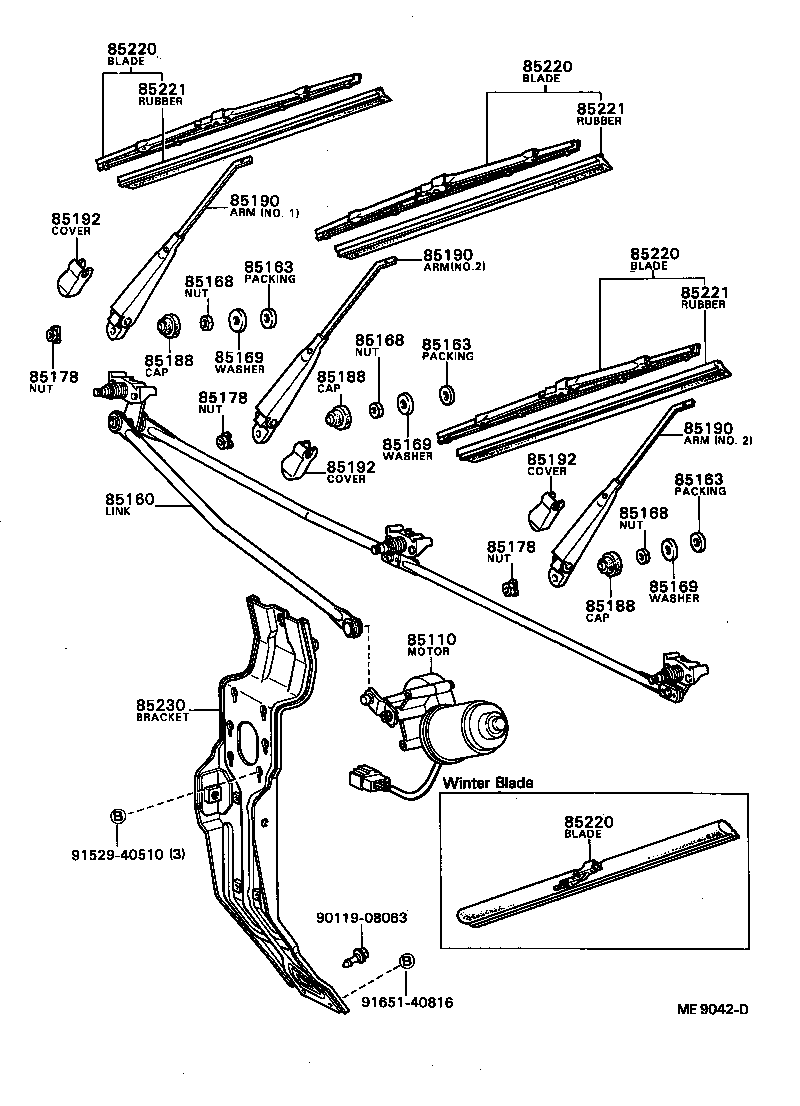

diagram 85110 85160 85163 85163 85163 85168 85168 85168 85169 85169 85169 85178 85178 85178 85188 85188 85188 85190 85190 85190 85192 85192 85192 85220 85220 85220 85220 85221 85221 85221 85230 9011908063 9152940510 9165140816
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-95418

BU2#,3#

24V

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-95405

BU2#,30,31,32,33,34

 1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-95A00

BU2#,30,31,32,33,34

 2
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-95A00

BU2#,30,31,32,33,34

 2
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-95A00

BU2#,30,31,32,33,34

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
90170-14004

BU2#,30,31,32,33,34

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
90170-14004

BU2#,30,31,32,33,34

 2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
90170-14004

BU2#,30,31,32,33,34

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95A00

BU2#,30,31,32,33,34

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95A00

BU2#,30,31,32,33,34

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95A00

BU2#,30,31,32,33,34

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90099-05129

BU2#,3#,4#,5#

 3
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90099-05129

BU2#,3#,4#,5#

 3
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90099-05129

BU2#,3#,4#,5#

 3
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95A00

BU2#,30,31,32,33,34

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95A00

BU2#,30,31,32,33,34

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95A00

BU2#,30,31,32,33,34

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95409

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85190-95406

BU2#,30..5H

SILVER

 2
85190-95409

BU20,30

BLACK

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95409

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85190-95406

BU2#,30..5H

SILVER

 2
85190-95409

BU20,30

BLACK

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95409

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85190-95406

BU2#,30..5H

SILVER

 2
85190-95409

BU20,30

BLACK

 2
85192 - COVER, WINDSHIELD WIPER ARM
85195-95401

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85195-95400

BU2#,30..5H

SILVER

 2
85192 - COVER, WINDSHIELD WIPER ARM
85195-95401

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85195-95400

BU2#,30..5H

SILVER

 2
85192 - COVER, WINDSHIELD WIPER ARM
85195-95401

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85195-95400

BU2#,30..5H

SILVER

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-30110

BU2#,3#,4#,5#

WINTER BLADE(COLD SPEC),DENSO

 3
85220-95A00

BU2#,30..5H

SILVER

 2
85220-95405

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85220-95407

BU20,3#

BLACK

 2
85220-95404

BU2#,3#

WINTER BLADE(COLD SPEC),TANAKA

 2
85220-95407

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-30110

BU2#,3#,4#,5#

WINTER BLADE(COLD SPEC),DENSO

 3
85220-95A00

BU2#,30..5H

SILVER

 2
85220-95405

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85220-95407

BU20,3#

BLACK

 2
85220-95404

BU2#,3#

WINTER BLADE(COLD SPEC),TANAKA

 2
85220-95407

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-30110

BU2#,3#,4#,5#

WINTER BLADE(COLD SPEC),DENSO

 3
85220-95A00

BU2#,30..5H

SILVER

 2
85220-95405

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85220-95407

BU20,3#

BLACK

 2
85220-95404

BU2#,3#

WINTER BLADE(COLD SPEC),TANAKA

 2
85220-95407

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-30110

BU2#,3#,4#,5#

WINTER BLADE(COLD SPEC),DENSO

 3
85220-95A00

BU2#,30..5H

SILVER

 2
85220-95405

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85220-95407

BU20,3#

BLACK

 2
85220-95404

BU2#,3#

WINTER BLADE(COLD SPEC),TANAKA

 2
85220-95407

BU25,3#;BU20..CTP;BU20..275;BU20..02S

BLACK

 2
85221 - BLADE, WINDSHIELD WIPER
85221-95A00

BU2#,3#

 3
85221 - BLADE, WINDSHIELD WIPER
85221-95A00

BU2#,3#

 3
85221 - BLADE, WINDSHIELD WIPER
85221-95A00

BU2#,3#

 3
85230 - BRACKET ASSY, WINDSHIELD WIPER
85109-95407

BU2#,30,31,32,33,34

 1
Common parts
90119-08063
91529-40510
91651-40816
