BU30-QRPDTY (1979)

Toyota Dyna

Production Apr 1979 - Apr 1982
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17172 17172 17172 17172 17173 17173 17173 17173 9004179052 9017908128 9165140814 9461110800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-56070

B,3B..BU20,3#

 1
17111-56030

B,2B..BU2#,3#

 1
17141 - MANIFOLD, EXHAUST
17141-56020

B,2B..BU2#,3#

 1
17141-56010

B..BU2#,30

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10029

B,2B..BU2#,3#

L=42,S=16&23

 2
90116-10055

B,3B..BU20,3#

L=40,S=17&17

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08118

B,2B..BU2#,3#

EXHAUST MANIFOLD

 8
92132-60822

B,3B..BU20,3#

INTAKE MANIFOLD

 8
92112-60822

B,2B..BU2#,3#

INTAKE MANIFOLD

 8
92122-61028

B,3B..BU20,3#

EXHAUST MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08118

B,2B..BU2#,3#

EXHAUST MANIFOLD

 8
92132-60822

B,3B..BU20,3#

INTAKE MANIFOLD

 8
92112-60822

B,2B..BU2#,3#

INTAKE MANIFOLD

 8
92122-61028

B,3B..BU20,3#

EXHAUST MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56010

B,2B..BU2#,3#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56020

B,3B..BU20,3#

 4
17172-56011

B,2B..BU2#,3#

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56020

B,3B..BU20,3#

 4
17172-56011

B,2B..BU2#,3#

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56020

B,3B..BU20,3#

 4
17172-56011

B,2B..BU2#,3#

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56020

B,3B..BU20,3#

 4
17172-56011

B,2B..BU2#,3#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

B,2B..BU2#,3#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

B,2B..BU2#,3#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

B,2B..BU2#,3#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

B,2B..BU2#,3#

 4
Common parts
90041-79052
90179-08128
91651-40814
94611-10800

(8008- )

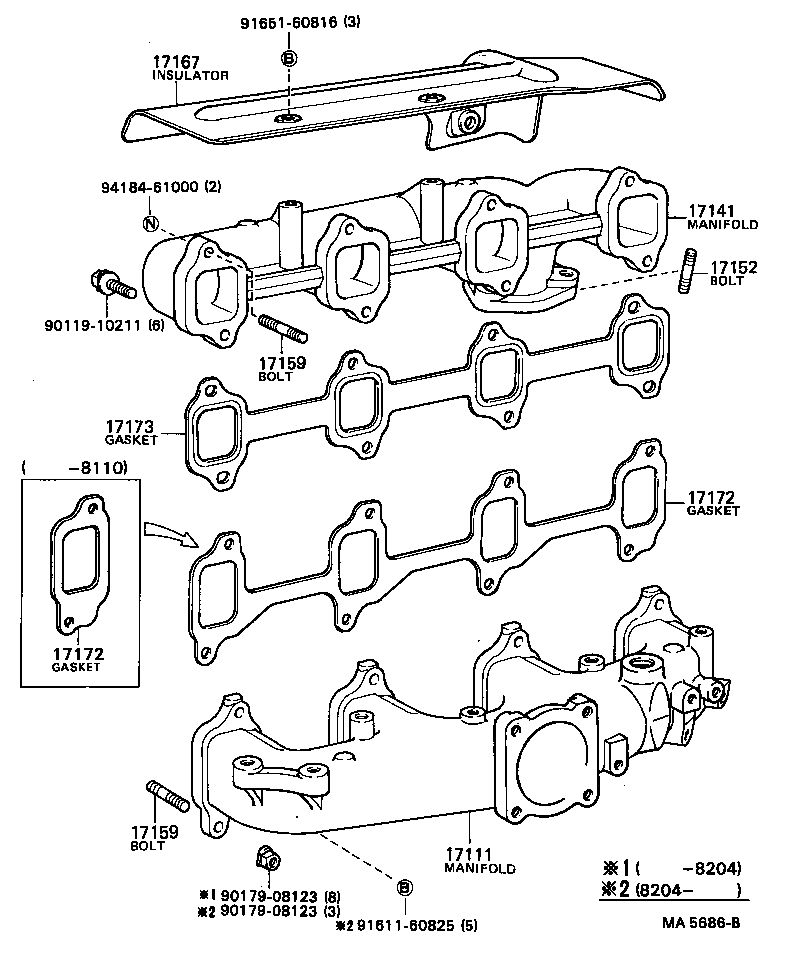

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17172 17172 17173 9011910211 9017908123 9017908123 9161160825 9165160816 9418461000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-56070

B,3B..BU20,3#

 1
17111-56030

B,2B..BU2#,3#

 1
17141 - MANIFOLD, EXHAUST
17141-56020

B,2B..BU2#,3#

 1
17141-56010

B..BU2#,30

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10029

B,2B..BU2#,3#

L=42,S=16&23

 2
90116-10055

B,3B..BU20,3#

L=40,S=17&17

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08118

B,2B..BU2#,3#

EXHAUST MANIFOLD

 8
92132-60822

B,3B..BU20,3#

INTAKE MANIFOLD

 8
92112-60822

B,2B..BU2#,3#

INTAKE MANIFOLD

 8
92122-61028

B,3B..BU20,3#

EXHAUST MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08118

B,2B..BU2#,3#

EXHAUST MANIFOLD

 8
92132-60822

B,3B..BU20,3#

INTAKE MANIFOLD

 8
92112-60822

B,2B..BU2#,3#

INTAKE MANIFOLD

 8
92122-61028

B,3B..BU20,3#

EXHAUST MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-56010

B,2B..BU2#,3#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56020

B,3B..BU20,3#

 4
17172-56011

B,2B..BU2#,3#

 4
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-56020

B,3B..BU20,3#

 4
17172-56011

B,2B..BU2#,3#

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-56010

B,2B..BU2#,3#

 4
Common parts
90119-10211
90179-08123
91611-60825
91651-60816
94184-61000
