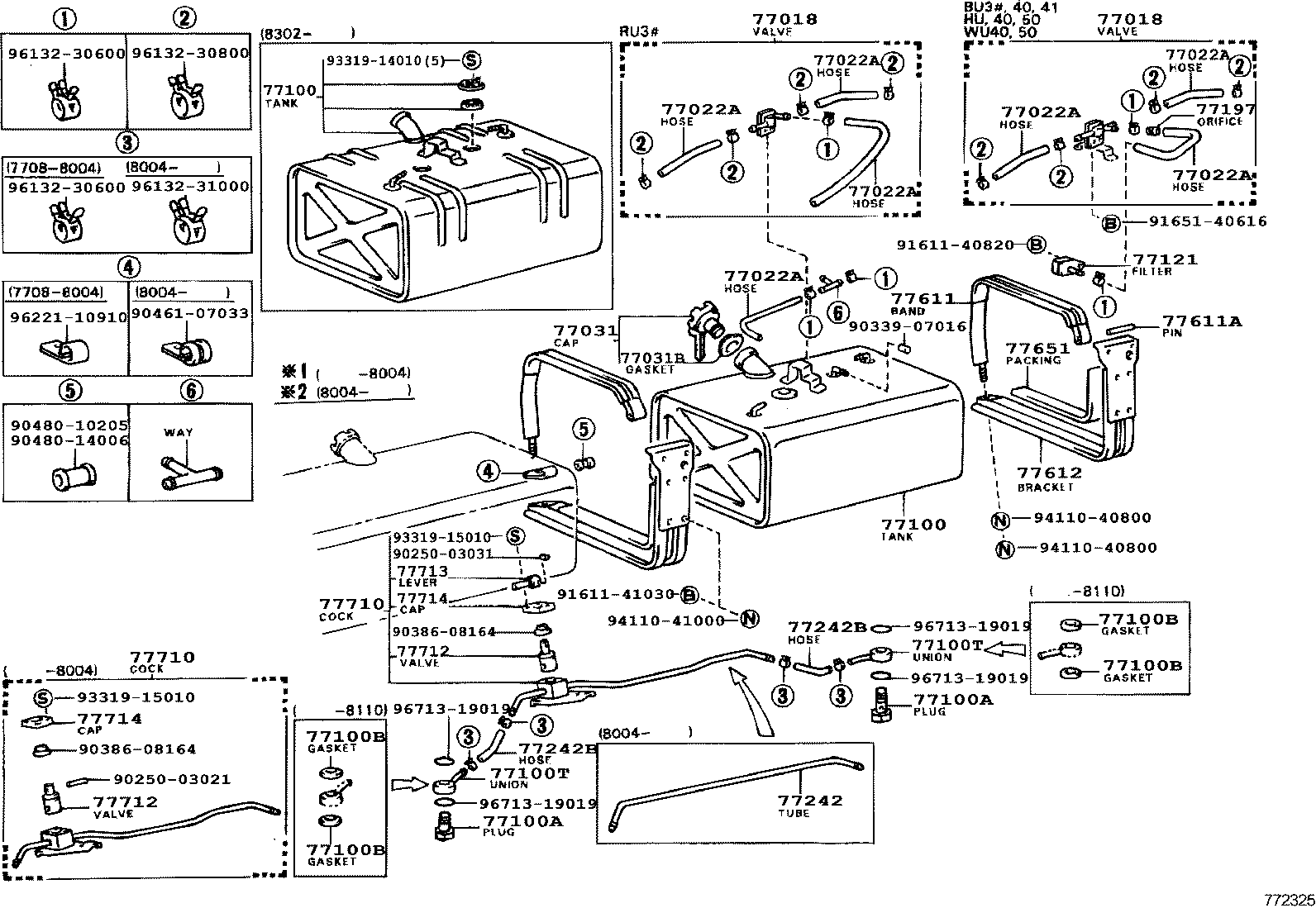

BU30-QRDT3 (1977)
Toyota Dyna
(7708- )BU30,36,37..T3 ; (7708- )BU31,32,34,35,40,41,5#..H50..03S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36071 |
BU30,36..T3;BU31,32,35,40,50..H50..03S FUEL SUB-TANK |
1 | ||
| 77018-36071 |
BU25,3#;BU20..T3..M50;BU20..DM3..CBU;BU20..BTP,CTP,DTP;BU20..(DM1,TB)..H50 |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36071 |
BU30,36..T3;BU31,32,35,40,50..H50..03S FUEL SUB-TANK |
1 | ||
| 77018-36071 |
BU25,3#;BU20..T3..M50;BU20..DM3..CBU;BU20..BTP,CTP,DTP;BU20..(DM1,TB)..H50 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
BU25,30;BU20..H50;BU20..T3..M50 *H,L=280,内径=7.6 |
2 | ||
| 95331-06034 |
BU2#,30 *H,L=340 |
1 | ||
| 95331-08028 |
BU30..TB *H,L=280,FUEL SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
BU25,30;BU20..H50;BU20..T3..M50 *H,L=280,内径=7.6 |
2 | ||
| 95331-06034 |
BU2#,30 *H,L=340 |
1 | ||
| 95331-08028 |
BU30..TB *H,L=280,FUEL SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
BU25,30;BU20..H50;BU20..T3..M50 *H,L=280,内径=7.6 |
2 | ||
| 95331-06034 |
BU2#,30 *H,L=340 |
1 | ||
| 95331-08028 |
BU30..TB *H,L=280,FUEL SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
BU25,30;BU20..H50;BU20..T3..M50 *H,L=280,内径=7.6 |
2 | ||
| 95331-06034 |
BU2#,30 *H,L=340 |
1 | ||
| 95331-08028 |
BU30..TB *H,L=280,FUEL SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
BU25,30;BU20..H50;BU20..T3..M50 *H,L=280,内径=7.6 |
2 | ||
| 95331-06034 |
BU2#,30 *H,L=340 |
1 | ||
| 95331-08028 |
BU30..TB *H,L=280,FUEL SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
BU25,30;BU20..H50;BU20..T3..M50 *H,L=280,内径=7.6 |
2 | ||
| 95331-06034 |
BU2#,30 *H,L=340 |
1 | ||
| 95331-08028 |
BU30..TB *H,L=280,FUEL SUB TANK |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
BU25,30;BU20..H50;BU20..T3..M50 *H,L=280,内径=7.6 |
2 | ||
| 95331-06034 |
BU2#,30 *H,L=340 |
1 | ||
| 95331-08028 |
BU30..TB *H,L=280,FUEL SUB TANK |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-95401 |
BU2#,3#,4#,50 |
1 | ||
| 69058-95401 |
BU30,36..T3;BU31,32,35,40,50..H50..03S FUEL SUB-TANK |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12031 |
BU2#,3#,4#,5# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36193 |
BU3#..T3,TW1 |
1 | ||
| 77001-36280 |
BU3#..T3 FUEL SUB-TANK |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36193 |
BU3#..T3,TW1 |
1 | ||
| 77001-36280 |
BU3#..T3 FUEL SUB-TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90401-12097 |
BU30..TB FUEL SUB TANK |
2 | ||
| 90105-12018 |
BU2#,3#,4# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90401-12097 |
BU30..TB FUEL SUB TANK |
2 | ||
| 90105-12018 |
BU2#,3#,4# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU2#,3#,4#,5# |
1 | ||
| 90430-12247 |
BU30..TB FUEL SUB-TANK |
4 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU2#,3#,4#,5# |
1 | ||
| 90430-12247 |
BU30..TB FUEL SUB-TANK |
4 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU2#,3#,4#,5# |
1 | ||
| 90430-12247 |
BU30..TB FUEL SUB-TANK |
4 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU2#,3#,4#,5# |
1 | ||
| 90430-12247 |
BU30..TB FUEL SUB-TANK |
4 | ||
| 77100T - UNION(FOR FUEL SUB-TANK) | ||||
| 90405-06167 |
BU30..TB FUEL SUB-TANK |
2 | ||
| 77100T - UNION(FOR FUEL SUB-TANK) | ||||
| 90405-06167 |
BU30..TB FUEL SUB-TANK |
2 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77243-36010 |
BU2#,3#,4#,5# |
1 | ||
| 77243-36010 |
BU30,31,32,34,35,36,37,40,41..T3 FUEL SUB-TANK |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
BU2#,3#,4#,5# |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-36110 |
BU3#..T3 FUEL SUB-TANK |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95331-06014 |
BU30..TB *H,L=140,FUEL SUB TANK |
2 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95331-06014 |
BU30..TB *H,L=140,FUEL SUB TANK |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36051 |
BU3#..T3 FUEL SUB-TANK |
2 | ||
| 77601-36051 |
BU20..H50;BU20..T3..M50;BU25,30..02S,03S |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BU30,36,37..T3;BU31,32,34,35,40,41,5#..H50..03S FUEL SUB-TANK |
2 | ||
| 77629-36010 |
BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,3#,4#,5#..02S,03S |
2 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77633-36090 |
BU30..T3;BU31,32,34,35,36,37,41,5#..H50..03S |
2 | ||
| 77633-36090 |
BU30,36,37..T3;BU31,32,34,35,40,41,5#..H50..03S FUEL SUB-TANK |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36050 |
BU30,36,37..T3;BU31,32,34,35,40,41,5#..H50..03S FUEL SUB-TANK |
2 | ||
| 77651-36050 |
BU30..T3;BU20..DTP;BU20..T3..M50;BU2#,31,35,36,4#,50..H50 |
2 | ||
| Common parts | ||||
| 90250-03021 | ||||
| 90250-03031 | ||||
| 90339-07016 | ||||
| 90386-08164 | ||||
| 90461-07033 | ||||
| 90480-10205 | ||||
| 90480-14006 | ||||
| 91611-40820 | ||||
| 91611-41030 | ||||
| 91651-40616 | ||||
| 93319-14010 | ||||
| 93319-15010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96132-31000 | ||||
| 96221-10910 | ||||
| 96713-19019 | ||||
ILLUST NO. 2 OF 2(7708-8302)BU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36380 |
BU30,31,32..02S,03S |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36380 |
BU30,31,32..02S,03S |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36380 |
BU30,31,32..02S,03S |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-36380 |
BU30,31,32..02S,03S |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08024 |
BU20,30 *H,L=240,内径=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,内径=7.6 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08024 |
BU20,30 *H,L=240,内径=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,内径=7.6 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08024 |
BU20,30 *H,L=240,内径=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,内径=7.6 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08024 |
BU20,30 *H,L=240,内径=7.6 |
1 | ||
| 95332-08024 |
BU2#,30 *H,L=240,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95337-08040 |
BU30..TB *H,L=320,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95337-08040 |
BU30..TB *H,L=320,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95337-08040 |
BU30..TB *H,L=320,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95337-08040 |
BU30..TB *H,L=320,内径=7.6 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-36110 |
BU3#..T3 FUEL SUB-TANK |
1 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 58266-36020 |
BU30;BU20..ST;BU20..T2;BU20..BTP,CTP |
1 | ||
| Common parts | ||||
| 90179-08001 | ||||
| 90461-08422 | ||||
| 90461-08557 | ||||
| 90461-10874 | ||||
| 90480-30207 | ||||
| 91611-40820 | ||||
| 91651-40820 | ||||
| 93590-16020 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 96132-30800 | ||||
| 96221-20908 | ||||
