BU30-QRDHTY3 (1979)

Toyota Dyna

Production Apr 1979 - Aug 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)

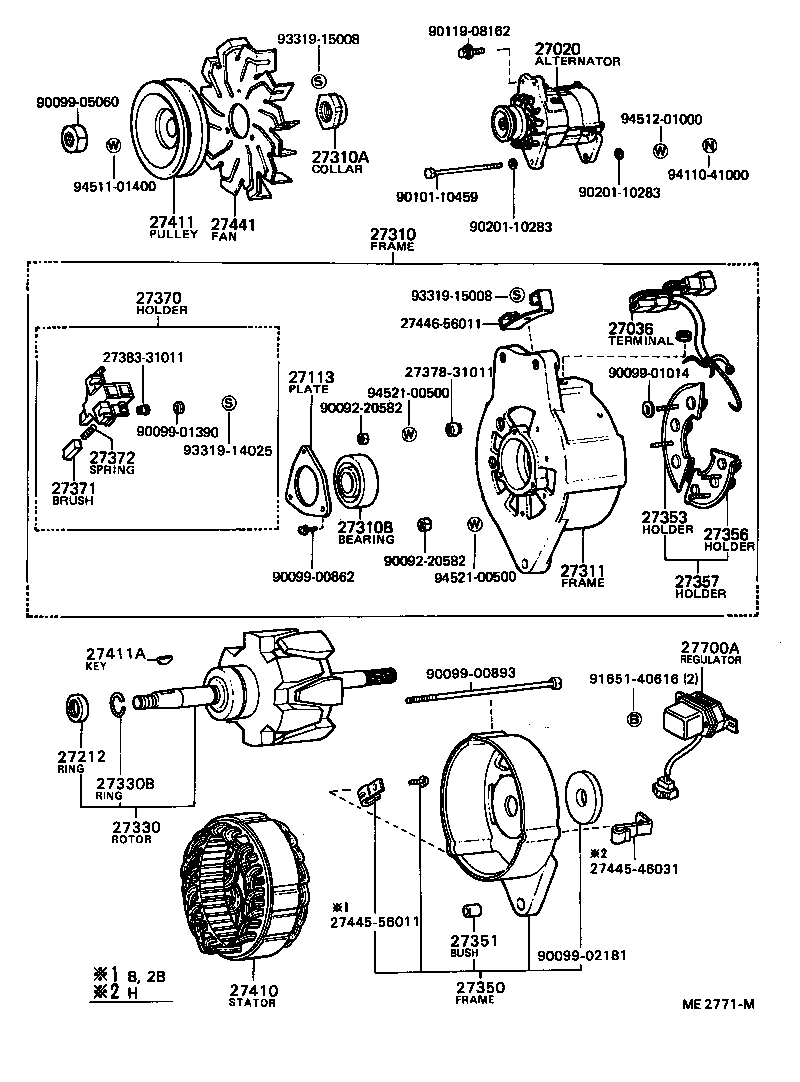

Click highlighted areas on diagram

diagram 27020 27036 27113 27212 27310 27310A 27310B 27311 27330 27330B 27350 27351 27353 27356 27357 27370 27371 27372 2737831011 2738331011 27410 27411 27411A 27441 2744546031 2744556011 2744656011 27700A 9009220582 9009220582 9009900862 9009900893 9009901014 9009901390 9009902181 9009905060 9010110459 9011908162 9020110283 9020110283 9165140616 9331914025 9331915008 9331915008 9411041000 9451101400 9451201000 9452100500 9452100500
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-56013

B,2B..BU2#,3#

24V 15A

 1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-56011

B,2B..BU2#,3#

24V 15A,20A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-56011

B,2B..BU2#,3#

24V 15A,20A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-56010

B,2B..BU2#,3#

24V 15A,20A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-56011

B,2B..BU2#,3#

24V 15A,20A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27314-56010

B,2B..BU2#,3#

24V 15A,20A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10082

B,2B..BU2#,3#

24V 15A,20A

 1
27311 - FRAME, ALTERNATOR DRIVE END
27311-56012

B,2B..BU2#,3#

24V 15A,20A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-56010

B,2B..BU2#,3#

24V 15A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07103

B,2B..BU2#,3#

24V 15A,20A

 1
27350 - FRAME ASSY, RECTIFIER END
27350-56013

B,2B..BU2#,3#

24V 15A,20A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-56011

B,2B..BU2#,3#

24V 15A,20A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-56010

B,2B..BU2#,3#

24V 15A,20A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-56011

B,2B..BU2#,3#

24V 15A,20A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-60080

B,2B..BU2#,3#

12V 35A,24V 15A,20A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

B,2B..BU2#,3#

12V 30A,35A,40A,24V 15A,20A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

B,2B..BU2#,3#

24V 15A,20A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-56010

B,2B..BU2#,3#

24V 15A

 1
27411 - PULLEY, ALTERNATOR
27411-56020

B,2B..BU2#,3#

24V 15A,20A

 1
27411A - KEY(FOR ALTERNATOR PULLEY)
90097-00465

B,2B..BU2#,3#

24V 15A,20A

 1
27441 - FAN, ALTERNATOR
27441-46031

B,2B..BU2#,3#

24V 15A,20A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-46020

B,2B..BU2#,3#

24V

 1
Common parts
27378-31011
27383-31011
27445-46031
27445-56011
27446-56011
90092-20582
90099-00862
90099-00893
90099-01014
90099-01390
90099-02181
90099-05060
90101-10459
90119-08162
90201-10283
91651-40616
93319-14025
93319-15008
94110-41000
94511-01400
94512-01000
94521-00500
