BU30-QRDHTY3 (1979)

Toyota Dyna

Production Apr 1979 - Aug 1980
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7904- )3B..BU23..BTP ; (7904- )B,3B..BU20,21..KKT..IV3 ; (7904- )B,3B..BU

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410C 17410E 17410F 17420X 17430 17430 17430A 17430B 17430C 17430C 17430E 17430E 17430H 17430J 9161140820 9161140820 9161140820 9161140850 9161160835 9411040800 9411040800 9412040800 9412040800 9418040800 9418040800 9418040800 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-56020

B..BU30..WT

W/EXHAUST BRAKE

 1
17410-56090

B,2B..BU3#

W/EXHAUST BRAKE

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-56020

B..BU30..WT

W/EXHAUST BRAKE

 1
17410-56090

B,2B..BU3#

W/EXHAUST BRAKE

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10114

B,2B..BU2#,3#

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10114

B,2B..BU2#,3#

 2
17410B - GASKET, EXHAUST PIPE
90917-06008

B,2B..BU2#,3#

 1
17410B - GASKET, EXHAUST PIPE
90917-06008

B,2B..BU2#,3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-56010

B..BU2#,30

 1
17571-56011

B,2B..BU2#,3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-56010

B..BU2#,30

 1
17571-56011

B,2B..BU2#,3#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04008

B..BU2#,30

 1
90917-04020

B,2B..BU2#,3#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90118-08045

B..BU2#,30

 1
90117-08017

B,2B..BU2#,3#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

B..BU30

RR

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-56100

B..BU30..WT

 1
17430-56090

B..BU30..WT

W/EXHAUST BRAKE

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-56100

B..BU30..WT

 1
17430-56090

B..BU30..WT

W/EXHAUST BRAKE

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17576-56010

B..BU20,30

MUFFLER SIDE

 1
17572-56050

B..BU30

FRAME SIDE

 1
17572-56070

B..BU30..WT

FRAME SIDE,W/EXHAUST BRAKE

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90540-14001

B..BU2#,30

 2
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
17578-56010

B..BU2#,30

 1
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
17578-56010

B..BU2#,30

 1
Common parts
91611-40820
91611-40850
91611-60835
94110-40800
94120-40800
94180-40800

(7904- )B,2B,3B..BU30,31,32,33,34..WT

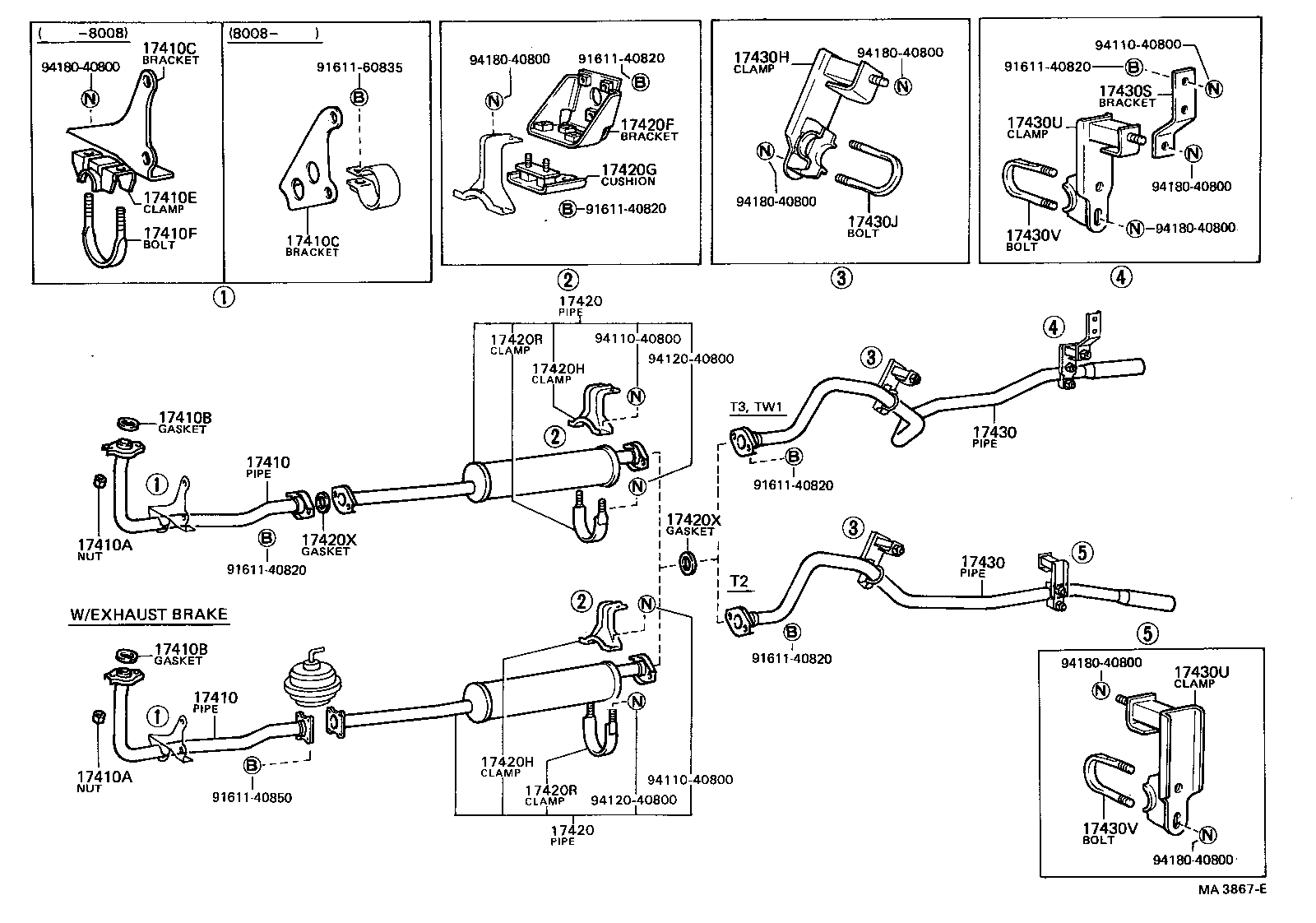

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410C 17410E 17410F 17420 17420 17420F 17420G 17420H 17420H 17420R 17420R 17420X 17420X 17430 17430 17430H 17430J 17430S 17430U 17430U 17430V 17430V 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140850 9161160835 9411040800 9411040800 9411040800 9412040800 9412040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-56020

B..BU30..WT

W/EXHAUST BRAKE

 1
17410-56090

B,2B..BU3#

W/EXHAUST BRAKE

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-56020

B..BU30..WT

W/EXHAUST BRAKE

 1
17410-56090

B,2B..BU3#

W/EXHAUST BRAKE

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10114

B,2B..BU2#,3#

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10114

B,2B..BU2#,3#

 2
17410B - GASKET, EXHAUST PIPE
90917-06008

B,2B..BU2#,3#

 1
17410B - GASKET, EXHAUST PIPE
90917-06008

B,2B..BU2#,3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-56010

B..BU2#,30

 1
17571-56011

B,2B..BU2#,3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-56010

B..BU2#,30

 1
17571-56011

B,2B..BU2#,3#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04008

B..BU2#,30

 1
90917-04020

B,2B..BU2#,3#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90118-08045

B..BU2#,30

 1
90117-08017

B,2B..BU2#,3#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

B..BU30

RR

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

B..BU30

RR

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-56100

B..BU30..WT

 1
17430-56090

B..BU30..WT

W/EXHAUST BRAKE

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-56100

B..BU30..WT

 1
17430-56090

B..BU30..WT

W/EXHAUST BRAKE

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17573-56070

B..BU30;B..BU20..T2

 1
Common parts
91611-40820
91611-40850
91611-60835
94110-40800
94120-40800
94180-40800
