BU30-QRDHT3 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

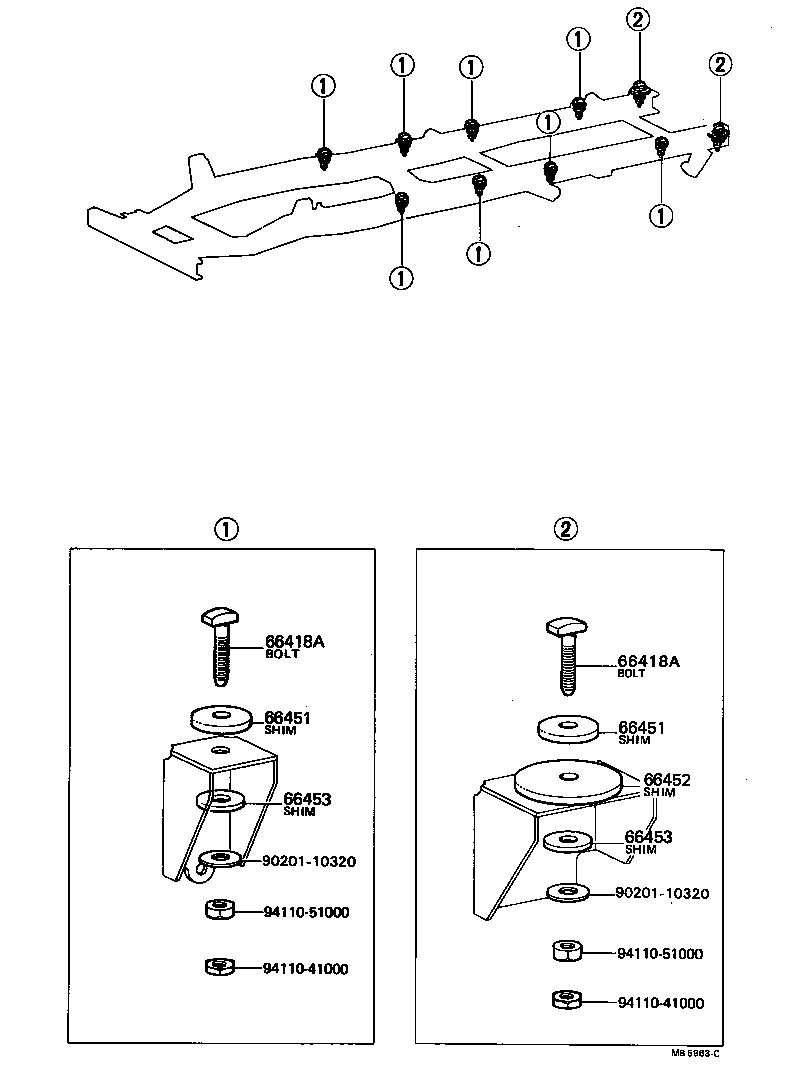

ILLUST NO. 2 OF 2(7708- )V

Click highlighted areas on diagram

diagram 66418A 66418A 66451 66451 66452 66453 66453 9020110320 9020110320 9411041000 9411041000 9411051000 9411051000
Part # Description Qty Price
Common parts
90201-10320
94110-41000
94110-51000

ILLUST NO. 1 OF 2(7708- )BU2#,30,31,32,33,34

Click highlighted areas on diagram

diagram 5151 51628 51629 51799 51799 52230 52261 52263 52264 58910 58910A 58911 9010512002 9010512002 9011910065 9011910065 9020112002 9020112002 9020112002 9020115005 9024010009 9046816012 9046816012 9111251460 9116171230 9411551200 9411551200 9451201400 9461111001 9461111001
Part # Description Qty Price
51628 - BRACKET, TORSION BAR, RH
51708-36010

BU2#,30,31,32,33,34

 1
51629 - BRACKET, TORSION BAR, LH
51709-36010

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,33,34..02S,03S

 1
51799 - SPACER, FRONT MOUNTING
51799-95400

BU2#,3#

 2
51799 - SPACER, FRONT MOUNTING
51799-95400

BU2#,3#

 2
52230 - BRACKET ASSY, FRONT MOUNTING
52220-95400

BU20..DTP;BU20..ST..20T;BU25,3#..02S,03S;BU20..(02S,03S)..WT

 1
52261 - BAR, TILT CAB TORSION
52261-95400

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S

 1
52263 - LEVER, TORSION BAR SPRING ANCHOR
52205-95400

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S

 1
52264 - COVER, TORSION BAR SPRING ANCHOR LEVER
52265-95400

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,34..02S,03S

 1
58910 - STAY ASSY, CAB
58910-95400

BU20..DTP;BU20..ST..20T;BU25,30,31..02S,03S;BU20..(02S,03S)..WT

 1
58910A - PIN, W/HOLE (FOR CAB STAY SETTING)
90240-10008

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S

 1
58911 - BRACKET, TILT CAB STAY
58066-95400

BU20,21,22,23,36,37..20T,275,30T;BU30,31,32,33,34,35,4#,5#..02S,03S

 1
Common parts
90105-12002
90119-10065
90201-12002
90201-15005
90240-10009
90468-16012
91112-51460
91161-71230
94115-51200
94512-01400
94611-11001
Linked diagrams
5151

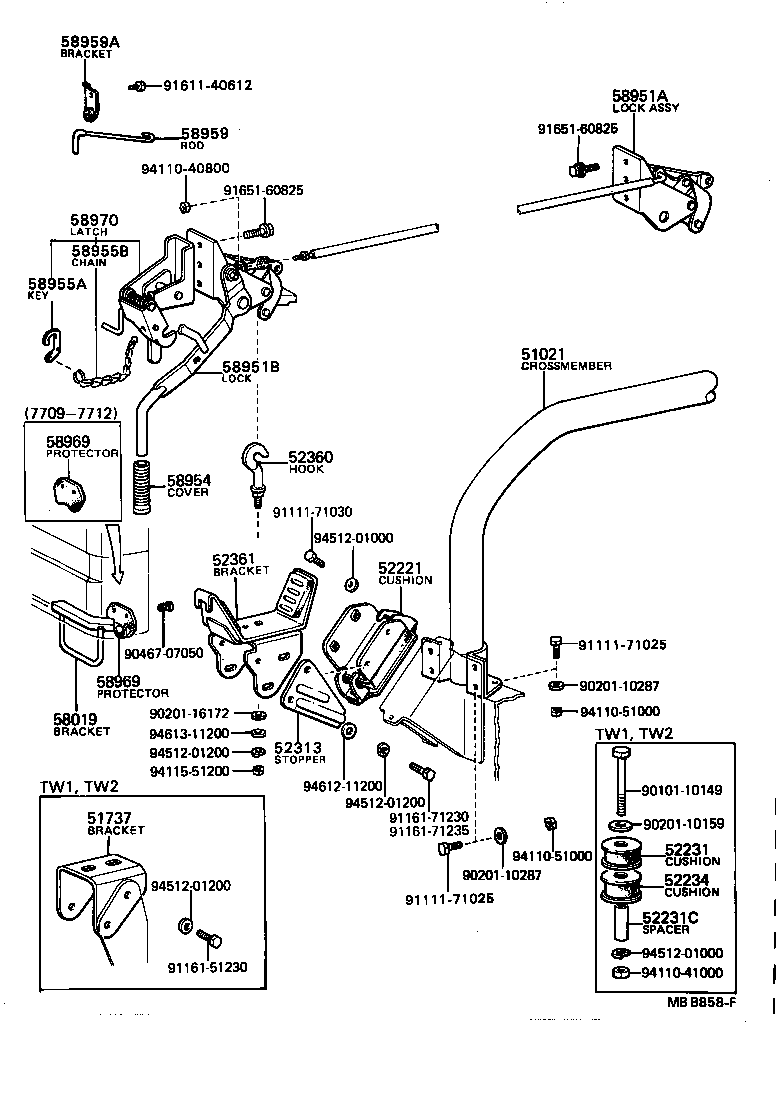

ILLUST NO. 2 OF 2(7708- )DM1,DM3,DM4,TB,TS

Click highlighted areas on diagram

diagram 51021 51737 52221 52231 52231C 52234 52313 52360 52361 58019 58951A 58951B 58954 58955A 58955B 58959 58959A 58969 58969 58970 9010110149 9020110159 9020110287 9020110287 9020116172 9046707050 9111171025 9111171025 9111171030 9116151230 9116171230 9116171235 9161140612 9165160825 9165160825 9411040800 9411041000 9411051000 9411051000 9411551200 9451201000 9451201000 9451201200 9451201200 9451201200 9461211200 9461311200
Part # Description Qty Price
51021 - CROSS MEMBER SUB-ASSY, FRAME AUXILIARY
51021-36010

BU20,30..T3

 1
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-36020

BU30,31,32,33,34,35,4#,5#;BU20,21,22,23,36,37..DM1,DM3,DM4,TB,TS

 2
52361 - BRACKET, CAB MOUNTING HOOK
52307-36010

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,30,31,32,33,35,36,37,4#,5#..02S,03S

RH

 1
52306-36010

BU20,30..(DMP,TR)..(02S,03S)

LH

 1
58019 - BRACKET SUB-ASSY, CAB TILT GRIP
58019-95400

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S

 1
58951A - LOCK ASSY, CAB REAR MOUNTING, RH
58940-95401

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,30,31,32,33,34..02S,03S

 1
58951B - LOCK ASSY, CAB REAR MOUNTING, LH
58950-95402

BU30..TB

W/OVER FENDER

 1
58950-95401

BU20..DTP;BU23..BTP;BU23..20T,275;BU22..20T..CBU;BU20,21..KKT,TSK;BU22..(02S,03S)..IV3;BU20,21,30,31,32,33,34..TR..(02S,03S)

 1
58954 - COVER, REAR LOCK HANDLE GRIP
58954-95400

BU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S

 1
58955A - KEY, REAR LOCK HANDLE
58955-95400

BU20,21,22,23,3#,40,41..20T,25T,275,30T,35T

 1
58955B - CHAIN
90950-02016

BU20,21,22,23,3#,40,41..20T,25T,275,30T,35T

 1
58959 - ROD, REAR LOCK, HANDLE LATCH
58959-95401

BU30..TB

W/OVER FENDER

 1
58969 - PROTECTOR, SAFETY LATCH HAND
58969-95400

BU20,30..(DMP,TR)..(02S,03S)

 1
58969 - PROTECTOR, SAFETY LATCH HAND
58969-95400

BU20,30..(DMP,TR)..(02S,03S)

 1
58970 - LATCH ASSY, BACK LOWER SAFETY
58970-95401

BU20,30..(DMP,TR)..(02S,03S)

 1
58970-95404

BU30..TB

W/OVER FENDER

 1
Common parts
90101-10149
90201-10159
90201-10287
90201-16172
90467-07050
91111-71025
91111-71030
91161-51230
91161-71230
91161-71235
91611-40612
91651-60825
94110-40800
94110-41000
94110-51000
94115-51200
94512-01000
94512-01200
94612-11200
94613-11200
