BU30-QRDHT3 (1977)
Toyota Dyna
(7708-7904)BU30 ; (7904- )BU3#,4#,5#

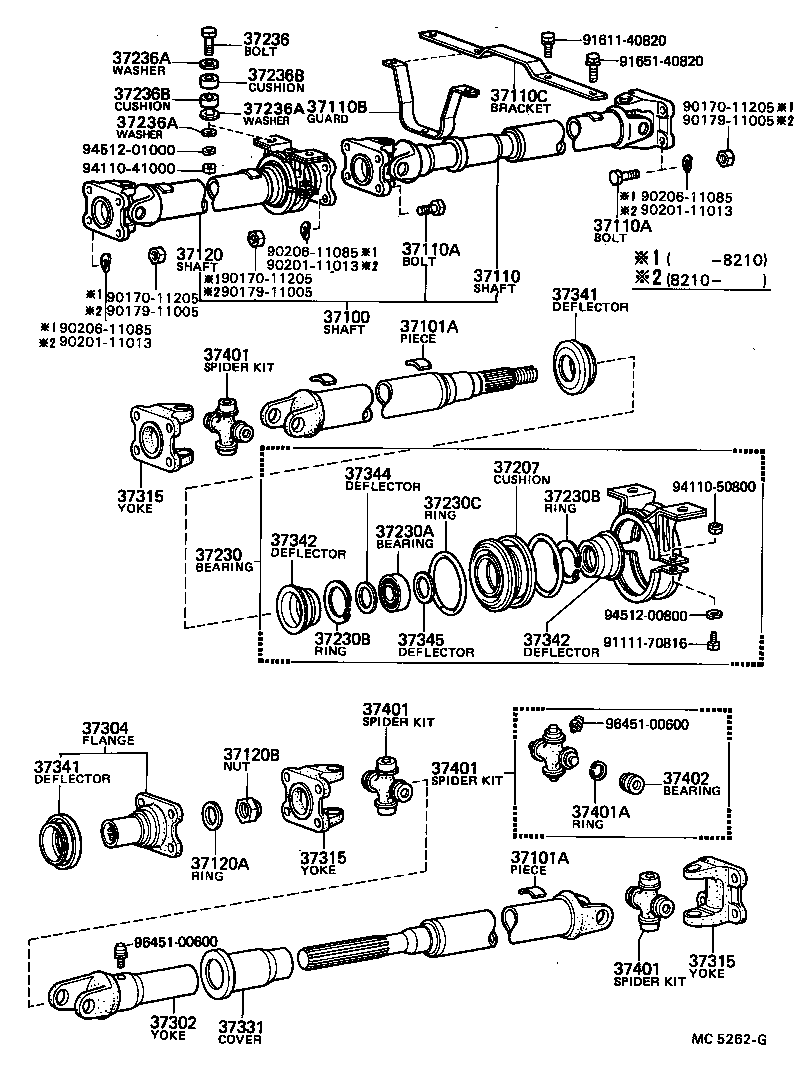

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-36140 |
BU30..WT |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01140 |
BU2#,3#,4#,5# 30G,長さ=62.2,30G |
1 | ||
| 90937-01132 |
BU2#,3#,4#,5# 10G,長さ=20.7,10G |
1 | ||
| 90937-01149 |
BU2#,3#,4#,5# 6G,長さ=12.4,6G |
1 | ||
| 90937-01152 |
BU2#,3#,4#,5# 14G,長さ=29.0,14G |
1 | ||
| 90937-01153 |
BU2#,3#,4#,5# 16G,長さ=33.2,16G |
1 | ||
| 90937-01148 |
BU2#,3#,4#,5# 4G,厚さ=2.0,4G |
1 | ||
| 90937-01154 |
BU2#,3#,4#,5# 18G,長さ=37.3,18G |
1 | ||
| 90937-01147 |
BU2#,3#,4#,5# 2G,厚さ=2.0,2G |
1 | ||
| 90937-01151 |
BU2#,3#,4#,5# 12G,長さ=24.9,12G |
1 | ||
| 90937-01156 |
BU2#,3#,4#,5# 24G,長さ=49.7,24G |
1 | ||
| 90937-01136 |
BU2#,3#,4#,5# 20G,長さ=41.4,20G |
1 | ||
| 90937-01150 |
BU2#,3#,4#,5# 8G,長さ=16.6,8G |
1 | ||
| 90937-01157 |
BU2#,3#,4#,5# 26G,長さ=53.9,26G |
1 | ||
| 90937-01155 |
BU2#,3#,4#,5# 22G,長さ=45.6,22G |
1 | ||
| 90937-01158 |
BU2#,3#,4#,5# 28G,長さ=58.1,28G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01140 |
BU2#,3#,4#,5# 30G,長さ=62.2,30G |
1 | ||
| 90937-01132 |
BU2#,3#,4#,5# 10G,長さ=20.7,10G |
1 | ||
| 90937-01149 |
BU2#,3#,4#,5# 6G,長さ=12.4,6G |
1 | ||
| 90937-01152 |
BU2#,3#,4#,5# 14G,長さ=29.0,14G |
1 | ||
| 90937-01153 |
BU2#,3#,4#,5# 16G,長さ=33.2,16G |
1 | ||
| 90937-01148 |
BU2#,3#,4#,5# 4G,厚さ=2.0,4G |
1 | ||
| 90937-01154 |
BU2#,3#,4#,5# 18G,長さ=37.3,18G |
1 | ||
| 90937-01147 |
BU2#,3#,4#,5# 2G,厚さ=2.0,2G |
1 | ||
| 90937-01151 |
BU2#,3#,4#,5# 12G,長さ=24.9,12G |
1 | ||
| 90937-01156 |
BU2#,3#,4#,5# 24G,長さ=49.7,24G |
1 | ||
| 90937-01136 |
BU2#,3#,4#,5# 20G,長さ=41.4,20G |
1 | ||
| 90937-01150 |
BU2#,3#,4#,5# 8G,長さ=16.6,8G |
1 | ||
| 90937-01157 |
BU2#,3#,4#,5# 26G,長さ=53.9,26G |
1 | ||
| 90937-01155 |
BU2#,3#,4#,5# 22G,長さ=45.6,22G |
1 | ||
| 90937-01158 |
BU2#,3#,4#,5# 28G,長さ=58.1,28G |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-36201 |
BU30,31 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-11468 |
BU2#,3#,4#,50 |
8 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-11468 |
BU2#,3#,4#,50 |
8 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-36050 |
BU30..WT |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-36130 |
BU30..WT |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-20005 |
BU30 外径=33.5,厚さ=4.0 |
1 | ||
| 90201-20329 |
BU30 外径=34 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-20061 |
BU30 |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37207-35011 |
BU3#,4#,5# |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-36020 |
BU30 |
1 | ||
| 37230A - BEARING, NO.1 (FOR CENTER SUPPORT) | ||||
| 90363-30029 |
BU3#,4#,5# |
1 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BU3#,4#,5# |
2 | ||
| 37230B - RING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90521-66077 |
BU3#,4#,5# |
2 | ||
| 37230C - RING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION) | ||||
| 90522-97013 |
BU30 |
2 | ||
| 37236 - BOLT, CENTER SUPPORT BEARING HOUSING | ||||
| 37236-36020 |
BU3# |
2 | ||
| 37236A - WASHER, PLATE (FOR CENTER SUPPORT BEARING HOUSING) | ||||
| 94613-11400 |
BU30 |
2 | ||
| 37236A - WASHER, PLATE (FOR CENTER SUPPORT BEARING HOUSING) | ||||
| 94613-11400 |
BU30 |
2 | ||
| 37236A - WASHER, PLATE (FOR CENTER SUPPORT BEARING HOUSING) | ||||
| 94613-11400 |
BU30 |
2 | ||
| 37236B - CUSHION (FOR CENTER SUPPORT BEARING HOUSING) | ||||
| 90540-14001 |
BU3#,4#,51 |
4 | ||
| 37236B - CUSHION (FOR CENTER SUPPORT BEARING HOUSING) | ||||
| 90540-14001 |
BU3#,4#,51 |
4 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-36010 |
BU2#,3#,4#,5# |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-36020 |
BU30 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36010 |
BU2#,3#,4#,5# |
3 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36010 |
BU2#,3#,4#,5# |
3 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36010 |
BU2#,3#,4#,5# |
3 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37305-25010 |
BU2#,3# |
1 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-36010 |
BU3#,4#,5# |
2 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-36010 |
BU3#,4#,5# |
2 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BU3#,4#,5# |
2 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-36010 |
BU3#,4#,5# |
2 | ||
| 37344 - DEFLECTOR, PROPELLER SHAFT DUST, NO.3 | ||||
| 37344-35010 |
BU3#,4#,5# |
1 | ||
| 37345 - DEFLECTOR, PROPELLER SHAFT DUST, NO.4 | ||||
| 37345-35010 |
BU3#,4#,5# |
1 | ||
| 37401 - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-36021 |
BU2#,3#,4#,5# |
3 | ||
| 37401 - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-36021 |
BU2#,3#,4#,5# |
3 | ||
| 37401 - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-36021 |
BU2#,3#,4#,5# |
3 | ||
| 37401 - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-36021 |
BU2#,3#,4#,5# |
3 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29286 |
BU2#,3#,4#,5# 厚さ=1.50,T=1.50 |
12 | ||
| 90520-29288 |
BU2#,3#,4#,5# 厚さ=1.59,T=1.59 |
12 | ||
| 90520-29287 |
BU2#,3#,4#,5# 厚さ=1.56,T=1.56 |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36060 |
BU2#,3#,4#,5# |
12 | ||
| Common parts | ||||
| 90170-11205 | ||||
| 90179-11005 | ||||
| 90201-11013 | ||||
| 90206-11085 | ||||
| 91111-70816 | ||||
| 91611-40820 | ||||
| 91651-40820 | ||||
| 94110-41000 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 96451-00600 | ||||
