BU30-QRDHT3 (1977)

Toyota Dyna

Production Aug 1977 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(7708-8204)B,2B,3B..BU20,3#..HRF,SRF,T1,T2,T3,TW1,TW2 ; (7712-8204)B..BU20..DMP

Click highlighted areas on diagram

diagram 17700F 17706 17706 17706 17741 17741 17742 17742 17768 17768 17768 1777295400 1777295400 17805 17848 17861 17881 17881 17881A 17881A 17881A 17882 17882A 17882A 17884 17884A 17884A 9010908025 9010908025 9011908171 9015940089 9015950105 9017908040 9021006023 9161160820 9165140816 9356055014 9427100600 9461211200 9461211200
Part # Description Qty Price
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17701-95401

B..BU20,30..TR,V

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17701-95401

B..BU20,30..TR,V

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17701-95401

B..BU20,30..TR,V

 1
17768 - COVER, AIR CLEANER INLET
17767-95404

B..BU20,30..TR,V

 1
17767-95404

B..BU2#,30

 1
17768 - COVER, AIR CLEANER INLET
17767-95404

B..BU20,30..TR,V

 1
17767-95404

B..BU2#,30

 1
17768 - COVER, AIR CLEANER INLET
17767-95404

B..BU20,30..TR,V

 1
17767-95404

B..BU2#,30

 1
17861 - CONNECTOR, INTAKE AIR
17805-56010

B,2B..BU2#,3#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-56040

B..BU20,30..TR,V

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-56040

B..BU20,30..TR,V

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

B,2B,3B..BU2#,3#

ID=78

 1
96111-10670

B..BU20,30..TR,V

ID=67

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

B,2B,3B..BU2#,3#

ID=78

 1
96111-10670

B..BU20,30..TR,V

ID=67

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

B,2B,3B..BU2#,3#

ID=78

 1
96111-10670

B..BU20,30..TR,V

ID=67

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-56040

B..BU20,30..TR,V

 1
17882-56040

B..BU2#,30

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

B..BU20,30..TR,V

ID=78

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

B..BU20,30..TR,V

ID=78

 2
17884 - HOSE, AIR CLEANER, NO.4
17883-95400

B..BU20,30..TR,V

 1
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
96111-10780

B..BU20,30..TR,V

 2
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
96111-10780

B..BU20,30..TR,V

 2
Common parts
17772-95400
90109-08025
90119-08171
90159-40089
90159-50105
90179-08040
90210-06023
91611-60820
91651-40816
93560-55014
94271-00600
94612-11200

ILLUST NO. 2 OF 2(7708-8008)B,2B..BU20,3#..HRF,SRF,T1,T2,T3,TW1,TW2

Click highlighted areas on diagram

diagram 17706 17706 17706 17741 17741 17742 17742 17768 17768 17768 1777295400 1777295400 17806 17861 17881 17881 17881A 17881A 17882 17882A 17882A 17883 17883A 17883A 17884 17884A 17884A 9010908025 9010908025 9011908171 9015940089 9015950105 9161160820 9161160820 9356055014 9411040800 9461211200 9461211200
Part # Description Qty Price
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17701-95401

B..BU20,30..TR,V

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17701-95401

B..BU20,30..TR,V

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17701-95401

B..BU20,30..TR,V

 1
17768 - COVER, AIR CLEANER INLET
17767-95404

B..BU20,30..TR,V

 1
17767-95404

B..BU2#,30

 1
17768 - COVER, AIR CLEANER INLET
17767-95404

B..BU20,30..TR,V

 1
17767-95404

B..BU2#,30

 1
17768 - COVER, AIR CLEANER INLET
17767-95404

B..BU20,30..TR,V

 1
17767-95404

B..BU2#,30

 1
17861 - CONNECTOR, INTAKE AIR
17805-56010

B,2B..BU2#,3#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-56040

B..BU20,30..TR,V

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-56040

B..BU20,30..TR,V

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

B,2B,3B..BU2#,3#

ID=78

 1
96111-10670

B..BU20,30..TR,V

ID=67

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

B,2B,3B..BU2#,3#

ID=78

 1
96111-10670

B..BU20,30..TR,V

ID=67

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-56040

B..BU20,30..TR,V

 1
17882-56040

B..BU2#,30

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

B..BU20,30..TR,V

ID=78

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

B..BU20,30..TR,V

ID=78

 2
17884 - HOSE, AIR CLEANER, NO.4
17883-95400

B..BU20,30..TR,V

 1
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
96111-10780

B..BU20,30..TR,V

 2
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
96111-10780

B..BU20,30..TR,V

 2
Common parts
17772-95400
90109-08025
90119-08171
90159-40089
90159-50105
91611-60820
93560-55014
94110-40800
94612-11200

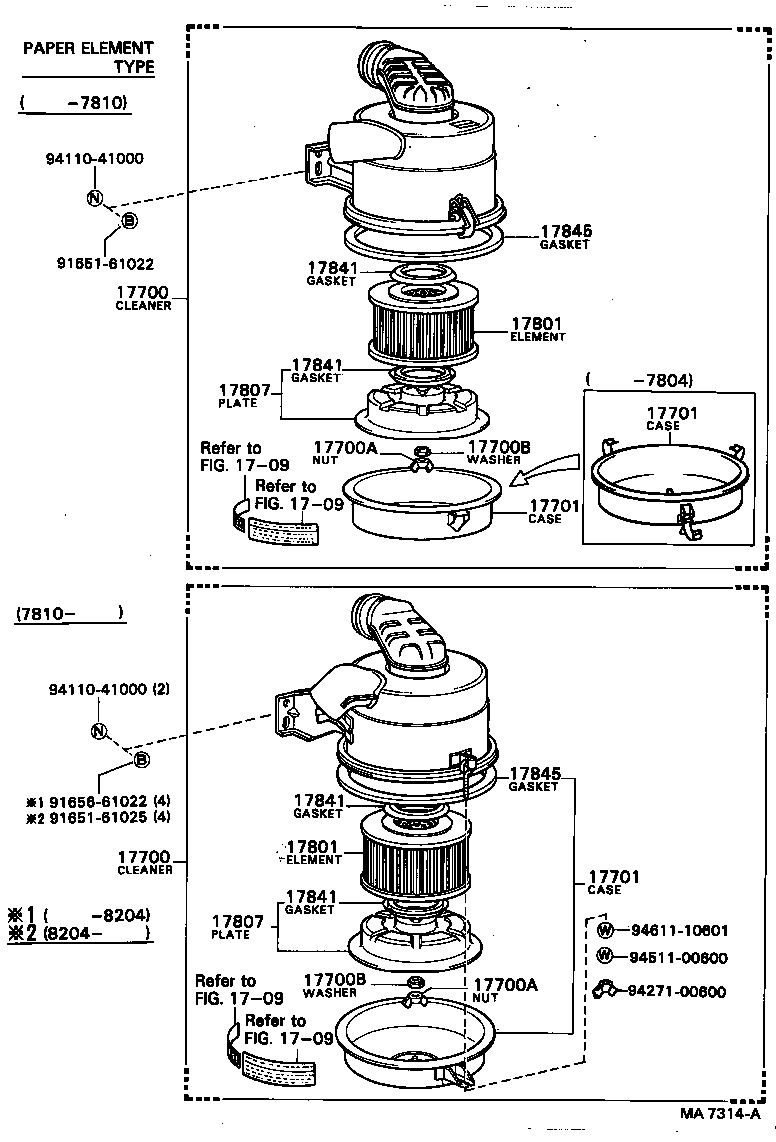

ILLUST NO. 1 OF 2(7708- )B,2B,3B..BU20,30,31,32,33,34,35,40,41; (7708- )B,3B..BU21,22,23,36,3

Click highlighted areas on diagram

diagram 1709 1709 1709 1709 17700 17700 17700A 17700A 17700B 17700B 17701 17701 17701 17801 17801 17807 17807 17841 17841 17841 17841 17845 17845 9165161022 9165161025 9165661022 9411041000 9411041000 9427100600 9451100600 9461110601
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-56160

B..BU20,30..HRF,SRF,T1,T2,T3,TW1

 1
17700 - CLEANER ASSY, AIR
17700-56160

B..BU20,30..HRF,SRF,T1,T2,T3,TW1

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

B,2B,3B..BU2#,3#,45,46

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

B,2B,3B..BU2#,3#,45,46

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08004

B,2B,3B..BU2#,3#,45,46

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08004

B,2B,3B..BU2#,3#,45,46

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-48070

B..BU2#,30

 1
17701-56140

B..BU2#,30

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-48070

B..BU2#,30

 1
17701-56140

B..BU2#,30

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-48070

B..BU2#,30

 1
17701-56140

B..BU2#,30

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-48011

B,2B,3B..BU2#,3#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-48011

B,2B,3B..BU2#,3#

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-56010

B,2B..BU2#,3#

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-56010

B,2B..BU2#,3#

 1
17841 - GASKET, FILTER ELEMENT
17841-56010

B,2B..BU2#,3#

 2
17841 - GASKET, FILTER ELEMENT
17841-56010

B,2B..BU2#,3#

 2
17841 - GASKET, FILTER ELEMENT
17841-56010

B,2B..BU2#,3#

 2
17841 - GASKET, FILTER ELEMENT
17841-56010

B,2B..BU2#,3#

 2
17845 - GASKET, AIR CLEANER CAP
17845-56020

B,2B,3B..BU2#,3#,45,46

 1
17845 - GASKET, AIR CLEANER CAP
17845-56020

B,2B,3B..BU2#,3#,45,46

 1
Common parts
91651-61022
91651-61025
91656-61022
94110-41000
94271-00600
94511-00600
94611-10601
Linked diagrams
1709
