BU30-QRD (1977)
Toyota Dyna

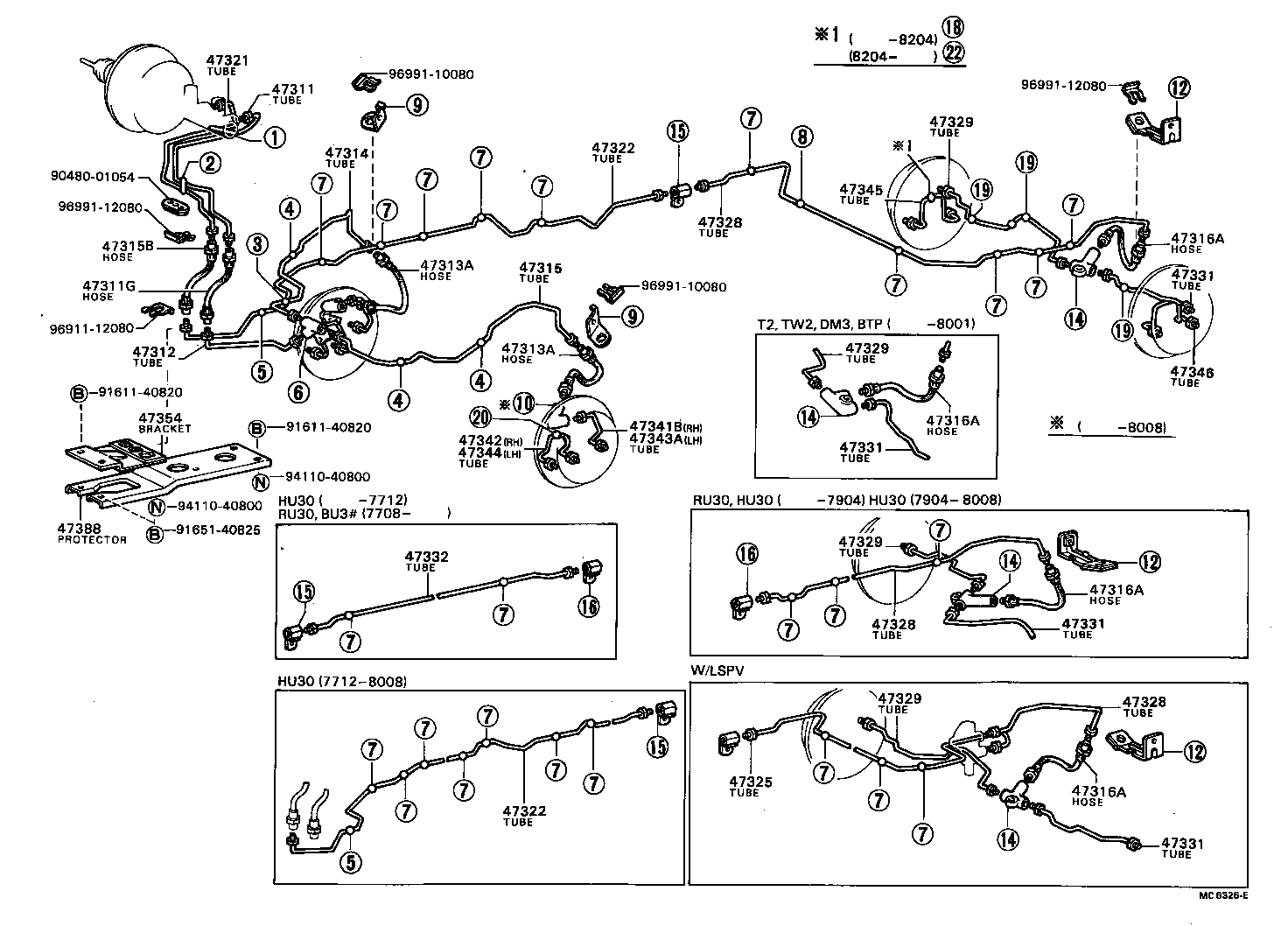

ILLUST NO. 1 OF 3(7708-8008)BU30..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36200 |
BU2#,30,31 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-31223 |
BU2#,30 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36150 |
BU2#,30,31,32,33,34 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-31363 |
BU2#,30 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-31363 |
BU2#,30 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36120 |
BU2#,30,31,32,33,34 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36120 |
BU2#,30,31,32,33,34 |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-31223 |
BU2#,30 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-31363 |
BU20,30..ST |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-31363 |
BU20,30..ST |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-31363 |
BU20,30..ST |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36100 |
BU2#,30,31 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36010 |
BU3#;BU20..ST;BU20..T2,TW2 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36040 |
BU20,22,30..ST W/LSPV |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36100 |
BU30..ST W/O LSPV |
1 | ||
| 47328-36120 |
BU20,30..ST W/LSPV |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36100 |
BU30..ST W/O LSPV |
1 | ||
| 47328-36120 |
BU20,30..ST W/LSPV |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36100 |
BU30..ST W/O LSPV |
1 | ||
| 47328-36120 |
BU20,30..ST W/LSPV |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-36010 |
BU20,30..ST |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-36010 |
BU20,30..ST |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-36010 |
BU20,30..ST |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36040 |
BU20,30..ST |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36040 |
BU20,30..ST |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36040 |
BU20,30..ST |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36050 |
BU3# |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36050 |
BU3# |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36010 |
BU20..ST;BU30..M50;BU20..T2,TW2 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36020 |
BU20..ST;BU20..T2,TW2;BU22,30,33,35,36,37..H51,M50 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36010 |
BU20..ST;BU30..M50;BU20..T2,TW2 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-36020 |
BU20..ST;BU20..T2,TW2;BU22,30,33,35,36,37..H51,M50 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36010 |
BU20,30..ST |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36010 |
BU20,30..ST |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-36010 |
BU2#,30,31,32,33,34 |
1 | ||
| 47388 - PROTECTOR, BRAKE TUBE, LOWER | ||||
| 47388-36010 |
BU2#,30,31,32 |
1 | ||
| Common parts | ||||
| 90480-01054 | ||||
| 91611-40820 | ||||
| 91651-40825 | ||||
| 94110-40800 | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
ILLUST NO. 3 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-36020 |
BU20..ST;BU20..T2;BU30..M50 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-36020 |
BU20..T2;BU20,30..ST |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BU20..T2;BU20,30..ST |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BU20..T2;BU20,30..ST |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
BU20..T2;BU20,30..ST |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BU20..T2;BU20,30..ST |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BU20..T2;BU20,30..ST |
2 | ||
| 47920K - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-35010 |
BU20..T2;BU20,30..ST |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-36030 |
BU20..T2;BU20,30..ST |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-36030 |
BU30..M50;BU20..DTP;BU20..DM3,TS;BU20..TB..ST;BU20..HRF,SRF,T2,TW2 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-36030 |
BU30..M50;BU20..DTP;BU20..DM3,TS;BU20..TB..ST;BU20..HRF,SRF,T2,TW2 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
BU20..T2;BU20,30..ST |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
BU20..T2;BU20,30..ST |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
BU20..T2;BU20,30..ST |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
BU20..T2;BU20,30..ST |
2 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
BU20..T2;BU20,30..ST |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-26010 |
BU20..T2;BU20,30..ST |
1 | ||
| Common parts | ||||
| 91131-50840 | ||||
| 91611-40816 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
ILLUST NO. 1 OF 3(7708- )DM3 ; (7708- )BTP,CTP,FTP ; (7708-)BU30,31,32,33,34..WT ; (7708-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36200 |
BU2#,30,31 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-31223 |
BU2#,30 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36150 |
BU2#,30,31,32,33,34 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-31363 |
BU2#,30 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-31363 |
BU2#,30 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36120 |
BU2#,30,31,32,33,34 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36120 |
BU2#,30,31,32,33,34 |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-31223 |
BU2#,30 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-31363 |
BU20,30..ST |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-31363 |
BU20,30..ST |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-31363 |
BU20,30..ST |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-31363 |
BU20,30..ST |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36100 |
BU2#,30,31 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36010 |
BU3#;BU20..ST;BU20..T2,TW2 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36010 |
BU3#;BU20..ST;BU20..T2,TW2 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36040 |
BU20,22,30..ST W/LSPV |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36100 |
BU30..ST W/O LSPV |
1 | ||
| 47328-36120 |
BU20,30..ST W/LSPV |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36100 |
BU30..ST W/O LSPV |
1 | ||
| 47328-36120 |
BU20,30..ST W/LSPV |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-36100 |
BU30..ST W/O LSPV |
1 | ||
| 47328-36120 |
BU20,30..ST W/LSPV |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-36010 |
BU20,30..ST |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-36010 |
BU20,30..ST |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-36010 |
BU20,30..ST |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-36010 |
BU20,30..ST |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36040 |
BU20,30..ST |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36040 |
BU20,30..ST |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36040 |
BU20,30..ST |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-36040 |
BU20,30..ST |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-36050 |
BU3# |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36010 |
BU20..ST;BU30..M50;BU20..T2,TW2 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36020 |
BU20..ST;BU20..T2,TW2;BU22,30,33,35,36,37..H51,M50 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36010 |
BU20..ST;BU30..M50;BU20..T2,TW2 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-36020 |
BU20..ST;BU20..T2,TW2;BU22,30,33,35,36,37..H51,M50 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36010 |
BU20,30..ST |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36010 |
BU20,30..ST |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-36010 |
BU2#,30,31,32,33,34 |
1 | ||
| 47388 - PROTECTOR, BRAKE TUBE, LOWER | ||||
| 47388-36010 |
BU2#,30,31,32 |
1 | ||
| Common parts | ||||
| 90480-01054 | ||||
| 91611-40820 | ||||
| 91651-40825 | ||||
| 94110-40800 | ||||
| 96911-12080 | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
ILLUST NO. 2 OF 3(7708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10040 |
BU2#,30,31,32,33,34 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12054 |
BU2#,3#,4#,5# |
1 | ||
| 47321E - GROMMET(FOR REAR BRAKE TUBE) | ||||
| 90480-08343 |
BU2#,3# |
4 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90412-12054 |
BU30 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10001 |
BU30..M50 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10001 |
BU30..M50 |
1 | ||
| 47341C - WAY(FOR WHEEL CYLINDER FRONT RH TUBE) | ||||
| 90412-10037 |
BU2#,3# |
1 | ||
| 47343B - WAY(FOR WHEEL CYLINDER FRONT LH TUBE) | ||||
| 90412-10043 |
BU2#,3# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36050 |
BU2#,30,31,32,33,34 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-36050 |
BU2#,30,31,32,33,34 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-36080 |
BU20,3# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90461-06009 | ||||
| 90461-06178 | ||||
| 90461-06487 | ||||
| 90461-08058 | ||||
| 90461-10076 | ||||
| 90461-10625 | ||||
| 90461-12124 | ||||
| 90462-10033 | ||||
| 90480-01047 | ||||
| 90480-08343 | ||||
| 90949-01006 | ||||
| 90949-01019 | ||||
| 90949-01034 | ||||
| 90949-01035 | ||||
| 91611-40812 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91611-60614 | ||||
| 91615-41040 | ||||
| 91616-40820 | ||||
| 91651-40820 | ||||
| 91651-60614 | ||||
| 91661-40614 | ||||
| 94110-40800 | ||||
| 96221-20905 | ||||
| 96221-20906 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
