BU30-MRDTY3 (1979)
Toyota Dyna
Production
Apr 1979
-
Aug 1980
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708-8008)BU30..TS ; (7708- )BU30,31,32,34,35,36,37..T3

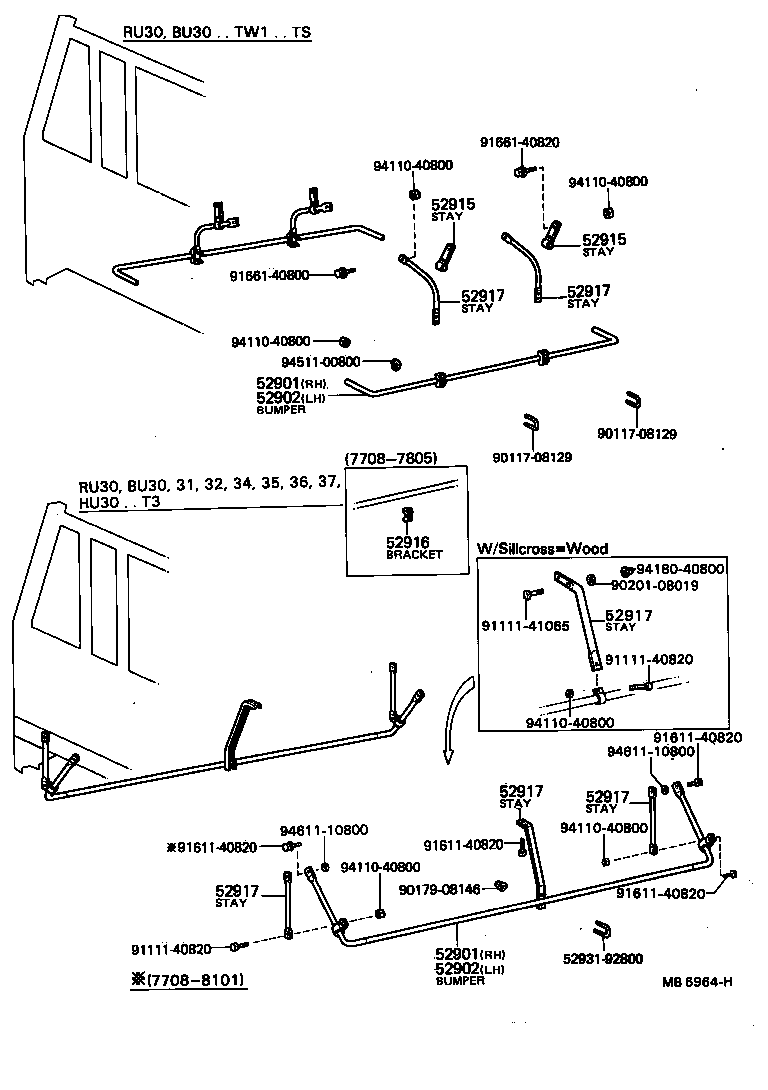

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52901 - BUMPER SUB-ASSY, SIDE, RH NO.1 | ||||
| 52901-92800 |
BU30..TB |
1 | ||
| 52901-92801 |
BU3#..T3 |
1 | ||
| 52901 - BUMPER SUB-ASSY, SIDE, RH NO.1 | ||||
| 52901-92800 |
BU30..TB |
1 | ||
| 52901-92801 |
BU3#..T3 |
1 | ||
| 52902 - BUMPER SUB-ASSY, SIDE, LH NO.1 | ||||
| 52902-92800 |
BU30..TB |
1 | ||
| 52902-92801 |
BU3#..T3 |
1 | ||
| 52902 - BUMPER SUB-ASSY, SIDE, LH NO.1 | ||||
| 52902-92800 |
BU30..TB |
1 | ||
| 52902-92801 |
BU3#..T3 |
1 | ||
| 52917 - STAY, SIDE BUMPER CENTER, NO.1 | ||||
| 52923-92801 |
BU3#..(T3,TW1)..TB RR |
2 | ||
| 52921-92800 |
BU30..TB FR |
2 | ||
| 52923-92800 |
BU30..TB RR |
2 | ||
| 52922-92800 |
BU30..TB CTR |
2 | ||
| 52917 - STAY, SIDE BUMPER CENTER, NO.1 | ||||
| 52921-92800 |
BU30..TB FR |
2 | ||
| 52923-92800 |
BU30..TB RR |
2 | ||
| 52922-92800 |
BU30..TB CTR |
2 | ||
| 52923-92801 |
BU3#..(T3,TW1)..TB RR |
2 | ||
| 52917 - STAY, SIDE BUMPER CENTER, NO.1 | ||||
| 52921-92800 |
BU30..TB FR |
2 | ||
| 52923-92800 |
BU30..TB RR |
2 | ||
| 52922-92800 |
BU30..TB CTR |
2 | ||
| 52923-92801 |
BU3#..(T3,TW1)..TB RR |
2 | ||
| 52917 - STAY, SIDE BUMPER CENTER, NO.1 | ||||
| 52921-92800 |
BU30..TB FR |
2 | ||
| 52923-92800 |
BU30..TB RR |
2 | ||
| 52922-92800 |
BU30..TB CTR |
2 | ||
| 52923-92801 |
BU3#..(T3,TW1)..TB RR |
2 | ||
| 52917 - STAY, SIDE BUMPER CENTER, NO.1 | ||||
| 52923-92801 |
BU3#..(T3,TW1)..TB RR |
2 | ||
| 52921-92800 |
BU30..TB FR |
2 | ||
| 52923-92800 |
BU30..TB RR |
2 | ||
| 52922-92800 |
BU30..TB CTR |
2 | ||
| 52917 - STAY, SIDE BUMPER CENTER, NO.1 | ||||
| 52923-92801 |
BU3#..(T3,TW1)..TB RR |
2 | ||
| 52921-92800 |
BU30..TB FR |
2 | ||
| 52923-92800 |
BU30..TB RR |
2 | ||
| 52922-92800 |
BU30..TB CTR |
2 | ||
| Common parts | ||||
| 52931-92800 | ||||
| 90117-08129 | ||||
| 90179-08146 | ||||
| 90201-08019 | ||||
| 91111-40820 | ||||
| 91111-41065 | ||||
| 91611-40820 | ||||
| 91661-40800 | ||||
| 91661-40820 | ||||
| 94110-40800 | ||||
| 94180-40800 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||
