BU25D-QRTU3 (1978)
Toyota Dyna
(7708-8008) ; (8204- )TS..20T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

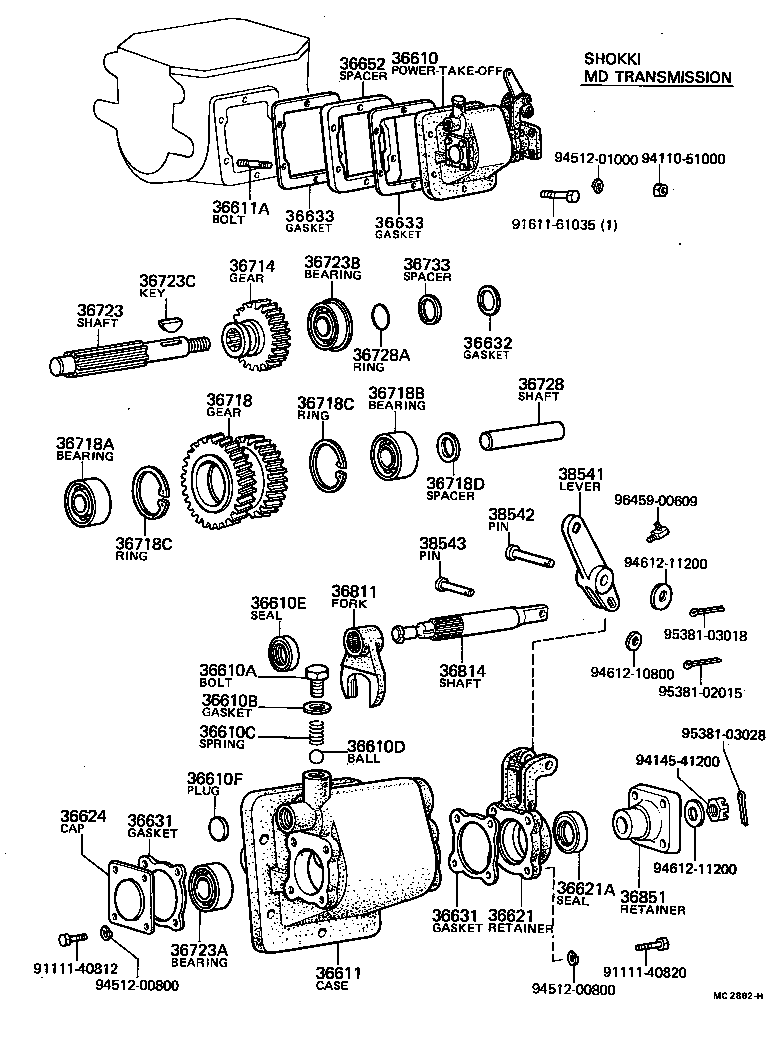

| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-93111 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 38552-93003 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36610B - GASKET, SEAT (FOR POWER TAKE-OFF) | ||||
| 90430-12001 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP 厚さ=0.5,KYOKUTO |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90501-18001 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-10001 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-20001 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKTO |
1 | ||
| 36611 - CASE, POWER TAKE-OFF | ||||
| 36611-93102 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| 36621-93100 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-20002 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-93100 |
BU20..TSK;BU25,30..WT;BU20..T3..WT;BU20..BTP,CTP;BU20..KKT..ATP KYOKUTO |
1 | ||
| 36632-93100 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36632-93100 |
BU20..TSK;BU25,30..WT;BU20..T3..WT;BU20..BTP,CTP;BU20..KKT..ATP KYOKUTO |
1 | ||
| 36632-93100 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36633 - GASKET, POWER TAKE-OFF | ||||
| 36633-93101 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO,W/POWER TAKE-OFF,T=0.5 |
1 | ||
| 36633-93110 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO,W/POWER TAKE-OFF,T=1.0 |
1 | ||
| 36633 - GASKET, POWER TAKE-OFF | ||||
| 36633-93101 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO,W/POWER TAKE-OFF,T=0.5 |
1 | ||
| 36633-93110 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO,W/POWER TAKE-OFF,T=1.0 |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-93102 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-93102 |
BU25,30..WT SHOKKI |
1 | ||
| 36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT) | ||||
| 97100-06304 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36718B - BEARING(FOR POWER TAKE-OFF IDLER GEAR REAR) | ||||
| 97330-07304 |
BU25,30..WT;BU20..H50..IV3;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP |
1 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90521-56108 |
BU25,30..WT;BU20..H50..IV3;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP |
1 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90521-56108 |
BU25,30..WT;BU20..H50..IV3;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP |
1 | ||
| 36718D - SPACER(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 38525-93001 |
BU25,30..WT KYOKUTO |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| 36723-93102 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 97100-06304 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36723B - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97100-06304 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| 90280-07002 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-93102 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36728A - RING, O (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 96710-02016 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP |
2 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-93102 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-93111 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-93100 |
BU25,30..WT;BU20..H50..IV3;BU20..KKT..CBU;BU20..TB..H50..CBU;BU20..T3..03S..WT..ATP KYOKUTO |
1 | ||
| Common parts | ||||
| 91111-40812 | ||||
| 91111-40820 | ||||
| 91611-61035 | ||||
| 94110-51000 | ||||
| 94145-41200 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| 94612-11200 | ||||
| 95381-02015 | ||||
| 95381-03018 | ||||
| 95381-03028 | ||||
| 96459-00609 | ||||
