BU25D-QRTU3 (1978)

Toyota Dyna

Production Mar 1978 - Apr 1979
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)

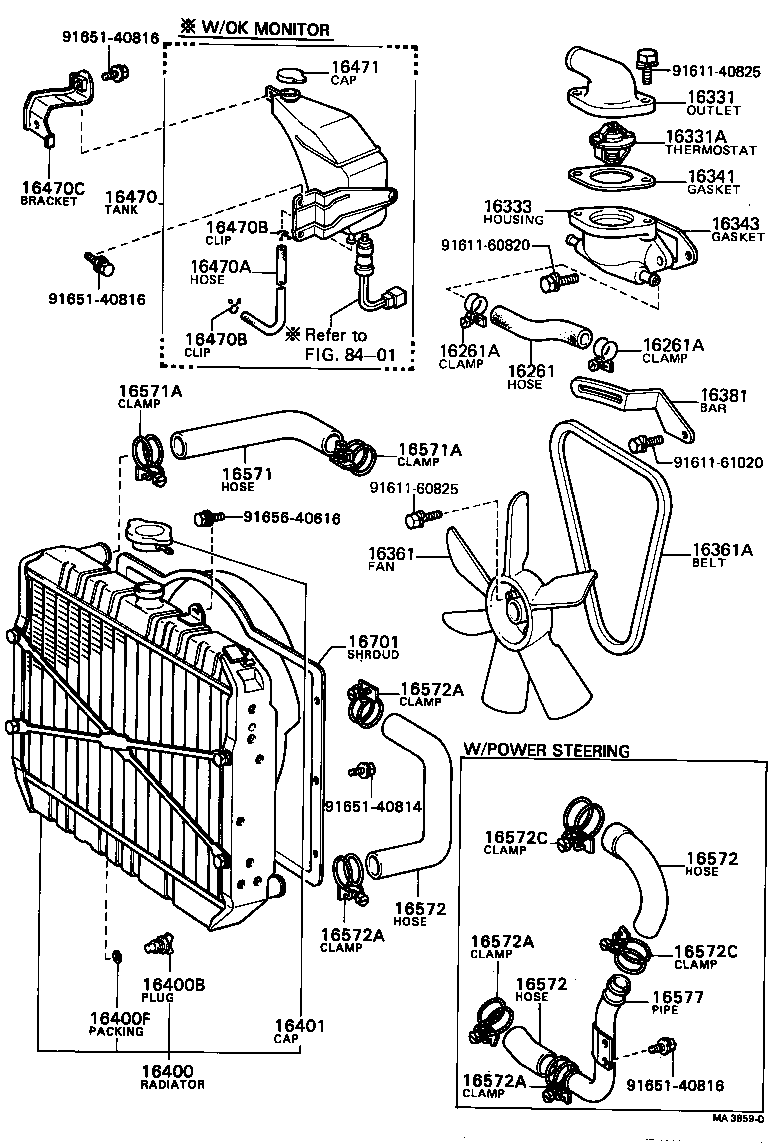

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16331 16331A 16333 16341 16343 16361 16361A 16381 16400 16400B 16400F 16401 16470 16470A 16470B 16470B 16470C 16471 16571 16571A 16571A 16572 16572 16572 16572A 16572A 16572A 16572A 16572C 16572C 16577 16701 8401 9161140825 9161160820 9161160825 9161161020 9165140814 9165140816 9165140816 9165140816 9165640616
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-56011

B,2B,3B..BU2#,3#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-60053

B,2B,3B..BU2#,3#,4#,5#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90044-60053

B,2B,3B..BU2#,3#,4#,5#

 2
16331 - OUTLET, WATER
16331-56010

B,2B..BU2#,3#

 1
16331A - THERMOSTAT
90916-03039

B,2B,3B..BU2#,3#

*WAX 82−95,*(N)

 1
16333 - HOUSING, WATER OUTLET
16333-56011

B..BU2#,30

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-56012

B,2B..BU2#,3#

 1
16361 - FAN
16361-56040

B,3B..BU2#,30,35,36

W/COOLER,6 BLADES,OD=410

 1
16361-56030

B..BU20,25,30

6 BLADES,OD=380

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99523-11176

B..BU2#,30

 1
99323-01175

B..BU2#,30

 1
16381 - BAR, FAN BELT ADJUSTING
16381-56020

B,2B..BU2#,3#

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

B,2B,3B..BU2#,3#,4#,5#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

B,2B,3B..BU2#,3#,4#,5#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-41020

B..BU2#,30

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-56080

B,2B..BU2#,3#

W/OK MONITOR

 1
16470-56070

B,2B..BU2#,3#

W/O 0K MONITOR

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12005

B,2B..BU2#,3#

*H,L=550

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B,2B,3B..BU2#,3#,4#,5#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

B,2B,3B..BU2#,3#,4#,5#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16611-56020

B,2B,3B..BU2#,30,31,32,33,34

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-34030

B,2B,3B..BU2#,3#,4#,5#

 1
16571 - HOSE, RADIATOR, INLET
16571-56020

B,2B..BU2#,3#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-50016

B,2B,3B..BU2#,3#,4#,5#

ID=50

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-50016

B,2B,3B..BU2#,3#,4#,5#

ID=50

 2
16572 - HOSE, RADIATOR, OUTLET
16572-56030

B..BU20,22,25,30,33

 1
16572 - HOSE, RADIATOR, OUTLET
16572-56030

B..BU20,22,25,30,33

 1
16572 - HOSE, RADIATOR, OUTLET
16572-56030

B..BU20,22,25,30,33

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

B,2B,3B..BU2#,30,31,32,35

W/PS,ID=50

 2
90460-50016

B,2B,3B..BU2#,3#,4#,5#

RADIATOR SIDE

 1
96111-10560

B,2B,3B..BU2#,3#,4#,5#

WATER PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

B,2B,3B..BU2#,30,31,32,35

W/PS,ID=50

 2
90460-50016

B,2B,3B..BU2#,3#,4#,5#

RADIATOR SIDE

 1
96111-10560

B,2B,3B..BU2#,3#,4#,5#

WATER PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

B,2B,3B..BU2#,30,31,32,35

W/PS,ID=50

 2
90460-50016

B,2B,3B..BU2#,3#,4#,5#

RADIATOR SIDE

 1
96111-10560

B,2B,3B..BU2#,3#,4#,5#

WATER PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-50016

B,2B,3B..BU2#,30,31,32,35

W/PS,ID=50

 2
90460-50016

B,2B,3B..BU2#,3#,4#,5#

RADIATOR SIDE

 1
96111-10560

B,2B,3B..BU2#,3#,4#,5#

WATER PUMP SIDE

 1
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
90460-50016

B,2B,3B..BU2#,30,31,32,35

WATER PUMP SIDE

 1
96111-10560

B,2B,3B..BU2#,30,31,32,35

PIPE SIDE

 1
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
90460-50016

B,2B,3B..BU2#,30,31,32,35

WATER PUMP SIDE

 1
96111-10560

B,2B,3B..BU2#,30,31,32,35

PIPE SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16701-56050

B..BU2#,30

 1
16701-56060

B..BU2#,30

W/COOLER

 1
Common parts
91611-40825
91611-60820
91611-60825
91611-61020
91651-40814
91651-40816
91656-40616
